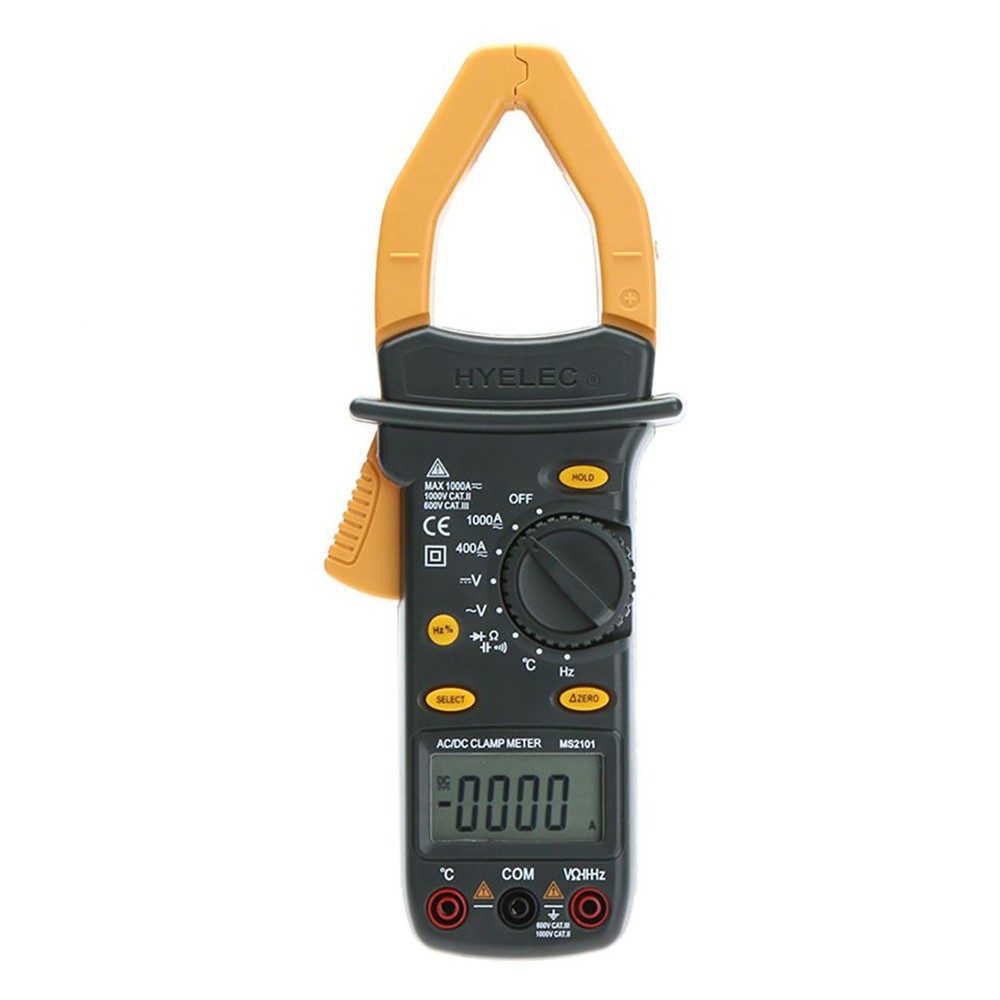

HYELEC MS2101 Digital Clamp Meter: Auto Range AC / DC Current, Voltage, Temperature Test

Description

The meter is an auto and manual range professional AC/DC clamp meter with 3999 counts. For measuring DC and AC voltage, DC and AC current, Resistance, Capacitance, Temperature, Frequency, Duty Cycle, Diode and Continuity Test with battery operated.

Features:

• Display: 3999 Counts.
• Data hold and relative measurement mode.
• Auto power off and low battery indication.
• Polarity indication and over range indication.
**Summary:** A professional AC/DC clamp meter with advanced features for accurate measurements.

Specifications:

• DC Voltage: 0.4V / 4V / 40V / 400V / 1000V ±(0.7% reading ±3) 600V±(0.8% reading ±5)
• AC Voltage: 4V / 40V / 400V (±0.8% reading±5) 700V ±(1.0% reading ±10)
• AC Current: 400A / 1000A ± (3.0% reading± 3)
• DC Current: 400A / 1000A ± (3.0% reading+3)
• Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ±(1.2% reading+1) 40MΩ±(2% reading±3)
• Capacitance: 4nF / 40nF / 400nF / 4μF / 40μF ±(4.0% reading±10)
• Frequency: 40Hz / 400Hz / 4kHz / 40kHz / 100kHz ±(2.0% reading ±1)
• Temperature: 400℃~750℃ ±1.0% ± 5, 0℃~400℃ ±1.0% ± 3, -40℃~0℃ ±1.0% ± 6
• Item weight: 393g (without battery)
• Power supply: 1 * 9V 6F22 battery (not included)

Package Information：

• Package size: 27 * 14 * 6cm / 10.6 * 5.5 * 2.4in
• Package weight: 663g / 1.5lb
• Black Gift Box
**Summary:** A compact and lightweight package with a gift box.

Package List:

• 1 * HYELEC MS2101 Digital AC/DC Clamp Meter
• 1 * Pair of Test Probe
• 1 * Temperature Test Probe
• 1 * Storage Bag
• 1 * English Manual
