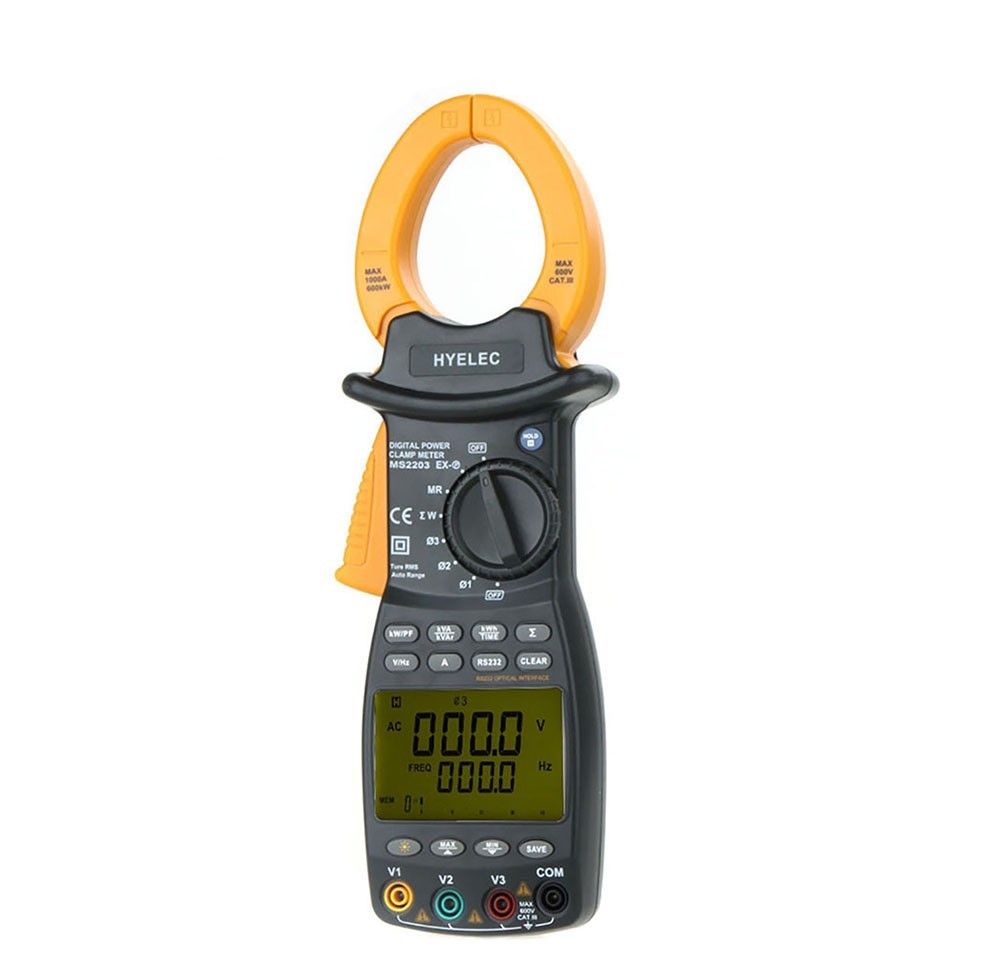

HYELEC MS2203 3-Phase True-RMS Clamp Meter with Power Factor Correction and USB for 4-Wire Testing

Description

This three-phase digital power clamp meter is a handheld aptitude meter with power measurement, combining a current meter and power measurement instrument in one. It's composed of three channels: voltage, current, and power, with a single chip Microcontroller.

The meter has powerful measuring and data processing software, allowing it to measure, calculate, and display 8 parameters: Voltage, Current, Active Power, Power Factor, Apparent Power, Reactive Power, Active Energy, and Frequency.

With its stable capability and easy operation, it's especially suitable for measurement and overhaul of electric power equipment and power-supply circuits on the spot. The instrument's structure is pincers, making it very small, light, and portable, making measurement easy and fast.

Specifications:

Measurement Range:
AC Voltage: 0.1~600V ±(1.2%+5)
AC Current: 0.1A~1000A ±(2.0%+5)
Active Power: 0.1kW~600kW ±(3.0%+5)
Apparent power: 0.1kVA~600kVA ±(3.0%+5)
Reactive power: 0.1kVAr~600kVAr: ±(3.0%+5)
Power Factor: 0.3~1 ±(2.0%+2)
Active Energy: 0.001kWh~10000kWh ±(3.0%+2)
Frequency: 20Hz~1000Hz ±0.5%

Features:

Key Features:
**Auto Power Off**
**Auto Ranging**
**Max/min**
**Data Hold**
**Display Back Light**
Jaw opening: R50mm/2.0"
Data logging And recall: 28 groups
LBD: Low Battery indication
True RMS: True Root Mean Square Measurement
Display: 9999 counts
Rs232 Interface:

General:

Power Supply: 4 x 1.5V AA Battery (Not Included)
Category: CE CAT .III 600V RoHS
Package size: 33 * 22 * 6cm / 13.2 * 8.8 * 2.4in
Package weight: 1535g / 3.4 lb

Package List:

1 * HYELEC MS2203 3-Phase Clamp Meter
1 * Portable Bag
1 * Test Probe
4 * Test Clip
1 * Rs232 Interface Cable
1 * CD
1 * English Instructions
Battery (Not Included)
