PEAKMETER PM8236 Multimeter with Auto Range, Auto Power off, Temperature Test, and Data Logger
0 out of 5 stars
No review yet| Qty | Price | Discount |
|---|---|---|
| 1 | $36.56 | |
| 3 | $35.41 | -3.1% |
| 5 | $34.83 | -4.7% |
| 10 | $33.97 | -7.1% |
Product details
Description

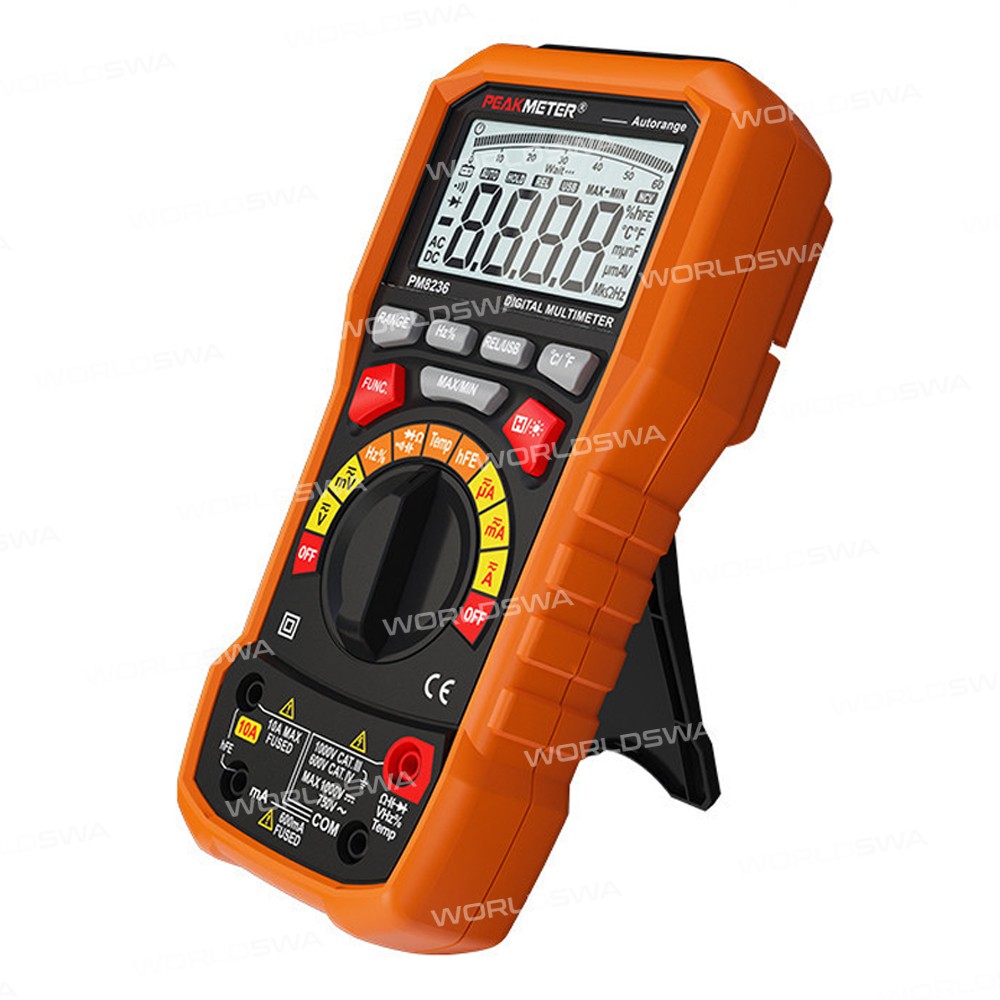

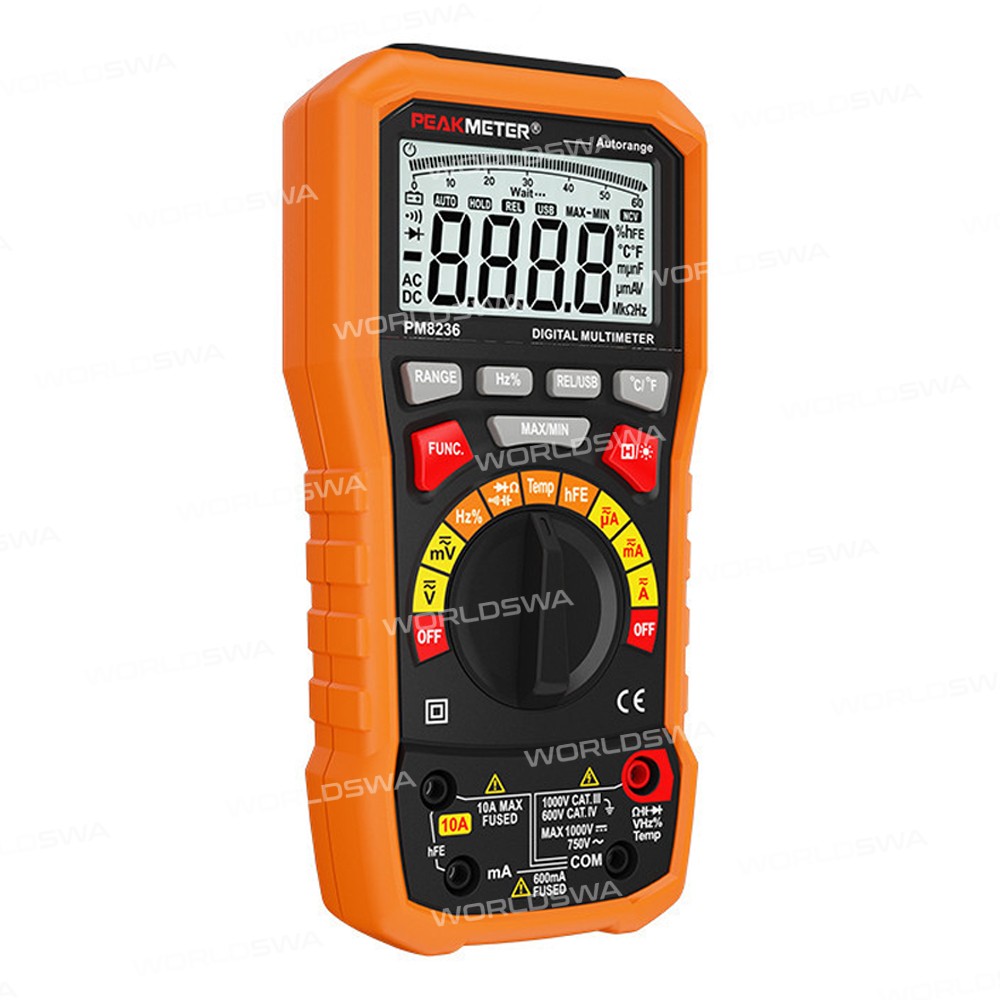

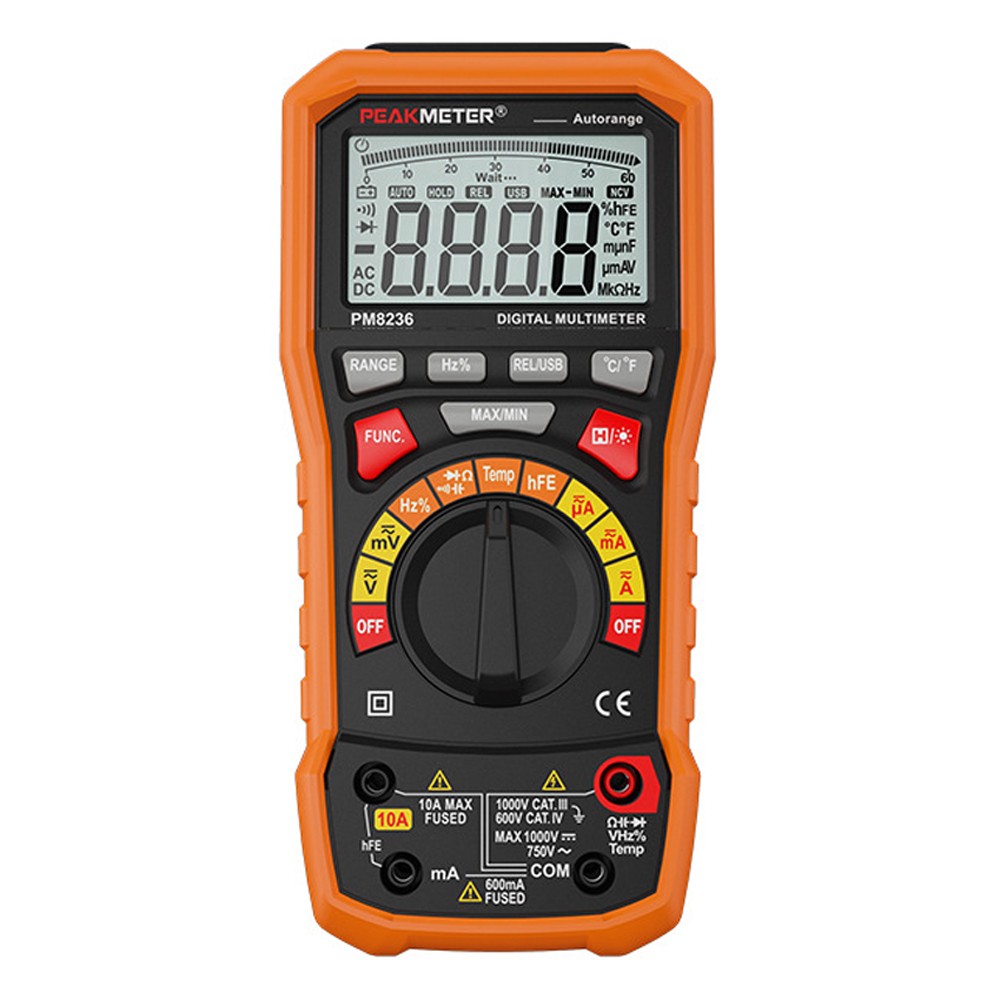

PEAKMETER PM8236 Auto Range Auto Power off Multimeter with Temperature Test and Data Logger
This instrument is a hand-held intelligent multifunctional measurement instrument, integrating noise, temperature, and digital multi-meter into one. With a large LCD digital display (these sets of data display) and backlight, it’s easy for the user to read, with overload protection and battery under-voltage indication. Whether for professionals, factories, schools, amateurs, or families, it’s an ideal multi-functional instrument.
Features:
Auto range. The convenient exchange makes your measurement more accurate. **Accurate Measurements**
Relative value measurement function. In this mode, the instrument display value = actual value-set reference value.
USB Interface function. The measured data stored in the instrument can be uploaded to a computer for display, record, and analysis. **Data Analysis Made Easy**
Large LCD screen with backlight can help the user see the data even at night. **Clear Display**
Auto power-off function. If there are no operations within 15 minutes as the instrument is turned on, the instrument will automatically enter into a sleep state. **Power Saving**
Specifications:
DC Voltage: 60mA / 0.01mV, 600V / 0.1mV, 6V / 1mV, 60V / 10mV, 600V / 100mV, 1000V / 1V
AC Voltage: 60mV / 0.01mV, 600mV / 0.m1V, 6V / 1mV, 60V / 10mV, 600V / 100mV, 750V / 1V
DC Current: 600mA / 0.1mA, 6000mA / 1mA, 60mA / 10mA, 600mA / 100mA, 6A / 1mA, 10A / 1mA
AC Current: 600mA / 0.1mA, 6000mA / 1mA, 60mA / 10mA, 600mA / 100mA, 6A / 1mA, 10A / 10mA
Resistance: 600Ω / 0.1Ω, 6kΩ / 1Ω, 60kΩ / 10Ω, 600kΩ / 100Ω, 6MΩ / 1KΩ, 60MΩ / 10KΩ
Capacitance: 10nF / 0.001nF, 100nF / 0.01nF, 1000nF / 0.1nF, 10mF / 0.001mF, 100mF / 0.01mF, 1000mF / 0.1mF, 10mF / 0.001mF
Frequency and Duty: 10Hz / 0.001Hz, 100Hz / 0.01Hz, 1000Hz / 0.1 Hz, 10kHz / 0.001 kHz, 100kHz / 0.01Hz, 1000kHz / 0.1Hz, 10MHz / 0.001Mhz
Temperature: -20~1000℃, -4℉~1832℉
Temperature Measurement Range: -20℃~1000℃, -4℉~1832℉
Item Size: 19.5 * 9.5 * 6cm
Item Weight: 378g (without battery)

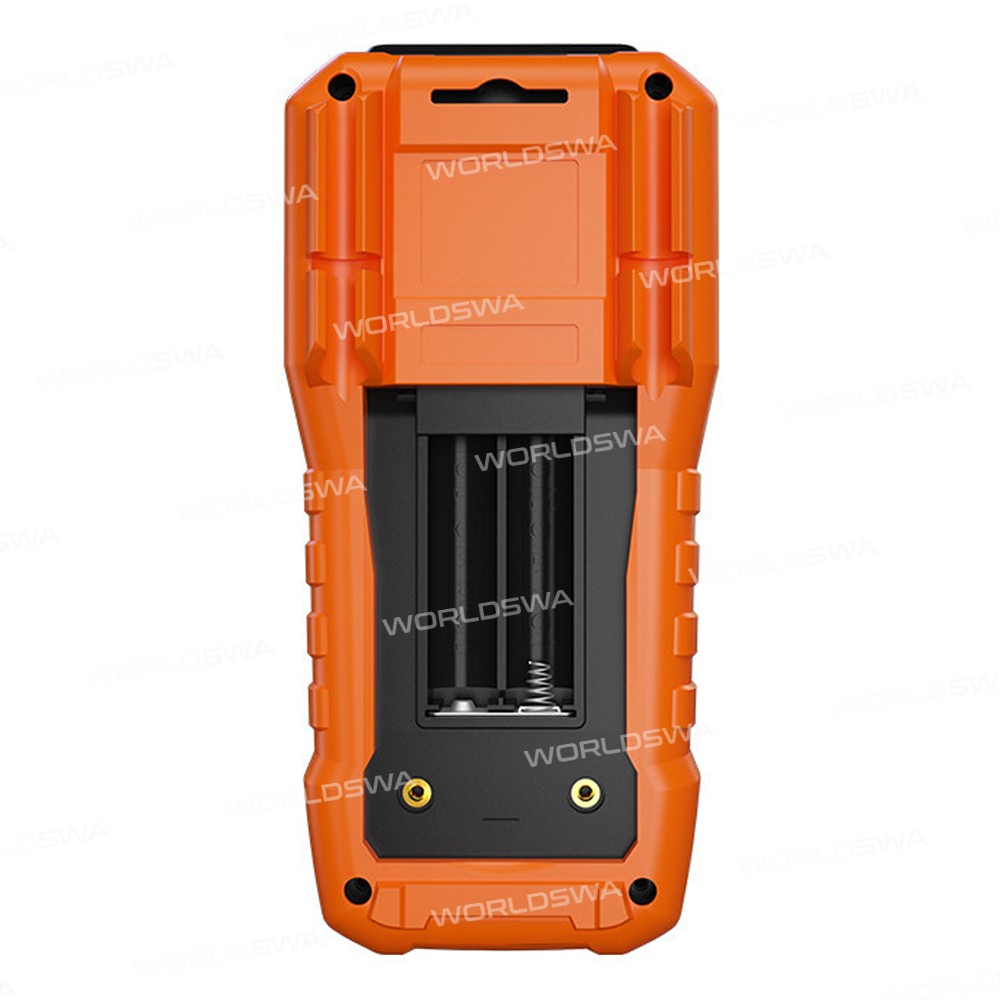

Power Supply: 4 * 1.5V AA Battery (not included)

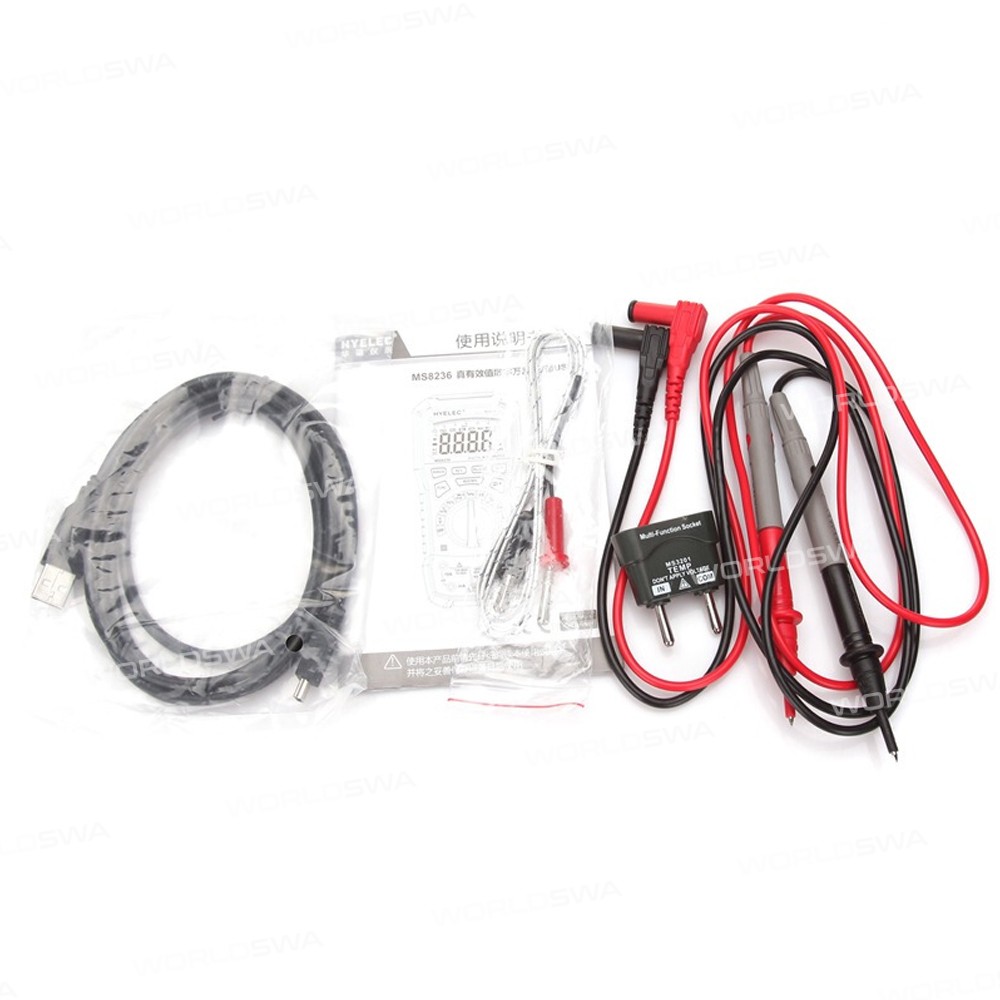

Package List:
1 x MS8236 Digital Multimeter (without Battery)
1 x Pair Test Leads
1 x English Operating Manual
1 x USB Data Cable
1 x Temperature Probe
1 x Multi-Function Socket
