IPBox 2th Generation: 2in1 High Speed Programmer for iPhone / iPad, Remove iCloud IMEI NAND PCIE, Compatible with iPad, iPad mini, iPad Pro, iPhone 7 Plus / 7 / 6S Plus / 6S / 6 Plus / 5S / 5C / 5 / 4S

IPBox IP 2th Generation NAND PCIE 2in1 High Speed Programmer for iPhone 7 Plus / 7 / 6S Plus / 6S / 6 Plus / 5S / 5C / 5 / 4S / iPad / iPad mini / iPad Pro

Overview

This is the latest high-speed programmer for iPhone/iPad NAND Flash EEPROM IC, supporting various iPhone and iPad models. It can help phone repair engineers fix brush and boot errors on iPhone/iPad hardware, backup, format, one-click read and write hard disk underlying data, and repair perfectly the 6/9/14 failure caused by iPhone/iPad NAND Flash.

Features:

• Solve iPhone/iPad NAND Flash Issues: Support iPhone/iPad NAND Flash, Baseband/Logic EEPROM IC, EEPROM CHIP Read Write Erase Repair function.

• Hard Disk Formatting and Data Programming: Support hard disk formatting, modify the bottom of the hard disk, hard disk data programming includes: SN/model/country/color/wifi/Bluetooth/cellular/MLB supervision/fingerprint code/NSrN/battery code/LCD code/rear camera/front camera.

• Fake Capacity Solution: Solve the problem of the fake capacity of the engineering board hard disk, whether the engineering board is 64G, 128G, the mobile phone only shows 4G, the instrument can be easily solved.

• Supported Devices:

  • iPhone 7 Plus / 7 / 6S Plus / 6S / 6 Plus / 5S / 5C / 5 / 4S
  • iPad 2 (above of 2.4 version) / 3 / 4 / 5 (iPad Air) / 6 (iPad Air 2)
  • iPad mini / mini2 / mini3 /mini4
  • iPad Pro 9.7 / 10.5 / 12.9 / new

• NAND Expansion, Repair, and Replacement:

  • NAND expansion: 16GB upgrade expansion 64GB/128GN/256GB, iPad unlock
  • NAND repair: Repair when the hard disk chip is damaged or the hard disk serial number data is lost.
  • NAND replacement: bad hard disk chip on bad motherboard reprogramming again normal use

• WIFI Repair: 6S/6SP/7/7P/iPad Pro hard drive and wifi data match encryption, change the wifi chip first unbind hard drive data

NAND Flash Operations:

• ID Test: Reading NAND ID, Model, Size ...etc information.

• Read Test: print Internal partial data information

• Read All: Read the full font data, and also saved to the computer

• Erase Block: Erase the Part block data

• Erase ALL: Erase NAND.

• Write Block: Write the Part block data

• Write ALL: Write NAND Boot (Font) information.

• NAND Bus communication parameters

• Read Test, Erase Block, Write Block

Supported iPhone and iPad NAND Flash:

• iPhone 4S - 6P and iPad 2/3/4/5/6/MINI1/2/3/4 NAND Flash: 32bit + 64bit

• E3NAND- iPhone 6S / 6SP / 7 / 7P / iPad pro 9.7/10.5/12.9/new

• SPI_FLASH: 8-foot chips support a full range of SPI hard drives.

• EEPROM: 4pin chip (EEPROM IC), widely used in mobile phone repair, the same type as iPhone X display screen photosensitive, easy to read and write.

Software Download:
https://drive.google.com/open?id=1Arp7zxrXX_w2_xFRQAQrgqqwmlPnGkmU

Package Includes:

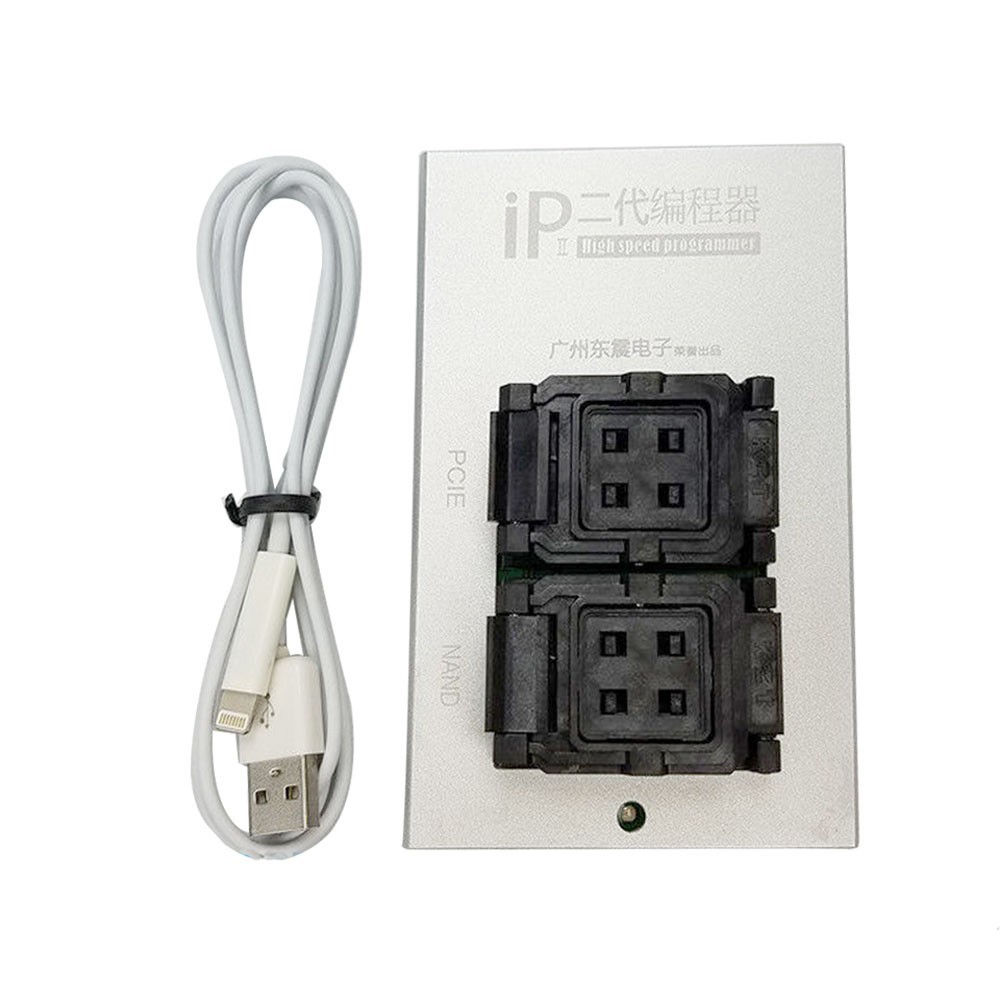

1 x IPBox 2th Gen Programmer
1 x USB Cable

NOTE: We don't guide you how to use it make sure you know how to use it before buying it, however you can still find solution or help from official site or at https://www.martview-forum.com/forums/ip-box-v2.158/
