iPOWER X Box High-Precision DC-to-DC Power Supply

iPOWER X: High Precision DC to DC Power Supply for Scientific Research and Electronic Production

The iPOWER X is a technical grade DC to DC power supply designed for scientific research, product development, laboratories, schools, and electronic production lines. It features high accuracy, reliability, and perfect overload and short circuit protection, making it an ideal choice for the mobile phone repair industry.

Specifications:

• CPU Performance: 16 MHz CPU clock frequency with robust I/O, independent watchdogs, and a clock security system.
• LCD Display Panel Accuracy: ±2.5%
• Display: 1.5 inch LCD displaying accurate voltage, ampere, electric quantity measuring values, and related settings.
• Controls: Easy-to-use rotary switch that acts as an ON/OFF button, with separate power on button for Apple devices.
• Input: DC barrel (+ centered) DC 3.3 - 24V / 0 - 3A (Recommended input voltage 5V (2A iPad charger), 19.5V (4A laptop charger))
• Output: DC 0.2 - 24V / 0.2 - 3A Continuously adjustable, output can be maximum input voltage + 0.6V
• Voltage Regulation: CV ±0.2V, CC ±0.2A
• Ripple and Noises: CV ±0.2V, CC ±0.2A
• Protection: High current limiting, shortcut protection, reverse polarity protection, 4.3V max output hardware protection for battery ports and jack output.
• Operational Modes: Two modes: constant voltage and constant current with max limits working in the same time.

Features:

• Mobile Phone Battery Simulator Ports:** 4 USB output port (DC 4.2V / 0.5 - 3A) with hardware protection and reverse voltage protection, and 5V 200mA output design to simulate power on.
• Jack Output:** RED + , BLACK GND for supplying devices other than mobile phone boards, with current and voltage limited.
• Voltage Tester Input:** Integrated voltage tester input (Yellow) displays measured voltage on the main display.
• Computer Control Input:** Special connector for easy control of voltages and functions using a computer, with the option to calibrate for more precise readings.

Summary of Key Features:**

• High precision DC to DC power supply
• Technical grade design for scientific research and electronic production
• High accuracy and reliability with perfect overload and short circuit protection
• Easy-to-use controls and display
• Multiple output ports and voltage tester input
• Computer control input for easy calibration and control

Package Includes:

• 1 x iPOWER X Box

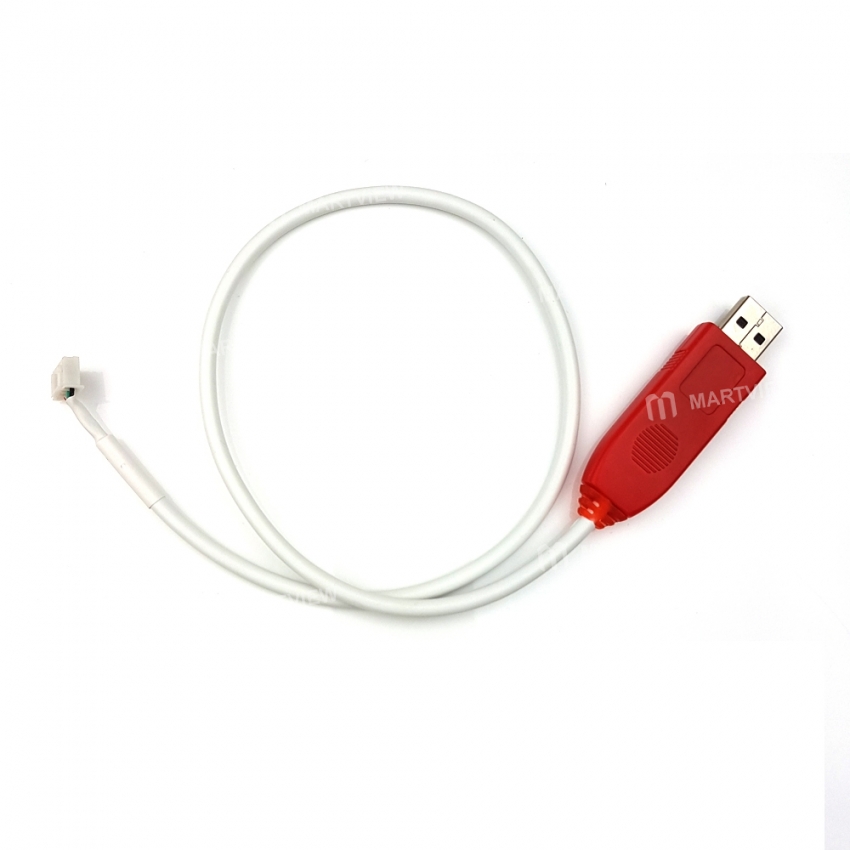

• 1 x iPOWER X PC Cable
• 1 x Voltage Test Cable

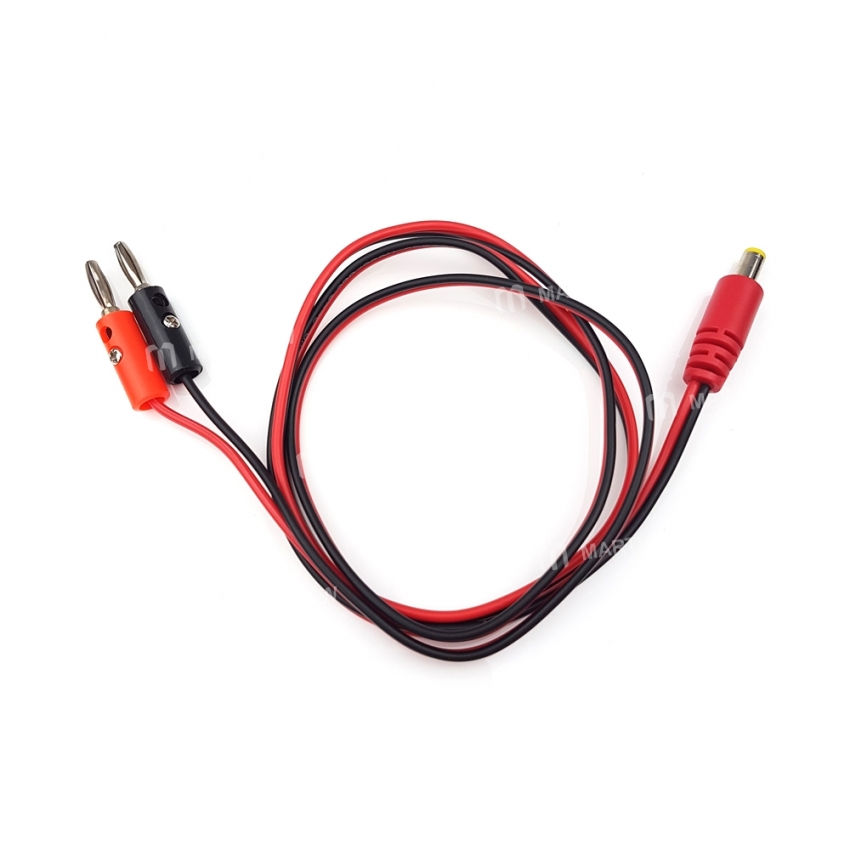

• 1 x Input DC Power Cable
• 4 x USB 2 in 1 Data Cable With Flex Connector
