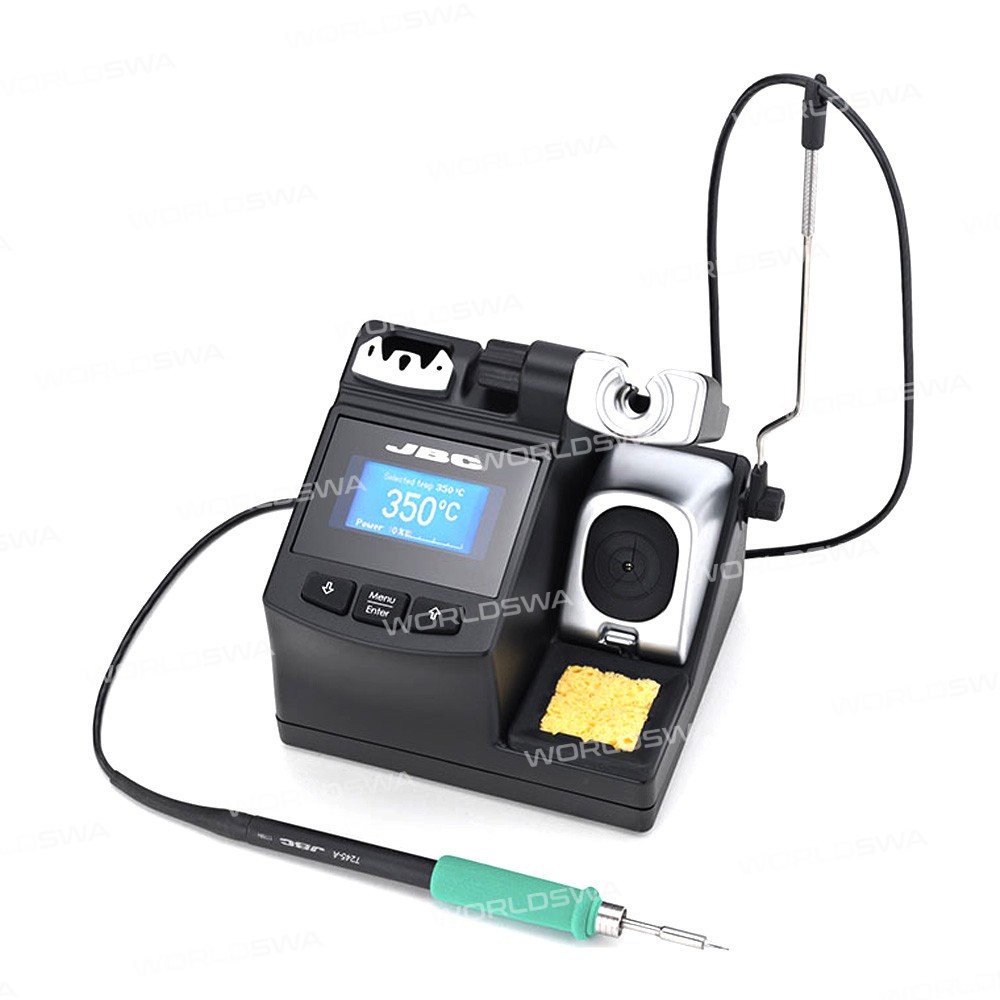

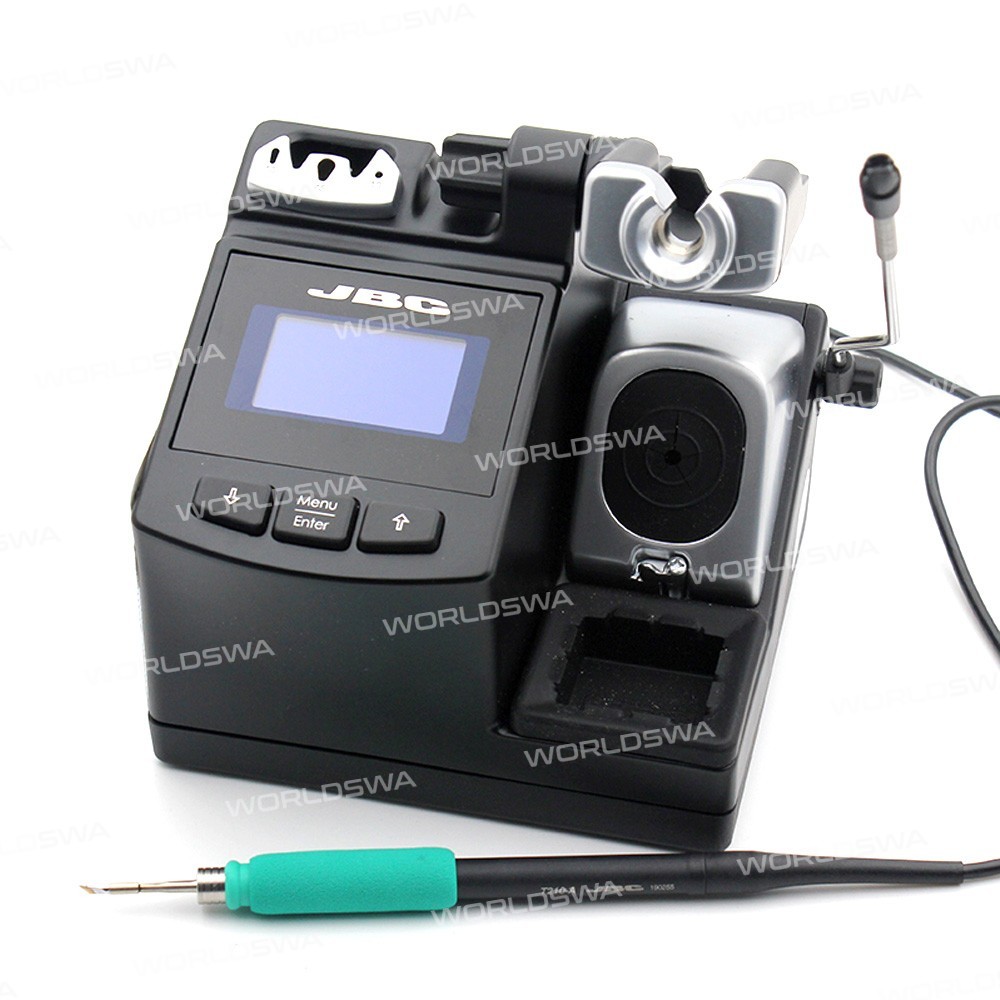

JBC CD-2SHQE Precision Soldering Station with Handle, 230V

Introducing the Advanced Soldering Station

Key Features:

• Efficient Heating System: Works with JBC exclusive heating system and intelligent sleep & hibernation features for optimal performance.
• Personalized Soldering Experience: Customize over 20 parameters using the menu to suit your soldering needs.
• Software Updates and Data Analysis: Connect to a PC via USB connector to update software, create graphs, and manage parameters.
• Clean Working Environment: Complete cleaning system with an antisplash membrane to keep the work area clean and an integrated wiper to remove excess solder from the tip.
• Precision Welding: Use the T210 series handle with the T210 series iron head for precision welding.
• Powerful and Energy-Efficient: 40W power output, suitable for 300 degrees low-temperature welding, and rapid heating to 350°C in just 2 seconds.
• Data Monitoring: Use the USB-B type data cable to connect to a computer and observe the temperature curve.
• Enhanced Performance: Up to 20 sets of parameters can be set using the menu, and the unique sleep + sleep function can extend the life of the tip by 5 times.
• User-Friendly Design: Ergonomic handle control for comfortable use and a user-friendly interface.

Technical Specifications:

• Ambient operating temp.: 10-40°C / 50-104°F
• Input Fuse: 1A (230V)
• Output Peak Power: 130W / 23.5V
• Temperature selection: 90-450°C / 190-840°F
• Tip to ground resistance: <2 ohms
• Tip to ground voltage: <2mV RMS
• Voltage: 230V

What's Included in the Package:

1 x Soldering Station
1 x Handle
1 x Manual
