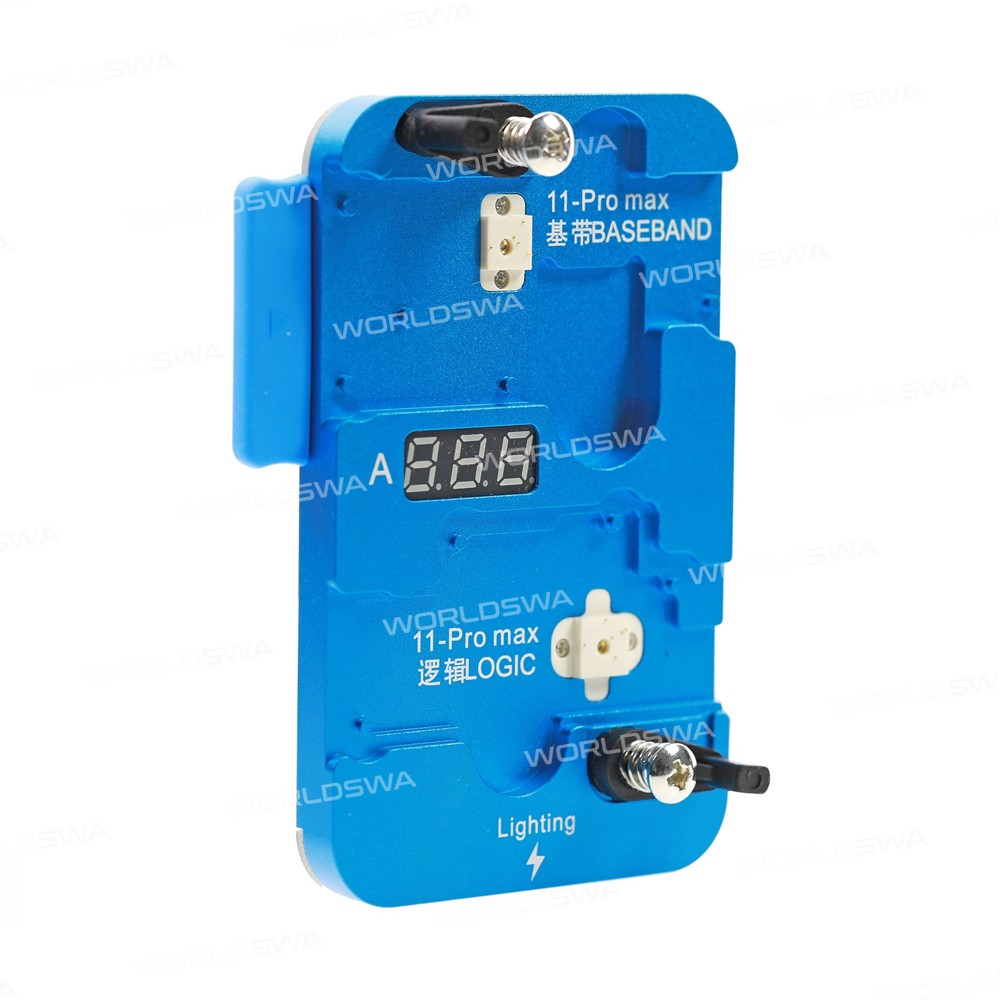

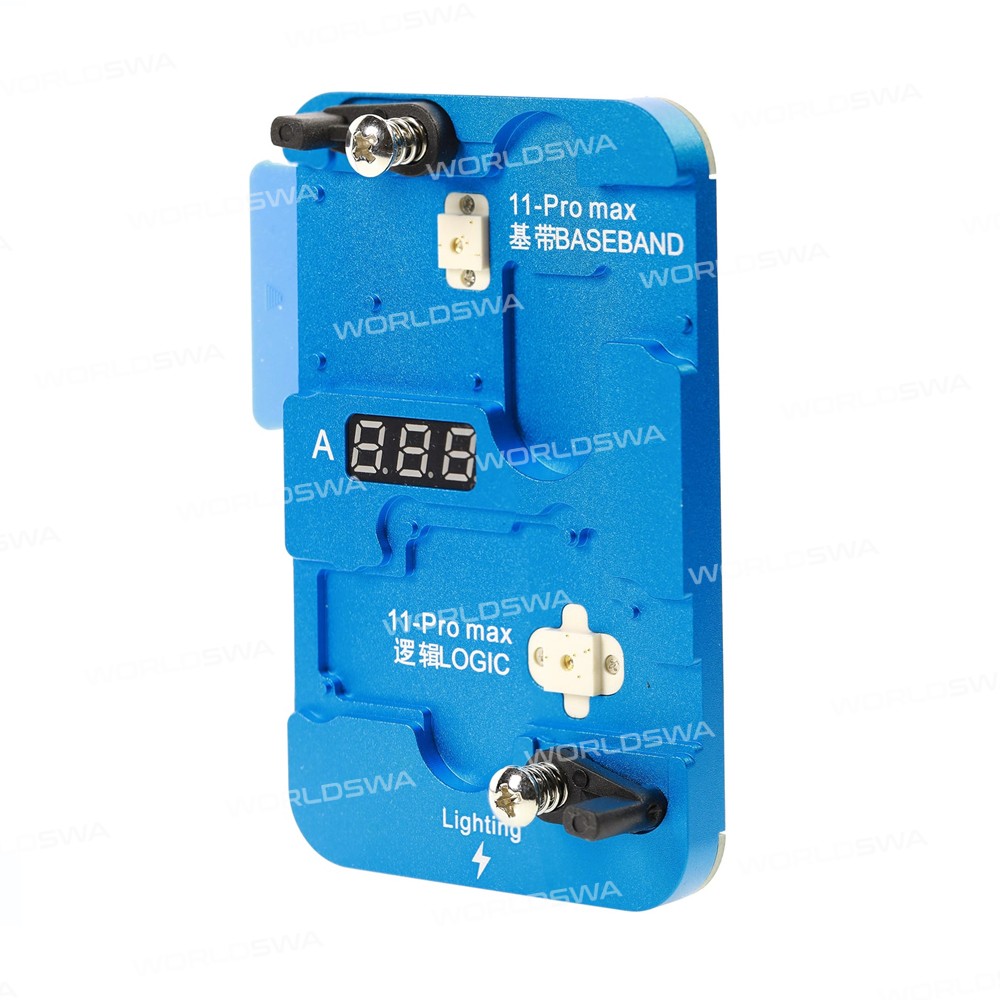

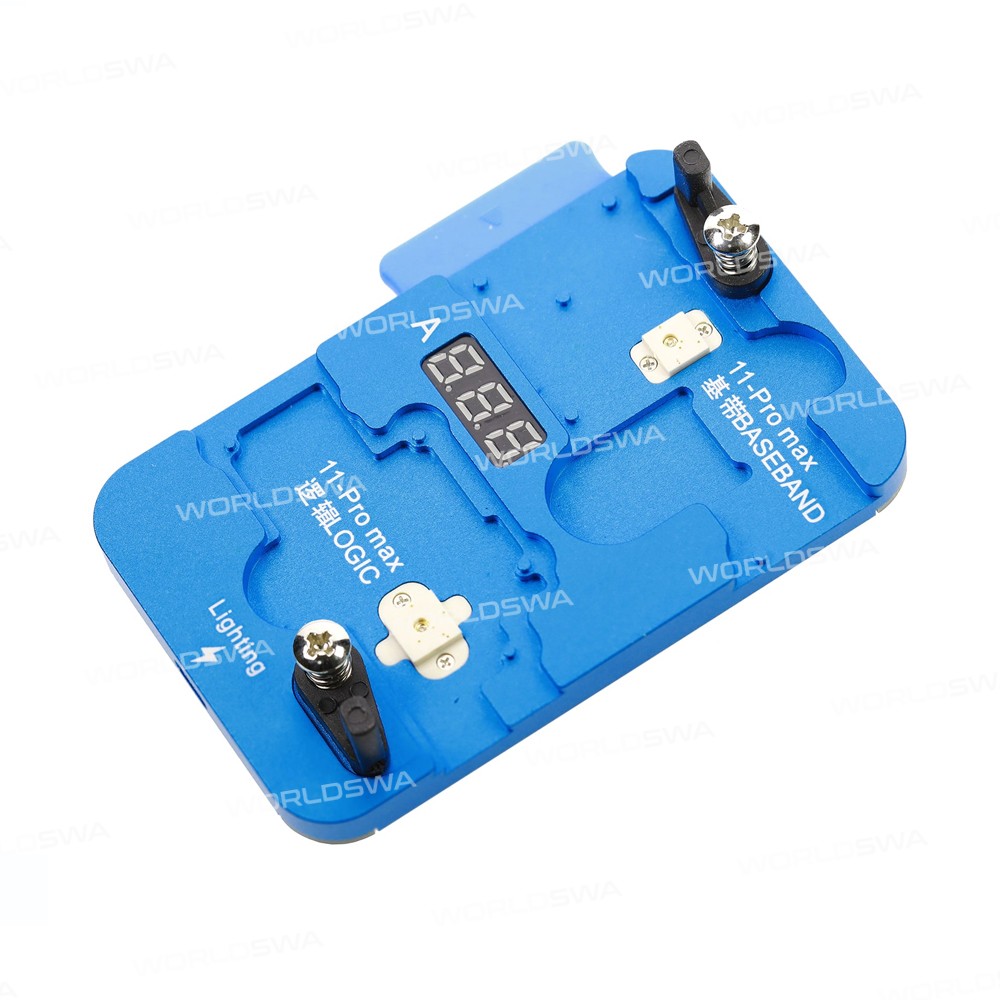

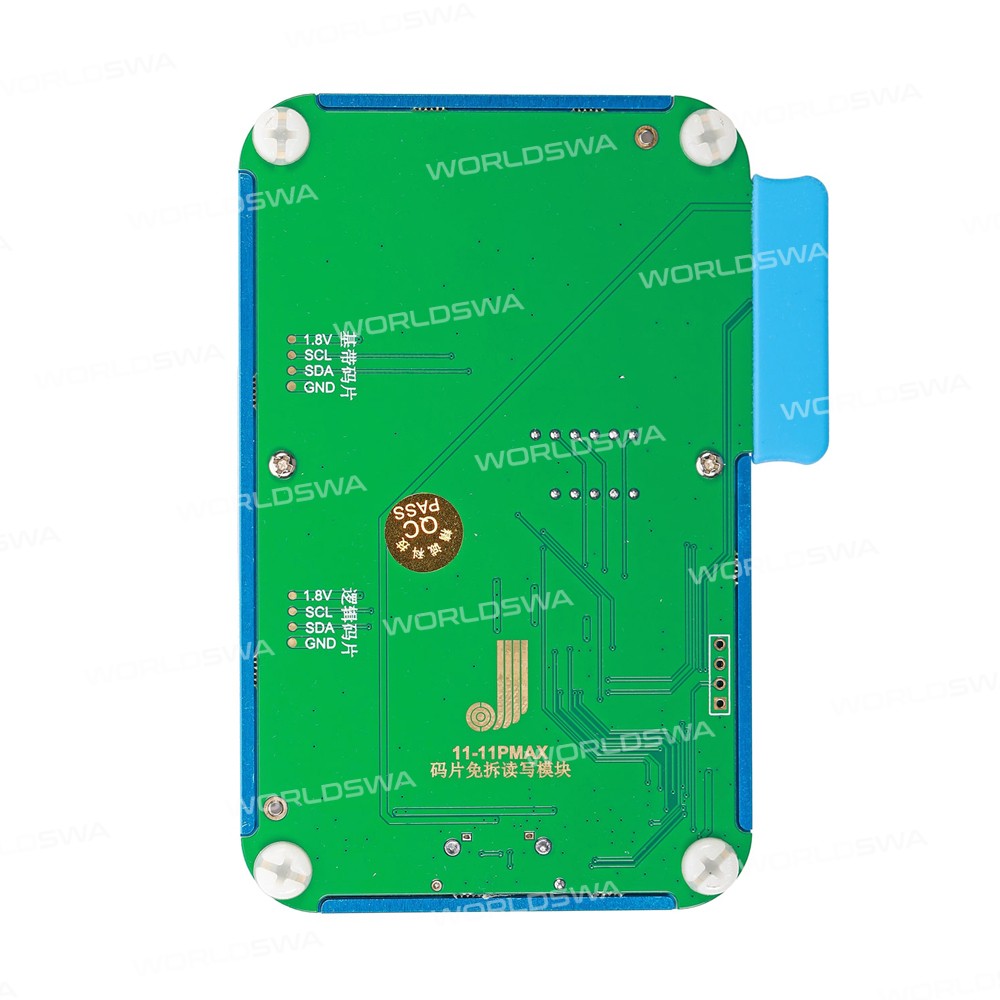

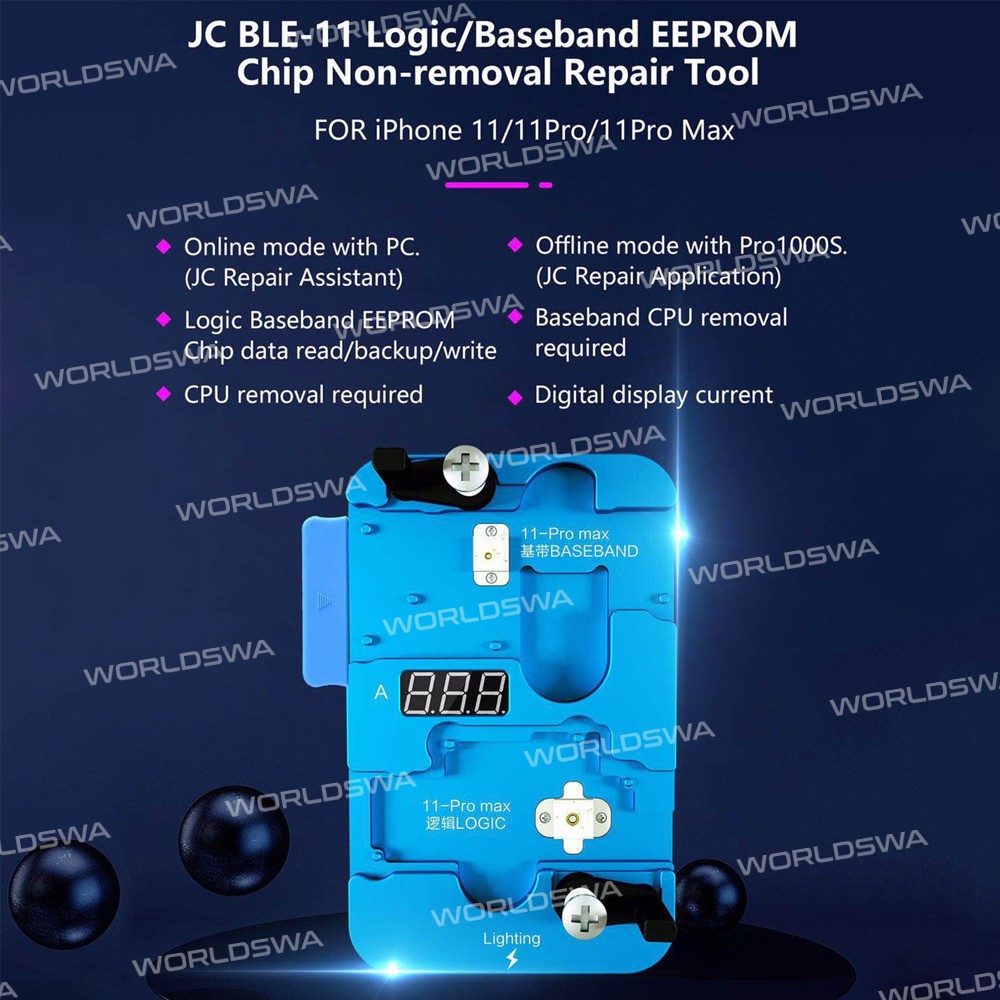

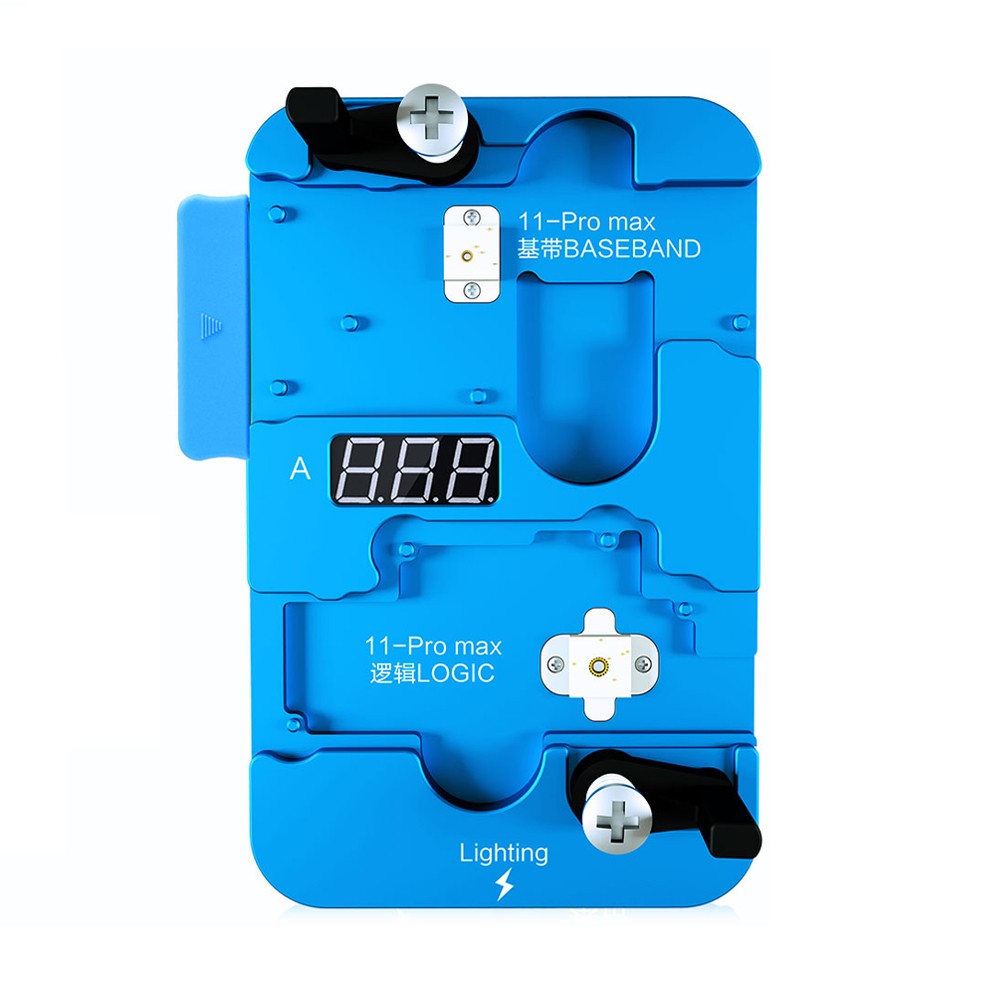

JC Logic iPhone 11 / 11 Pro / 11 Pro Max Baseband EEPROM Chip Non-removal Module

JC Logic Baseband EEPROM Chip Non-removal Module for iPhone 11 / 11 Pro / 11 Pro Max

Product Description:

This module provides the ultimate experience for logic/baseband chip data read, backup, and burn into a new replacement logic board. It supports online and offline dual mode operations, ensuring risk-free non-removal operations. The module also features OLED display real-time indication of the voltage of the logic board.

Key Features:

• **Summary:** Ultimate logic/baseband chip data read, backup, and burn experience
• Online and offline dual mode supported
• Baseband/logic chip supported
• Risk-free non-removal operations
• Data Read/write/backup/edit/burn supported
• OLED display real-time indicates the voltage of the logic board
• Support for iPhone 11 / 11 Pro / 11 Pro Max

Operations:

Offline Mode Operations:

1. Connect module with Pro1000s
2. Place your logic board to the module properly
3. Click the read button, data will be detected by Pro1000s, click save button to backup
4. Replace the logic board, lock the burn button, data will be writing to the new replacement logic board

Online Mode Operations:

1. Connect Module with PC lightning cable
2. Running JC repair application on PC, switch to chip repair on the top section
3. Click read button, data will be read
4. Replace the new replacement logic board, click burn button, the date will be writing to the new replacement logic board

Package Includes:

1 x JC Logic Baseband EEPROM Chip Non-removal Module for iPhone 11 / 11 Pro / 11 Pro Max
