Jitongxue BL-804 Type-C Interface Tail Insertion Detection Board for Detecting Lock Charging Fault Points

Jitongxue BL-804 Type-C Interface Tail Insertion Detection Board for Lock The Charging Fault Point

Features:

• Jitongxue BL-804 tail insertion detection board, Lock the charging fault point without disassembling the machine
• Test resistance and voltage/Dock Flat and Tail Plug USB Connector/24 charging circuits/Applicable to Type-C devices
• Type-C device detection, various brands of mobile phones and computers

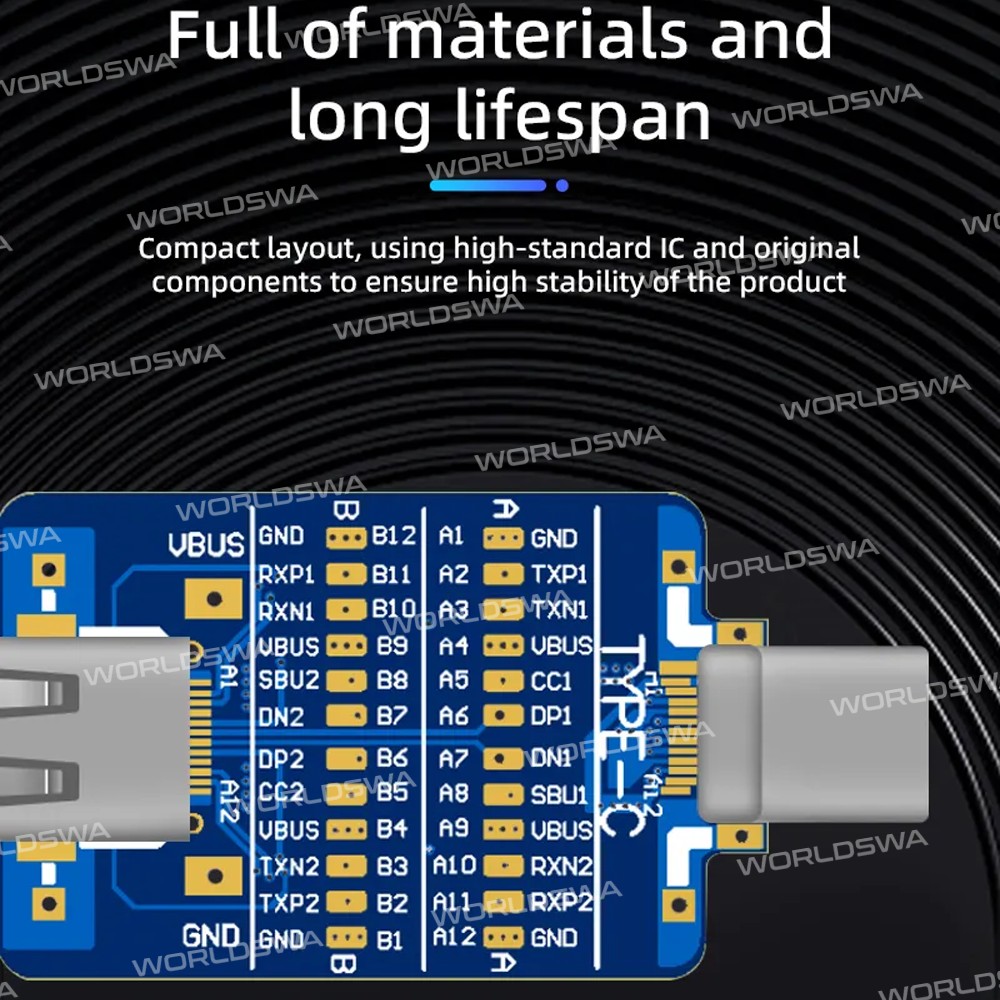

• Full of materials and long lifespan, compact layout, using high-standard IC and original components to ensure the high stability of the product
• Use a multimeter to measure the voltage or resistance value.
• This detection board has integrated detection points for some charging circuits, users can measure voltage and resistance according to actual needs
• Please find a normal mobile phone to measure and record it to facilitate comparison with the faulty machine, or use the values on the schematic diagram to quickly and easily determine the location of the fault
• Real-time monitoring of resistance and voltage can accurately test real-time input voltage, measuring the charging circuit of Type-C devices
• No need to disassemble the machine to lock the charging fault point, easily detects the ground resistance and voltage
• It only takes a few steps to easily complete the ground resistance and voltage of the dock Flat Tail Plug USB connector charging circuit
• Summary:** Easily detect charging faults without disassembling the device, compatible with Type-C devices, and measures voltage and resistance with real-time monitoring.

• Plug the pad into the phone(The Type-C model is fine)
• Use a multimeter and pen to test on the test board
• Black and red pen detection
• Real-time measurement of whether there is a short circuit, abnormal, etc

• 1 x Detection Board
