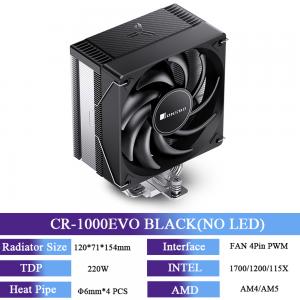

Jonsbo CR-1000 Series EVO Tower CPU Radiator - ARGB, 4-HeatPipe, Intel LGA1700 / 1200 & AMD AM5 / AM4 Compatible

Jonsbo CR-1000 Series ARGB 4-HeatPipe EVO Tower CPU Radiator for Intel LGA1700/1200 AMD AM5 / AM4

Features:

• Iterative performance upgrades significantly
• Low noise design trends, optimized noise friendliness
• Nickel-plated anti-oxidation coating for heat pipe
• New through-type strip fastener
• Optimizing heat pipe efficiency, heat pipe load heat release efficiency increased by 25%
• 12CM simple style appearance, new low-noise design sickle-shaped fan blade, air Resonance Optimized Fin Diversion
• The balance between performance and low noise when taking into account the actual use environment
• Top corrugated grille transparent trough, a large area of carbon fiber sun texture
• Redefine appearance coordination, one-piece top cover with moderate and elegant lighting effect
• Through-type horizontal bar buckle, closer fit, significantly improved heat transfer efficiency, better stability
• Carbon fiber sun texture, covering the end of the heat pipe, increases overall simplicity
• Summary:** Optimized for low noise and high performance, with advanced features like nickel-plated heat pipes and air resonance optimized fin diversion.

Specification:

• Version: ARGB Edition
• Radiator size: 120*71*154mm
• Heat pipe size: 6mm x 4Pcs
• D-TDP: 220W
• Fan size: 120*120*25mm
• Fan Speed: 600~1500RPM ±10%
• Fan air volume: 28.12~59.48CFM
• Fan pressure: 0.26~1.81mmH2O
• Fan noise: 22~32dB (Max)
• Life span: ≥40000h @25°C
• Interface: Fan 4Pin PWM/LED 3Pin ARGB
• Operating current: Fan 0.16A(Max); LED 0.46A (Max)
• Operating voltage: Fan 12V; LED 5V
• Power consumption: Fan 1.92W (Max); LED 2.3W (Max)
• Scope of support: Intel: LGA1700/1200/115X; AMD: AM4/AM5
• Total Net Weight: 554g

Package includes:

• 1 x EVO Radiator
