Jonsbo TK-2 Hyperbolic Side Translucent Computer Case: ITX / M-ATX / ATX Compatible

Jonsbo TK-2 Hyperbolic Side Translucent Computer Game Case Compatible ITX / M-ATX / ATX

Note: The picture of the motherboard, graphics card, power supply is for reference only, the actual package contains only the case!!!

Features:

• **Showcase Your Hardware**: As the sister model of TK-1, TK-2 also adopts a double-bent ring-shaped glass 2.5-side surround design, so that both hardware and Garage Kits can be fully displayed from multiple angles.
• **Flexible Placement**: The multi-angle side see-through design supports multi-angle placement for more reasonable planning of desktop space.
• **Excellent Heat Dissipation**: The motherboard supports the ATX version and long GPU, with upper and lower fan positions and dual 360 radiator positions, supplemented by 3 fan positions on the side, for better heat dissipation in various combinations.
• **Unique Design**: U-shaped hyperboloid glass side penetration fully displays the hardware inside the motherboard compartment.
• **Premium Materials**: The metal texture is fine and not rough, and the arc transition is elegant and natural without breaks.
• **Advanced Cooling**: With 9 fan positions, the bottom-up airflow can quickly cover the heating hardware, three fans are placed on the side, taking into account ventilation and heat dissipation, and can also display light effects on the front.
• **Supports Multiple Configurations**: Top plate 360mm*1 or 280mm*1 Bottom plate 360mm*1 (The length of the bottom drain is within 398mm. Installing the bottom drain will occupy 2.5 PCI-E slots at the bottom).
• **Compatibility**: Supports ITX/M-ATX/ATX motherboards for host building.

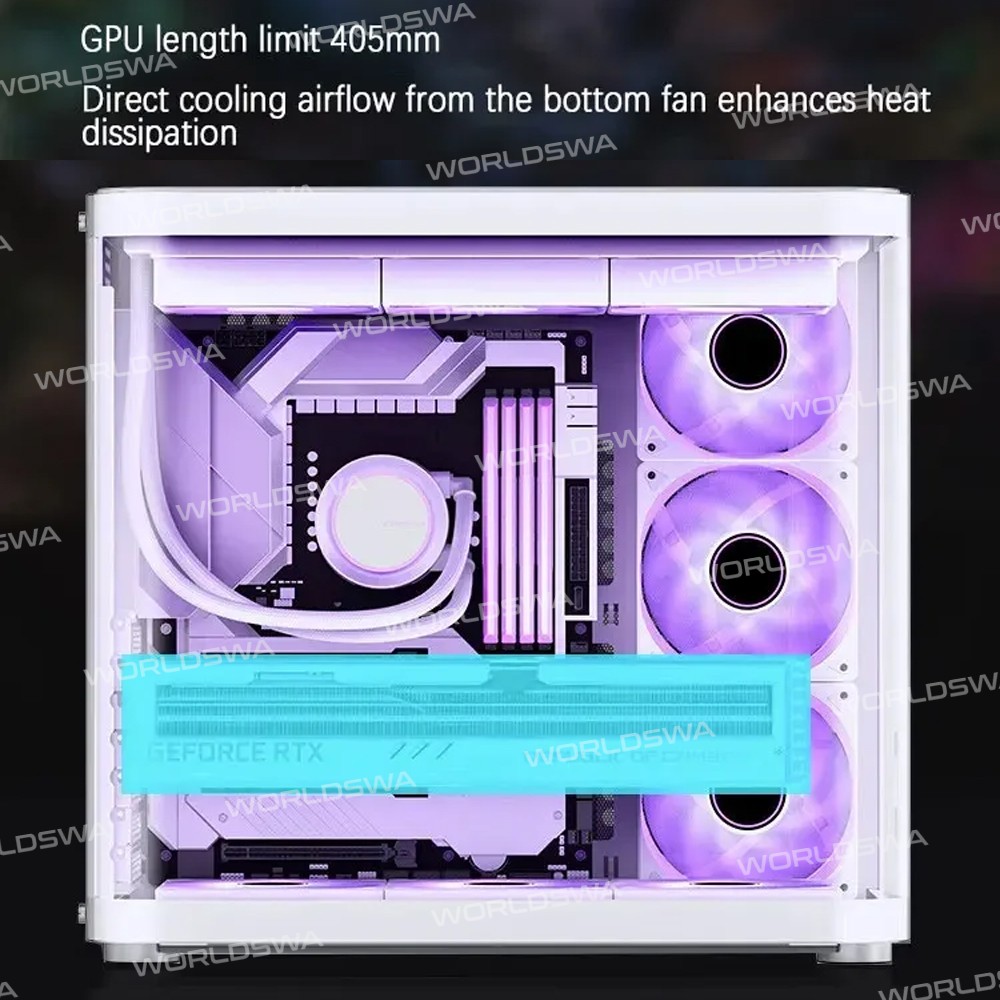

• **GPU Support**: GPU length limit 405mm, direct cooling airflow from the bottom fan enhances heat dissipation.
• **Storage Options**: Supports 3.5"HDD*2 hard drive bays or 2.5"SSD*1/3.5"HDD*1 hard drive bay.
• **Fast Data Transfer**: Front USB 3.2 Gen2 Type-C (10Gbps) interface to reduce transmission waiting time.
• **Easy Maintenance**: The bottom is equipped with a dust-proof filter, which needs to be cleaned regularly to keep the inside of the case fresh and tidy.

Specification:

• Model: TK-2
• Color: White/Black
• Product size: 300mm(W)*435mm(D)*408mm(H) (Including foot pads)
• Material: 2.5mm aluminum alloy/1mm steel plate
• Compatible motherboards: ITX/M-ATX/ATX
• Drive bits: 3.5" HDD*2 or 2.5" SSD*1/3.5" HDD*1
• Front interface: USB 3.2 Gen2 Type-C*1 / USB 3.0*1 / Audio*1+Mic*1 (2-in-1)
• Power supply: ATX≤220mm
• Cpu cooler: ≤165mm
• Video card: ≤405mm
• Water cooling: Top plate 360mm*1 or 280mm*1 bottom plate 360mm*1 (The water-cooling length of the base plate is within 398mm and installing a water drain on the base plate will occupy 2.5 PCI-E slots at the bottom)
• Fan: Top plate 120mm*3/140mm*2 (Not standard); Base plate 120mm*3 (Non-standard); Motherboard side 120mm*3(Non-standard)
• Net weight: 8.5kg

Package includes:

• 1 x Computer Case
