JTX GS-01 UV Stencil for iPhone / MTK / Qualcomm / Hisilicon / Samsung: Green Oil Solder Mask Repair

JTX GS-01 Solder Mask Repair Green Oil UV Stencil for iPhone / MTK / Qualcomm / Hisilicon / Samsung

Features:

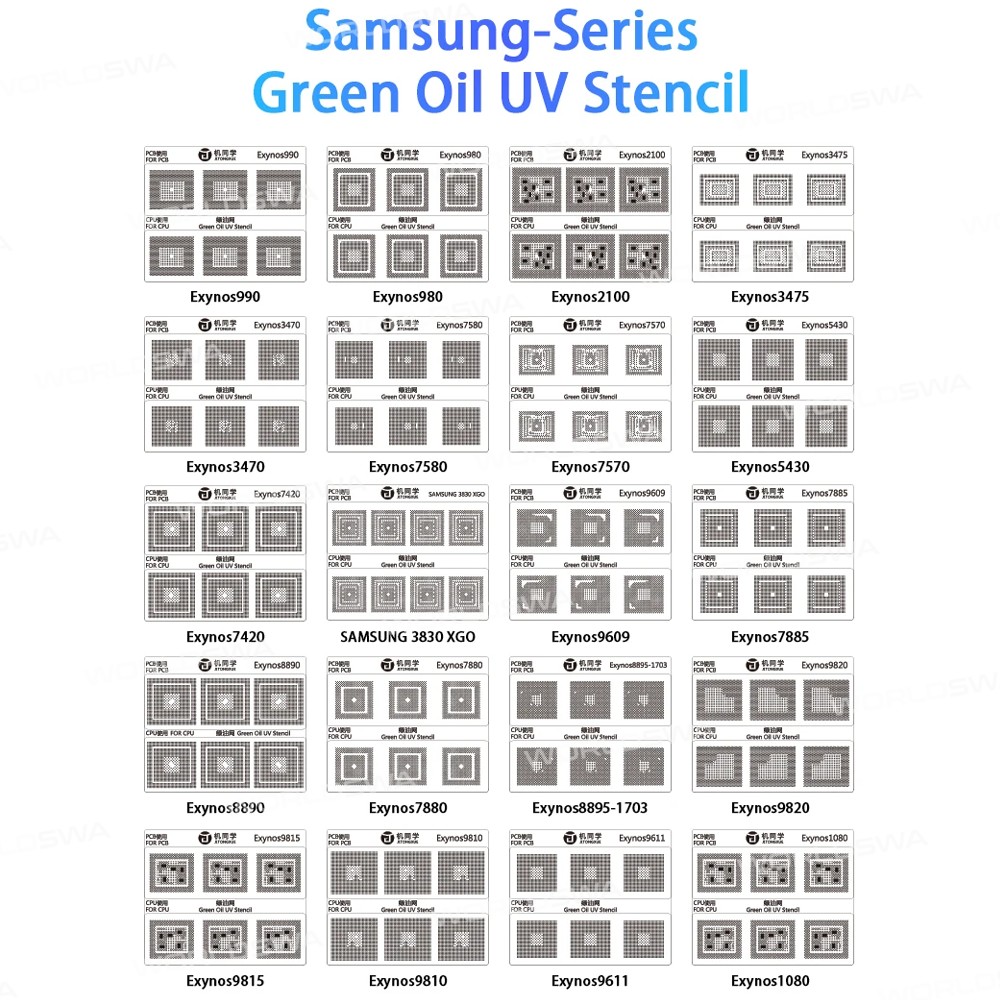

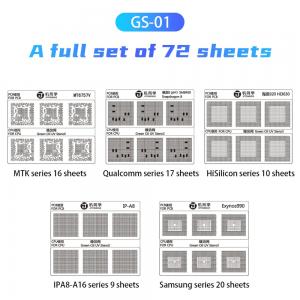

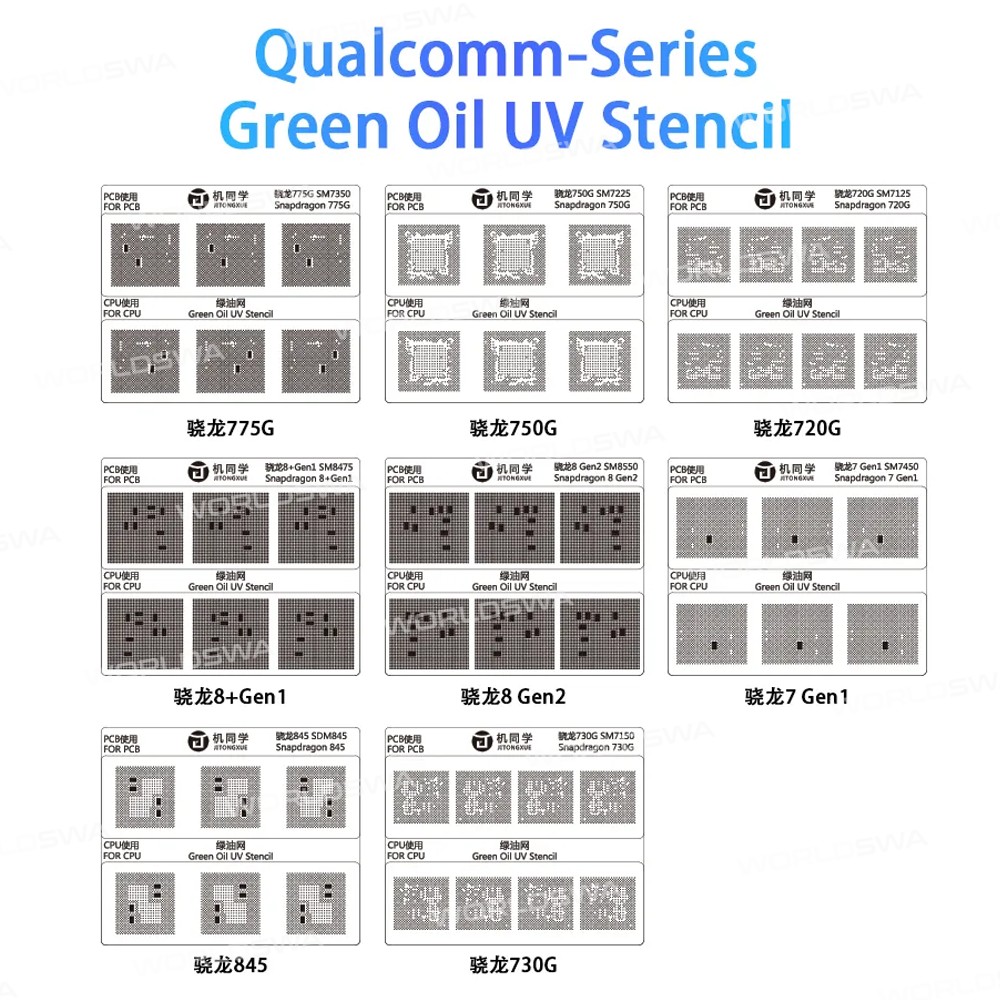

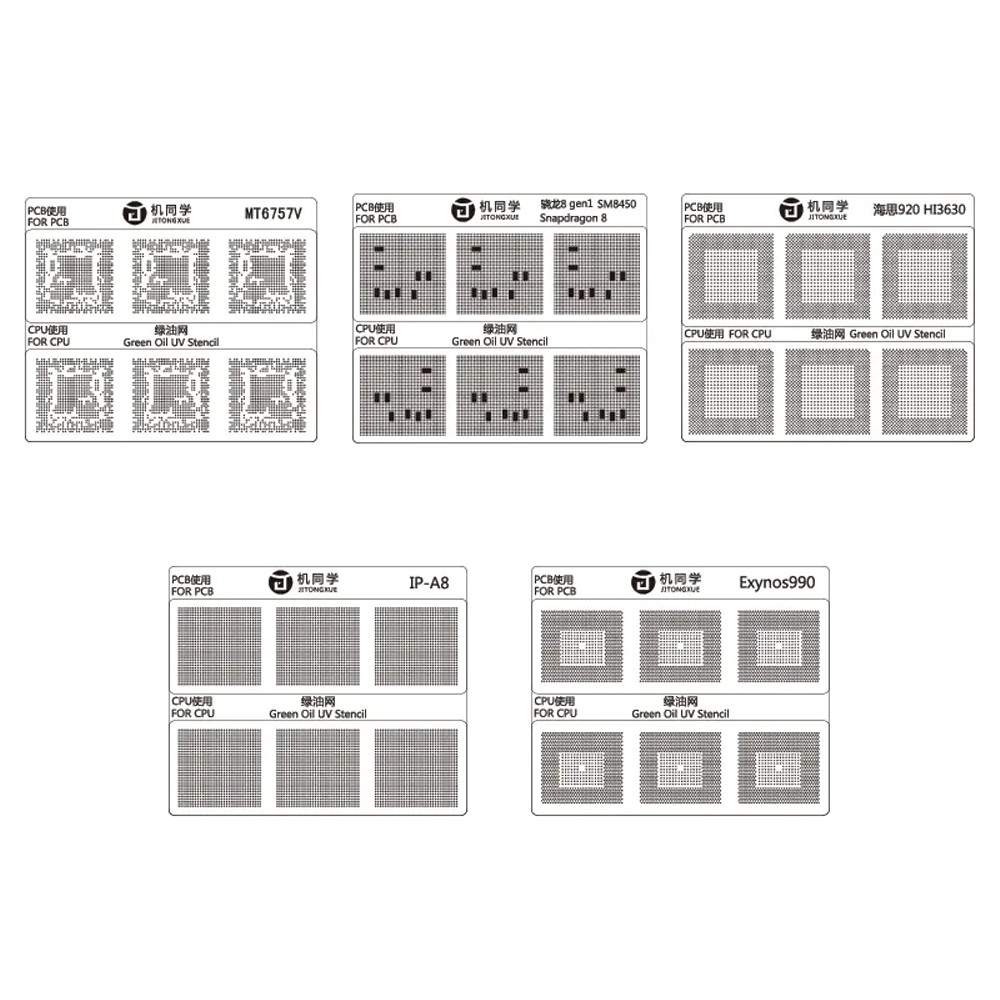

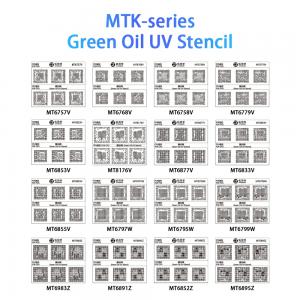

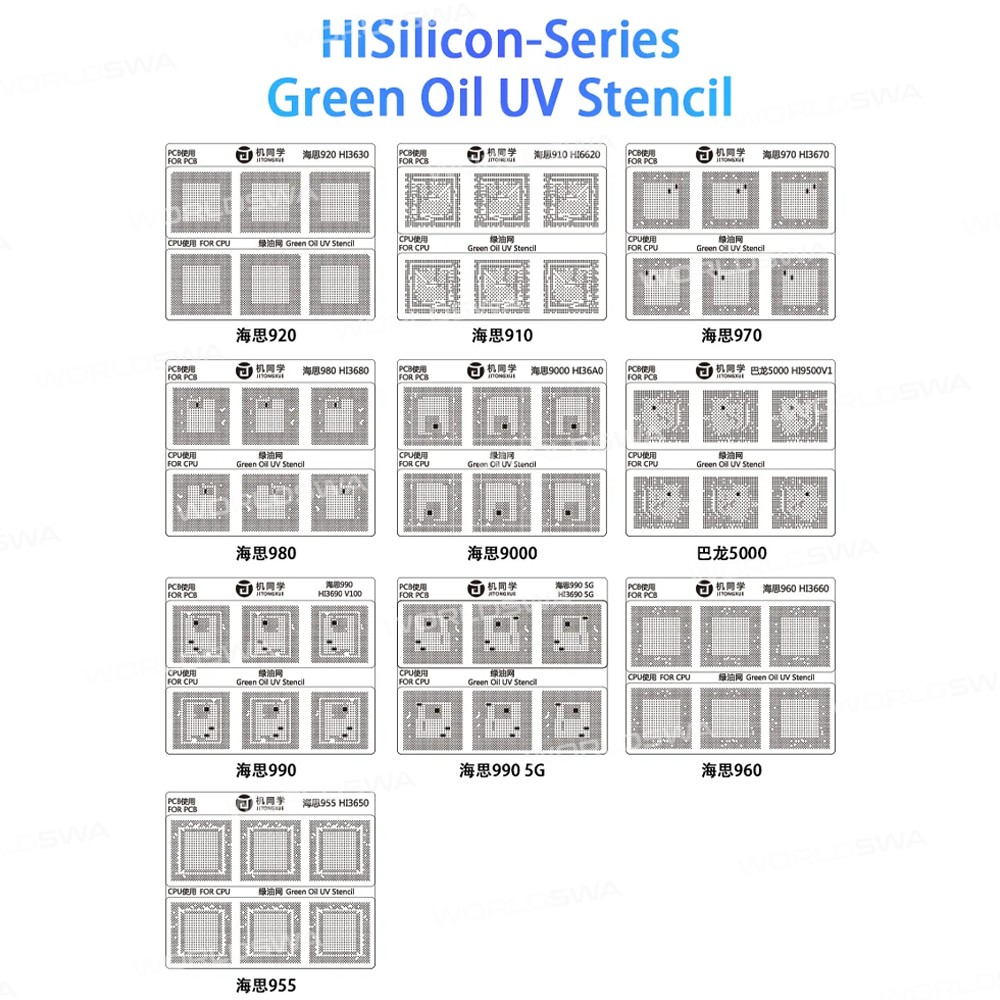

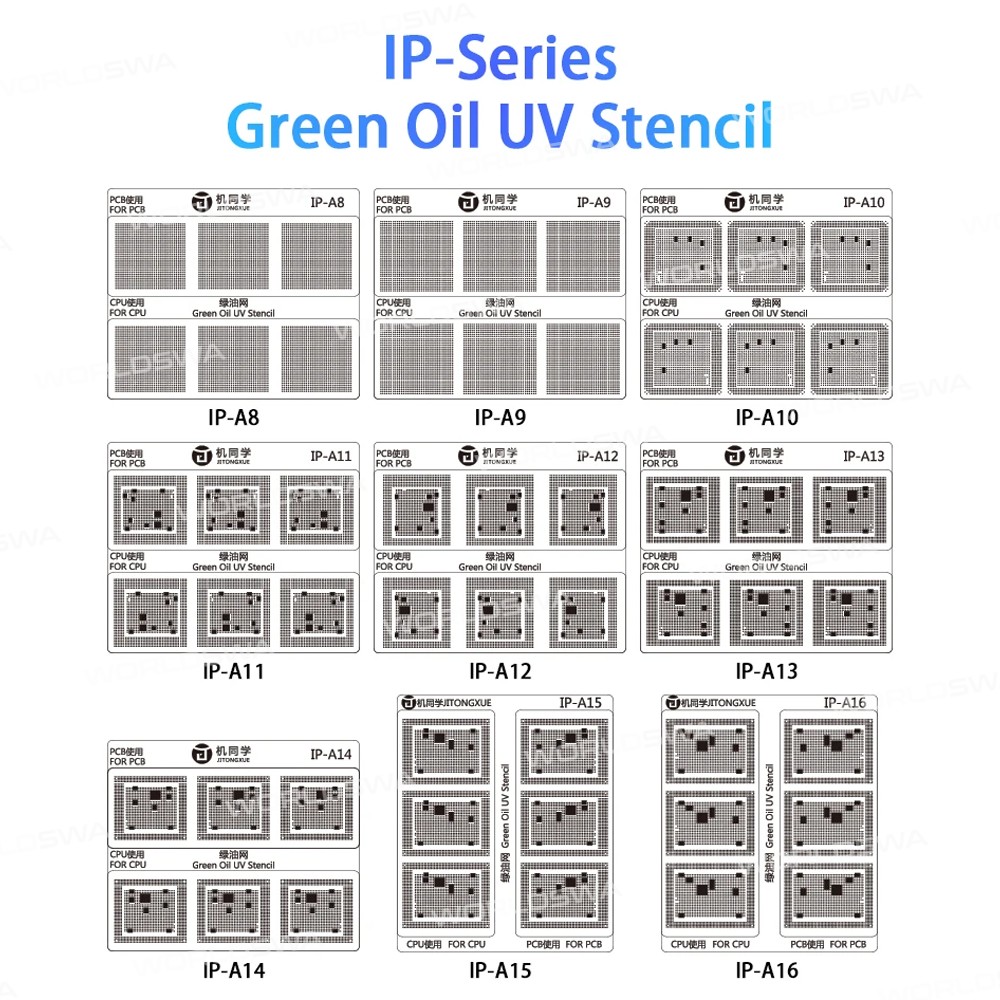

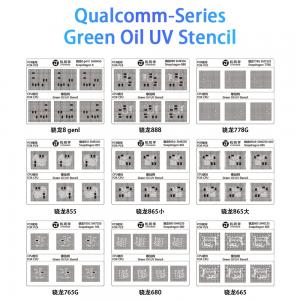

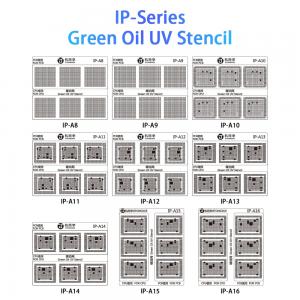

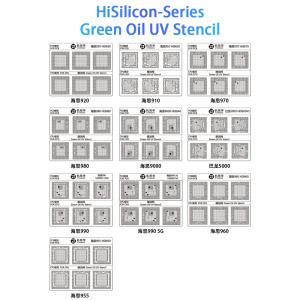

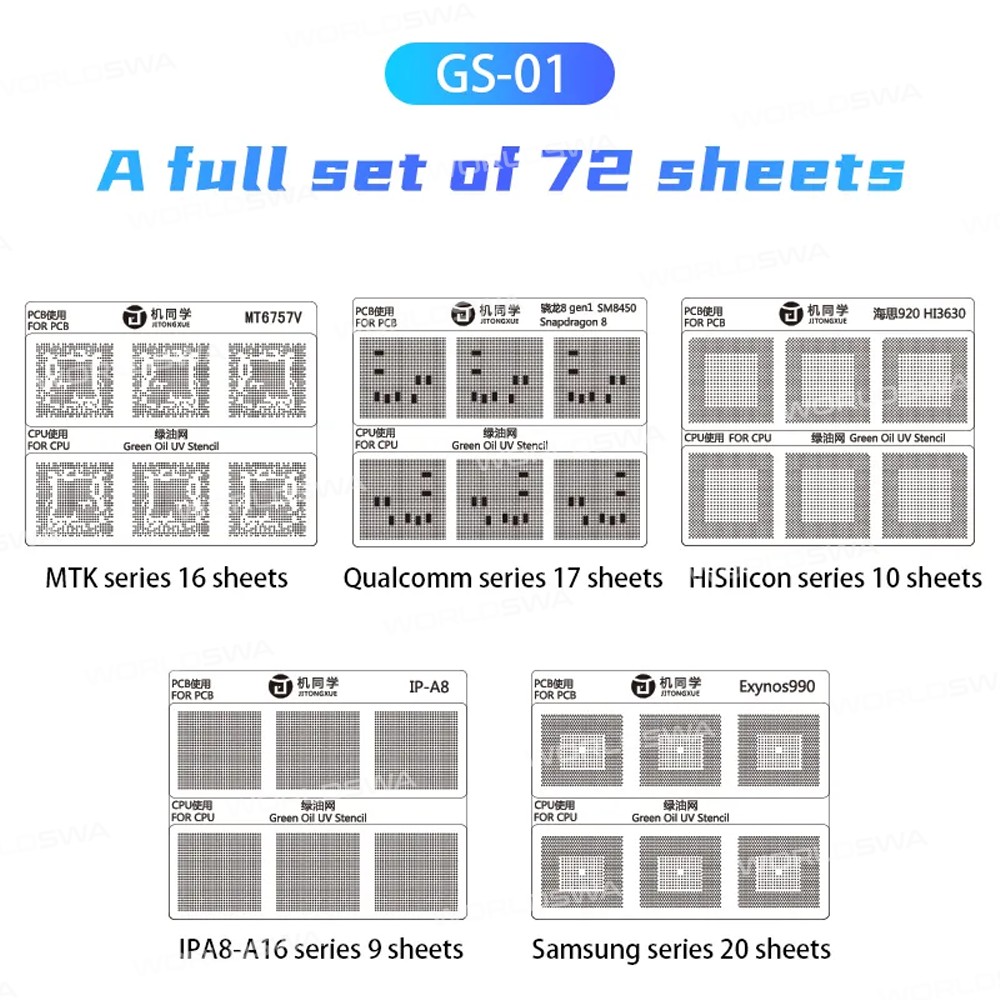

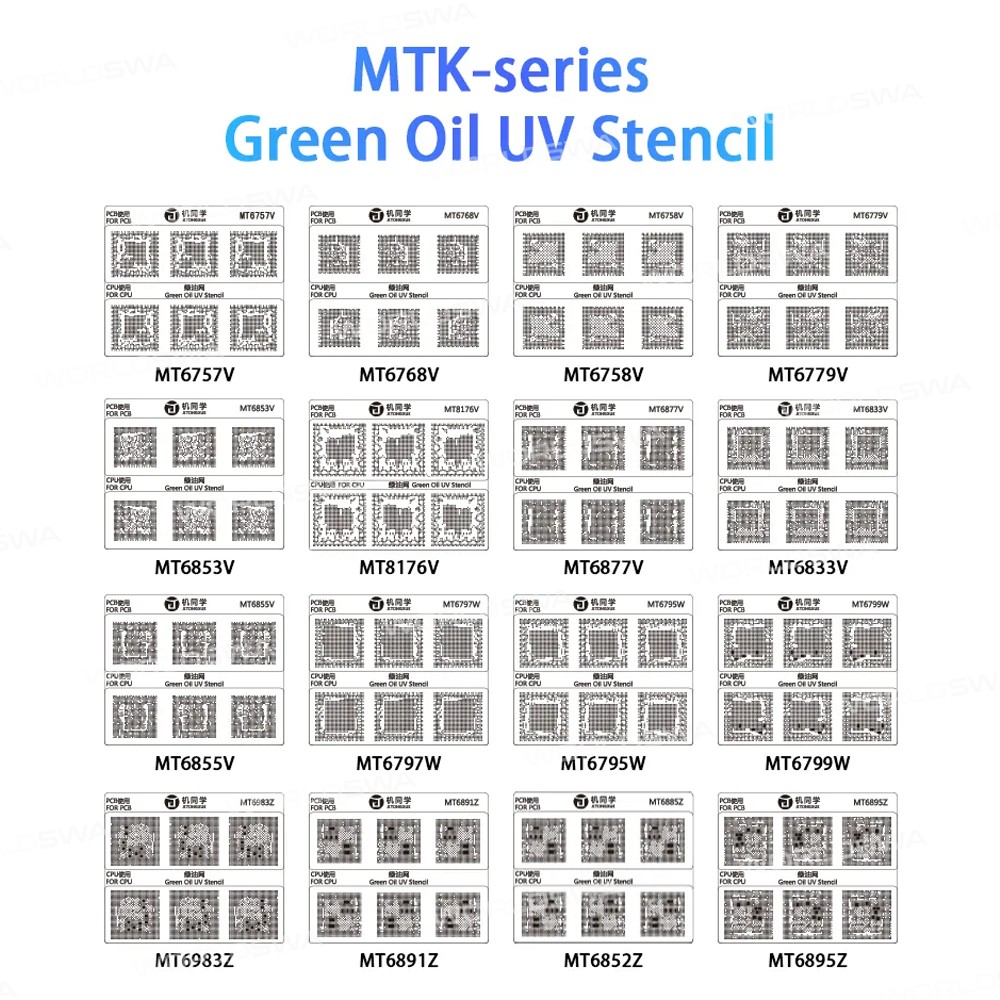

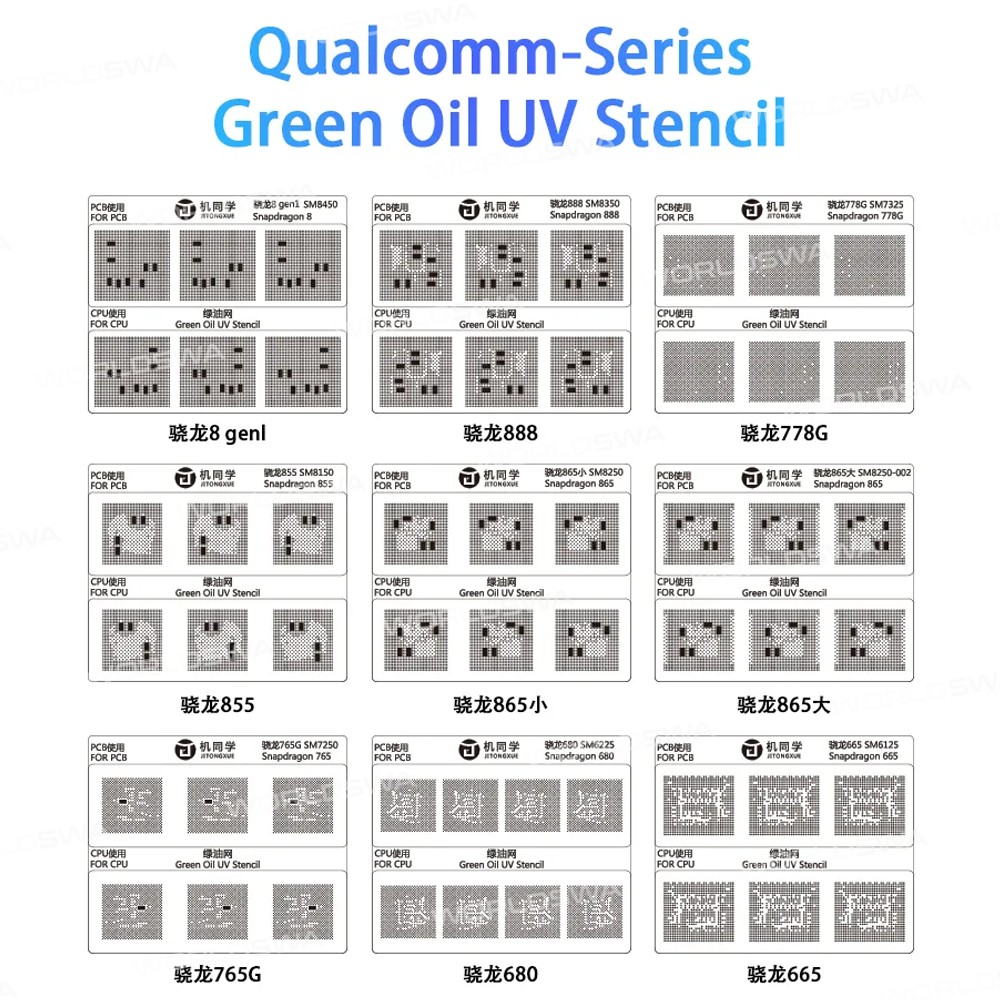

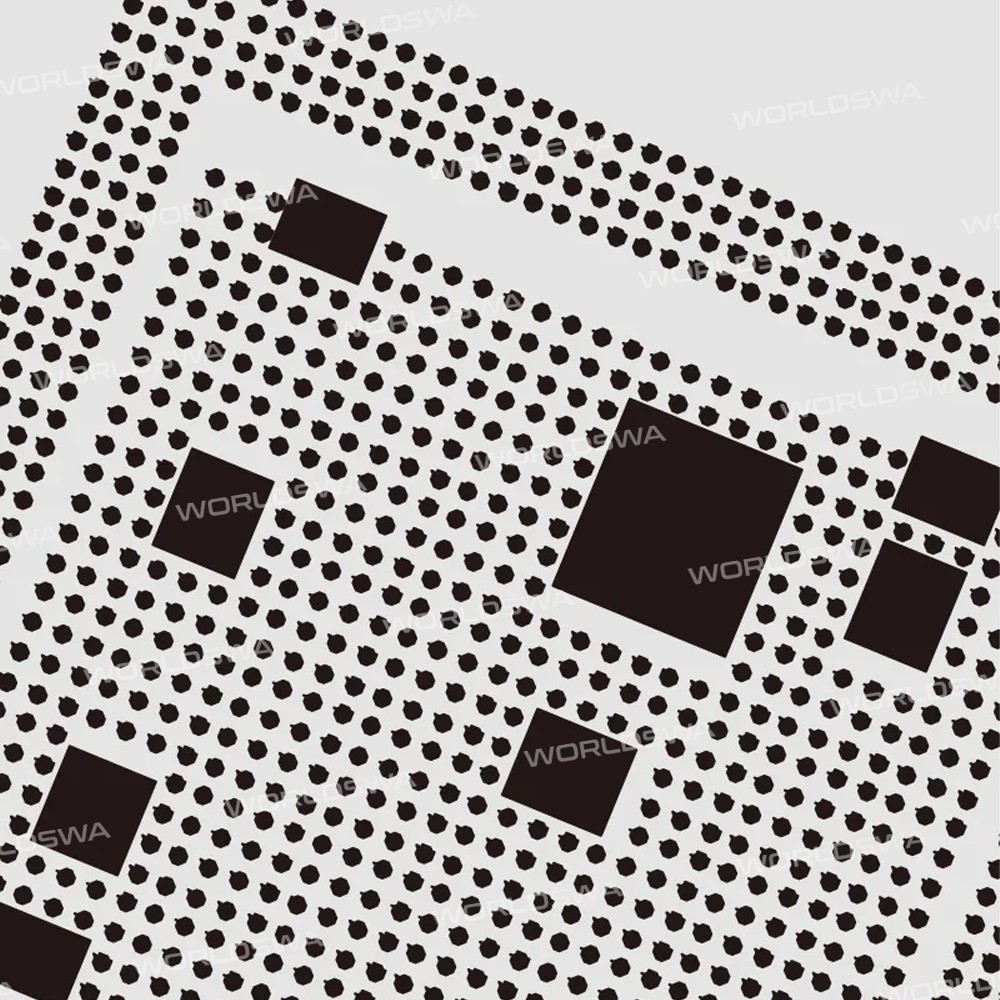

• High-precision stencil for solder mask repair, compatible with iPhone, Samsung, MTK, Hisilicon, Qualcomm, and other series.
• **Accurate alignment**: Each stencil is proofread according to the original factory drawings to ensure that every solder joint is present and precisely aligned.
• **Burr-free and uniform holes**: High precision, no burrs, ensuring each mesh hole is the same size and not stuck with tin balls.

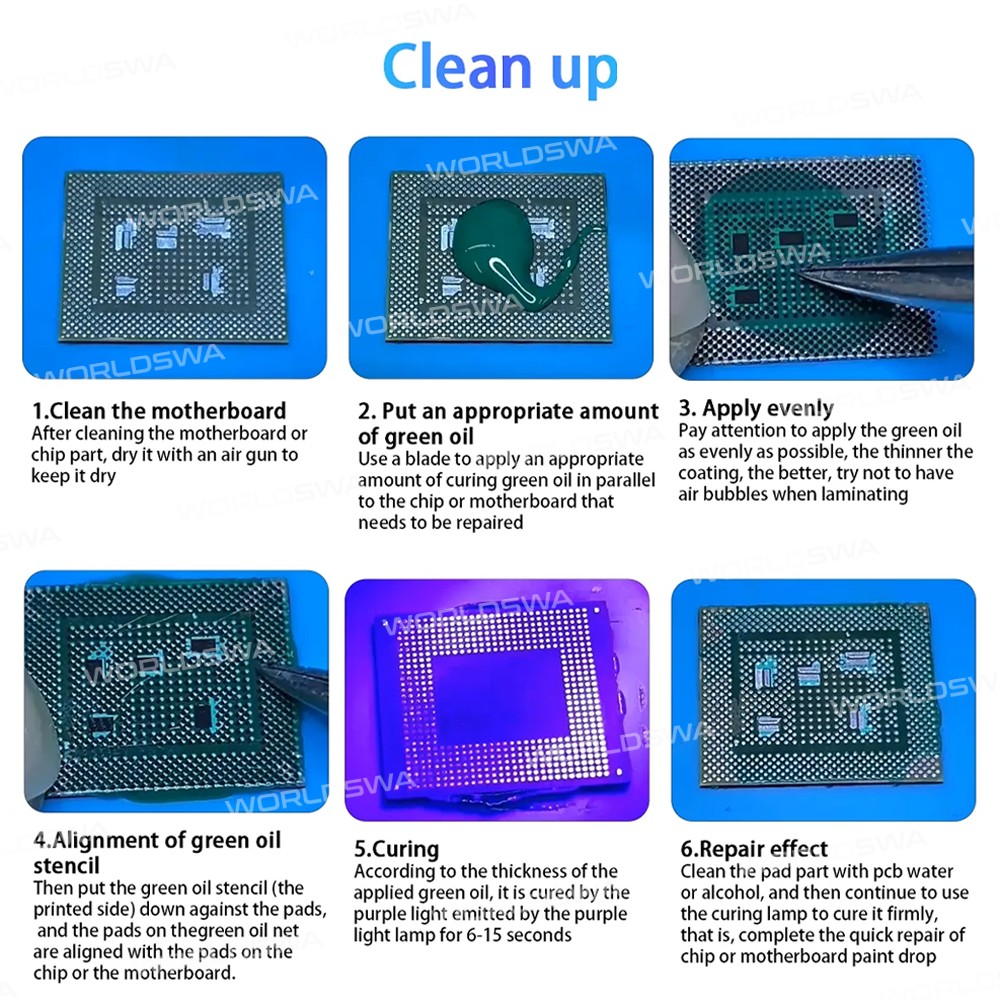

How to Use:

• **Preparation**: Clean the motherboard or chip part, then dry it with an air gun to keep it dry.
• **Apply green oil**: Use a blade to apply an appropriate amount of curing green oil parallel to the chip or motherboard that needs to be repaired.
• **Even coating**: Apply the green oil as evenly as possible, aiming for a thin coating, and avoid air bubbles when laminating.
• **Align and cure**: Place the green oil stencil (printed side down) against the pads, aligning the pads on the green oil net with those on the chip or motherboard. Cure with a purple light lamp for 6-15 seconds, depending on the thickness of the applied green oil.
• **Clean and finalize**: Clean the pad part with PCB water or alcohol, then use the curing lamp to cure it firmly, completing the quick repair of the chip or motherboard paint drop.

Package includes:

• According to your choice
