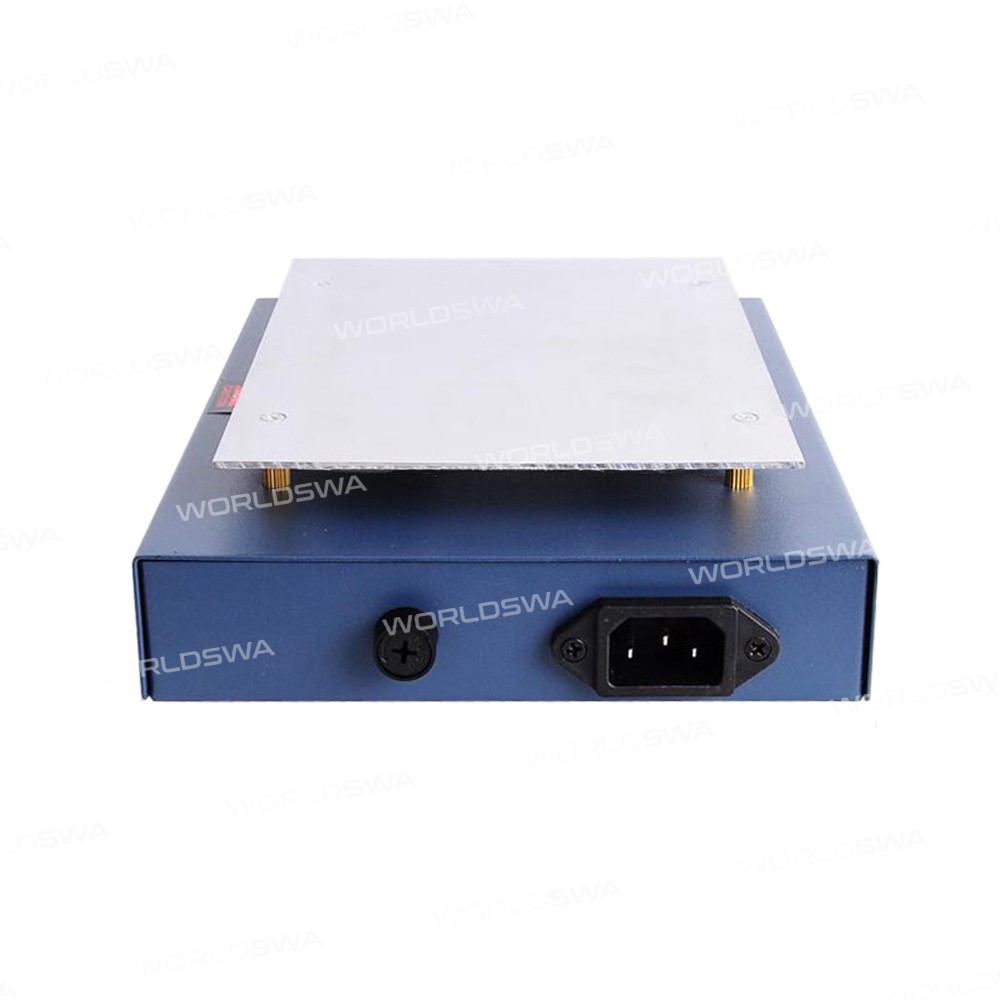

Kaisi K-812 / K-816 LCD Screen Separator Heating Platform

Kaisi K-812 / K-816 LCD Screen Separator Heating Platform

Features:

• Auto heating metal plate, the maximum temperature is 120 centigrade
• Safety power system inside, avoiding the electric leakage problem.
• Anti-static body material prevents the LCD and the flex cable from being damaged from the static
• Smooth metal plate to hold the touch-screen without any damage.
• The temperature should be set to 80 centigrade to 100 centigrade when you do the job for it and the galaxy series
• Please do not set the temperature to more than 120 degrees, because it may damage the screen
• With an LED display, you can get Temperature information on it.
• Application Range: Separation of the different cover plates, LCD, and so on
• **Summary:** Efficient and safe LCD screen separator with advanced features for optimal performance.

Specifications:

• Model: Kaisi K-812/K-816
• Color: Blue
• Material: Metal
• Voltage: AC 110/220V 50-60Hz
• Power: 270W
• Size: Appro 220 * 165 * 60mm/8.6 * 6.4 * 2.3' Inch
• Heating Plate Size: Approx 180 * 130mm/7.0 * 5.1 Inch
• Working Tempreture: 0-55 degrees, <90%RH non-condension

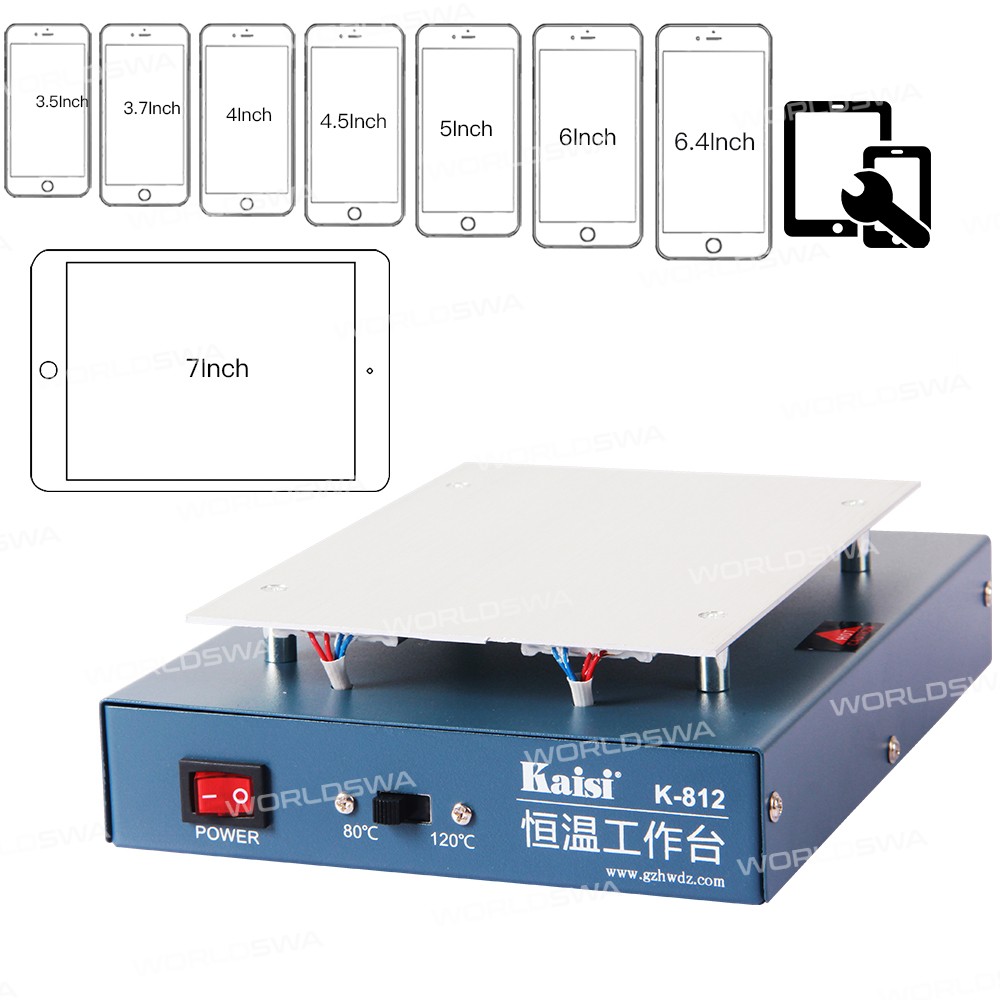

• Compatible With: For 7 Inch or below LCD or LED screen assembly

Operation Steps:

• Step 1: Put your LCD with the touch-screen on the metal plate, LCD side above.
• Step 2: Turn on the machine and wait for the metal plate to become 80-100 degrees.
• Step 3: Press the button and put the non-slip mat on the plate then put the LCD on it.
• Step 4: Start to separate the LCD off the glass with a core, then right and left movement with the core in between the LCD and the glass, please notice you must use gentle power and keep the core stay on the LCD surface so that it will avoid the touch-screen be damaged.

Package Includes:

• 1 x Heating Platform
• 1 x Power Cable
• 1 x Package Box
