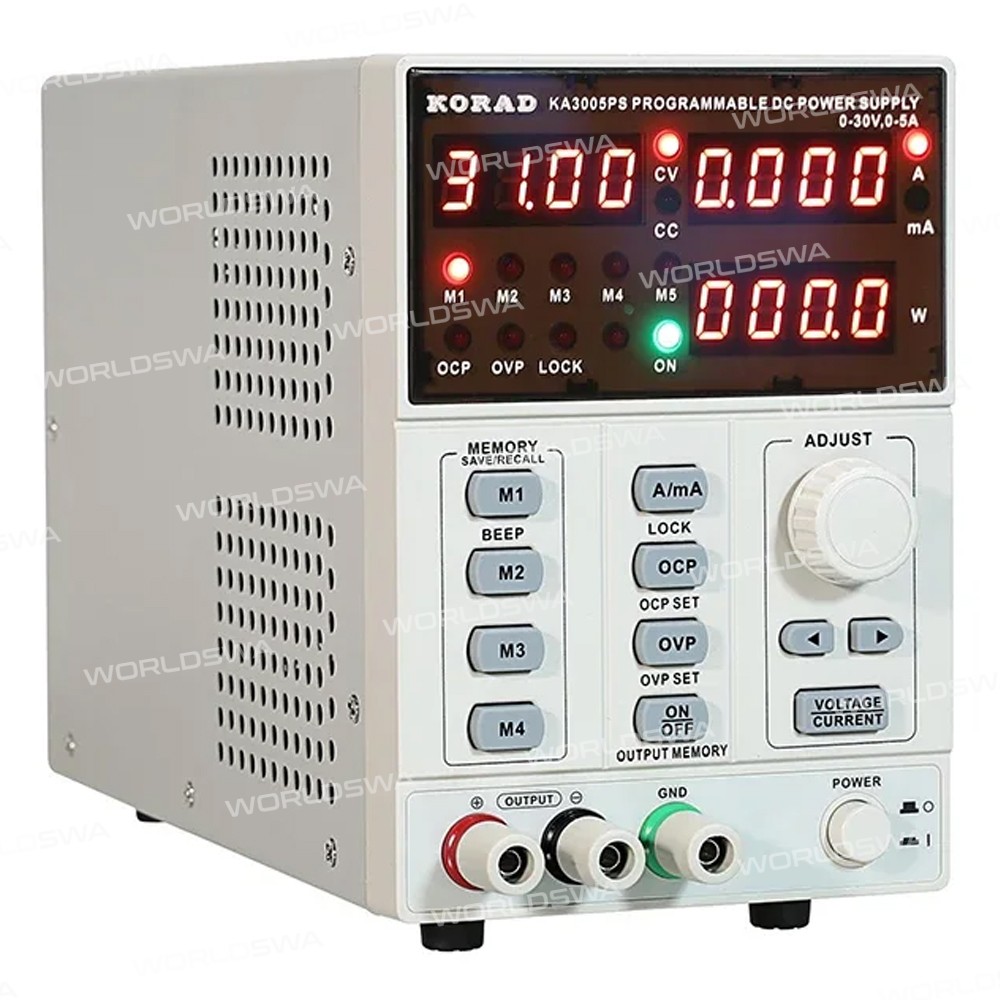

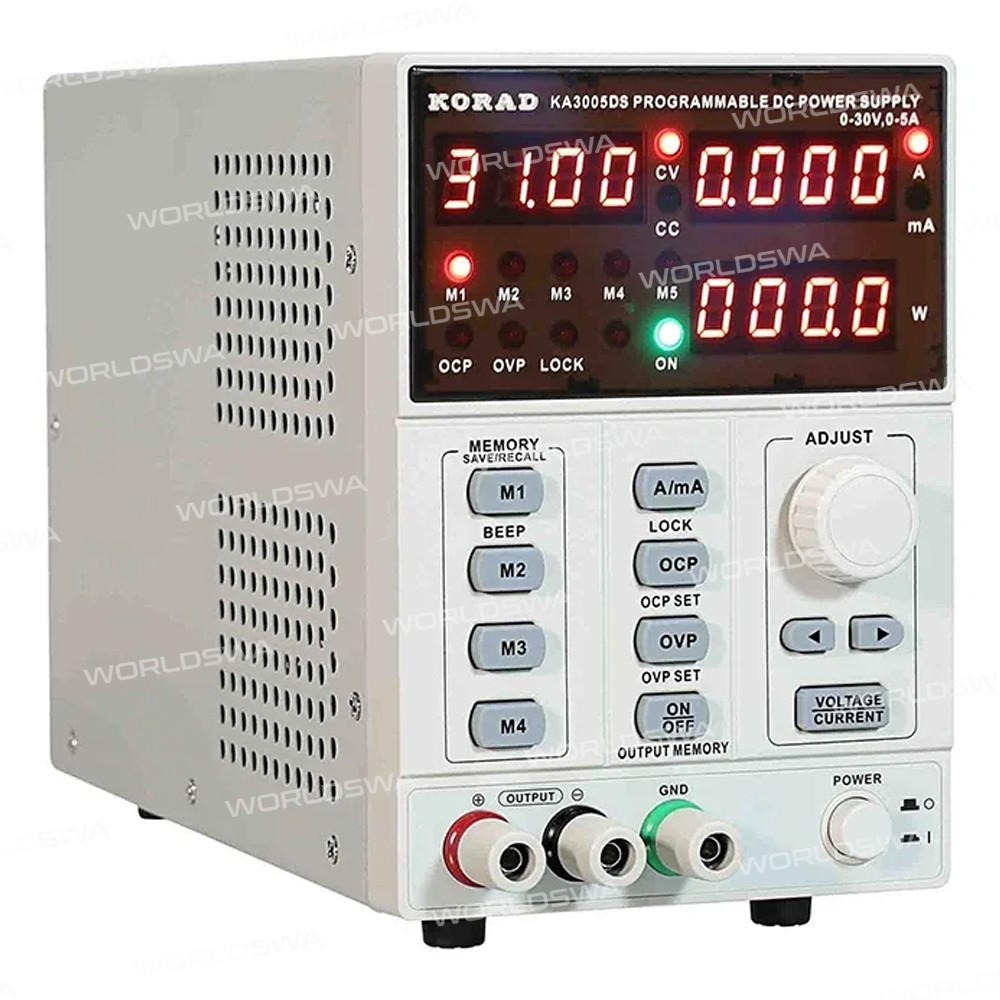

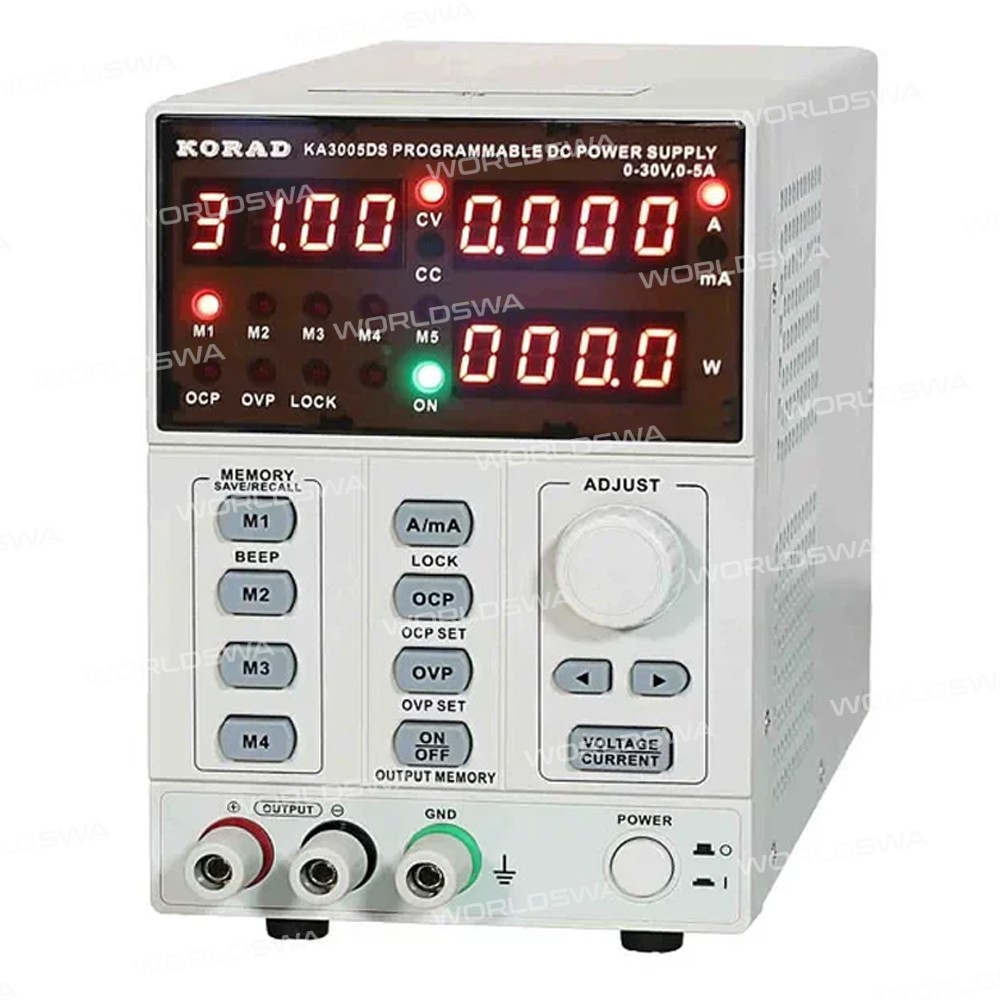

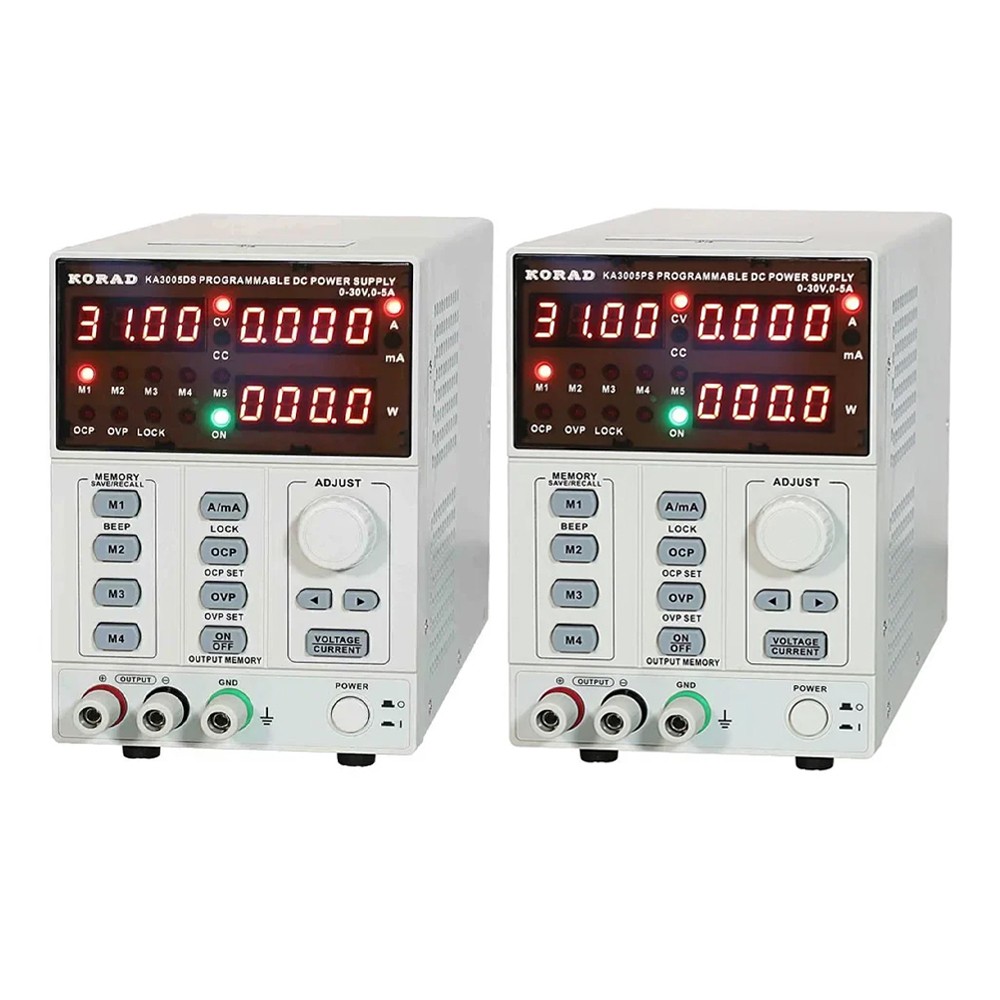

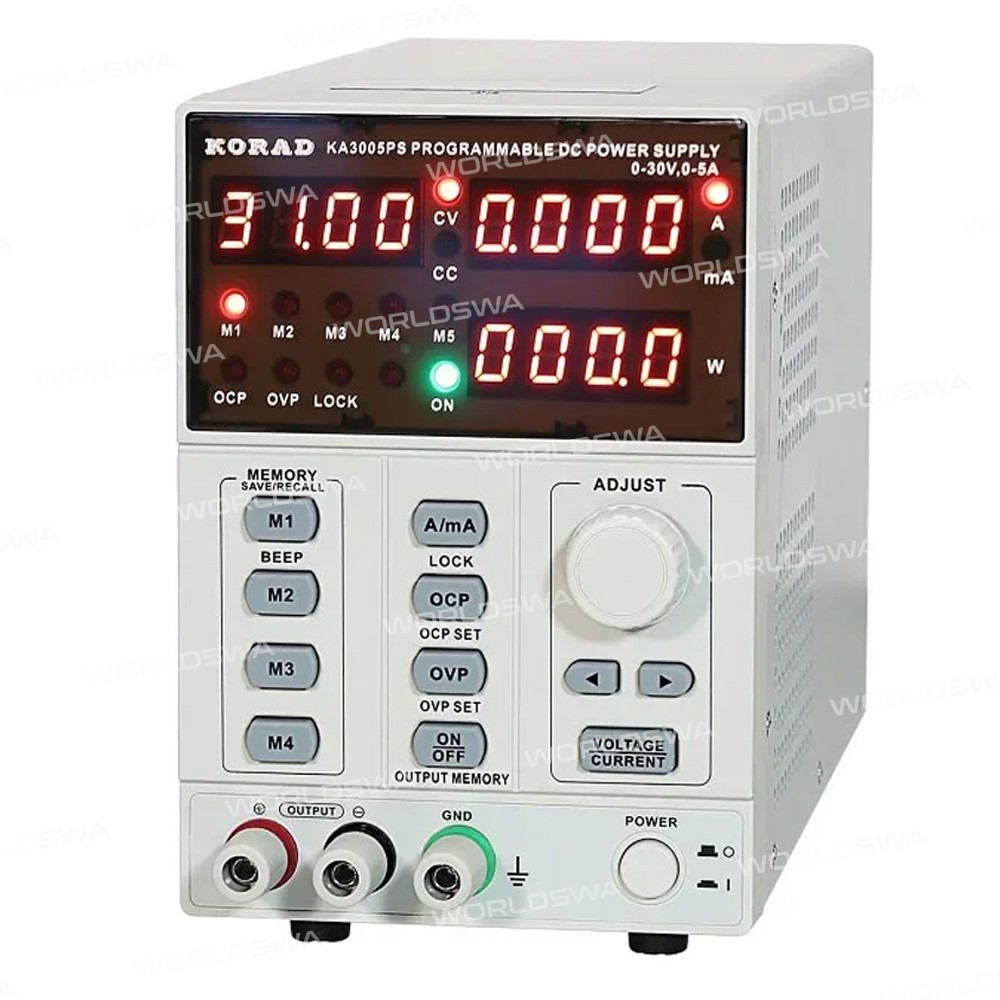

Korad KA3005DS / KA3005PS 30V 5A Programmable Precision DC Regulated Power Supply with Digital Display
0 out of 5 stars
No review yet| Qty | Price | Discount |
|---|---|---|
| 1 | NaN | |
| 3 | NaN | -3.2% |
| 5 | NaN | -4.8% |
| 10 | NaN | -7.1% |
Please select Type
Choose a Type
KA3005DSKA3005PS/with USB + RS232
Please select Voltage
Choose a Voltage
220V
Extra Adapter
Choose a Extra Adapter
AUEUUKUS
Product details
Description
Korad KA3005DS / KA3005PS 30V / 5A Programmable Digital Display Precision DC Regulated Power Supply
Features:

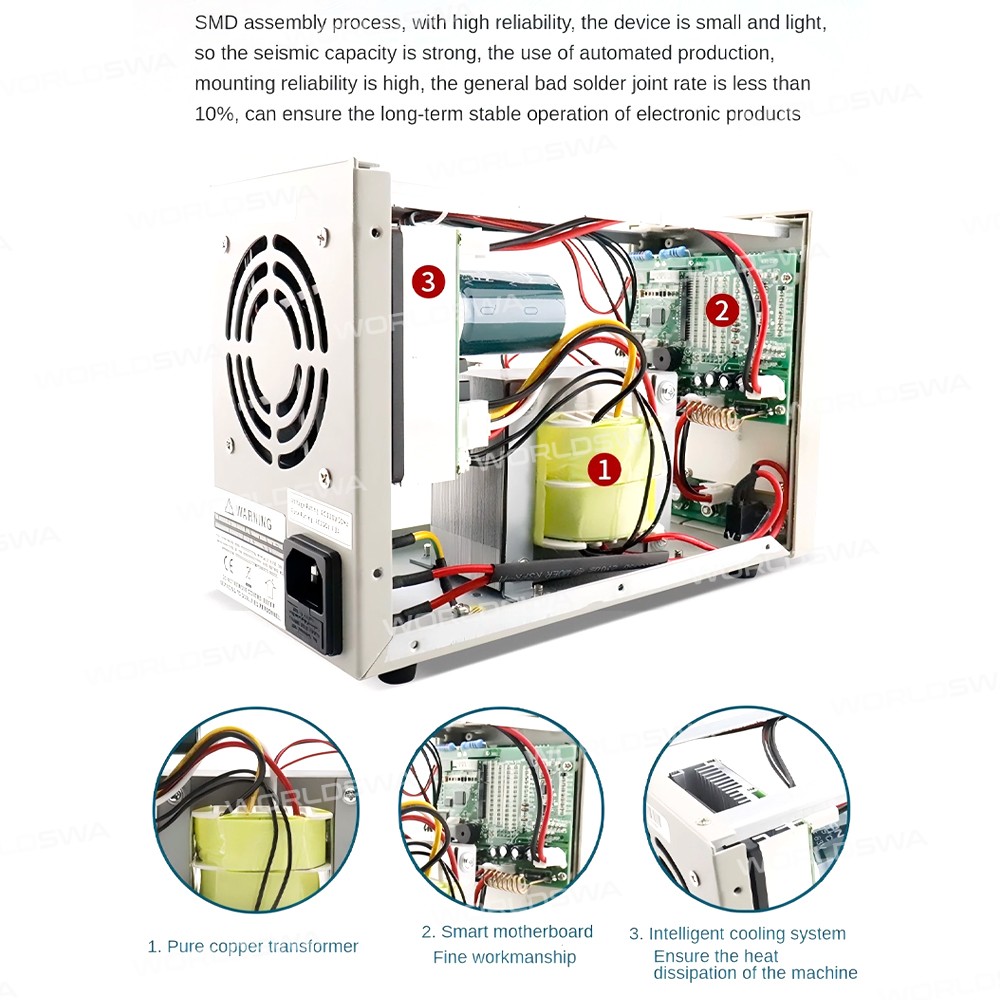

- Low noise: The cooling fan is controlled by the radiator temperature
- High-precision voltage and current output (maximum resolution 0.1mA of current reading), and
- Constant Voltage/Constant Current operation
- Output ON/OFF control
- Voltage, current, and power display
- Digital panel control
- 4 pairs of saving/recalling panel settings, coarse and fine
- Software calibration
- Keyboard LOCK function
- Over-voltage and Over-Current Protections that can set parameters
- Reverse polarity protection
- Short circuit protection

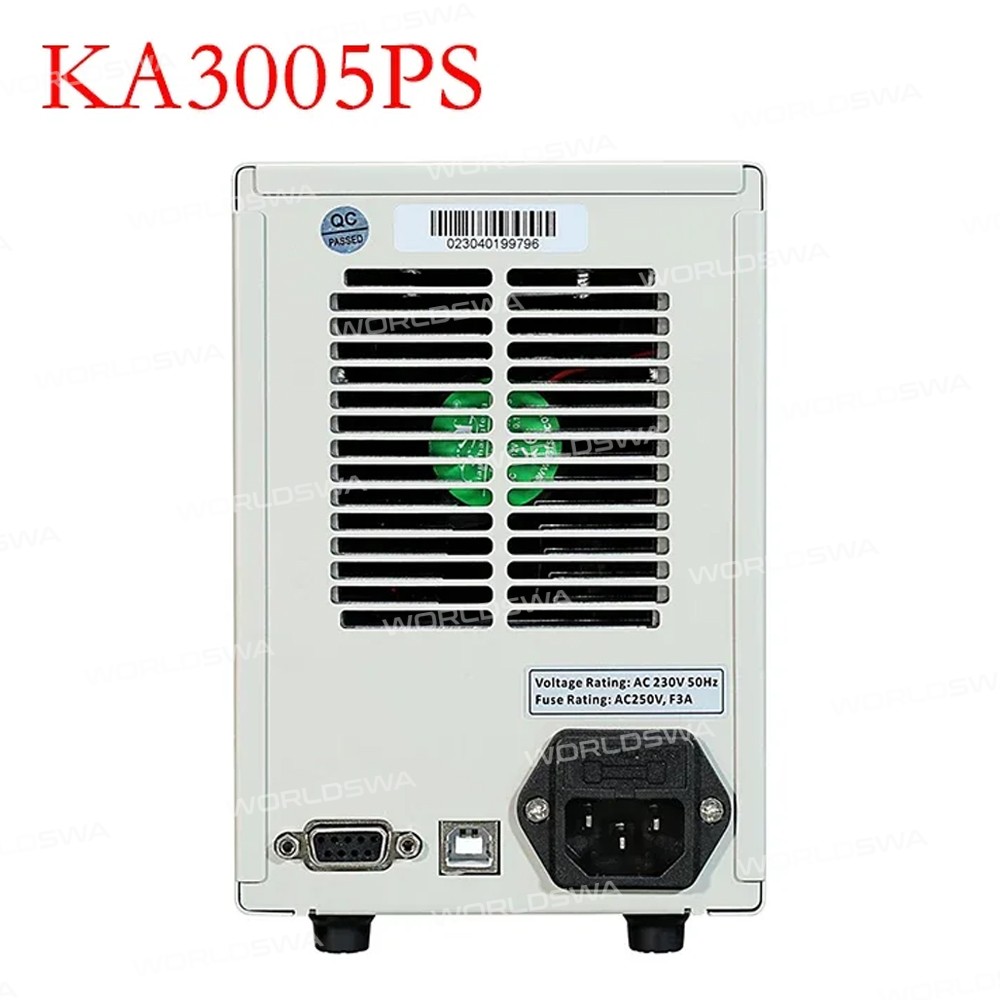

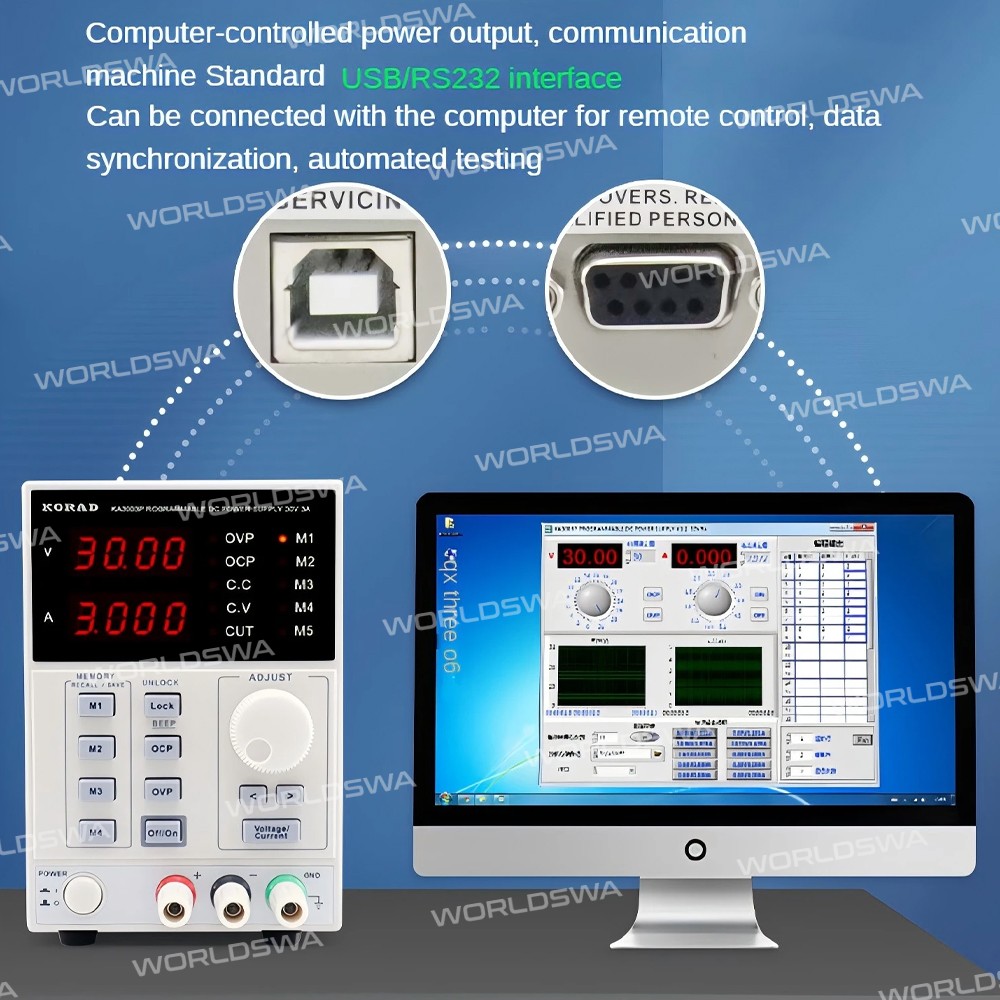

- USB/RS232 for remote control (only KA3005PS)
Specification:
- Voltage Range: 0~30V
- Current Range: 0~5A
- Load Regulation:Voltage: ≤0.01%+2mV; Current: ≤0.1%+10mA
- Line Regulation:Voltage: ≤0.01%+3mV; Current: ≤0.1%+3mA
- Setup Resolution:Voltage: 10mV; Current: 1mA
- Setup Accuracy (25°C±5°C): Voltage: ≤0.5%+20mV;Current: ≤0.5%+10mA
- Ripple (20-20M): Voltage: ≤2mVrms;Current: ≤2mVrms
- Temperature Coefficient: Voltage: ≤150ppm; Current: ≤150ppm
- Read Back Resolution: Voltage: 10mV; Current: 1mA
- Read Back Temp. Coefficient: Voltage: ≤150ppm;Current: ≤150ppm
- Reaction Time: Voltage Rise: ≤100mS; Voltage Drop: ≤100mS
- Interface: Non-Programmable Interface
- Weight: 4.32 Kg
- Dimensions: 100*156*260mm
Package includes:
- 1 x Power Supply
- 1 x Test Leads
- 1 x Power Cord
