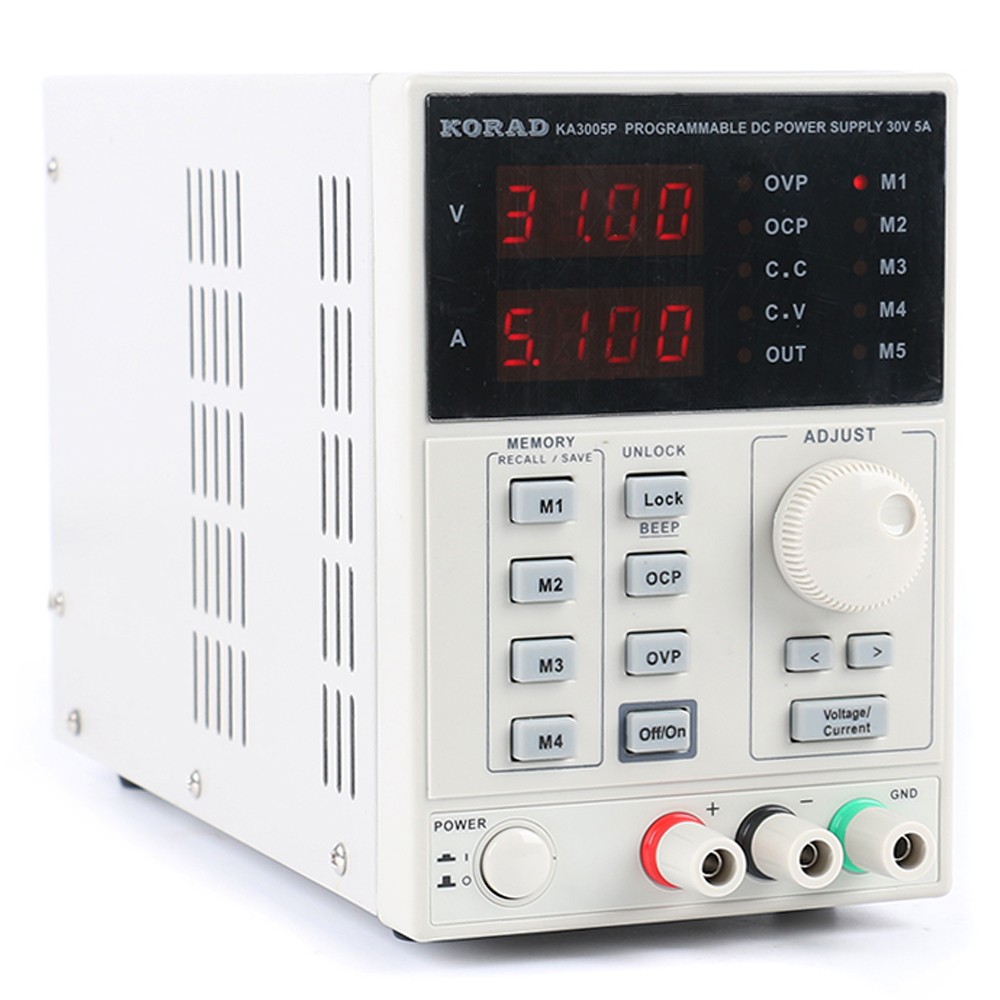

Korad KA3005P Programmable Precision DC Linear Digital Power Supply 30V 5A with USB & RS232 Interfaces

Korad KA3005P 30V 5A Programmable Precision DC Linear Digital Power Supply with USB RS232 Interfaces

Product Overview

The Korad KA3005P is a high-performance programmable precision DC linear digital power supply featuring 30V/5A output, low noise and ripple, and high accuracy and resolution. It is designed for professional use, offering intuitive operability and advanced features such as over-voltage and over-current protection, memory function, and keypad lock.

Key Features

• High Accuracy and Resolution**: 30V/5A full digital power control single, 10mV/1mA high accuracy and resolution
• Low Noise and Ripple**: CV/CC given voltage and constant current mode
• Advanced Protection**: Highly reliable OCP, OVP, arbitrarily set protection, power, and memory function, has Keypad lock to prevent misuse

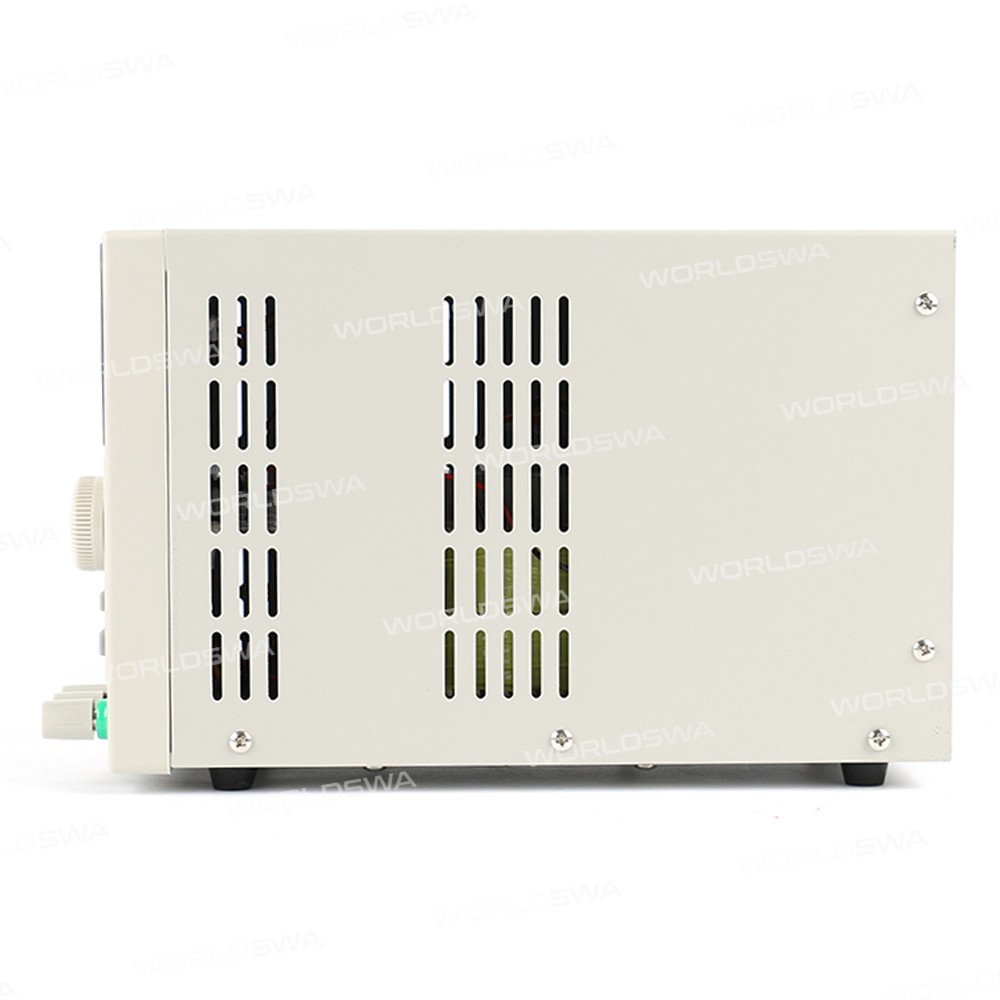

• Intelligent Temperature Control**: Intelligent temperature control fan effectively reduces the noise

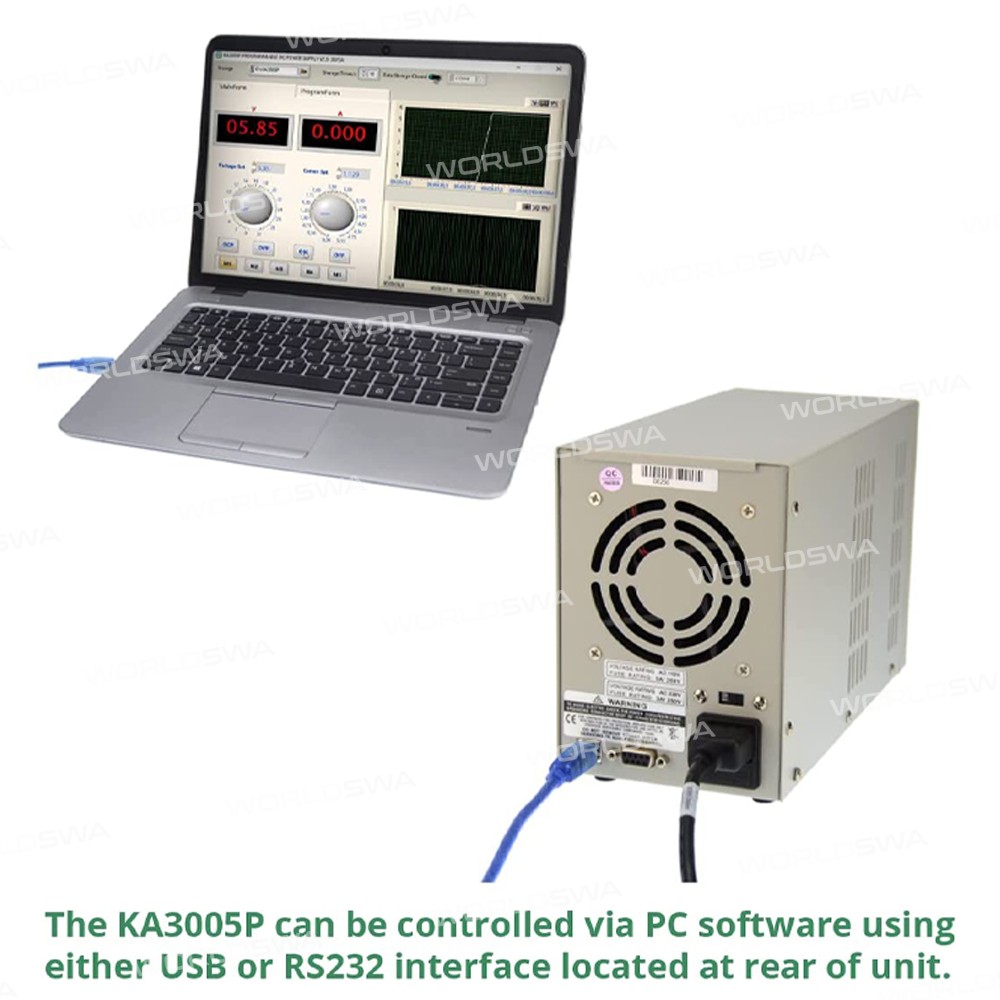

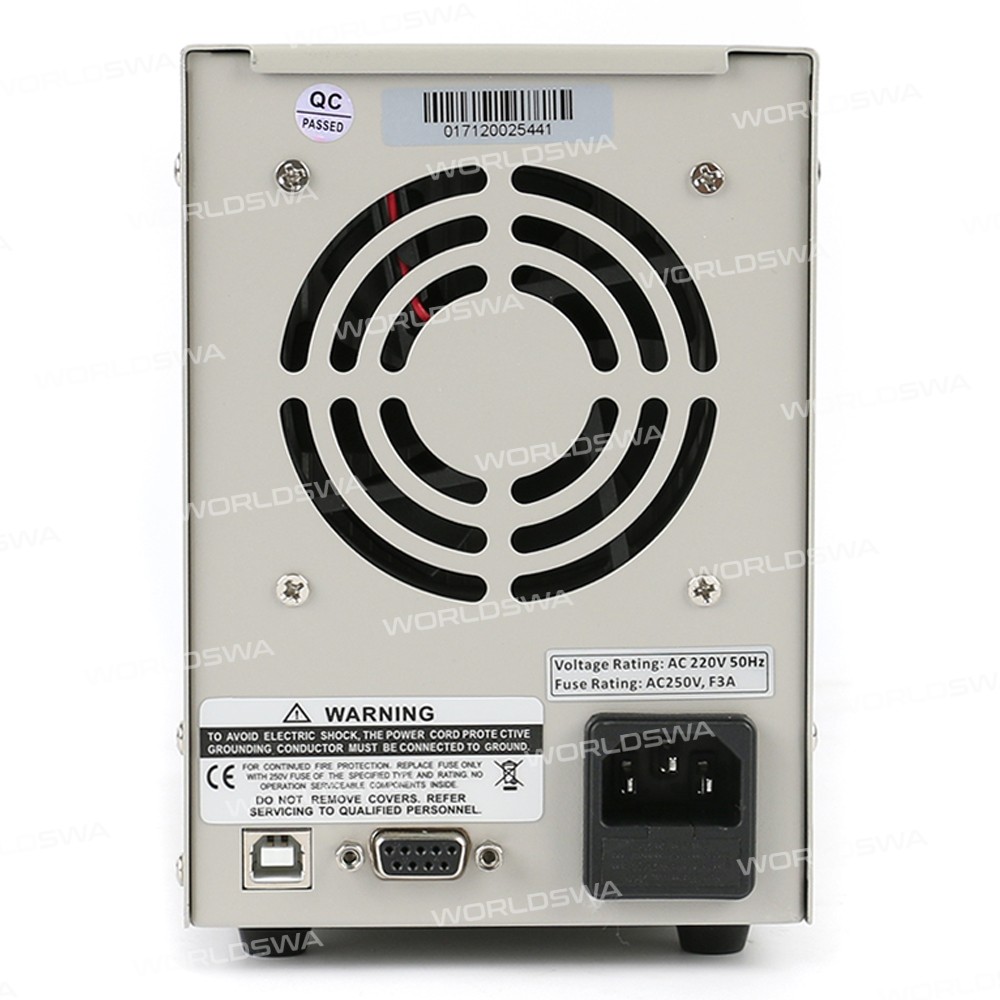

• Multiple Interfaces**: With RS232, USB interface

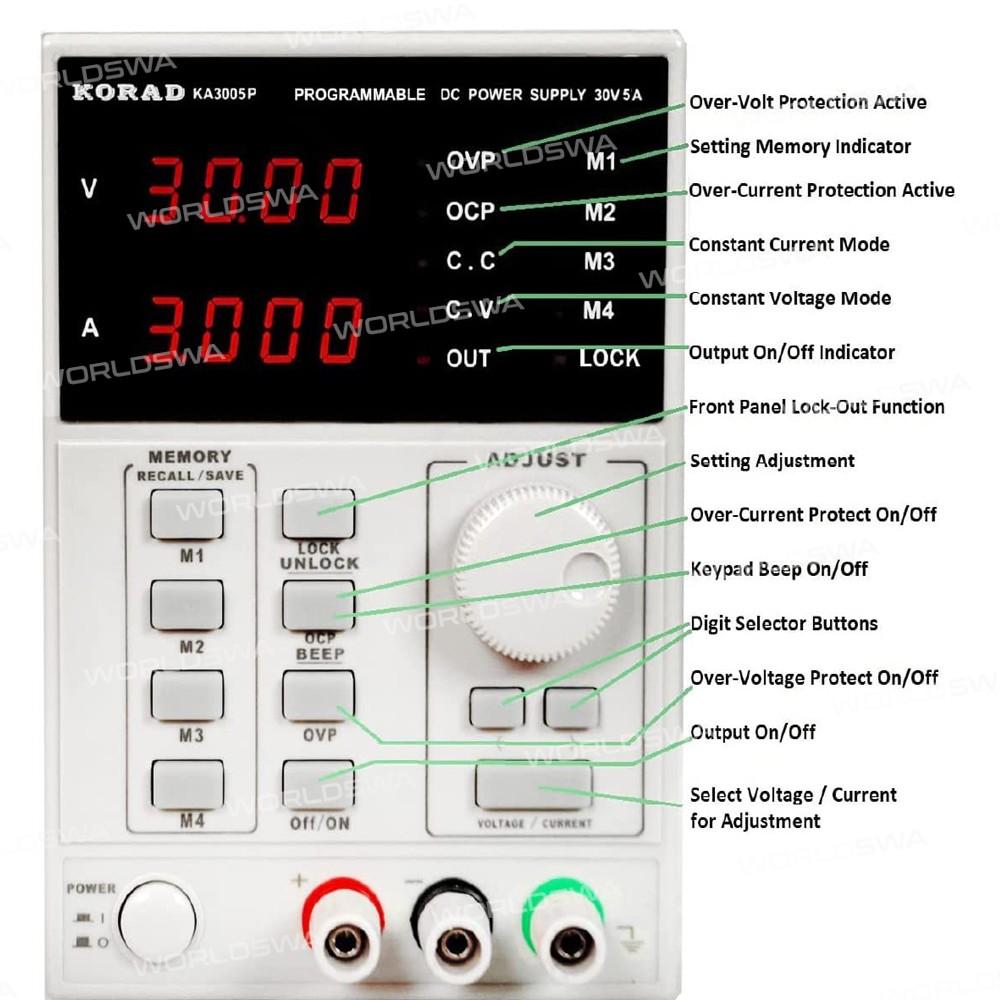

• Professional Design**: Professional power supply design with intuitive operability
• Easy Operation**: Simple and intuitive operation, fast and accurate selection of voltage and current can be realized
• Customizable Protection**: To prevent damage to the load can be set to the value of over-voltage protection and over-current protection to prevent the voltage regulator from beyond the threshold can
• Convenient Memory Function**: Just press the button to recall and save area a key to bring up the user to store the data and save user settings

Specifications

• Input voltage: 220V
• Frequency range: 50Hz
• Operating temperature: 32-104℉ (0~40ºC)
• Operating humidity: < 80%RH
• Storage temperature: 32-158℉ (0~70ºC)
• Storage humidity: < 70%RH

Stable Voltage

• Output Voltage Range: 0-30V Continuously adjustable
• Setup Resolution: 10mV
• Setup Accuracy: <0.05%+20mV
• Ripple: <1mVRMS
• Read back Accuracy: 10mV
• Temp. Coefficient: <0.1% + 10mV
• Read back, Temp. Coefficient: <100ppm+10mV

Stable Current

• Output Current Range: 0-5A Continuously adjustable
• Setup Resolution: 1mA
• Setup Accuracy: <0.1% +3mA
• Ripple: <3mARMS
• Read back Accuracy: 1mA
• Temp. Coefficient: <0.1% + 5mA
• Read back, Temp. Coefficient: <100ppm+5mA
• Dimensions : 110*156*260mm

Package Includes

• 1 x Power Supply
• 1 x Power Cable
• 1 x USB Line
