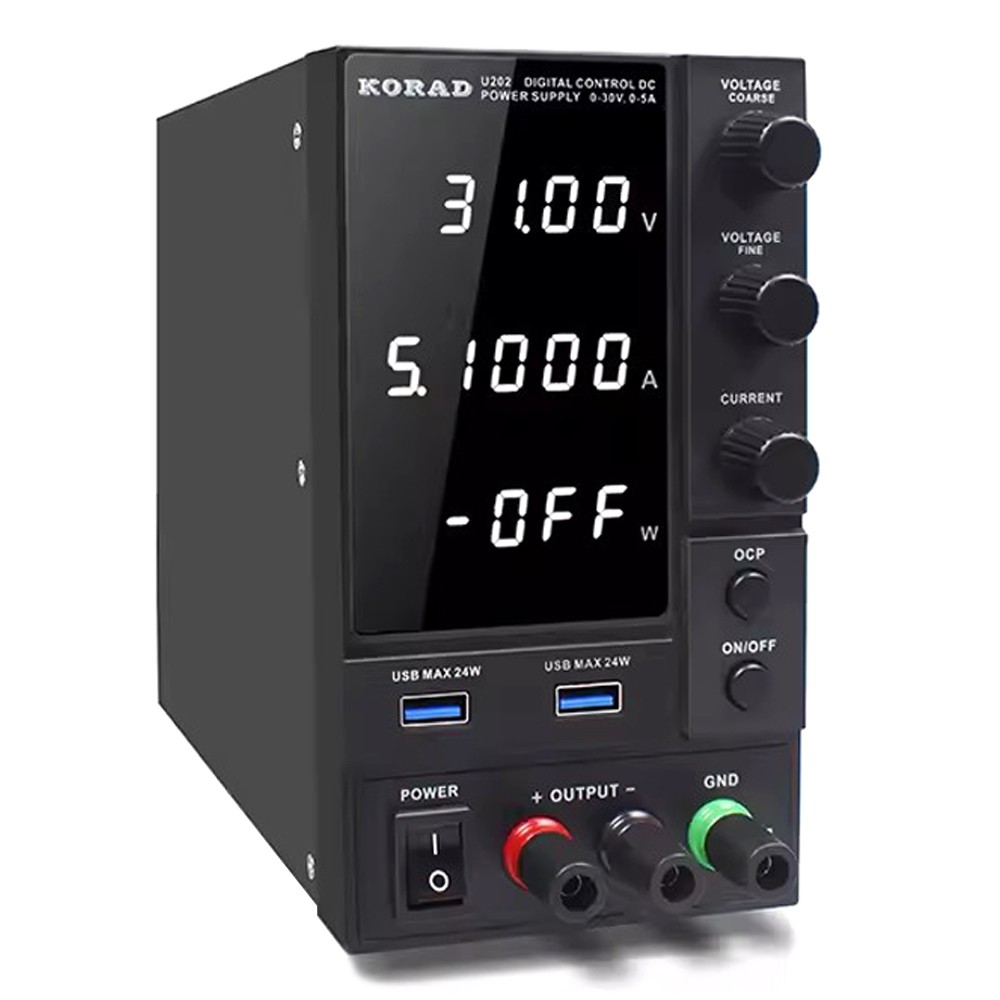

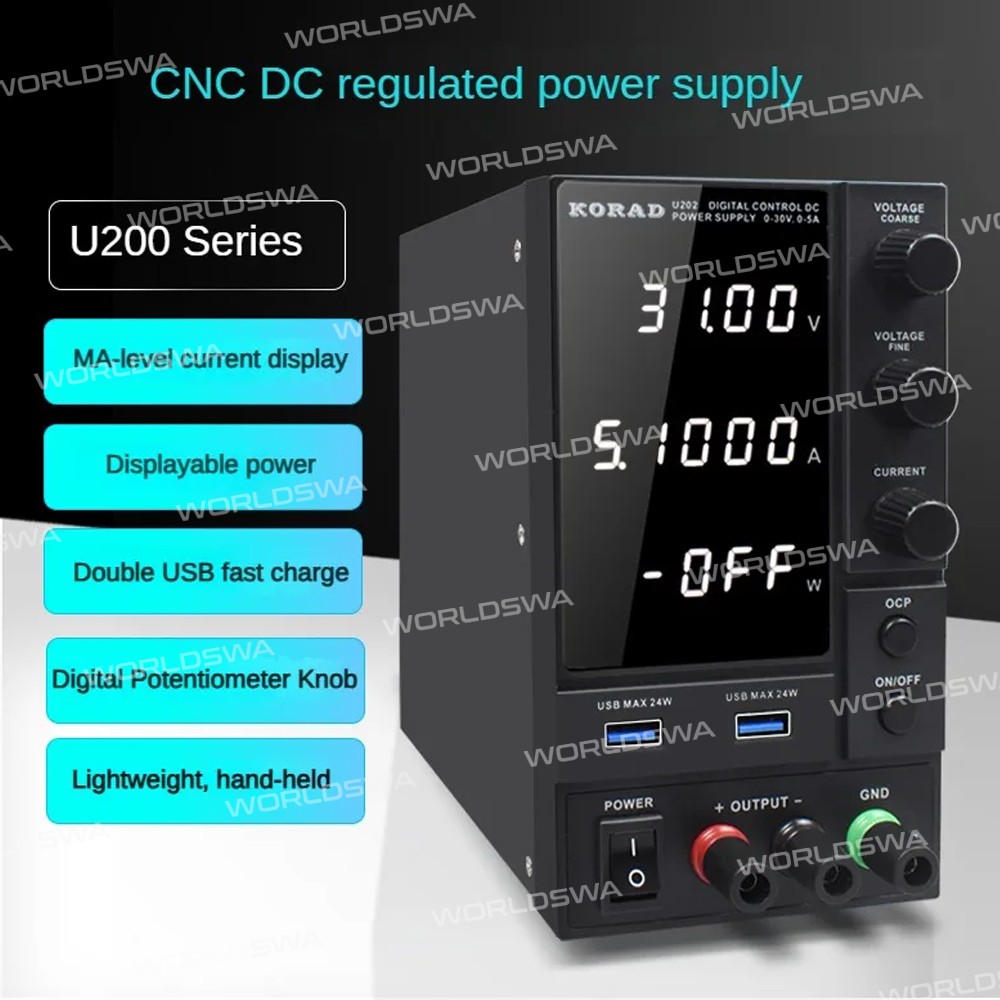

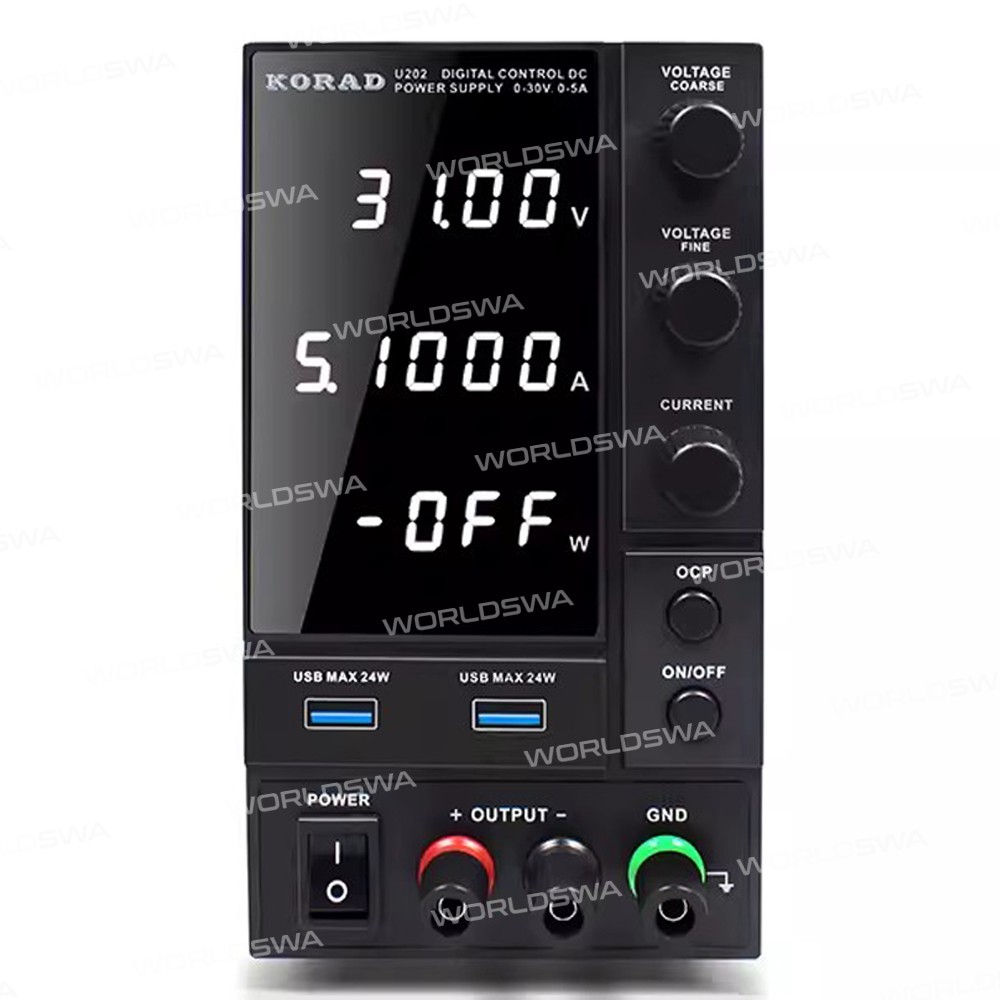

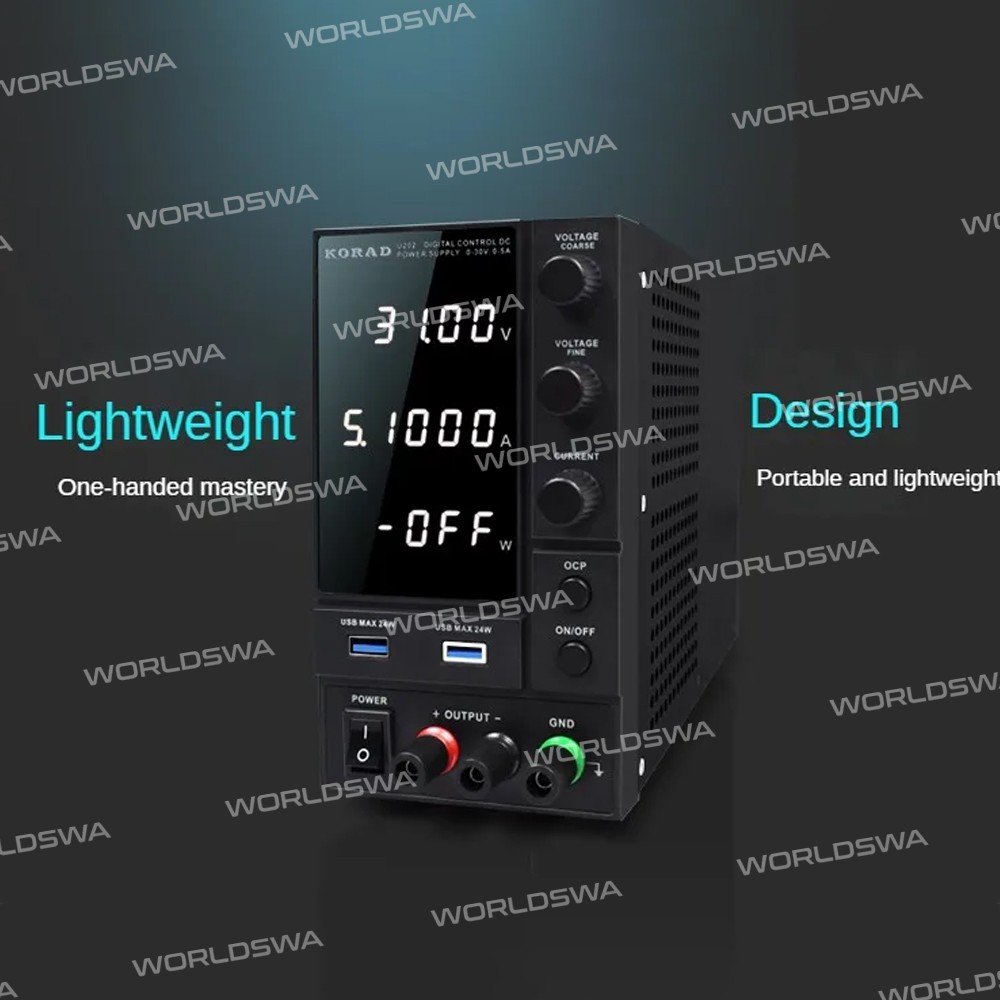

Korad U202 / U203 30V 5A / 10A Digital Display Adjustable DC Regulated Power Supply

Korad U202 / U203 30V 5A/10A Adjustable DC Regulated Digital Display Power Supply

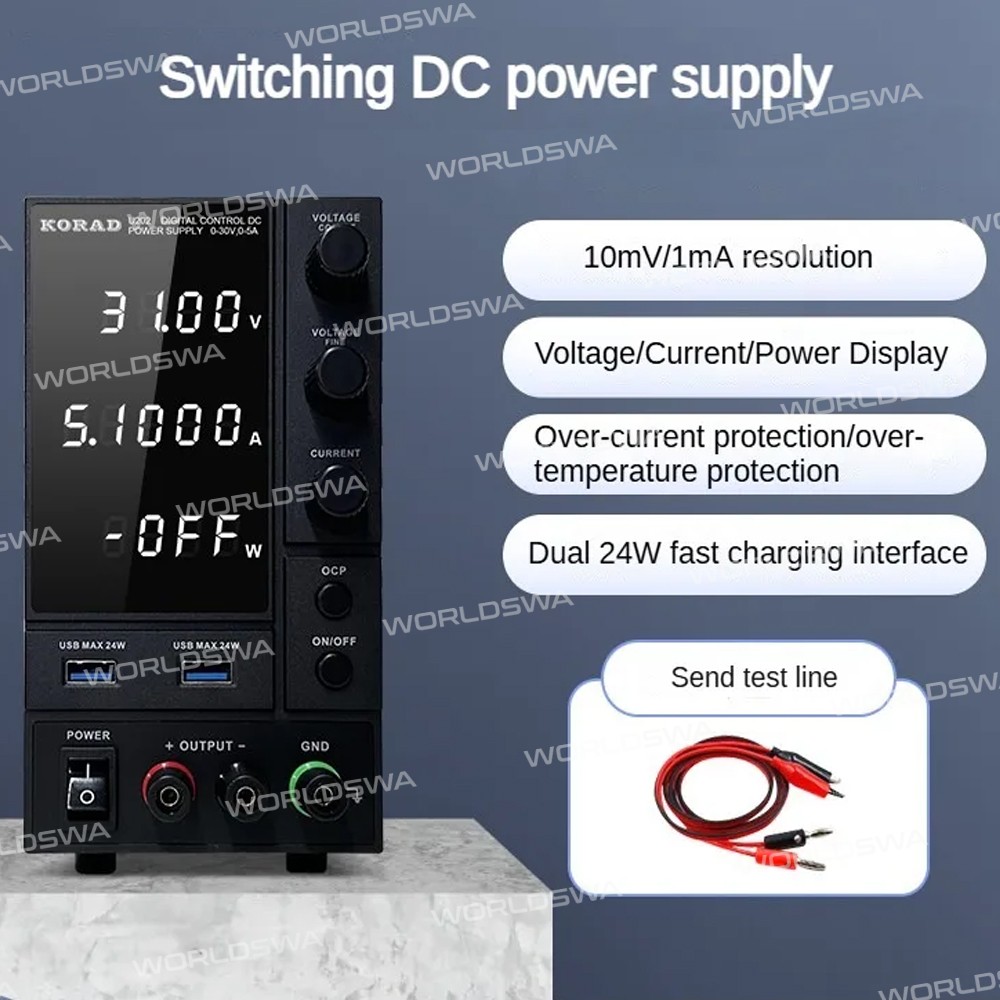

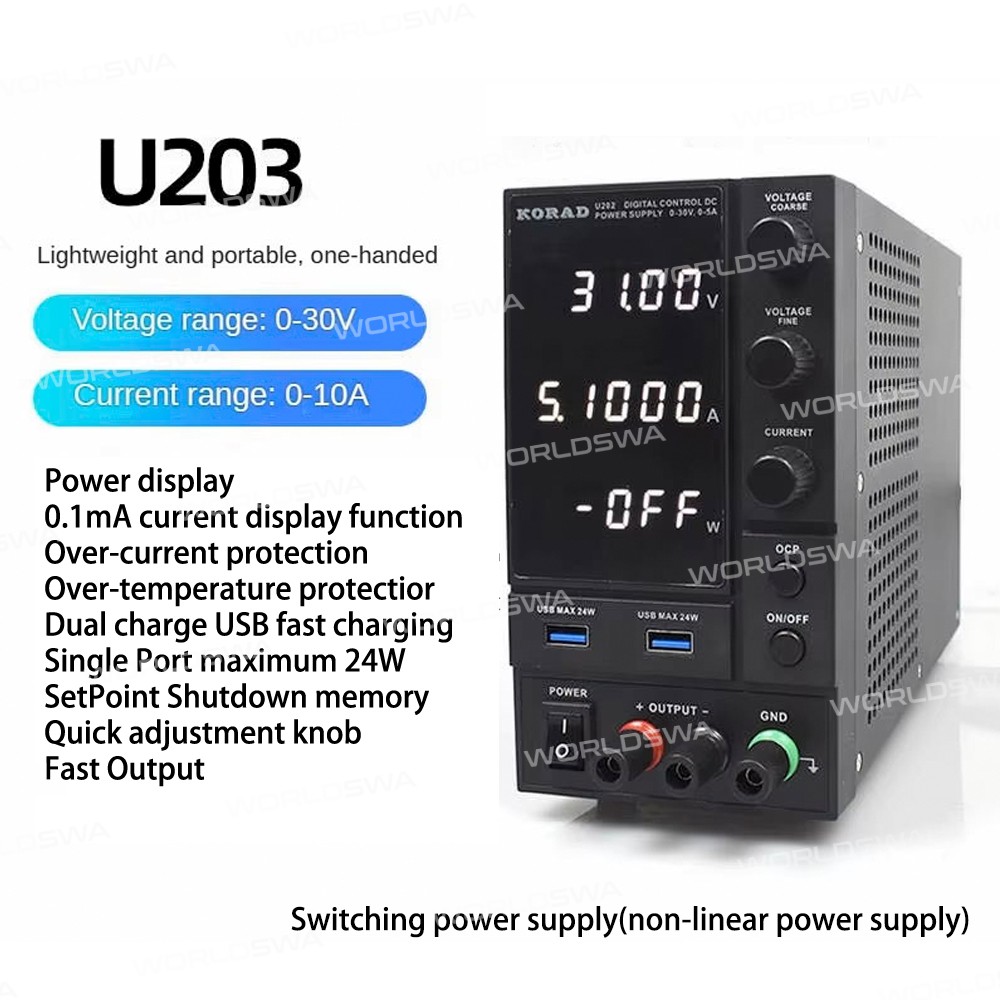

Features:

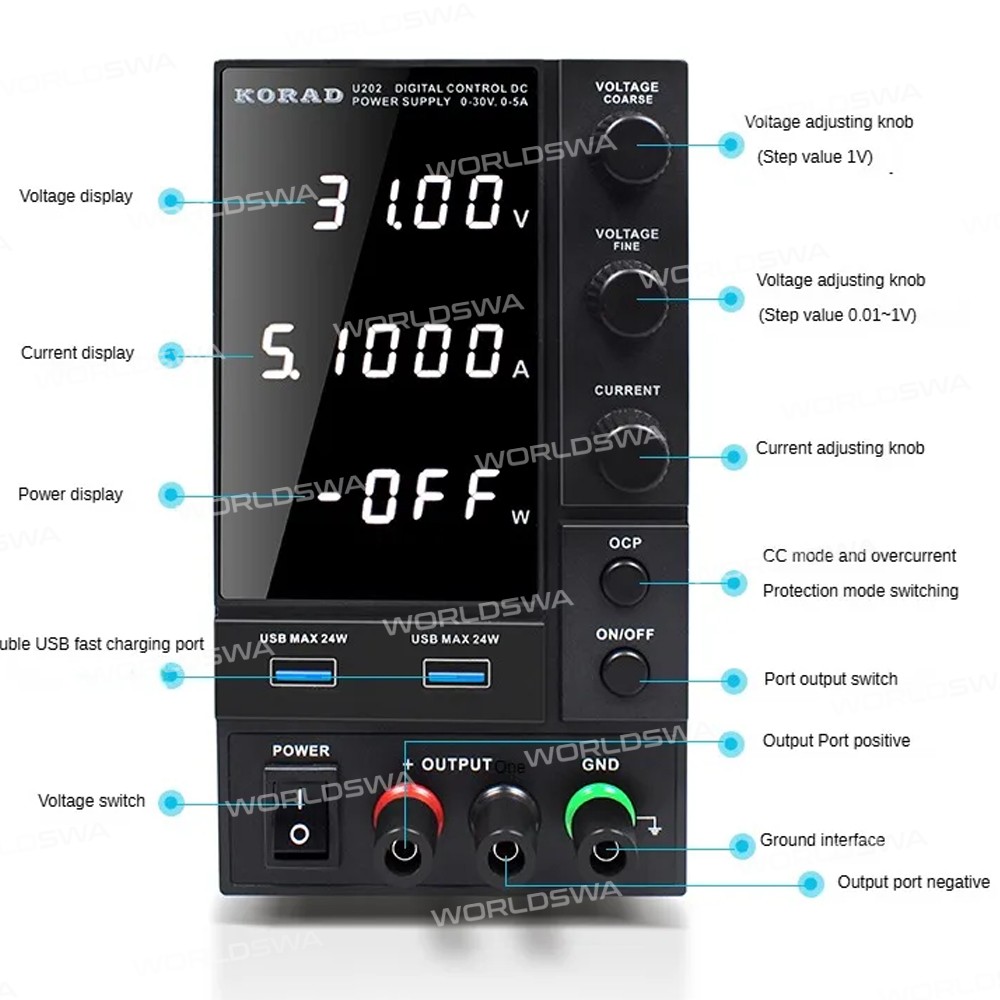

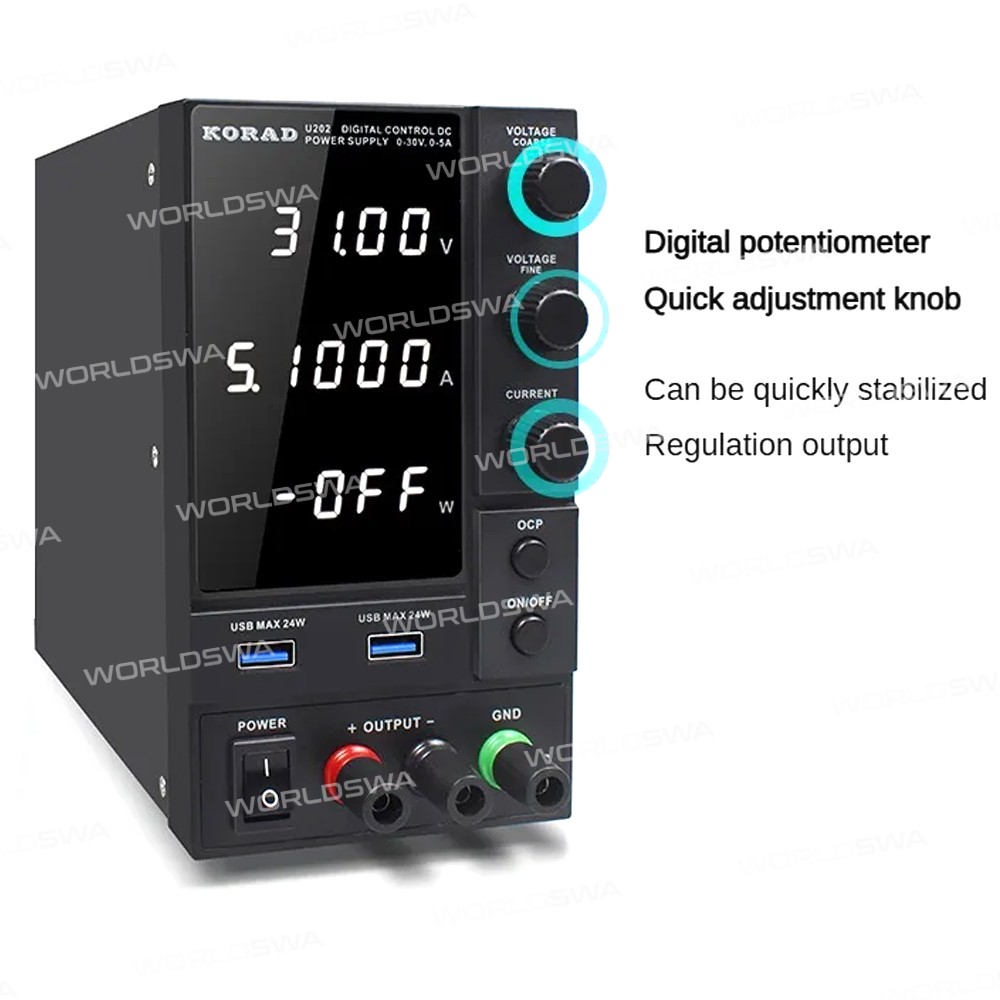

• Encoder numerical control can be coarsely and finely adjusted
• 10mV/1mA resolution
• Voltage, current, and power display

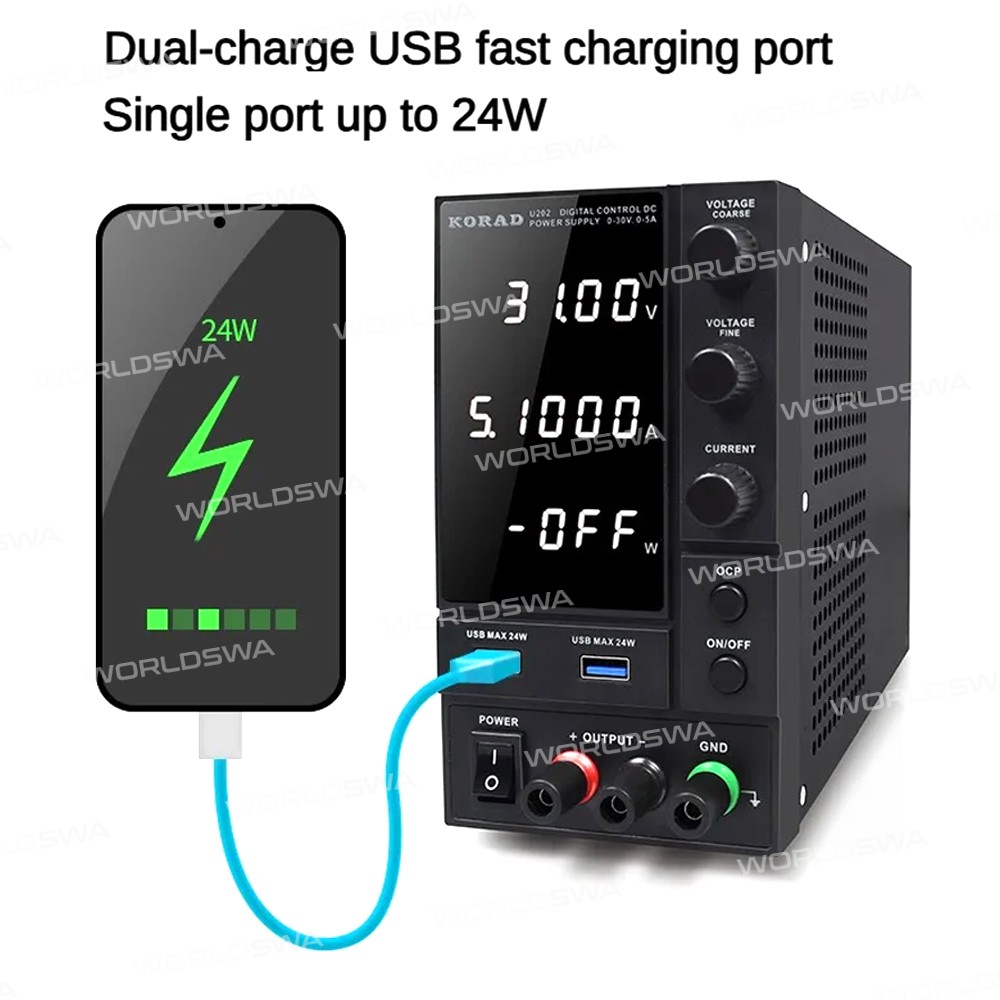

• Dual 24W fast charging
• Over-current protection, over-temperature protection

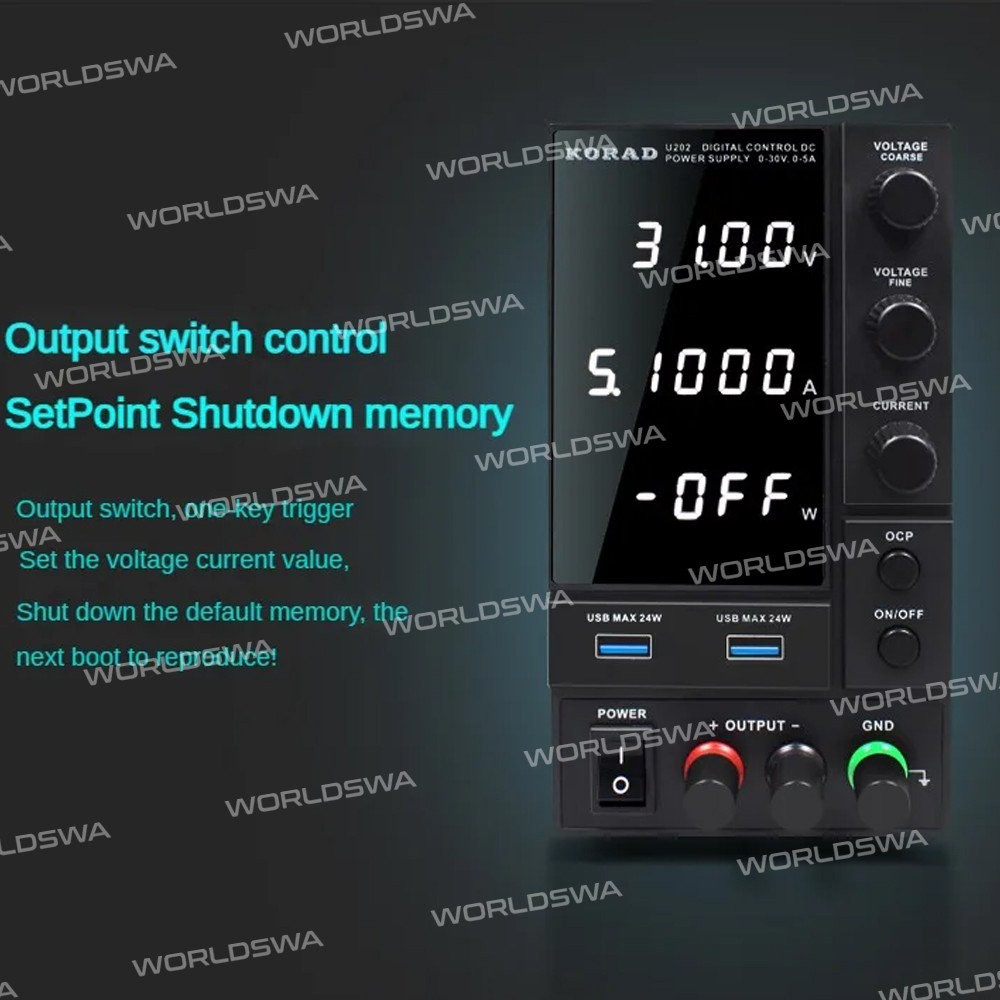

• Output switch control, one push
• Power off automatically memorizes the set value

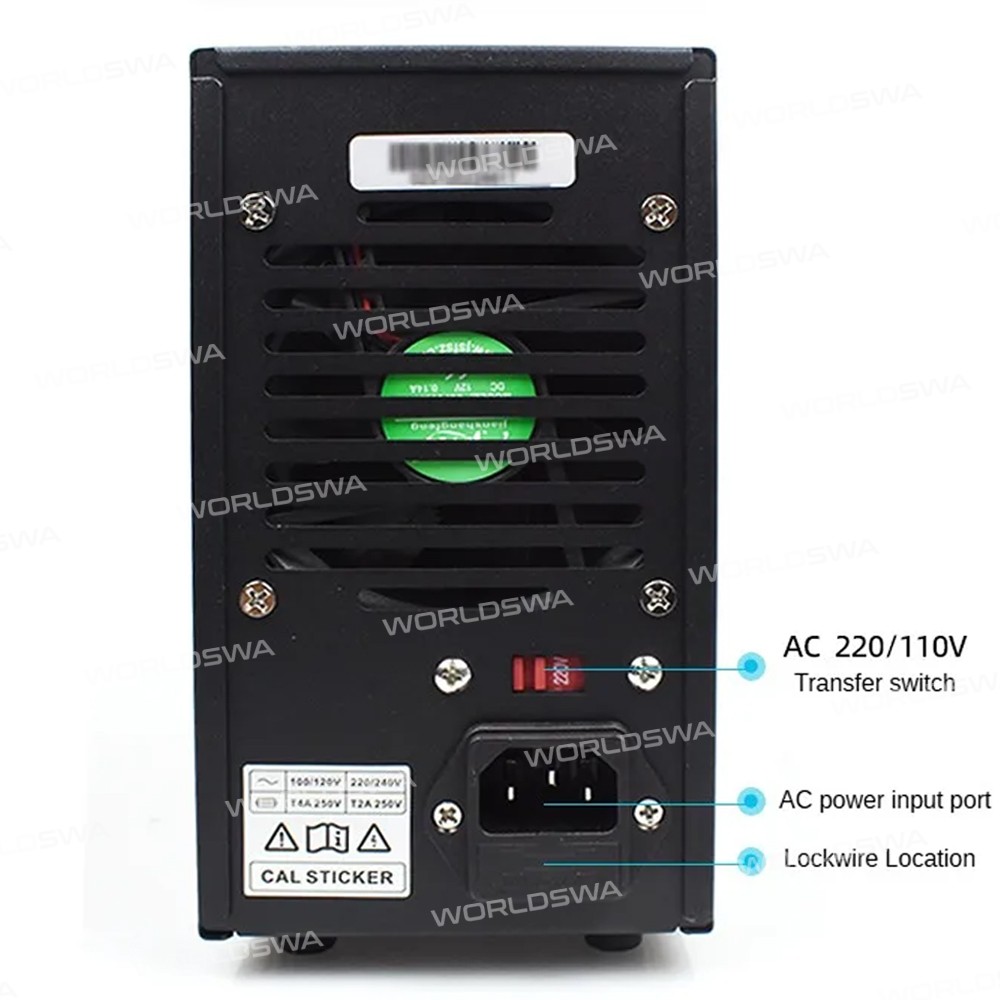

• 110V/220V two kinds of power input conversion switch
• High-precision current and voltage display
• CE, ROHS compliant
• Summary:** High-precision power supply with advanced features for precise control and protection

Specification:

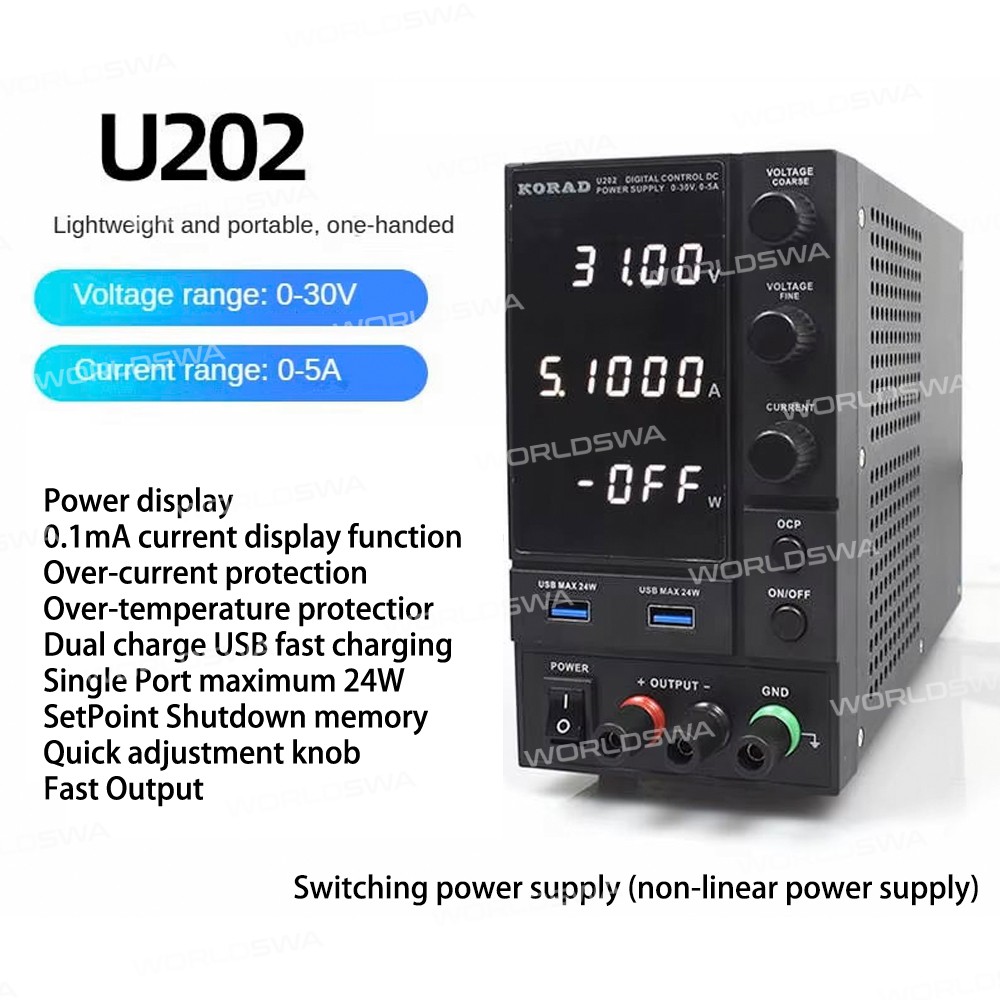

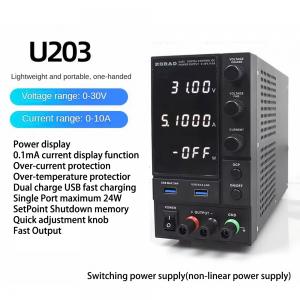

• Model: U202 / U203
• Voltage range: 0~30V
• Current range: 0~5A/0~10A Adjustable
• Load regulation: Voltage: ≤0.01%+2mV / Current: ≤0.1%+5mA
• Linear adjustment: Voltage: ≤0.01%+3mV / Current: ≤0.1%+3mA
• Setting resolution: Voltage: 10mV / Current: 1mA
• Setting accuracy (25°C±5°C): Voltage: ≤0.5%+10mV / Current: ≤0.5%+10mA
• Ripple(20hz-20Mhz): Voltage: ≤20mVrms / Current: ≤20mArms
• Temperature coefficient: Voltage: ≤150ppm / Current: ≤150ppm
• Reading resolution: Voltage: 10mV / Current: 1mA
• Temperature coefficient of reading: Voltage: ≤150ppm / Current: ≤150ppm
• Operating environment: Indoor use
• Altitude: ≤2000M
• Ambient temperature: 0~40°C
• Relative Humidity: ≤80%
• Net Weight: 1.5kg
• Dimension: 252*95*177mm
• Storage Environment: Ambient Temperature: -10℃~70℃;Relative Humidity: ≤70%

Package includes:

• 1 x Power Supply
• 1 x Power Cable
