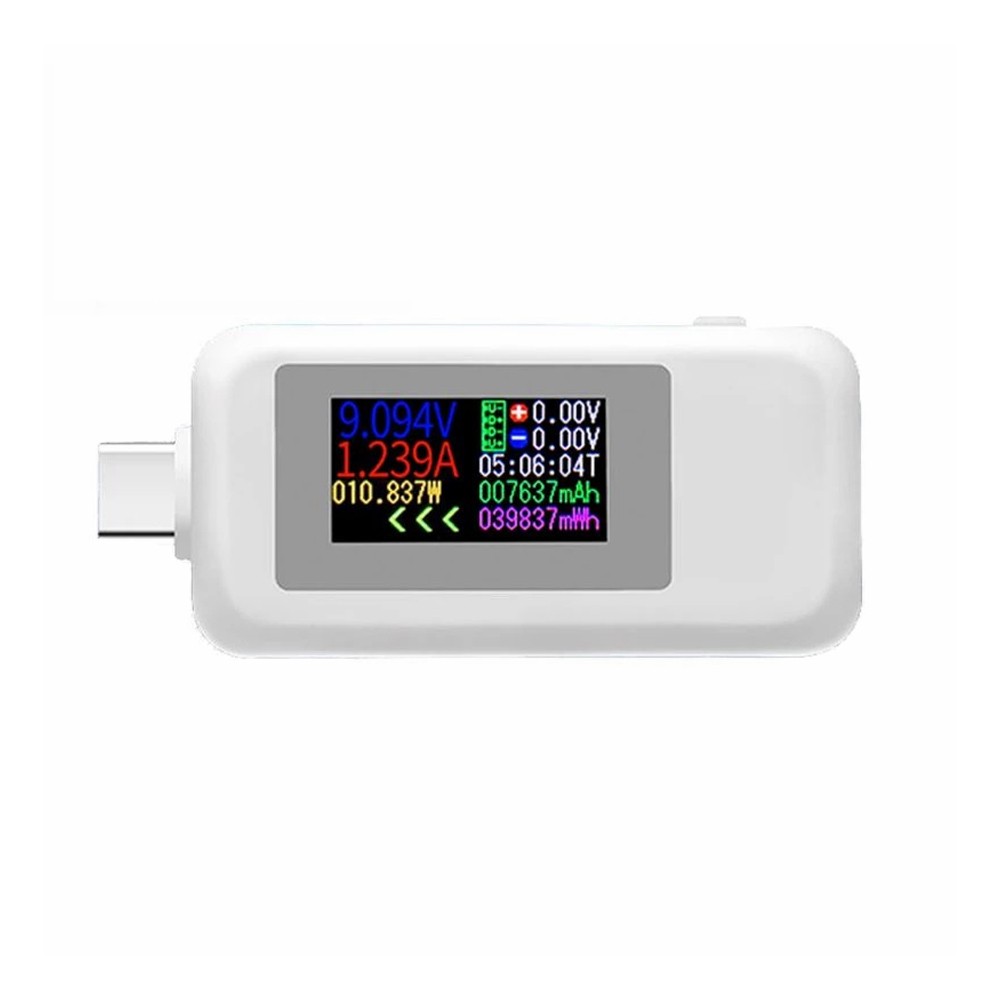

KWS-1902C 10-in-1 Type-C USB Bidirectional Current and Voltage Tester, DC 4-30V

KWS-1902C 10-in-1 DC 4-30V Type-C USB Bidirectional Current and Voltage Tester

Features:

• Real-time detection of the state of charge of the appliance, voltage, current, power, and other indicators;
• The tester is widely used in the quality inspection of 3C digital and peripheral products of the Type-C interface. It is the first choice for electronics enthusiasts;
• It adopts a 0.96 inch IPS high-definition color liquid crystal display, which can be connected in two directions, a 160 degrees wide viewing angle, high brightness, and long working life.
• Support the identification of QC2.0, QC3.0, PD, SAMSUNG quick charge protocol;
• Internal use of professional instrument sampling circuit, coupled with a unique precision algorithm, ensures the accuracy and stability of the product at the hardware and software level;
• With power-off storage function, when the mobile power is cut off, it can store capacity and energy data, which is convenient for subsequent viewing, and is convenient for measuring the energy capacity of the mobile power source;
• Can help us clearly understand the load resistance and current discharge power and better understand the range of use of the load.
• Summary:** Real-time detection, wide compatibility, high-definition display, and advanced algorithm for accurate and stable results.

Specification：

• Voltage: 4-30V
• Voltage resolution: 0.002A
• Current: 0-5A
• Current resolution: 0.002A
• Capacity: 0-999999mWh
• Load resistance: 1-9999.9Ω
• Power: 0-150W
• Energy: 0.999999mWh
• Timing: 0-99 hours
• Interface: USB-C 24pin
• Test direction: two-way
• Display: 0.96 inch color screen
• Color: White, Black
• Weight: 15G (including packaging)
• Size: 55*26.5*11.5mm

Package includes:

• 1 x USB Tester
