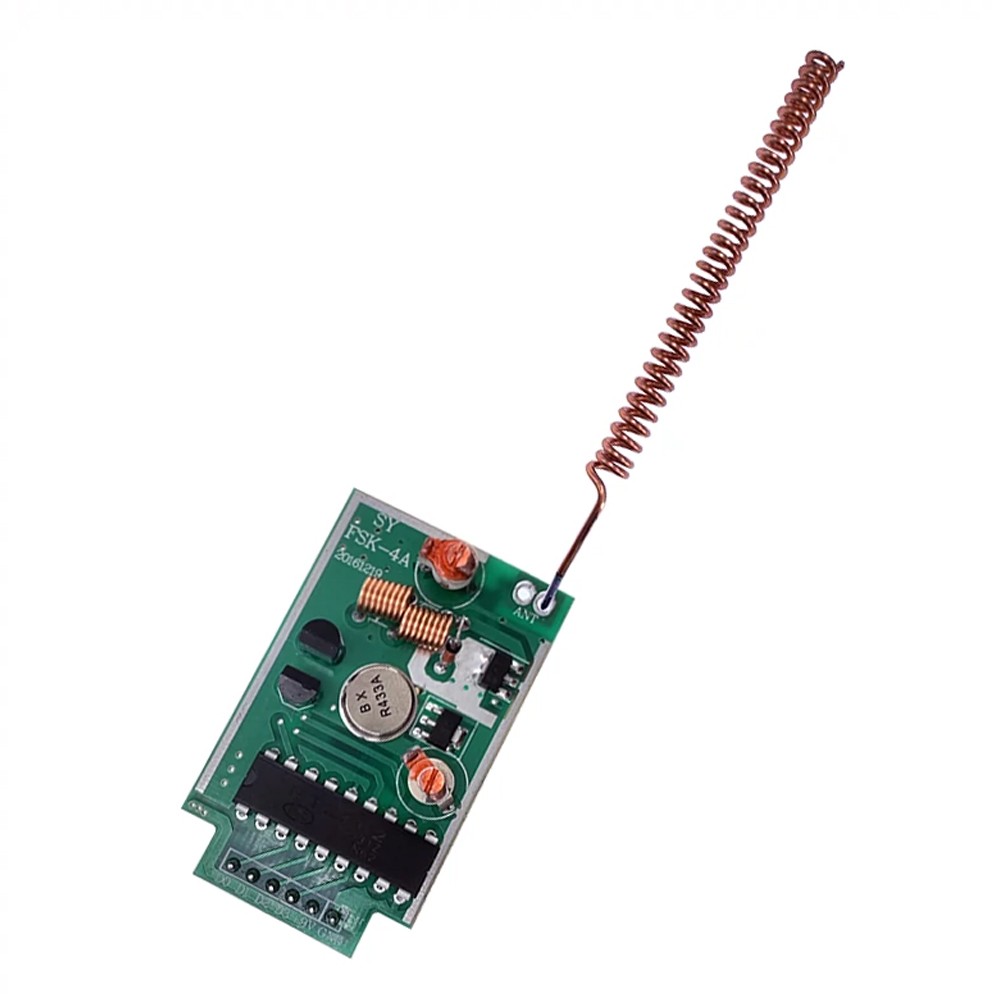

Arduino ARM Large Power 4km Wireless RF Remote Transmitter Module Kit

Large Power 4km Wireless RF Remote Transmitter Module Kit for Arduino ARM

Instructions for Use:

• The antenna has a great influence on the receiving effect of the module. It is best to connect the antenna with 1/4 wavelength, generally using a 50-ohm single-core wire.
• Application scenarios: wireless system, anti-theft alarm, wireless data transmission, automation, data collection, etc.
• The antenna of the transmitting module is far away from the metal shield and is installed vertically in the air to avoid interference.
• The connection of the module should be as short as possible, and the high-frequency emission part should be avoided.
• The module uses DC 9V power supply, the power supply can provide 800mA current in an instant, and the module should not be in the transmitting state for a long time. It is recommended that each transmission time should not exceed 10s
• The adjustable capacitor on the PCB has been glued and fixed and cannot be changed, otherwise, it will change the frequency or reduce the power

Specification:

• Working voltage: DC 9V
• Working current: 100-150mA(315m)70-100mA(433m)
• Working frequency: 315/433.92MHZ (other frequencies can be customized)
• Transmit power: 26dBm (400mW)
• Reference distance: no interference open line test (4000 meters)
• Coding method: fixed code (eight three-state)
• FM mode: ASK
• Ambient temperature: -10℃~+70℃
• Product size: 43*31*8mm

**Summary:** High-power wireless RF remote transmitter module kit with adjustable frequency and up to 4km transmission distance.

Package Includes:

• 1 x Module Kit
