Lenovo M-01 / M-02 M.2 to USB 3.1 Gen 2 SSD Enclosure for SATA / NVMe PCI-E NGFF SSD

Lenovo M-01/M-02 M.2 to USB 3.1 Gen 2 SSD Enclosure for NGFF SATA/NVMe PCI-E SSD

Features:

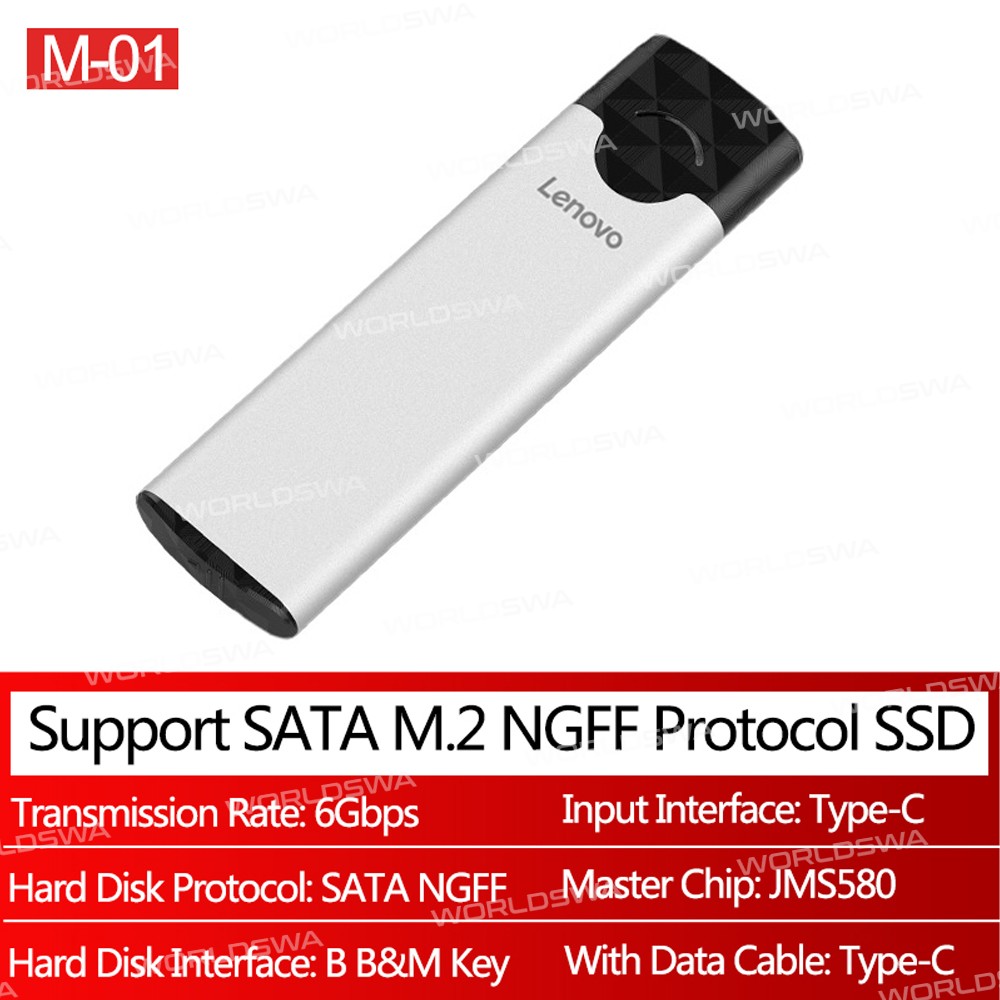

• M-01 Support M.2 NGFF SATA Signal SSD, M-02 Support M.2 NVMe PCI-E signal SSD
• Convert an NGFF/NVMe M.2 SSD into an external SSD
• Can easily connect SSD to desktops, notebooks, tablets, smart TVs, high-definition players, and other devices
• 6Gbps/10Gbps high-speed transmission, nvme version USB 3.1 Gen 2 standard
• Tool-free disassembly and assembly, complete installation in 3 seconds
• Metal and plastic shell design to speed up heat dissipation;
• The separate design of the data cable is convenient for storage, small in size, and easy to carry
• Summary:** Supports both SATA and NVMe M.2 SSDs, with high-speed transmission and tool-free installation.

Specification:

• Brand: Lenovo
• Product name: M.2 external SSD Case
• Product model: M-01/M-02
• Product material: Aluminum alloy + plastic
• Main control chip: M-01 NGFF JMS580 / M-02 NVME JMS583
• External interface: USB Type-C
• Internal interface: M-01 NGFF Support B/B+M Key; M-02 NVME Support M.2 M Key
• Transmission protocol: M-01 SATA3.0 NGFF / M-02 PCI-e NVMe
• Transmission speed: M-01 NGFF 6Gbps / M-02 NVME 10Gbps
• Working voltage/current: 5V/0.9A
• USB Cable: USB Type C+A Male to USB Type C Male, 30cm/11.8"
• Supported hard drive: M-01 NGFF/M-02 NVMe M.2 SSD, compatible with 2230, 2242, 2260, 2280
• Working temperature: -20~+70 ℃
• Working humidity: 10%-85%
• Operating system compatible: for Windows XP/7/8/10+; for Mac OS X 10.5+; for Linux 2.4.x+
• Product size: 115*30*9mm

Package includes:

• 1 x M.2 SSD Case
• 1 x USB Cable
