LiitoKala lii-S8 8-Slot LCD Charger for 26650, 21700, 20700, 18650, 18490, 18350 Lithium Batteries

LiitoKala lii-S8 8 Slots LCD Lithium Battery Charger for 26650/21700/20700/18650/18490/18350

**Important:** The battery in the picture is for reference only, the actual package does not contain any battery!!!

Features:

• Adopt DC12.0V 4.0A (minimum) input, intelligent charging of each slot, and microcomputer management system;
• The biggest highlight of this charger is that it can quickly charge multiple channels of 2 amps at the same time and charge 9V NiMH rechargeable batteries;
• There are five levels of charging current: 0.30A/0.50A/0.70A/1.00A/2.00A;
• When the lithium-ion battery (3.70V/3.80V) and the lithium iron phosphate battery (3.20V) are powered on, the system automatically configures the current according to the internal resistance of the battery installed, and can also change the current by itself.
• The charging current of the NiMH/NiCd battery (1.20V) is fixed at 0.50A, and the current cannot be selected
• Ni-MH (9.0V) rechargeable battery is charged in a specific place, and can charge two batteries at the same time, and the charging current of each battery is about 85mA

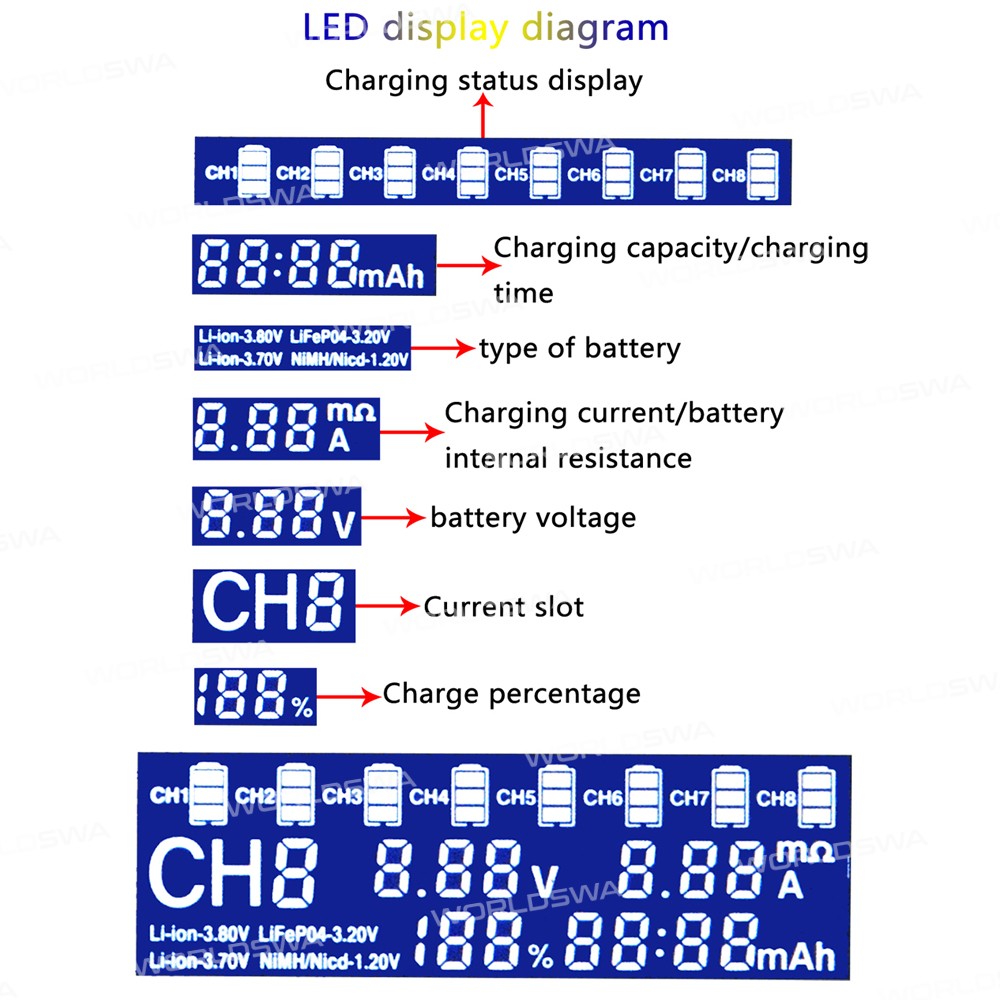

• When charging, the LCD can display the battery symbol/channel CH and battery type of the channel/charging current A/battery voltage V/charging time h/charging capacity mAh and percentage %/battery internal resistance mΩ and other data
• The system can automatically identify the 3.70V lithium battery and NiMH/NiCd (1.20V) battery, press the MODE button to manually select the 3.20V lithium iron phosphate battery and 3.80V lithium battery (IMR) when charging NiMH (9.0V) rechargeable battery No data will be shown on the display
• With 0V voltage activation function, 1.65-2.20V cannot be charged (but there will be activation current trickle charging)
• There are multiple safety protection functions such as overcharge, over-discharge, short circuit, reverse connection, etc. At the same time, it can intelligently and automatically identify bad batteries
• Charging mode: constant current and constant voltage
• Summary:** Intelligent 8-slot charger with LCD display, supports multiple battery types and models, and has multiple safety protection functions.

Specification:

• Input power: DC 12.0V 4.0A
• Output voltage: DC 4.20V for Li-ion; DC 4.35V for IMR; DC 3.65V for LiFePO4; DC 1.48V for NiMH/Ni-cd; DC 9.0V for NiMH
• Output current: Li-ion/IMR/LiFePO4: 2.00A*4 (1/3/6/8 channel only)/0.30A/0.50A/0.70A/1.00A*8; NiMH/Nicd: 0.50A*8 ; NiMH-9V: 85mA*2
• Constant current/constant voltage charging cut-off current: 100mA
• No-load standby current: <50mA
• Compatible battery types and models: Li-ion/IMR/LiFePO4: 26650/21700/20700/18650/18490/18350/17670/17500/16340(RCR123)/14500/10440; NiMH/Cd: AA, AAA, SC/C
• Charger size: 195.0*142.5*35.0mm
• Weight: 800g

Package includes:

• 1 x Lithium Battery Charger
• 1 x Power adapter

Notes:

• This charger can only charge cylindrical lithium-ion batteries (Li-ion-3.70V/3.80V), lithium iron phosphate batteries (LiFePO4-3.20V), nickel-hydrogen/nickel-cadmium (Ni-MH/Nicd-1.20V) batteries; And square 9V Ni-MH rechargeable battery (Ni-MH-9v)
• Before use, please refer to the manual carefully, pay attention to the recommended charging current of the rechargeable battery, and do not charge more than the recommended current
• Choose to use a 12.0V DC adapter, the power supply current should not be less than 4.0A
• The charger may become hot when charging, please keep it out of the reach of children to charge
• When you stop using it, please unplug the power supply and remove the battery
• Can only be used at room temperature
• The test data of this product is for reference only, please refer to professional instruments for the actual situation
