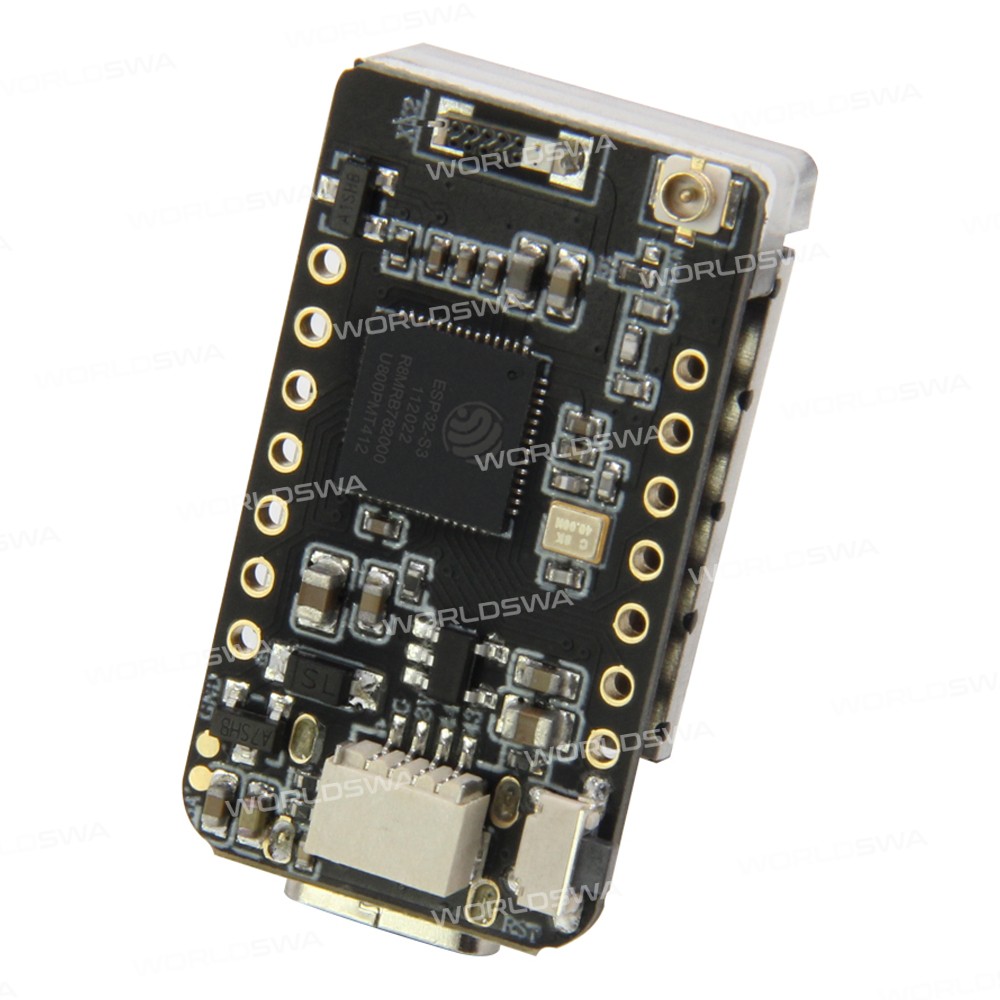

Lilygo T-QT V1.1 ESP32-S3 0.85" Full Color LCD Display Dev Board Module

Lilygo T-QT V1.1 ESP32-S3 0.85-inch Full Color LCD Display Development Board Module

Features:

• Keeps the design style of T-Display, using 0.85 inch LCD Display equipped with ESP32-S3 main control chip, which is smaller in size based on supporting WIFI and Bluetooth.
• An acrylic plate is used to fix the screen to make it more stable

Specification:

• MCU:** ESP32-S3 Xtensa dual-core LX7 microprocessor
• Wireless Connectivity:** Wi-Fi 802.11 b/g/n, Bluetooth V5.0+BLE
• Programming Platform:** Arduino-ide/Micropython/VS Code
• Serial chip:** None
• Flash:** 8M
• Clock frequency:** Main frequency up to 240MHz
• Onboard functions:** Buttons: IO00+IO47
• Battery detection:** IO04
• Display:** 0.85 inch GC9107 TFT IPS LCD
• Driver IC:** GC9107
• Resolution:** 128*128px
• SPI interface:** Support 4-Wire
• Display Area:** 15.2064(H)*15.2064(V)
• Display Colors:** 262K
• Brightness:** 260 cd/m²

Summary of Key Features:**

• Compact design with 0.85 inch LCD Display and ESP32-S3 main control chip
• Supports WIFI and Bluetooth connectivity
• Programmable with Arduino-ide, Micropython, and VS Code

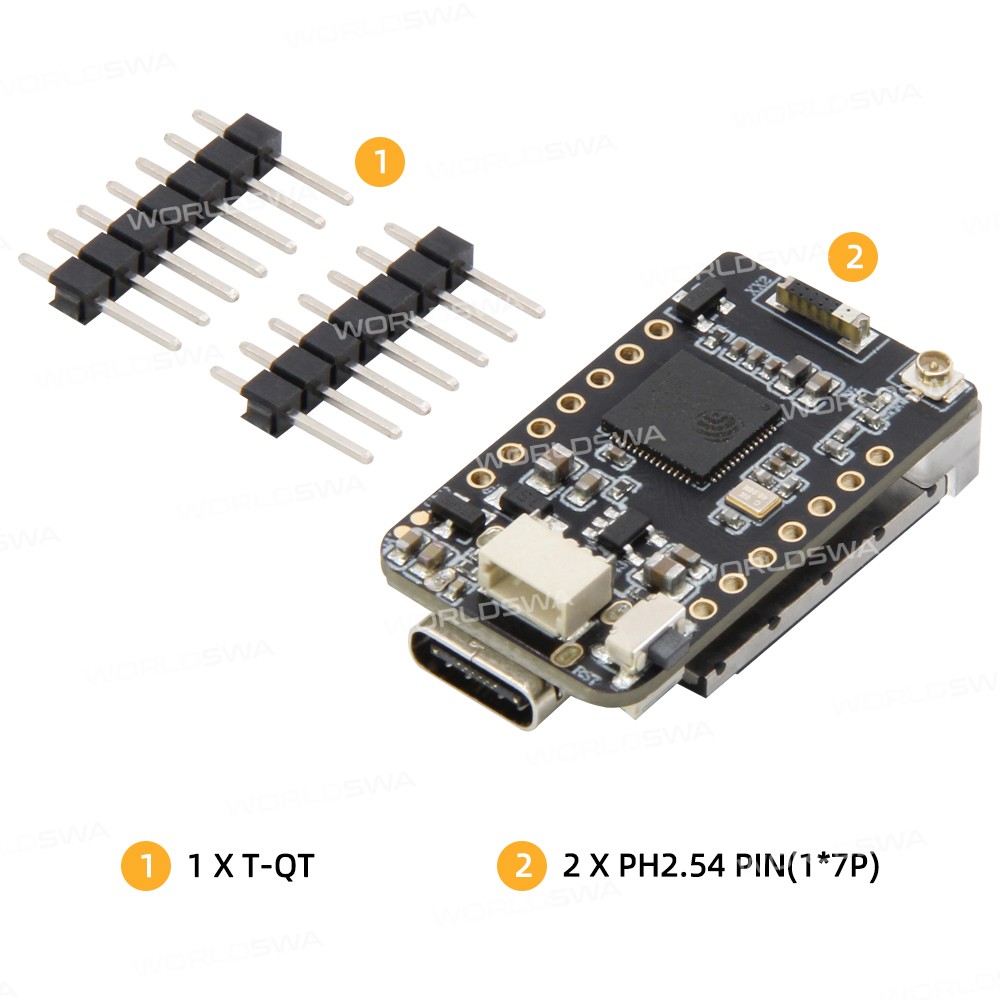

Package includes:

• 1 x Display Module
• 2 x Pin

Notice:

• Only supports USB2.0 (USBA-USBC) Protocol.
• Type-C has a power supply function, but no charging function
• Compatible With ST7789
