LS173 Portable Multifunctional Colorimeter with Touch Screen

LS173 Portable Multifunctional Colorimeter with Touch Screens

Overview

The LS173 is a portable multifunctional colorimeter with a 3.5-inch IPS color capacitive touch screen, providing an excellent operating experience. It integrates multiple natural color charts and can quickly match the measured color to the closest color codes.

Features:

• Accurate Color Measurement: LS173 is equipped with D/8° (SCI) optical geometry design and an integrating sphere illuminates the colorimeter diffused light source, suitable for color measurement of high-gloss samples.
• Touch Screen Operation: 3.5-inch IPS color capacitive touch screen provides an excellent operating experience.
• Color Difference Comparison: Supports a variety of standard color addition methods, and the color difference threshold can be set.
• Flexible Color Difference Formula: Can be flexibly selected, realizing rapid QC testing.
• Wide Application: Widely used in paint, metal, stone, ceramic tiles, and plastics industries for color measurement and management, color difference quality control.
• **Summary: Portable, Accurate, and Easy-to-Use Colorimeter for Various Industries**

Specification:

• Illumination Geometry: D/8, specular component include (SCI)
• Illumination light source: Full spectrum LED light source
• Measuring aperture: 8mm
• Measurement conditions: Light source D65, field of view 10°
• Measuring time: About 1s
• Color space: CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex

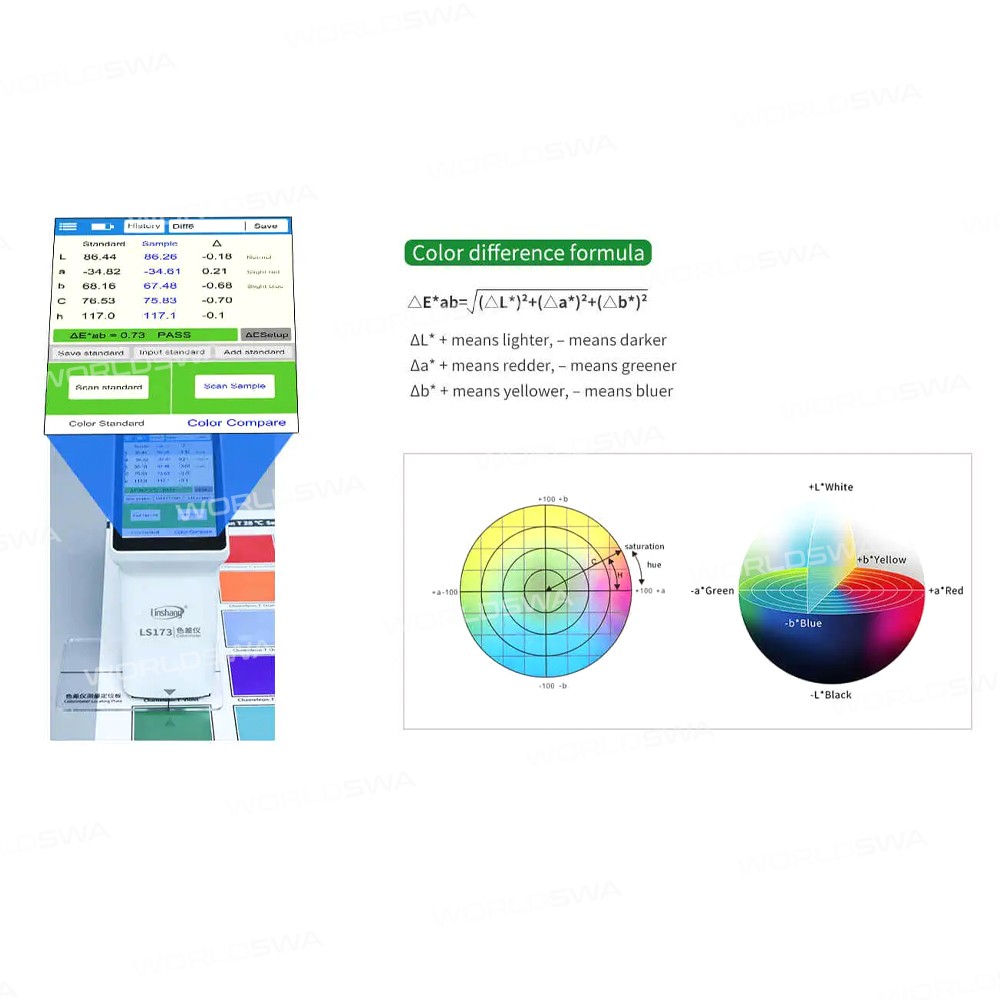

• Color difference formula: ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00
• Repeatability: Standard deviation ΔE*ab ≤ 0.03 (Measurement condition: the average value of 30 measurements on the whiteboard at an interval of 3s after calibration)
• Dimension: 86*62.5*158mm
• Weight: About 245g
• Power supply: Rechargeable lithium battery 3.7V@4000mAh, can measure 10,000 times continuously under full charge
• Display: 480×320 dot matrix IPS color screen
• Language: Simplified Chinese, English
• Charging port: USB (Type-C)
• Operating temperature range: 0~45℃, 0~85%RH (no condensation)
• Storage temperature range: -25~55℃, 0~85%RH (no condensation)

Package includes:

• 1 x Colorimeter
