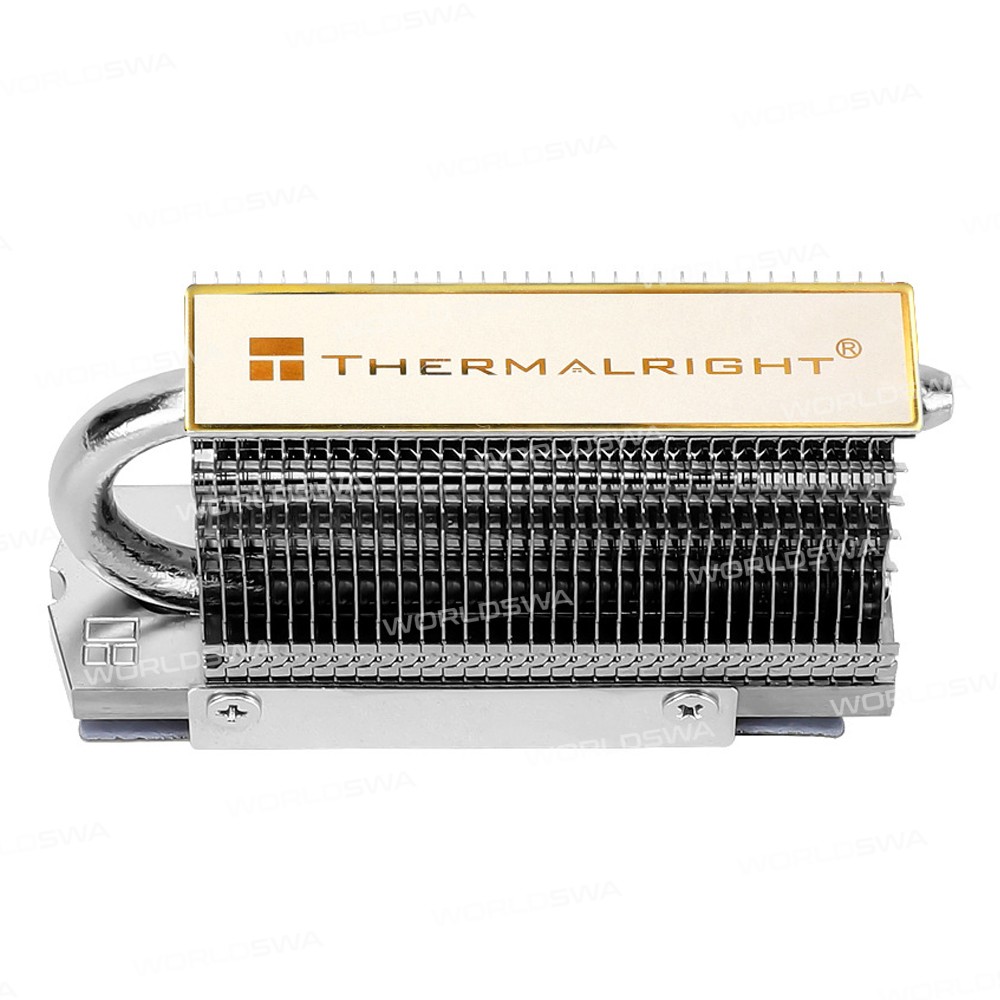

M.2 HR-09 2280 / 2280 Pro SSD Hard Disk Cooler for Desktop Computers

M.2 HR-09 2280/2280 Pro SSD Hard Disk Cooler for Desktop Computer

Features:

• The size of this solid-state drive cooler is L 79*W 24*H 47-48mm, and it weighs about 80g
  Compact design for easy installation
• Continuing the classic shape, the number of heat pipes is 6mm heatpipe*1 units, equipped with a passive cooling module of about 4500 square millimeters, the number of fins is 32pcs, and it is equipped with single-pipe double-fit welding technology, which greatly improves the conduction efficiency of a single heat pipe
  Efficient heat dissipation with 6mm heatpipe and 32 fins

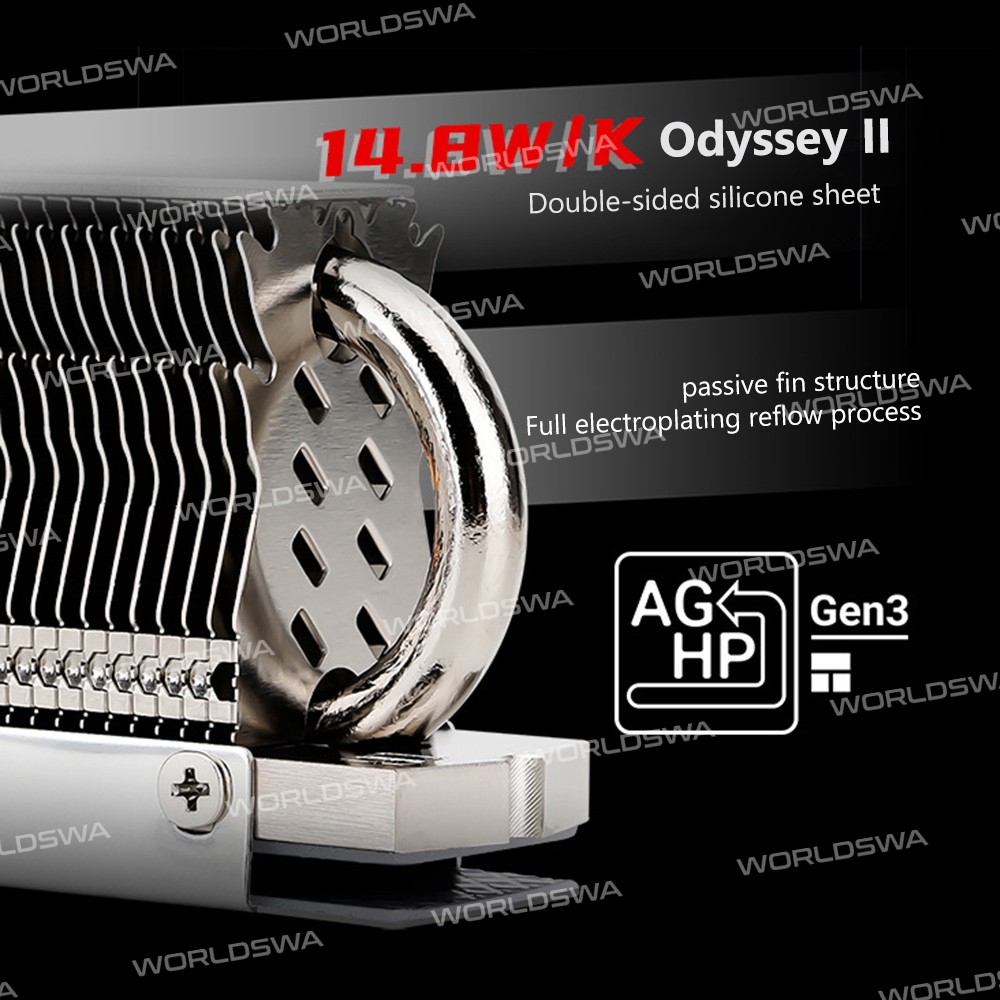

• Equipped with 14.8W/K Odyssey II (EXTREME ODYSSEY II) double-sided silicone sheet with passive fin structure. (Note: The silicone sheet has been installed in the radiator and is not included in the delivery list separately)
  Odyssey II silicone sheet for enhanced cooling performance
• It adopts AGHP anti-gravity 6mm full electroplating heat pipe, pure aluminum electroplating base, stainless steel fixed to the bottom surface, and reflow soldering fixed fins, and the whole body is nickel-plated. Whether it is vertical or horizontal, the problem of anti-gravity influence in two orientations can be well solved
  Anti-gravity design for versatile installation
• HR-09 2280 series M.2 SSD radiator is in line with the development of hardware trends, and the new product will be the guardian of the PCIe 5.0 M.2 SSD era
  Future-proof design for PCIe 5.0 M.2 SSD

Specification:

• Model: Limin HR-09 2280
• Radiator Type: CPU cooler
• Backplane Material: Metal
• Air-cooled fins: reflow process
• Heat dissipation method: heat pipe
• Heat pipe: 6mm Heatpipe x 1 unit
• Fin: T = 0.4 mm; Gap = 1.8 mm
• Number of fins: 32pcs
• Size: 79*48*24mm
• Weight: 90g

Package includes:

• 1 x Solid State Drive Cooler
