M328 Portable Multi-Purpose Transistor Tester with Color Display

M328 Portable Multi-Purpose Transistor Tester with Color Display

Features:

• One-button measurement operation, the power is automatically turned off by the delay. Shutdown current is only 20nA, support battery operation
• **Automatic Detection**: Automatic detection of PNP and NPN bipolar transistors, N-channel and P-channel MOSFET, JFET field effect tubes, diodes, double diodes, SCR, resistance, capacitance, inductance. Automatic detection pin definition
• Measure the current amplification factor (B) of the bipolar transistor and the conduction voltage (Uf) of the emitter junction. Darlington transistors can be identified by high threshold voltages and high current amplification factors.
• The protection diode inside the bipolar transistor and MOSFET can be detected and displayed on the screen.
• Measure the threshold voltage and gate capacitance of the MOSFET.
• **Multi-Function Measurement**: Supports the measurement of two resistances, and the potentiometer can also be measured. If the potentiometer is adjusted to one end of it, the tester cannot distinguish between the middle and end pins.
• The resolution of the resistance measurement is 0.1 ohm, and the highest measured value is 50M ohm.
• **Capacitance and Inductance Measurement**: Capacitance measurement range from 25pf to 100mF (100,000UF). The resolution is up to 1 pF, and the inductance measurement range is 0.01 MH-20H. Otherwise, it will be displayed as a resistor. If the DC resistance of the inductor is higher than 2100 ohms, it will also be displayed as a resistor. In the capacitance test, the Voss displayed on the screen is the meaning of loss and attenuation. The larger the value, the closer the capacitor is to scrapping! ESR is the impedance. The smaller the value, the better the capacitor performance!
• **ESR Detection**: It can detect the equivalent series resistance (ESR) of capacitors above 2UF with a resolution of 0.01 ohms. This feature is very important for detecting capacitive performance.
• Two diodes can be displayed with the correct direction sign and the forward voltage drop is displayed.
• The LED is detected as a diode, and the forward voltage drop is higher than the normal value. The dual LEDs are detected as dual diodes. The LED will flash while detecting.
• The time for each test is about two seconds. Only large capacitance and inductance measurements take a long time.

Specification:

• Color: Black+Grey/Blue
• Material: PCB + Plastic

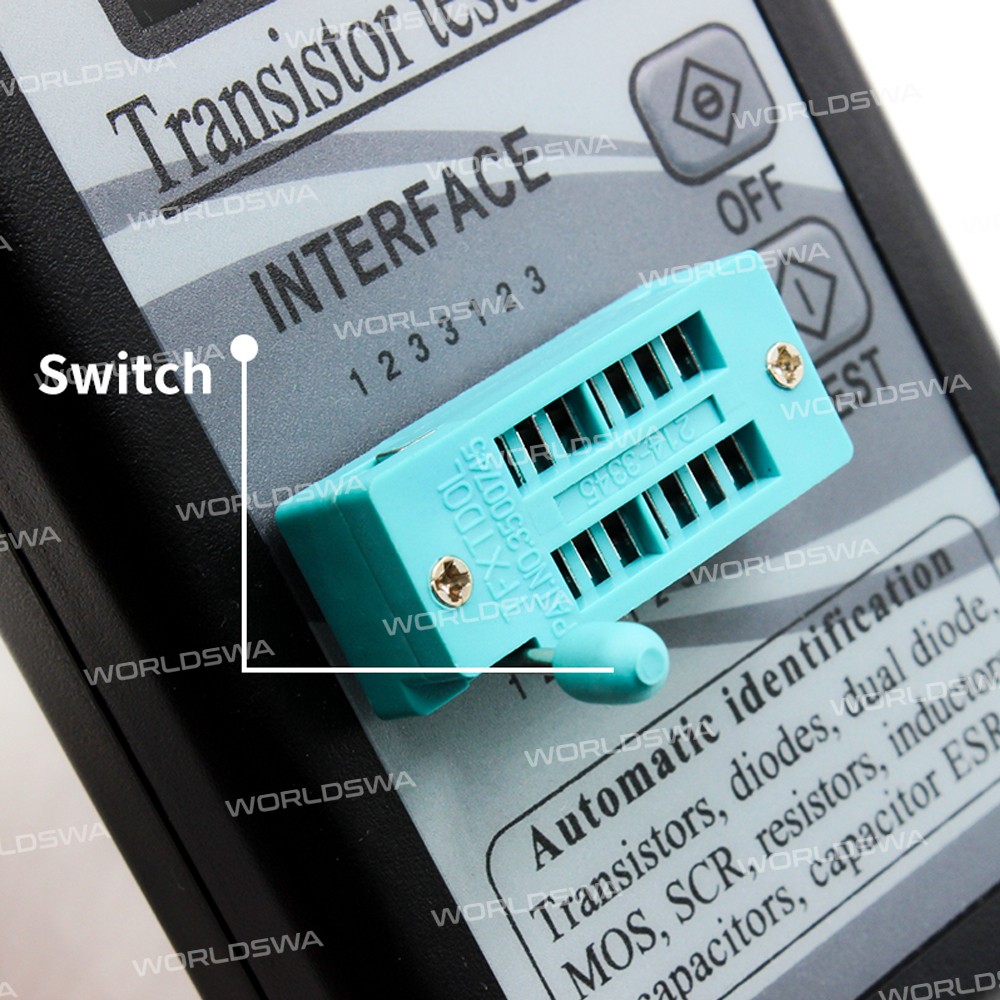

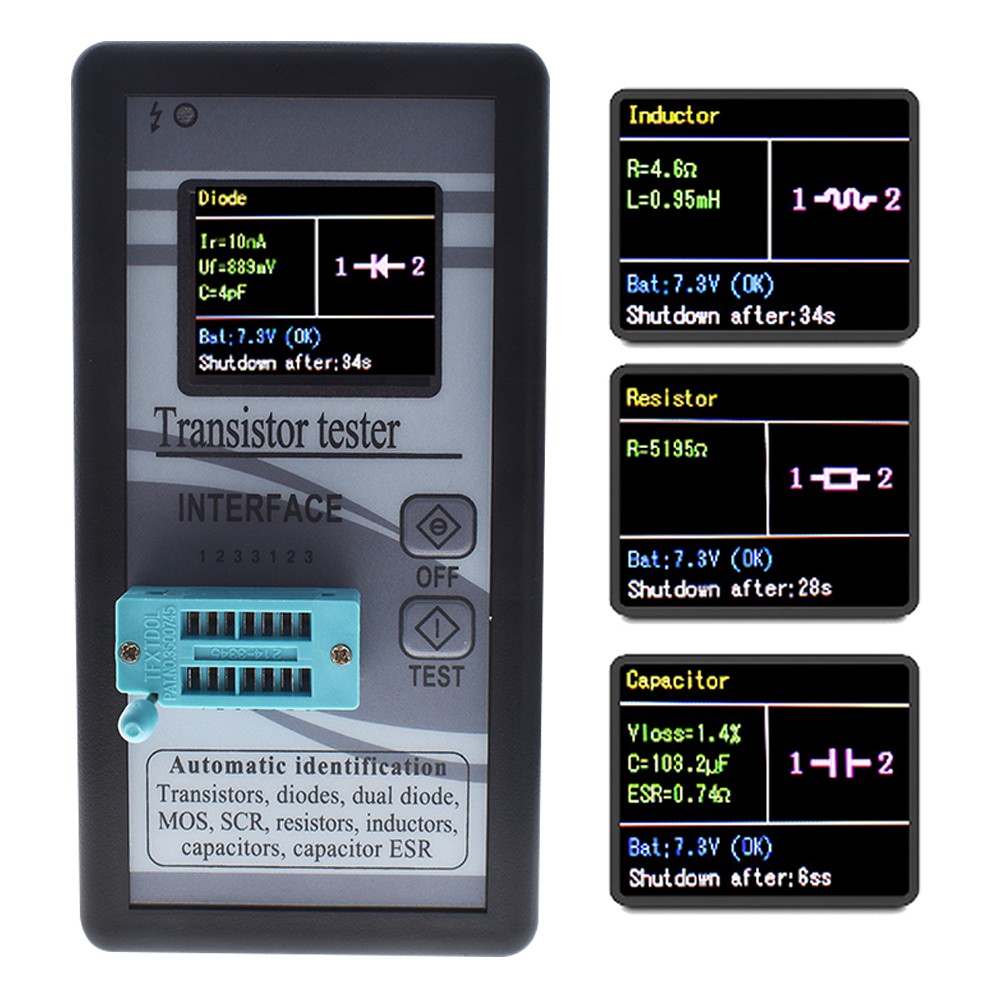

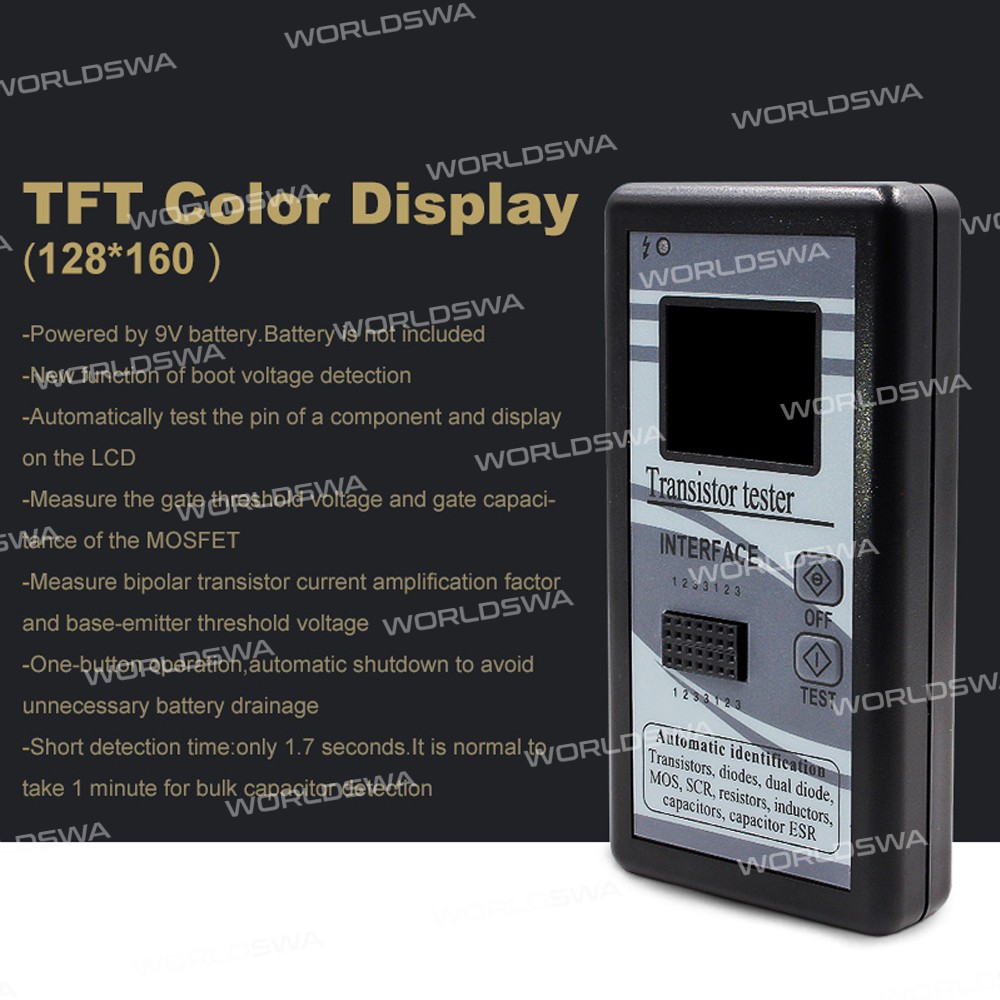

• Display: 1.8" TFT Color Display
• Shutdown Current: 20nA

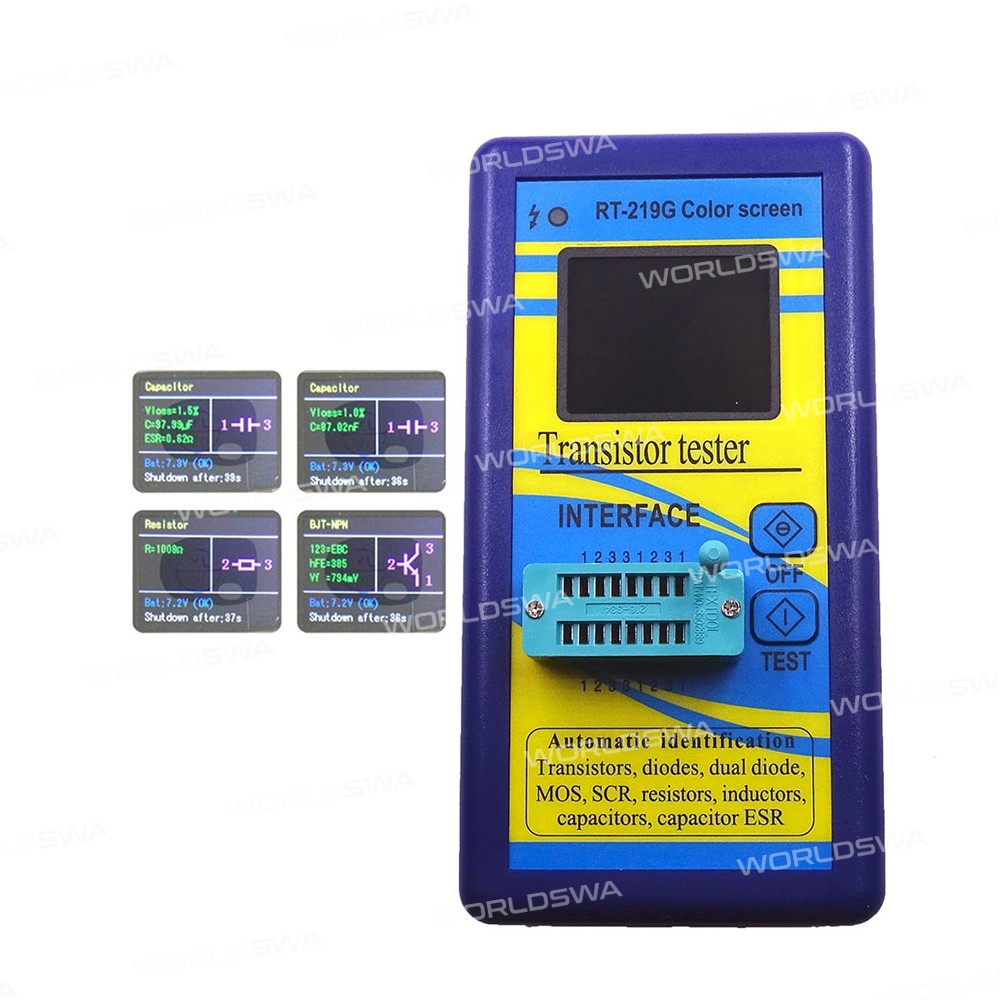

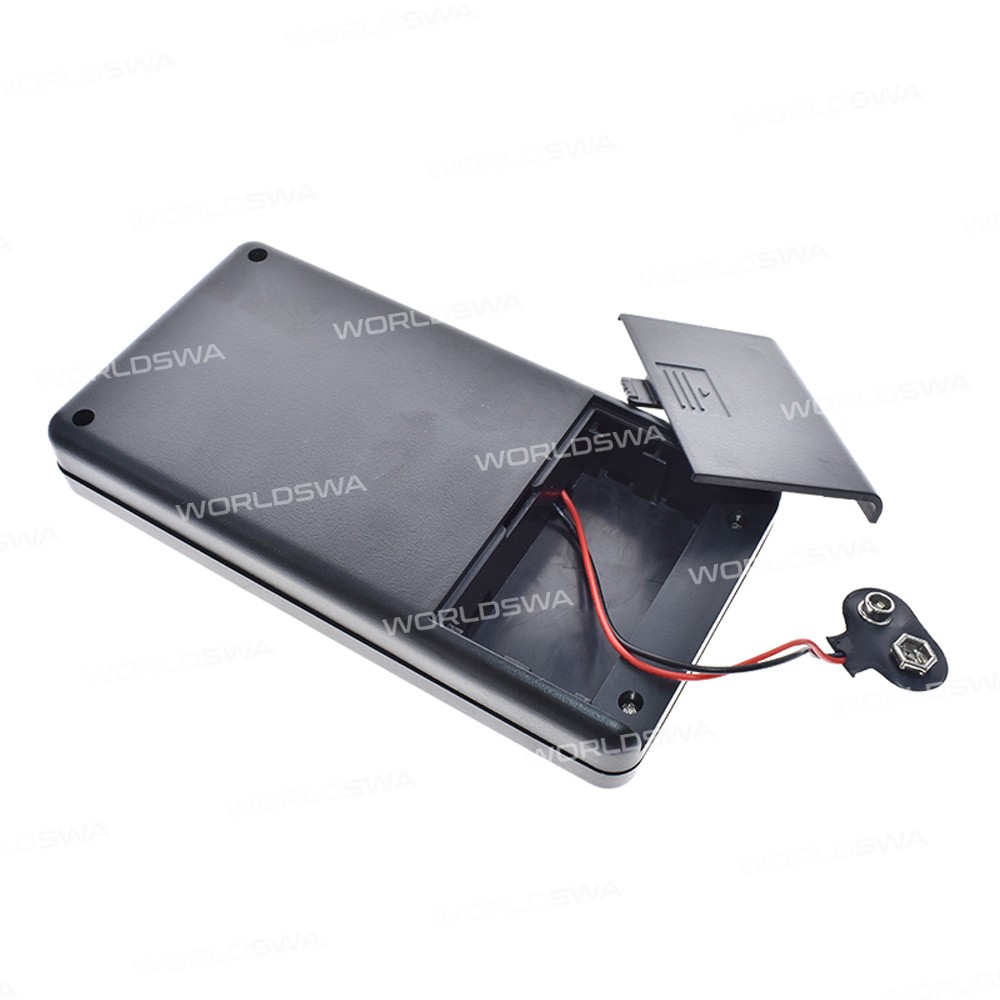

• Power Supply: DC9V 6F22 Battery(not included )

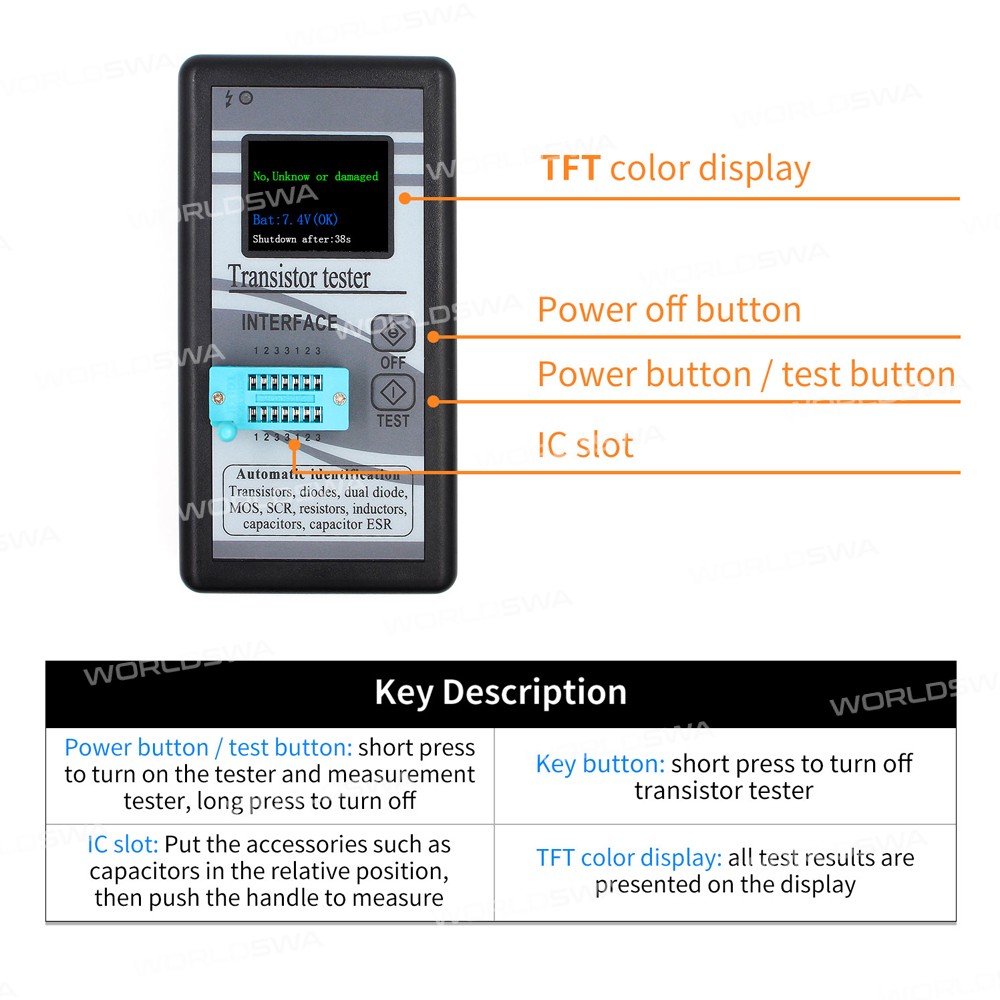

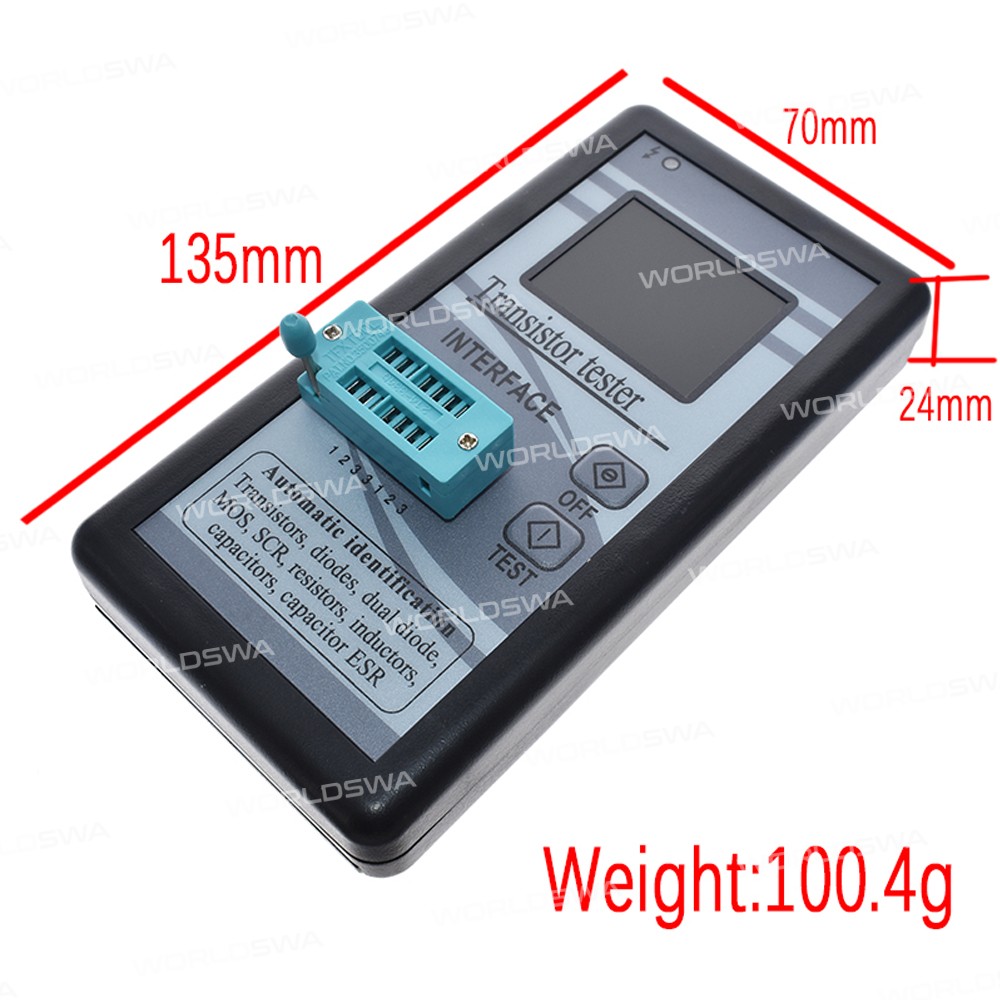

• Size:135 * 70 * 24mm(appr.)
• Weight: 99g(appr.)
• Automatic Identification: Transistors, diodes, dual diode, MOS, SCR, resistors, inductors, capacitors, capacitor ESR
• Range of Resistance Testing: 0.5Ω to 50MΩ
• Range of Inductance Testing: 0.01mH to 20H
• Range of Capacitance Testing: 25pF to 100000uF

Package includes:

• 1 x Transistor tester（not included Battery）

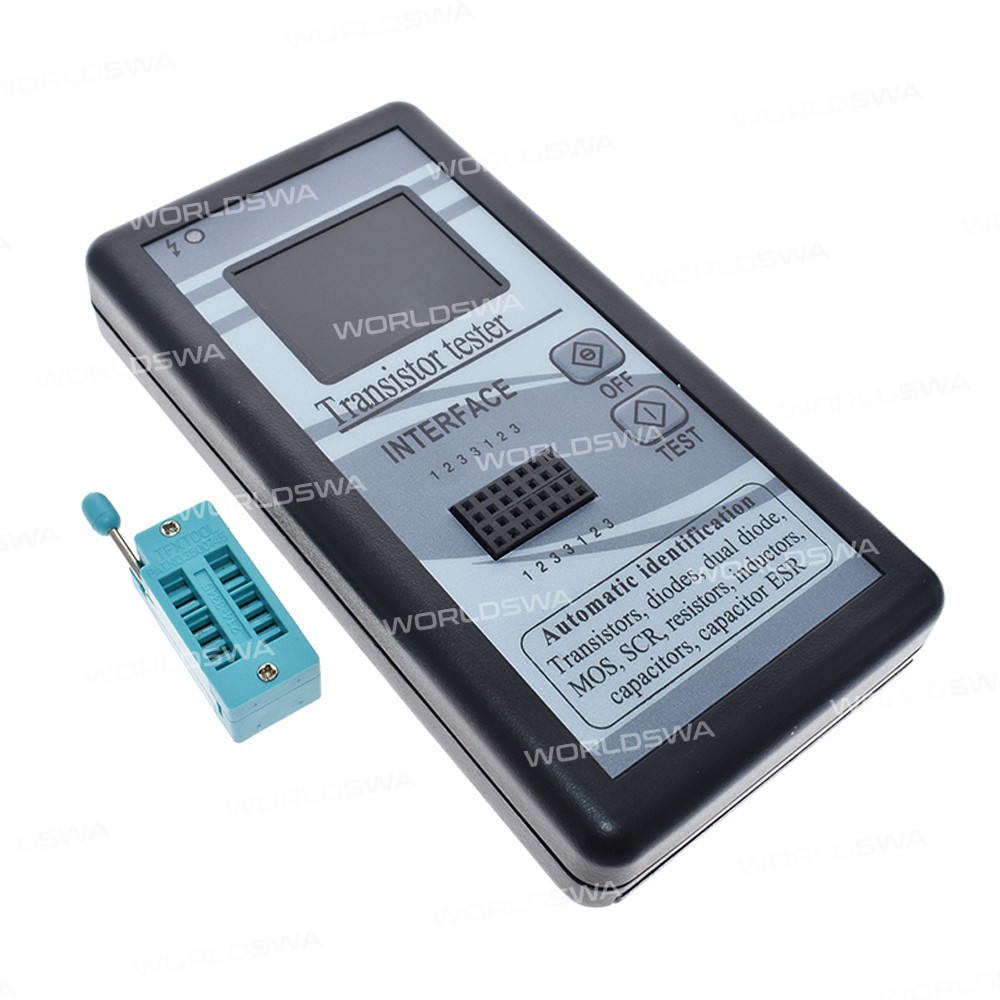

• 1 x 14-Pin connector

**NOTE:** Please make sure that capacitors are discharged before testing.
