MaAnt RC-3 3D Infrared Thermal Imager - Short Circuit Thermometer for Motherboard Repair

MaAnt RC-3 3D Infrared Thermal Imager Short Circuit Thermometer for Motherboard Repair

Overview

This 3D infrared thermal imager is designed for motherboard repair, providing a panoramic view of thermal imaging analysis to detect leakage, short-circuit location, and complicated diseases.

Key Features

• Ultra-clear detail and panoramic view for leakage and short-circuit location.
• Quickly **detect high-temperature areas** and abnormal components with color plate and adjustable stability range.
• **3D thermal field distribution** for visual display of temperature changes and multi-dimensional observation of product heat dissipation design.
• Optional **HD 30mm macro mirror** for enlarged local details and easy detection of motherboard abnormalities.

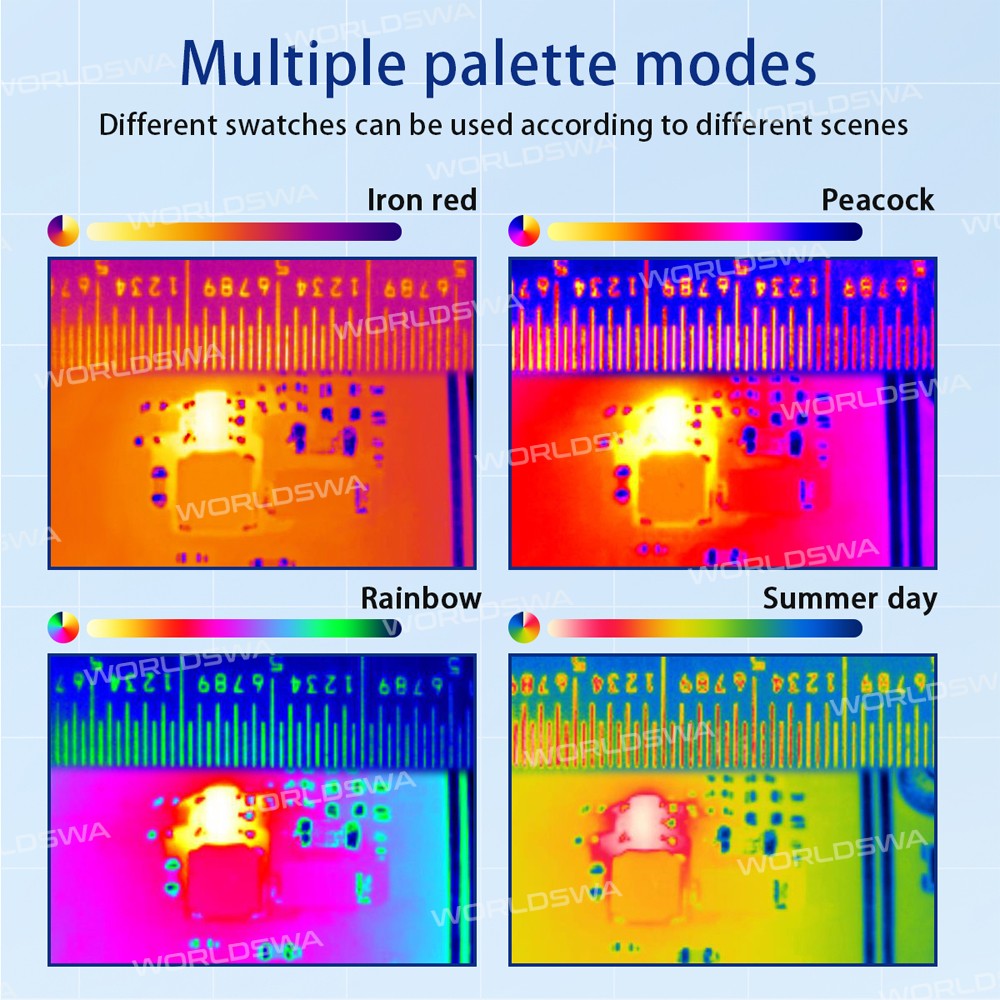

• **Professional repair software** with multiple palette modes and different swatches for quick problem-solving.
• **Double board contrast mode** for comparative analysis of two items under the same conditions.
• **Rectangular analysis mode** for simultaneous comparative analysis of regional temperatures.
• **Temperature range**: -15°C to 600°C (-5°F to +1112°F) with high-temperature abnormal alarm.
• **Multi-platform applications** powered by one key, compatible with Win10 and above systems, and mobile phone Android terminal.
• **Adjustable lens height** for quick adjustment according to item needs and zero-distance observation.
• **Carefully packaged** with attention to every detail for a better experience.

Specification

• Brand: MaAnt
• Product name: Infrared thermal imaging analyzer
• Resolution: 256*192
• Frame rate: 25Hz
• Lens Angle: 56°x42
• Temperature measurement distance: 3mm-15mm
• Device port: USB Type-C
• Input voltage: DC 5V
• Temperature range: -15°C~600°C (5°F~+1112°F)
• Storage temperature: -20°C~60°C
• Operating temperature: 0°C~50°C
• Net weight: 591g
• Product size: 150*150*230mm
• Package size: 204*204* 72mm

Package Includes

• 1 x Infrared Thermal Imager
• 1 x Macro Mirror (Optional)
