Mastech MS5203 High Precision 1000V Digital Insulation Resistance Tester

Mastech MS5203 1000V High Precision Digital Insulation Resistance Tester

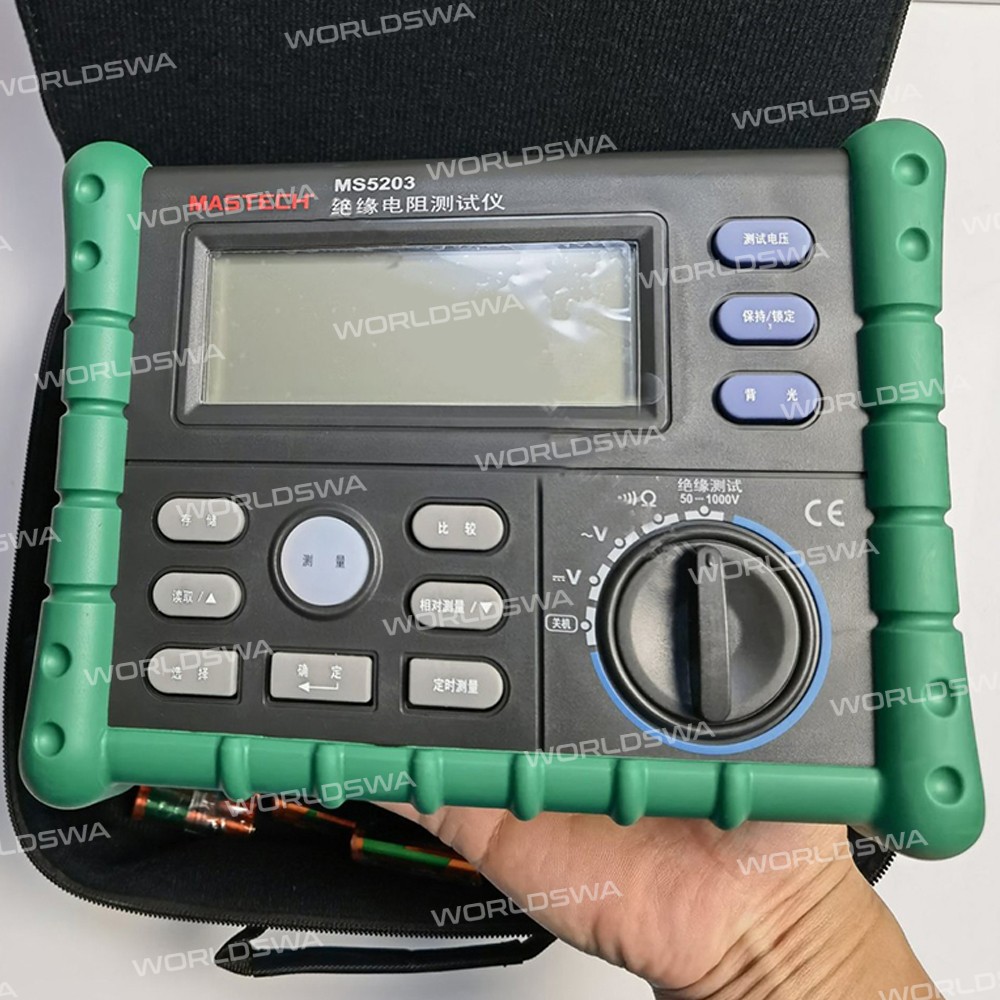

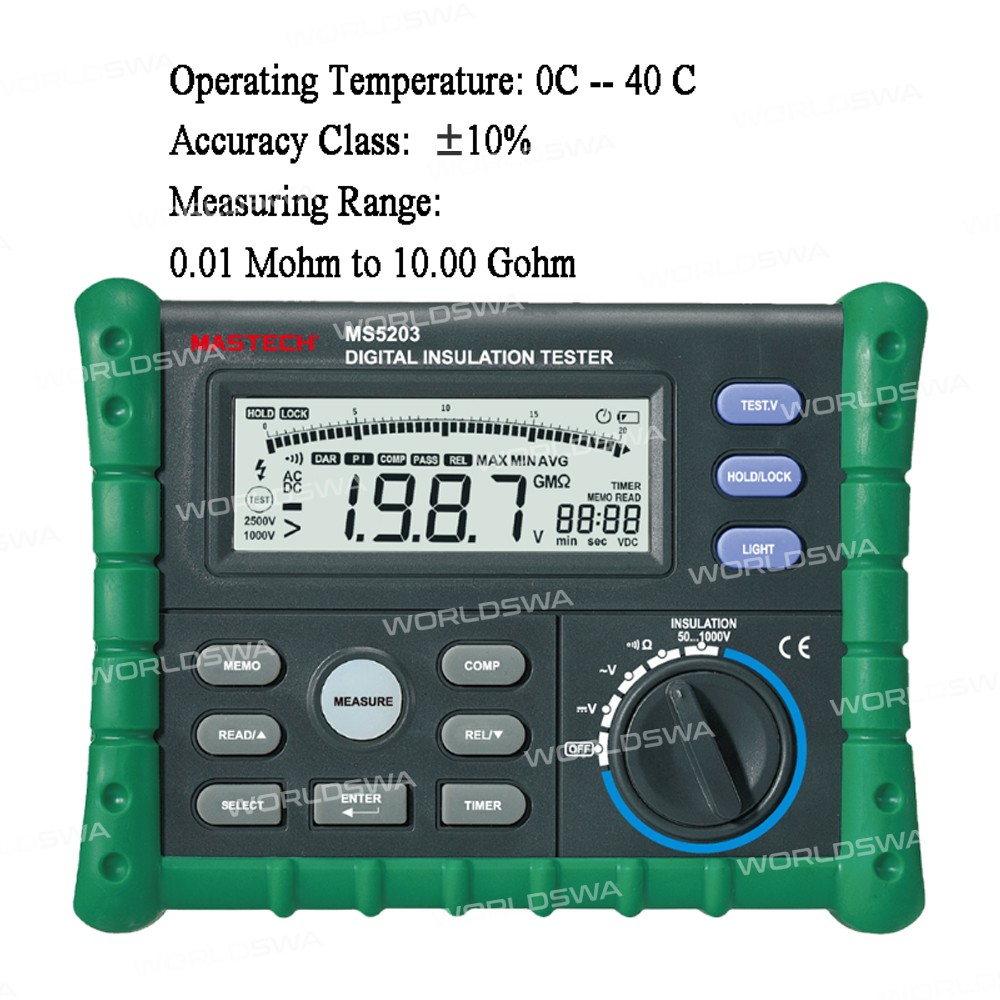

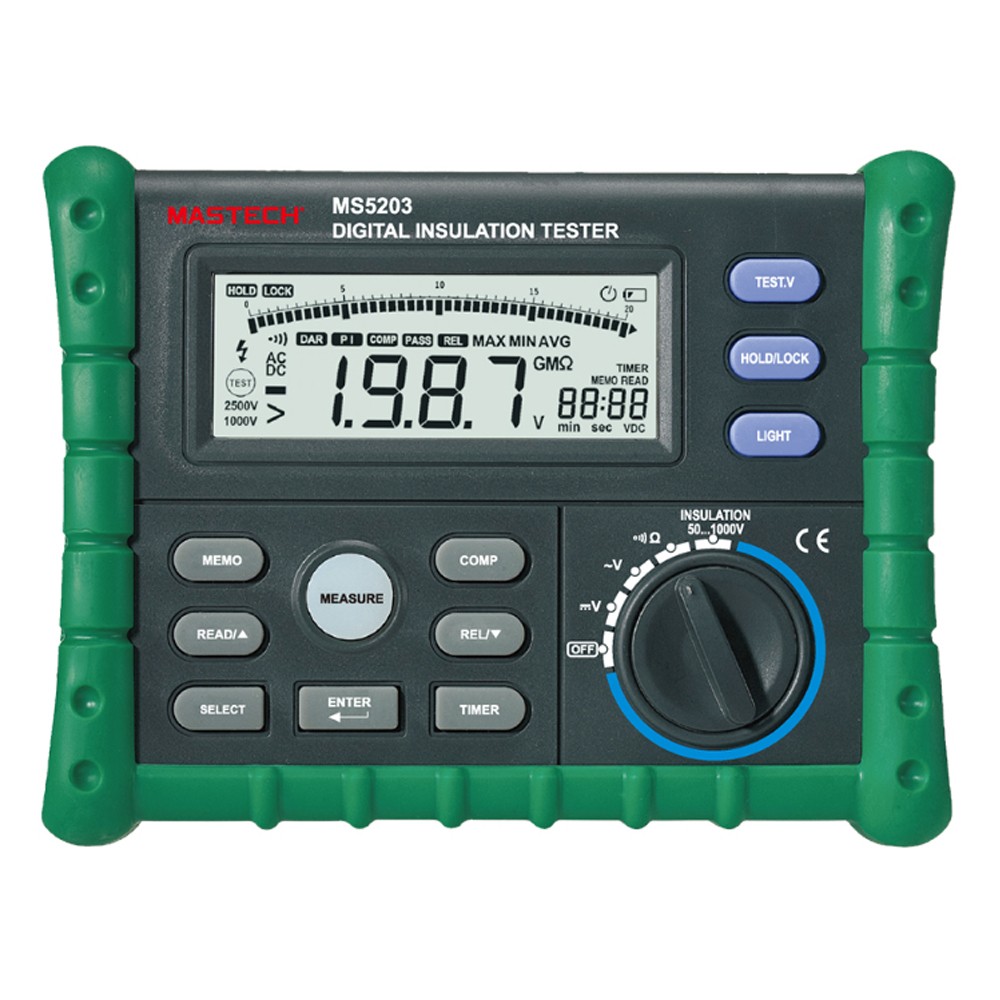

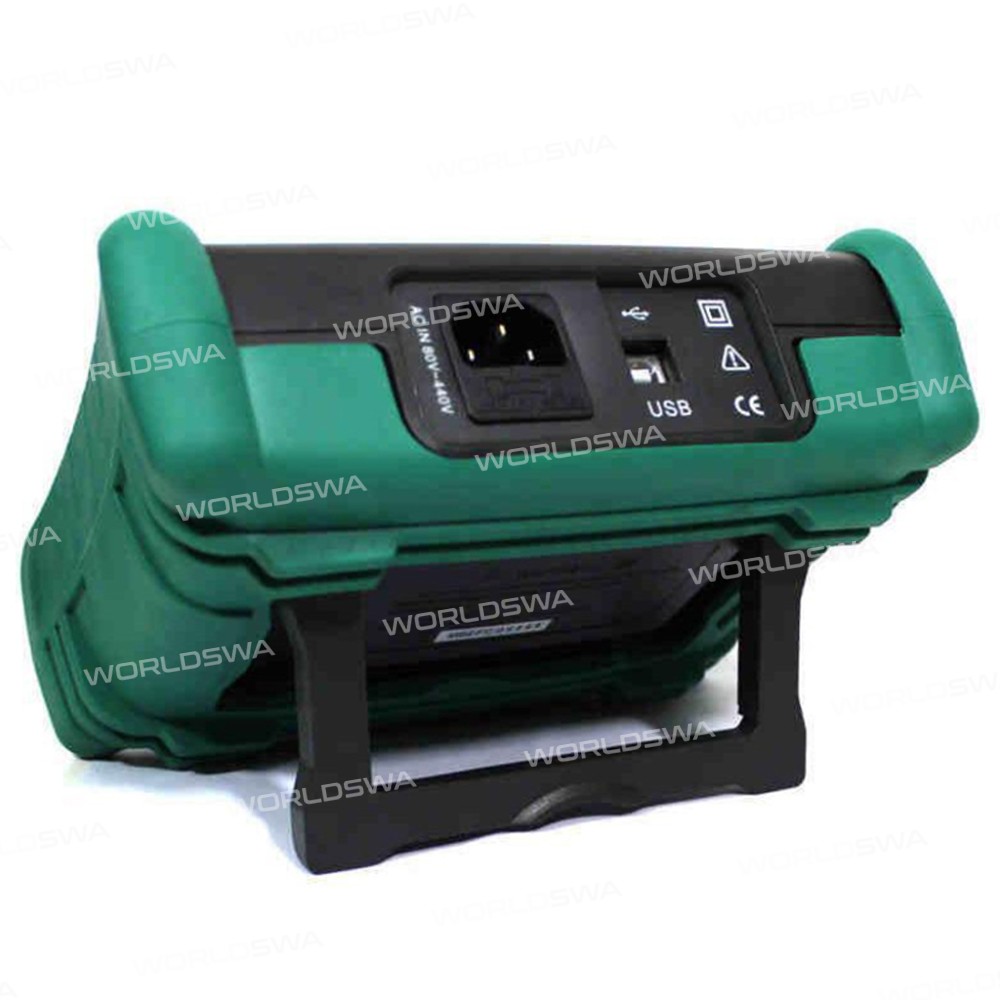

Overview

This high-precision digital insulation resistance tester is designed for checking the insulation of high-voltage electrical equipment such as electric motors, transformers, cables, and more.

Features:

• Checking the insulation of high-voltage electrical equipment (electric motor, transformer, cable, etc.)
• Use 50V-1000V voltage to test target insulation
• Measures up to 10GΩ resistance
• Short current up to 1.8mA
• Automatically calculates PI (Polarization Index) and DAR (Dielectric Absorption Ratio)
• AC/DC voltage measurement and continuity test
• Display backlight and auto power-off
• **Summary:** Comprehensive insulation testing with advanced features for accurate results.

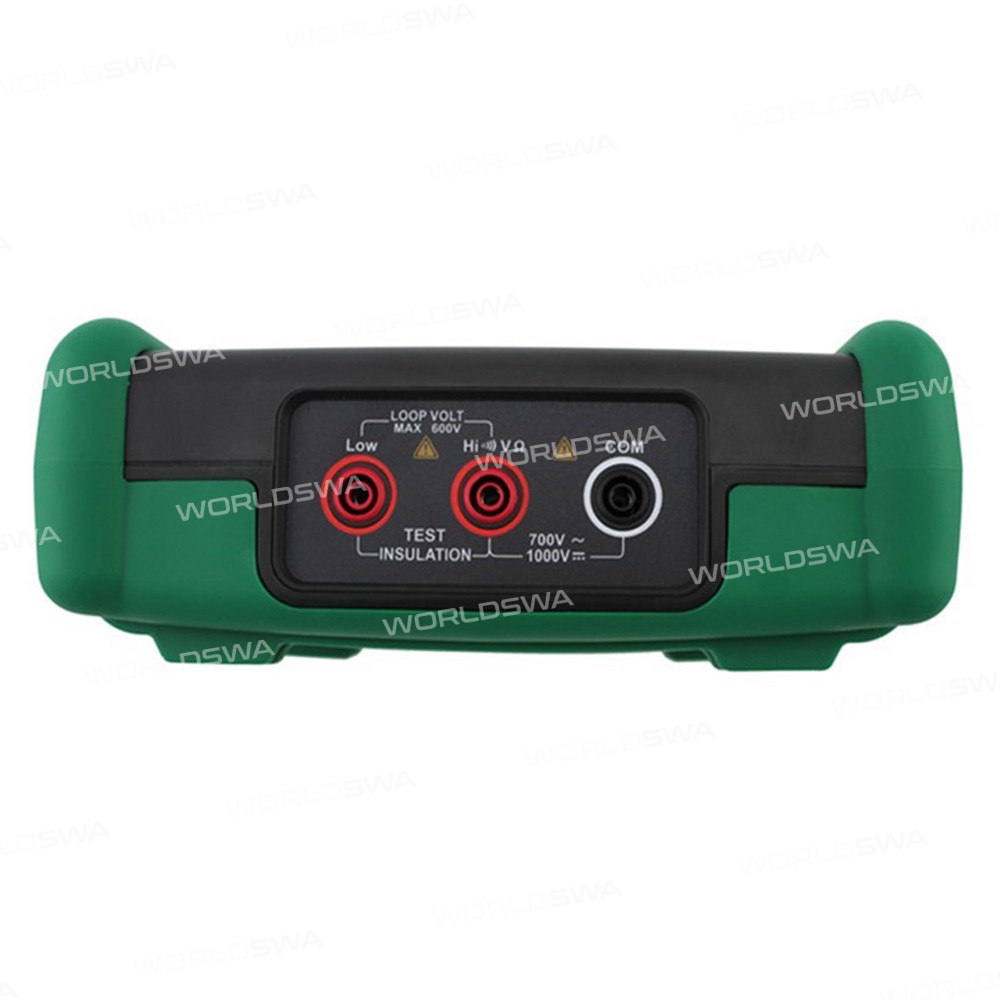

• Overload protective voltage:
  • 600V when input terminals are Hi and Lo
  • 1200V when input terminals are V and COM
  • 250V under voltage test; in another test mode

Specifications:

• Standard: 1000V CAT III, 600V CAT IV
• DC Voltage: 1000V
• AC Voltage: 750V
• Batteries: AA batteries (NEDA 15A or IEC LR6) *6
• Insulation Measurement Range: 0.01 M ohm to 10.00 G ohm
• Insulation Test Voltages: 50V/100V/250V/ 500V/1000V
• Insulation Source Voltage: +20%, -0%
• Insulation Short-Circuit Test Current: 1.8mA nominal
• Insulation Auto Discharge: Discharge time<2 seconds for C = 1uF or less
• Insulation Live Circuit Detection: Inhibit test if terminal voltage>20V prior to initialization of the test
• Insulation Maximum Capacitive Load: Operable with up to 1uF load
• Storage Temperature: -40°C to 60°C
• Operating Temperature: 0°C to 40°C
• Temperature Coefficient: 0.05 x (specified accuracy) per °C for temperatures < 18°C or > 28°C
• Relative Humidity: 40%~75% (40%~60% when insulation test >1GΩ)
• Size: 180(L)*140(W)*65(H)mm
• Weight: 900g (not including battery)

Package Includes:

• 1 x Digital Insulation Tester (not including battery)
• 2 x Test Leads
• 2 x Test Clip
