Mastech MS5900 Three-phase Motor Phase Sequence Tester - Non-Contact

Mastech MS5900 Non-Contact Three-phase Motor Phase Sequence Tester

Overview

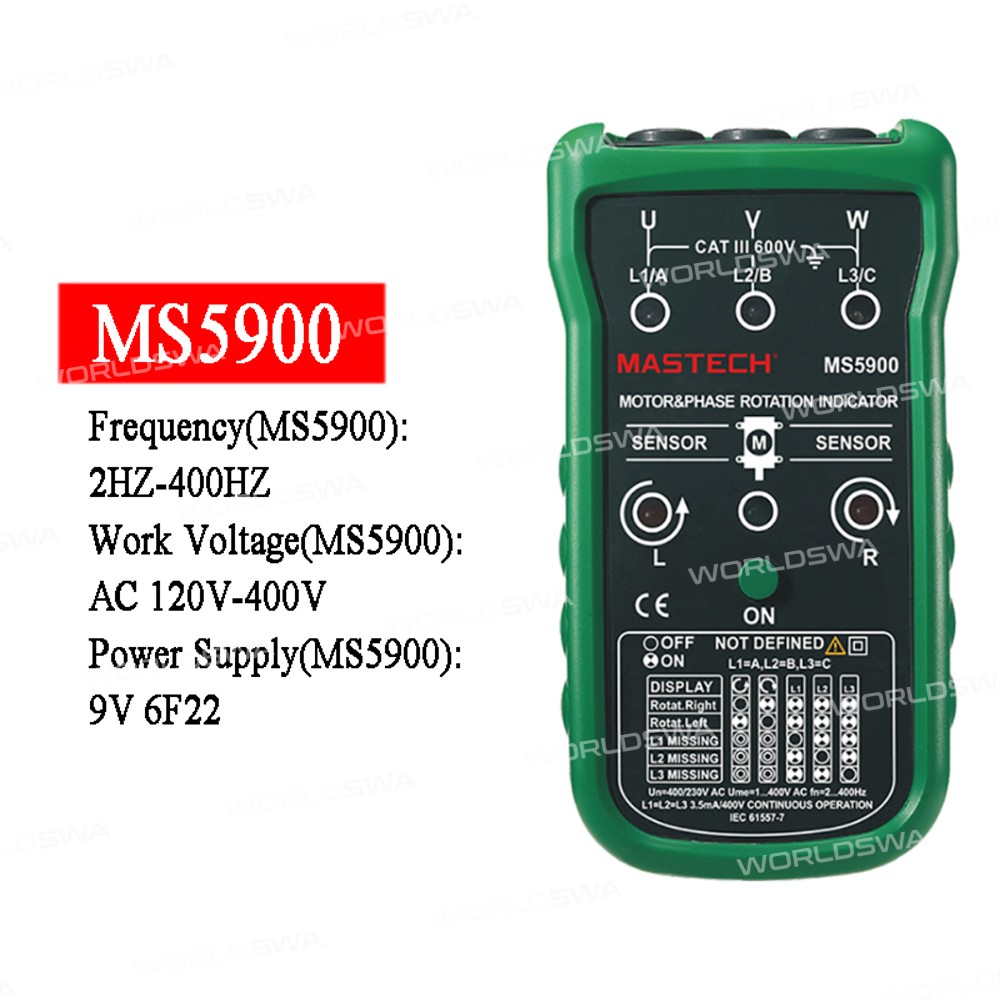

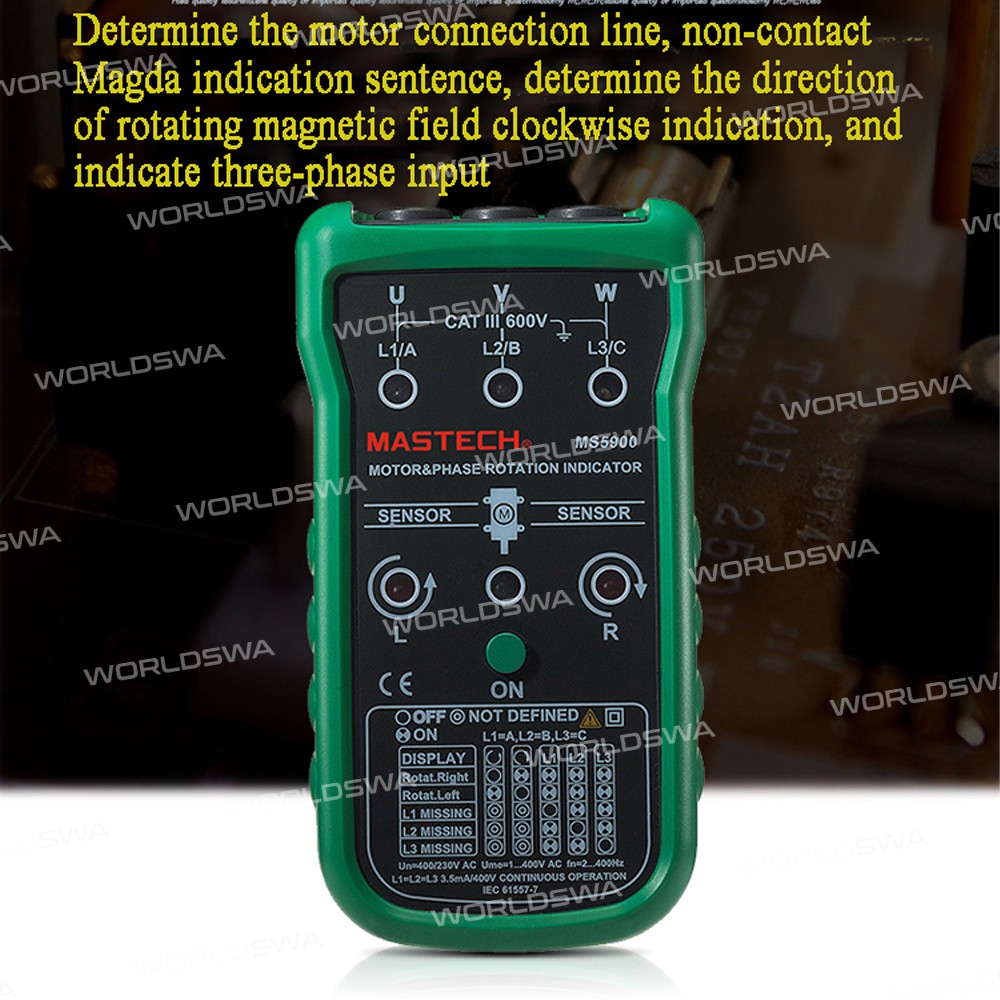

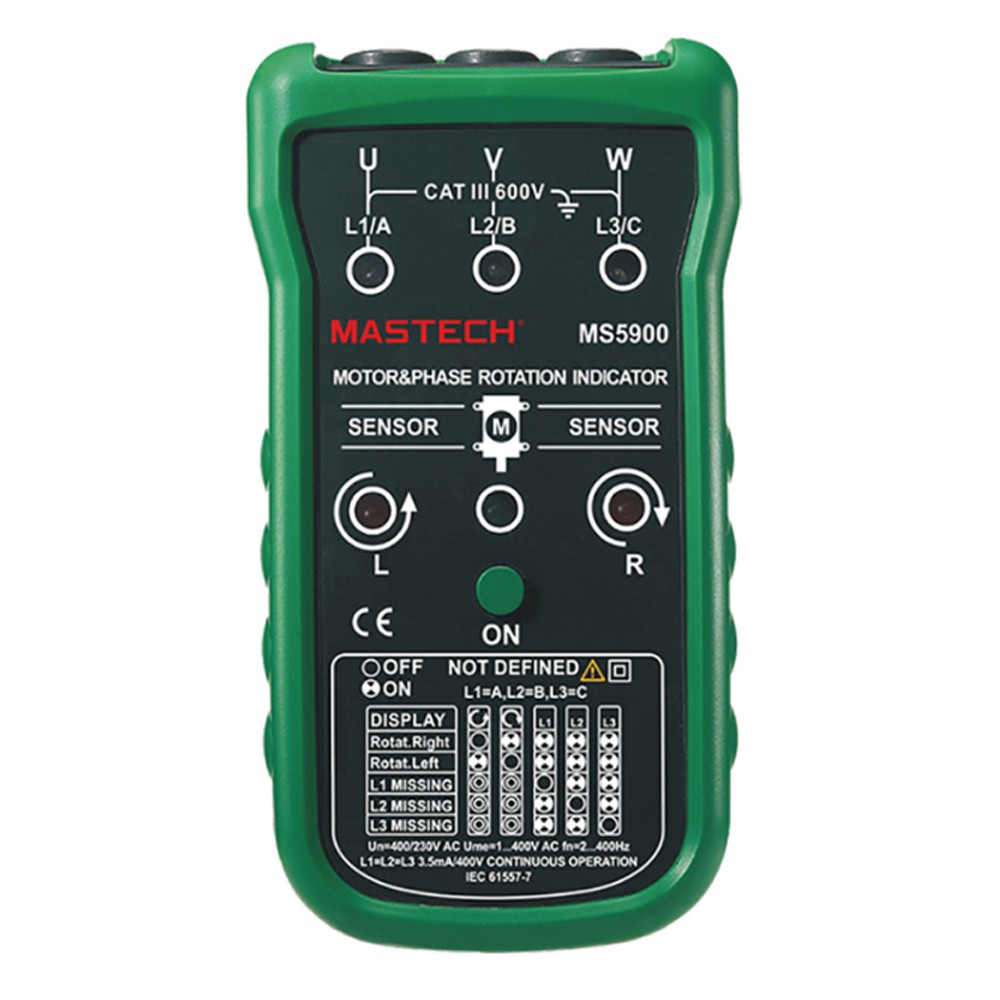

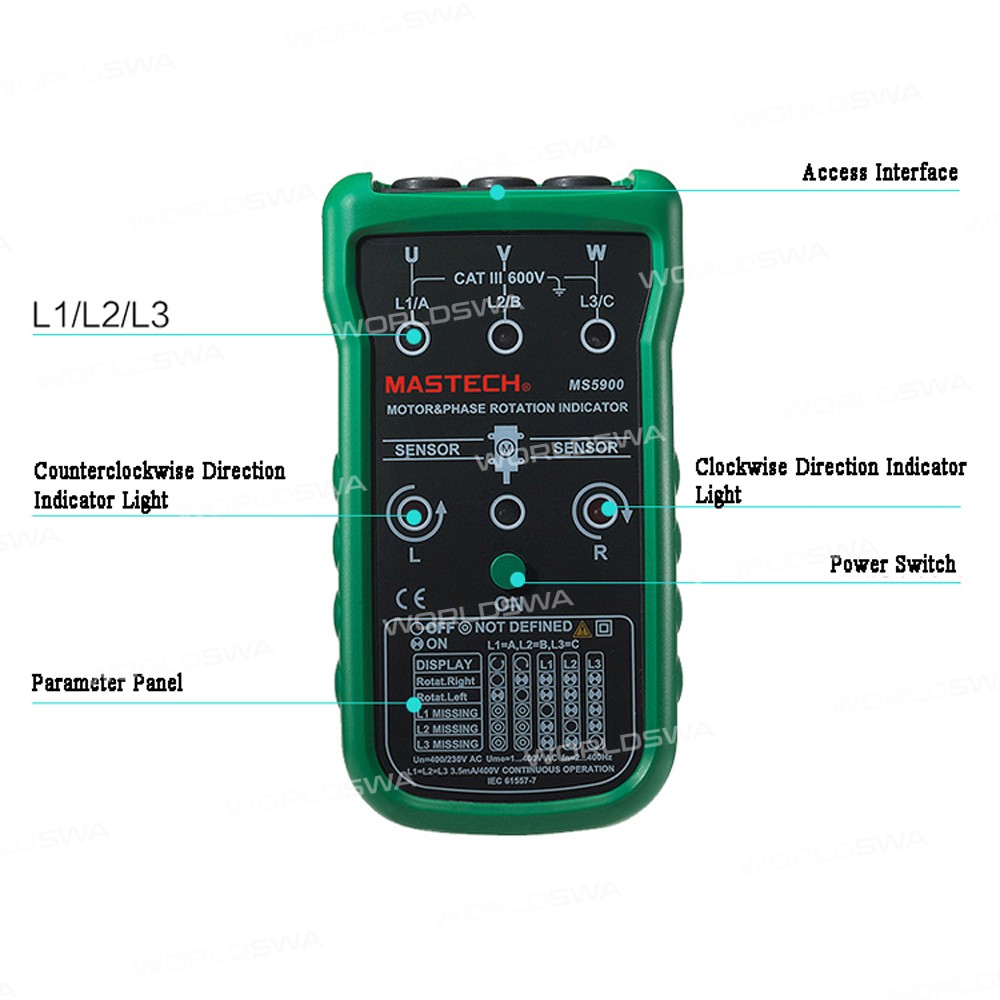

The Mastech MS5900 is a versatile and compact non-contact three-phase motor phase sequence tester that offers four main functions: rotary field direction, non-contact rotary field indication, motor connection, and magnetic field detection.

Features:

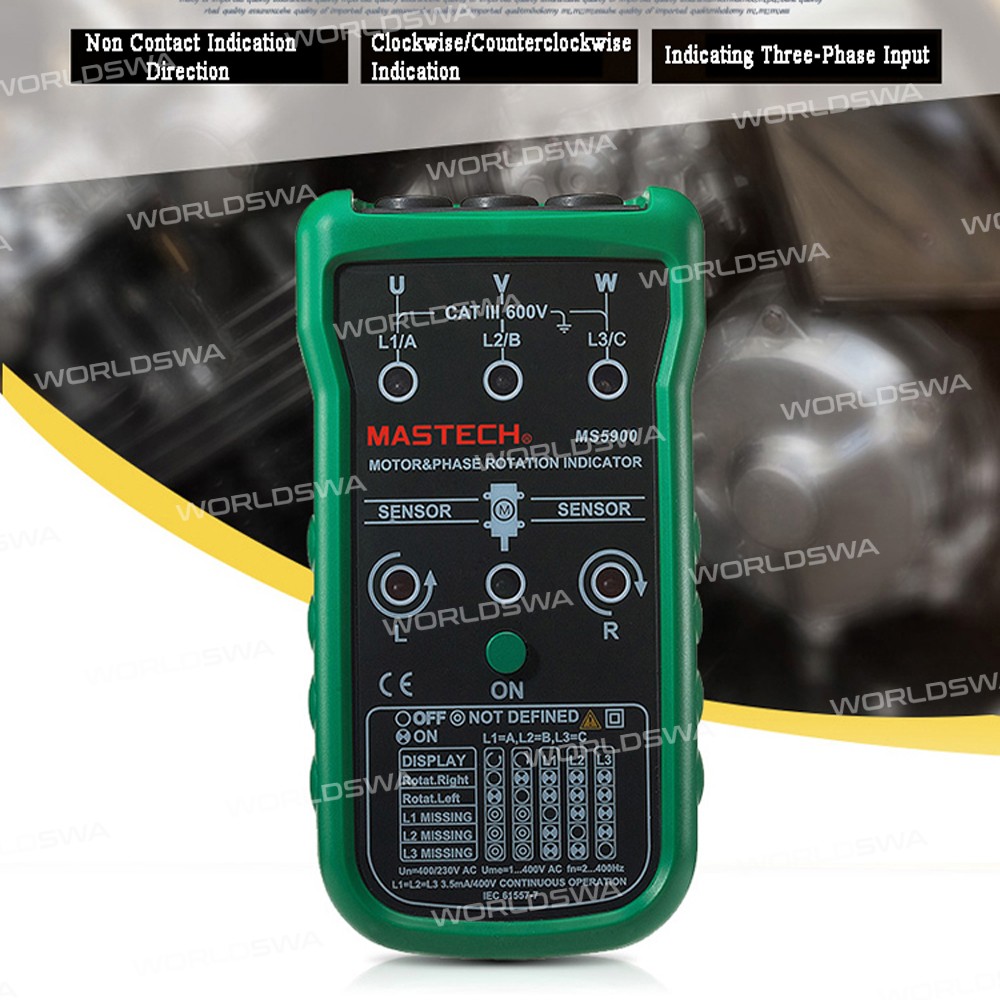

• 4 main functions: rotary field direction, non-contact rotary field indication, motor connection & magnetic field detection
• Indicate phase orientation (Clockwise or anticlockwise)
• Fast and accurate measurement
• With simultaneous indications via LEDs
• Portable and compact design
• Battery-operated (not included)
• Summary:** Fast, accurate, and portable phase sequence tester with 4 main functions

Specification:

• Operating Temperature: 0 C ~ 40 °C ( 32 ~ 104 °F)
• Operating Altitude: 2000 m
• Pollution Degree: 2
• Type of Protection: IP 40
• Humidity 15 % to 80 %
• Electrical Safety: Meets DIN VDE 0411, IEC 61010 DIN, VDE 0413-7, EN 61557-7, IEC 61557-7
• Maximum Operating Voltage (Ume): 400V AC for all ranges
• Protection Level: CAT III, 600 V
• Battery: 6F22/9V (Not Included)
• Current Consomption: Max 20 mA
• Item dimension: Approx. 128 x 70 x 30mm (5'' x 2.75'' x 1.18'')
• Item weight: Approx. 168g

Rotary Field Direction

• Nominal Voltage Rotary Direction: 1 to 400 V AC
• Nominal Voltage Phase Indication: 120 to 400 V AC
• Frequency Range (fn): 2 to 400 Hz
• Test Currents (In per phase): less than 3.5 mA

Non-Contact Rotary Field Indication

• Frequency Range (Fn): 2 to 400Hz
• Determine the Motor Connection
• Nominal Test Voltage (Ume): 1 to 400V AC
• Nominal Test Currents (In per phase): less than 3.5mA

Package includes:

• 1 x Rotation Indicator Meter(without Battery)
• 3 x Test Leads
• 3 x Alligator Clips
