Mastech MS8212A Digital Multimeter - Pen-type, High-precision, NCV Test, Digital Display

Mastech MS8212A Pen-type High-precision Digital Display Multimeter with NCV Test

Product Overview

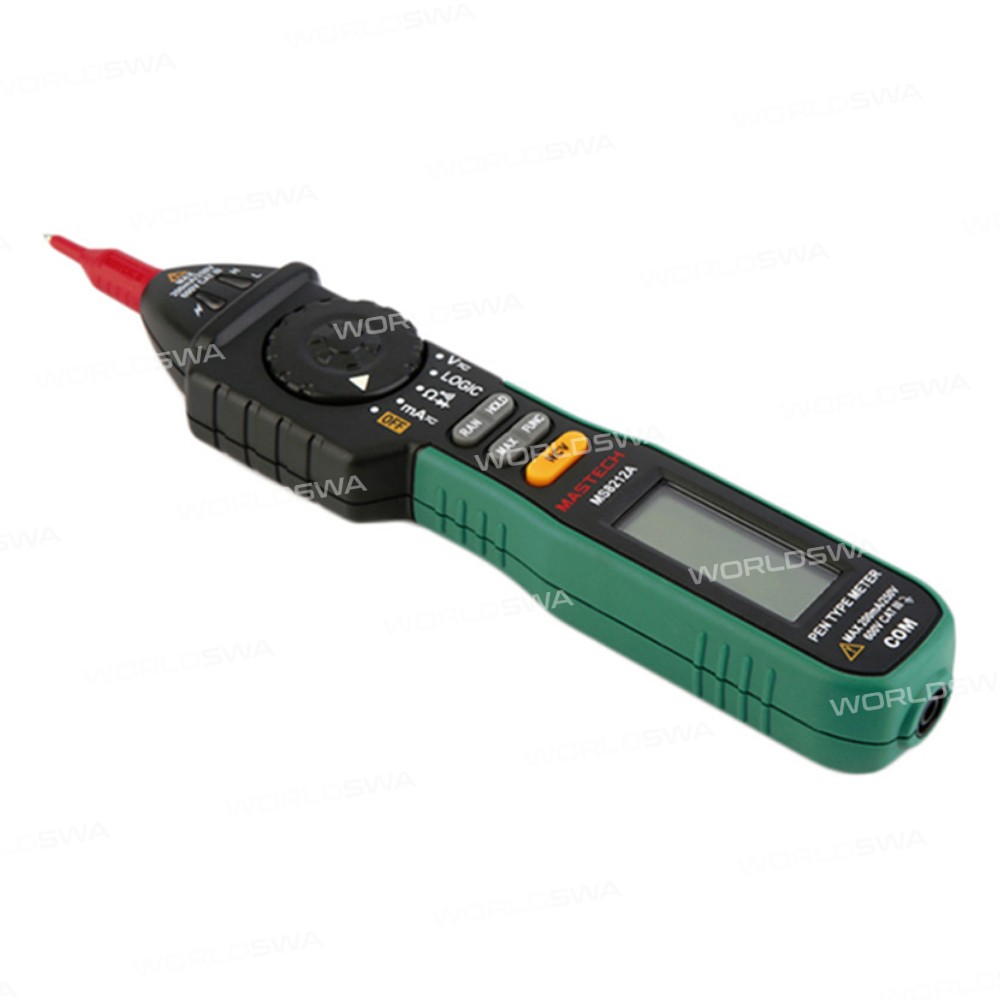

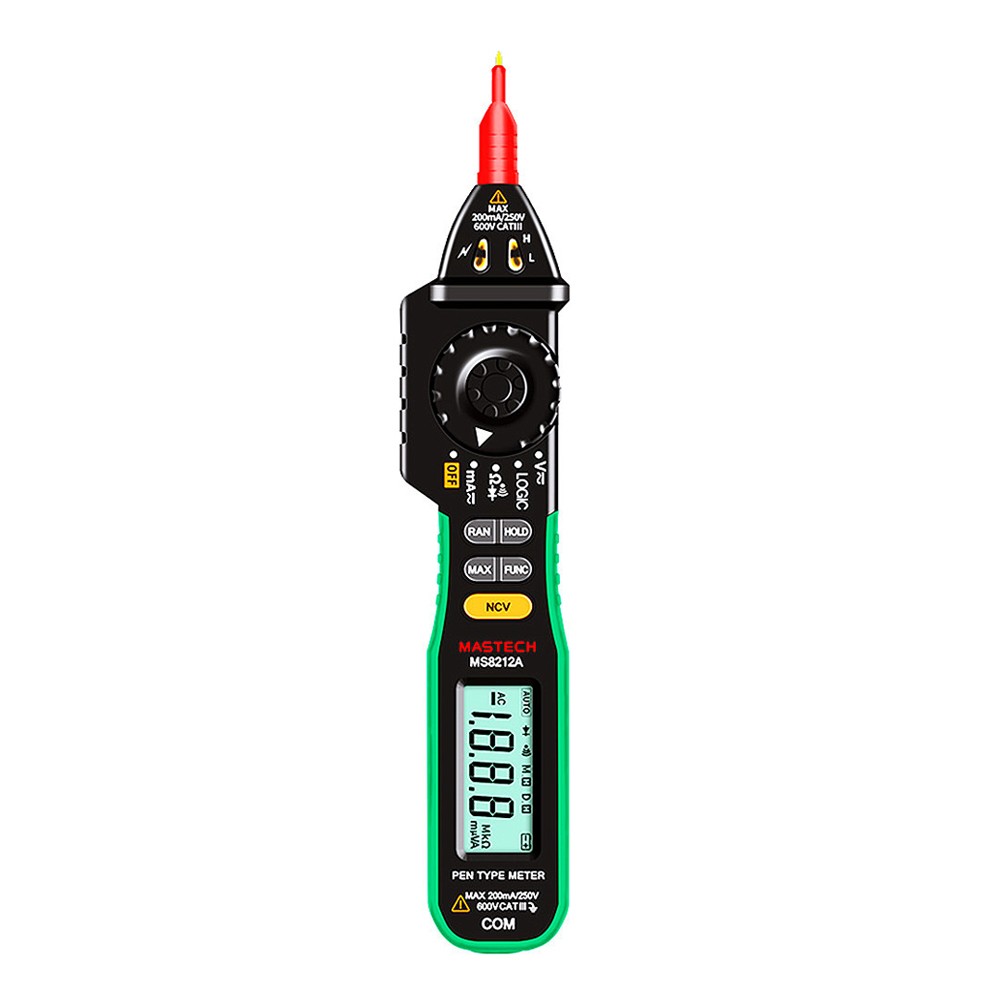

The Mastech MS8212A is a high-precision digital display multimeter that offers a range of advanced features, including non-contact voltage testing, logic testing, and auto power off. Its pen-type design makes it easy to carry and use in tight spaces.

Key Features:

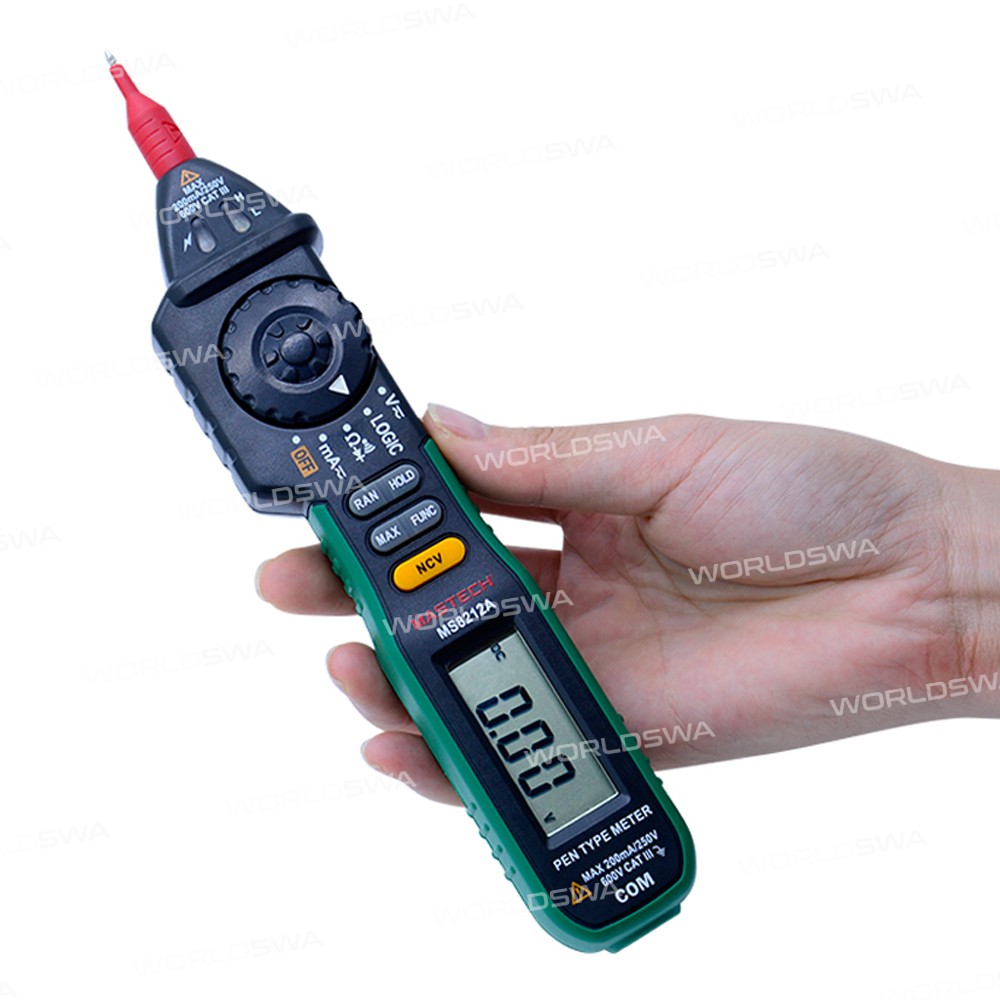

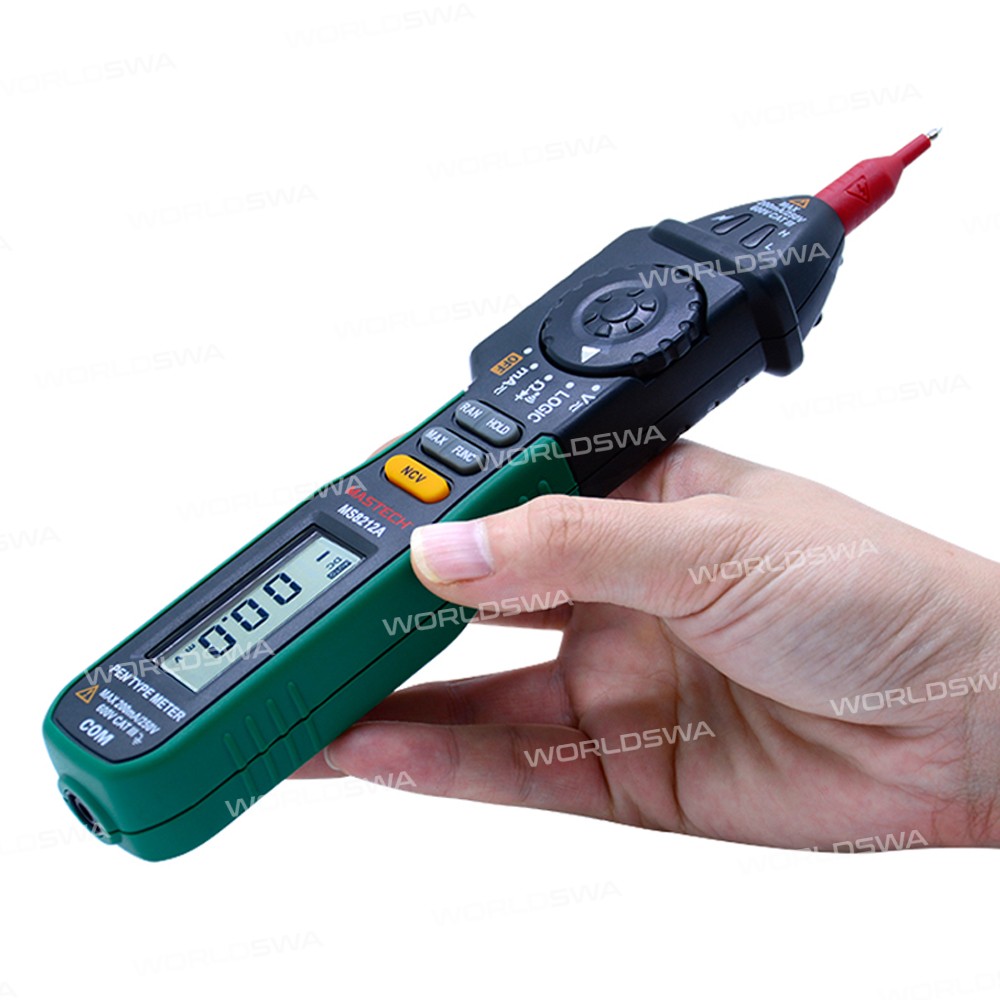

• Pen-type design
• Auto range and manual range
• DC/AC Voltage, Current, Resistance, Diode, and Continuity test
• Logic test

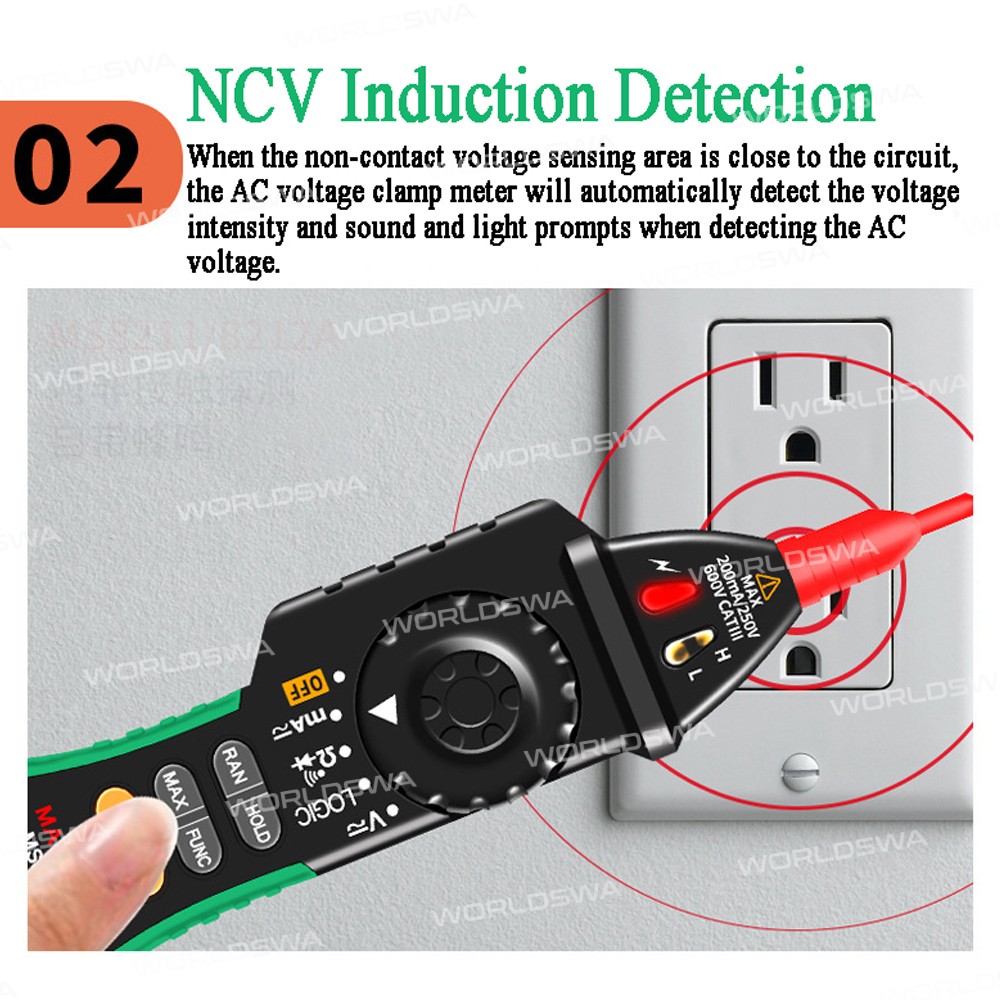

• Non-contact voltage test
• Auto power off
• Data hold
• Max hold
• Summary:** Advanced multimeter with NCV test and logic test

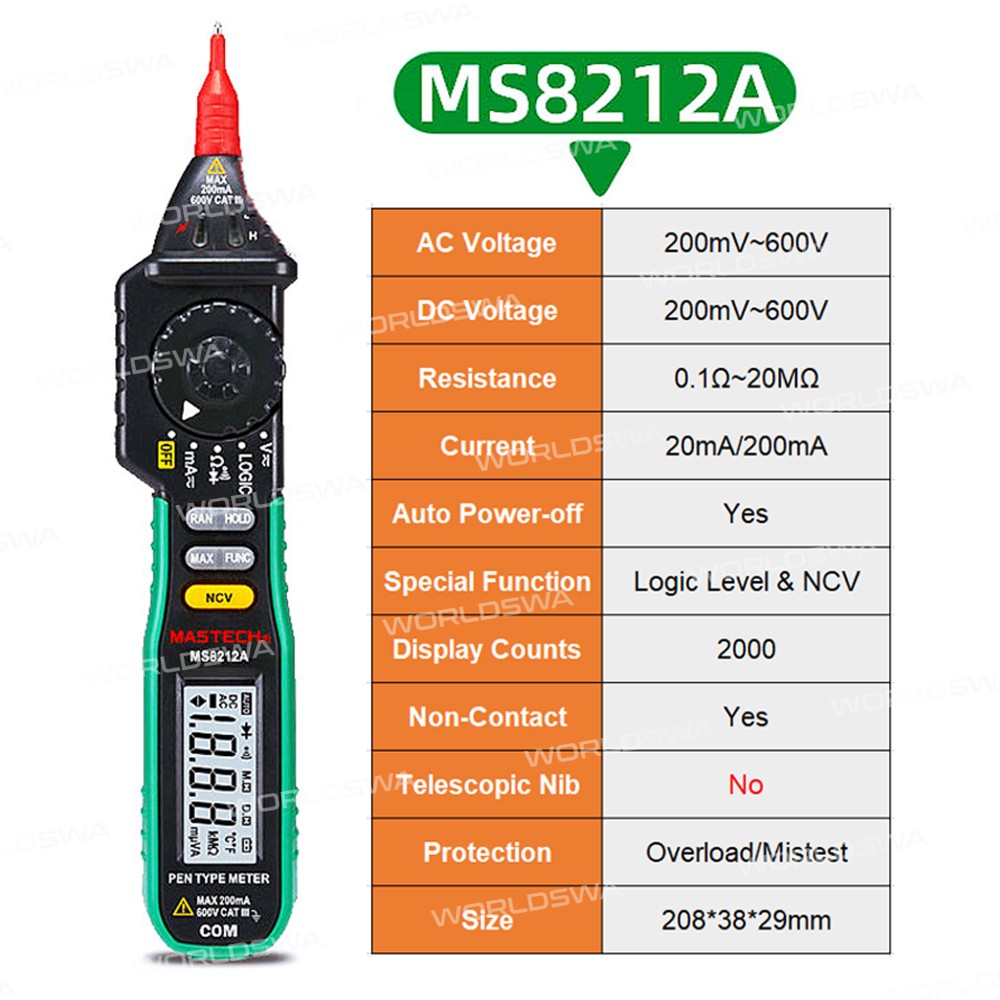

Specifications:

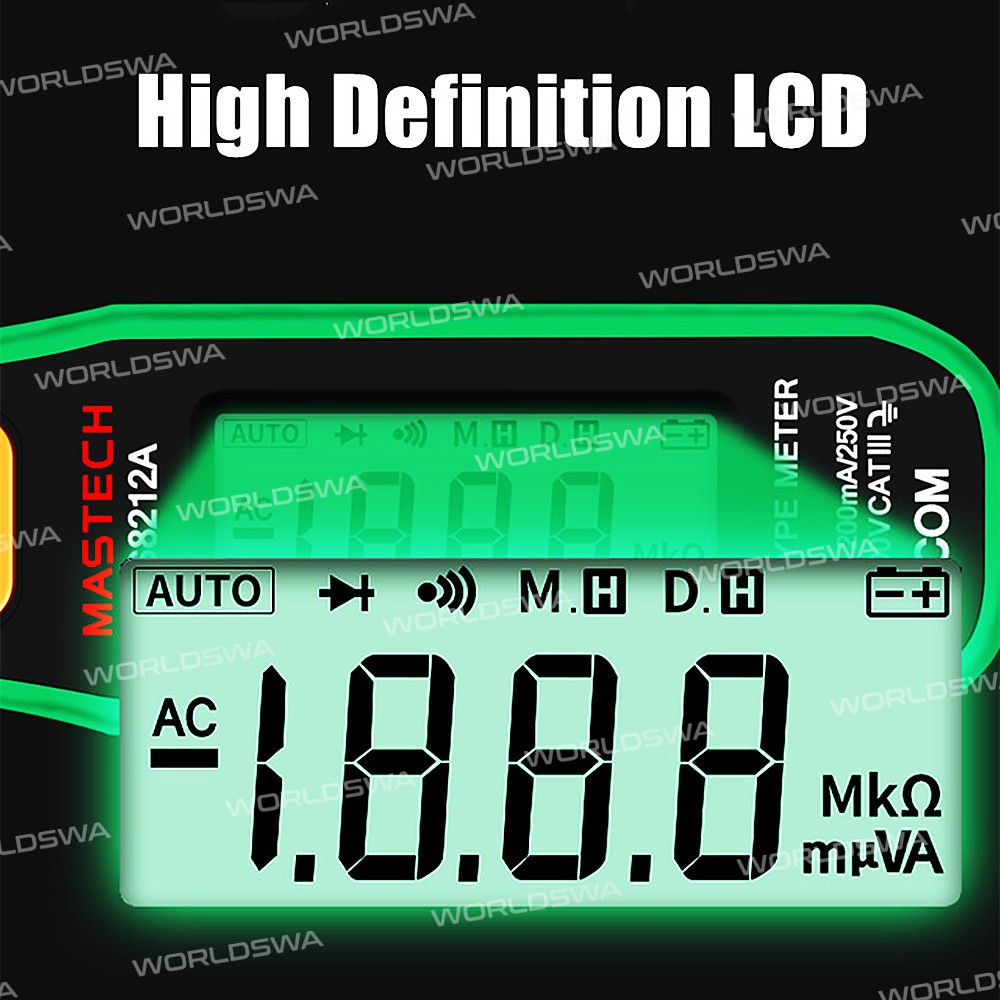

• Max. show value: 1999(3 1/2)
• Polarity indication: "-" indicates negative polarity
• Overrange indication: Display "OL"
• Sampling time: approx. 0.4 second

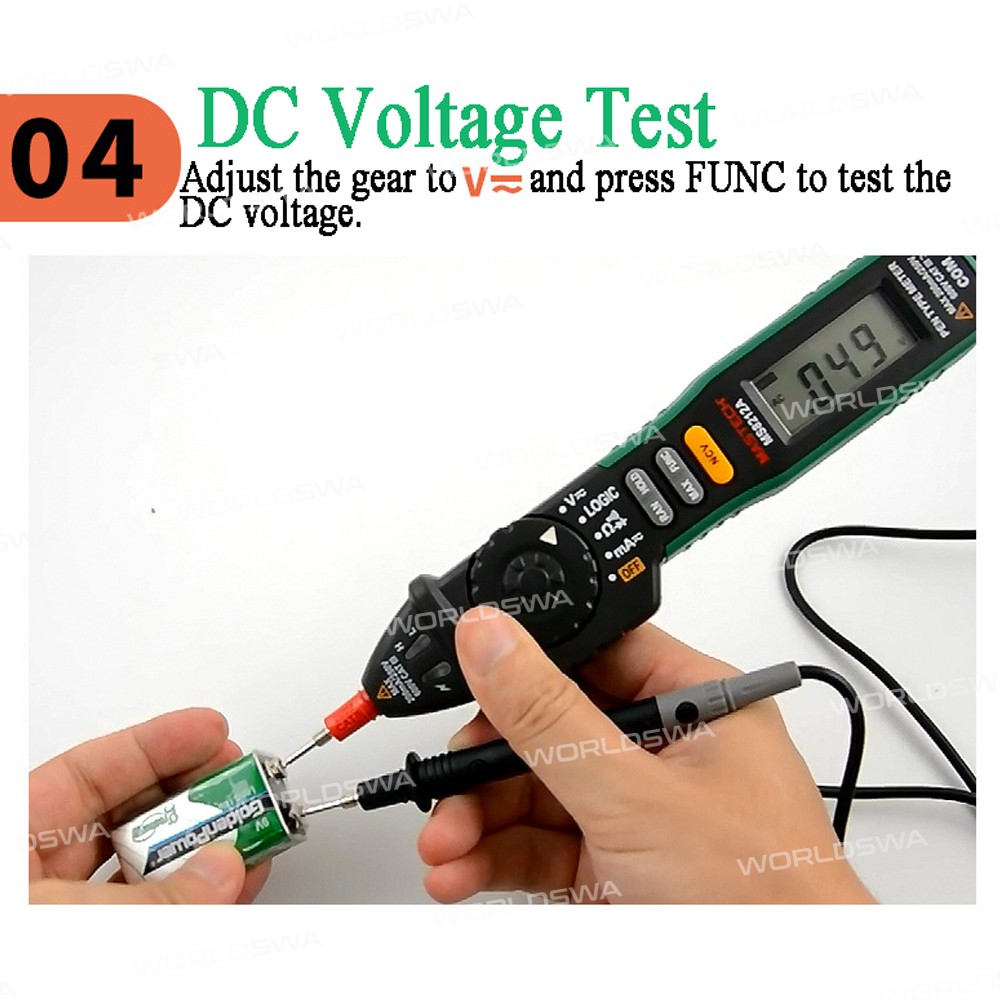

• DC Voltage: 200mV/2V/20V/200V/600V ±(0.7%+2)

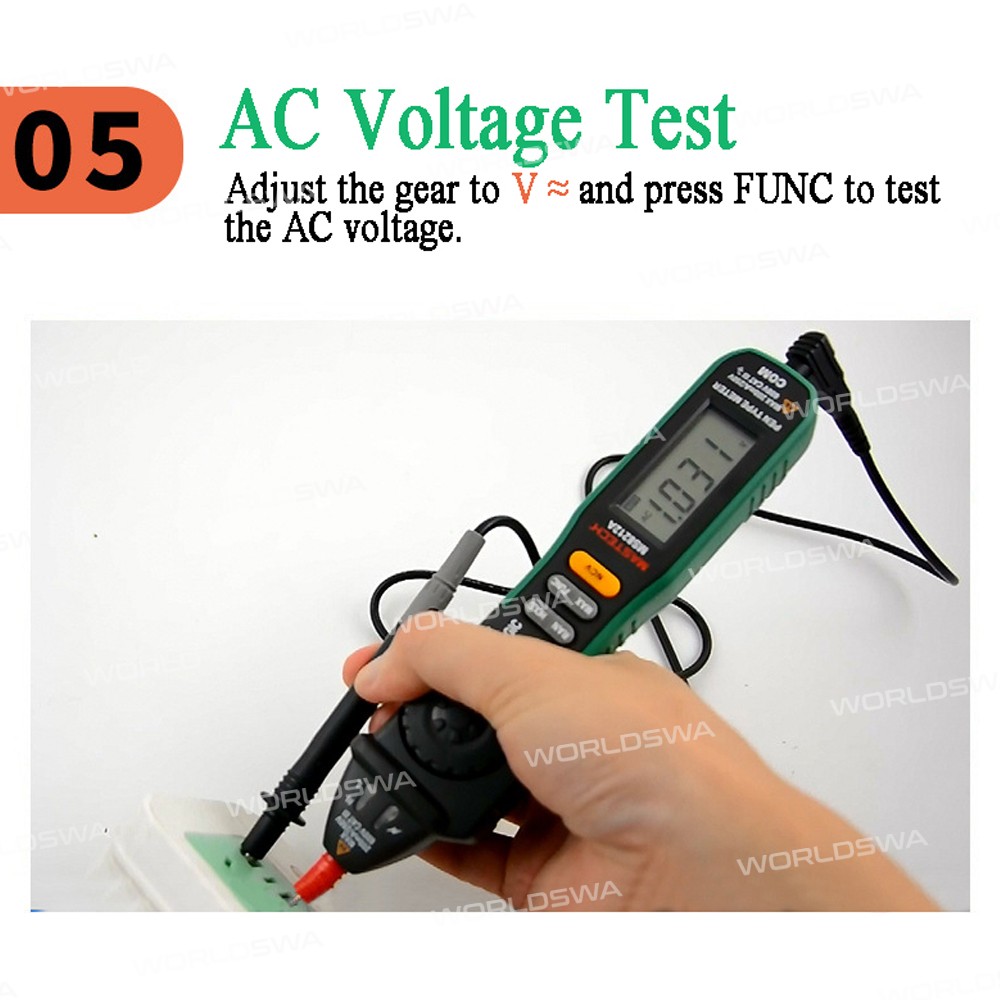

• AC Voltage: 200mV/2V/20V/200V/600V ±(0.8%+3)
• DC Current: 20mA/200mA ±(1.5%+3)
• AC Current: 20mA/200mA ±(2.0%+3)

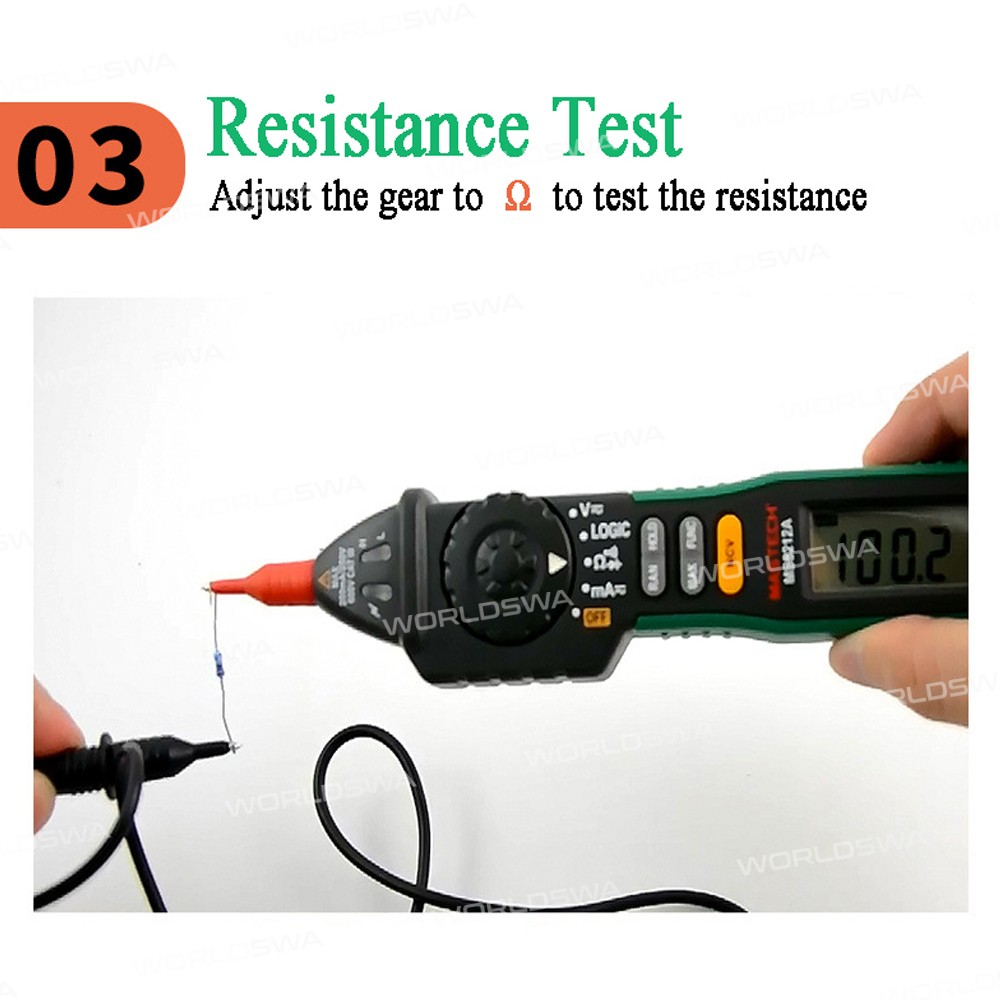

• Resistance: 200/2K/20K/200K/2Mohm ±(1.0%+1), 20Mohm ±(1.0%+5)
• Fuse protection: F250mA/250V

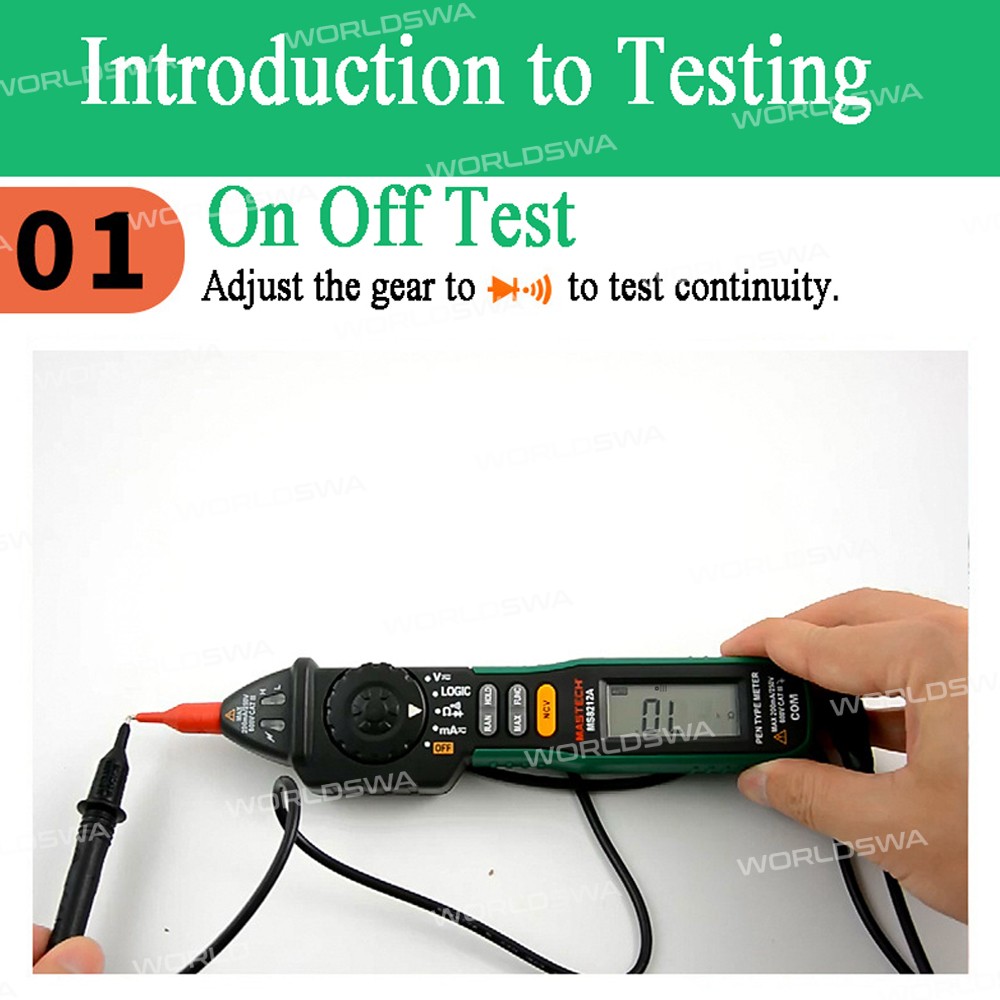

• Continuity: if the measured resistance is less than 50Ω, the buzzer will sound.
• Diode test: Yes
• Non-Contact Voltage(NCV): Yes
• Low battery indication: Yes

Power and Dimensions:

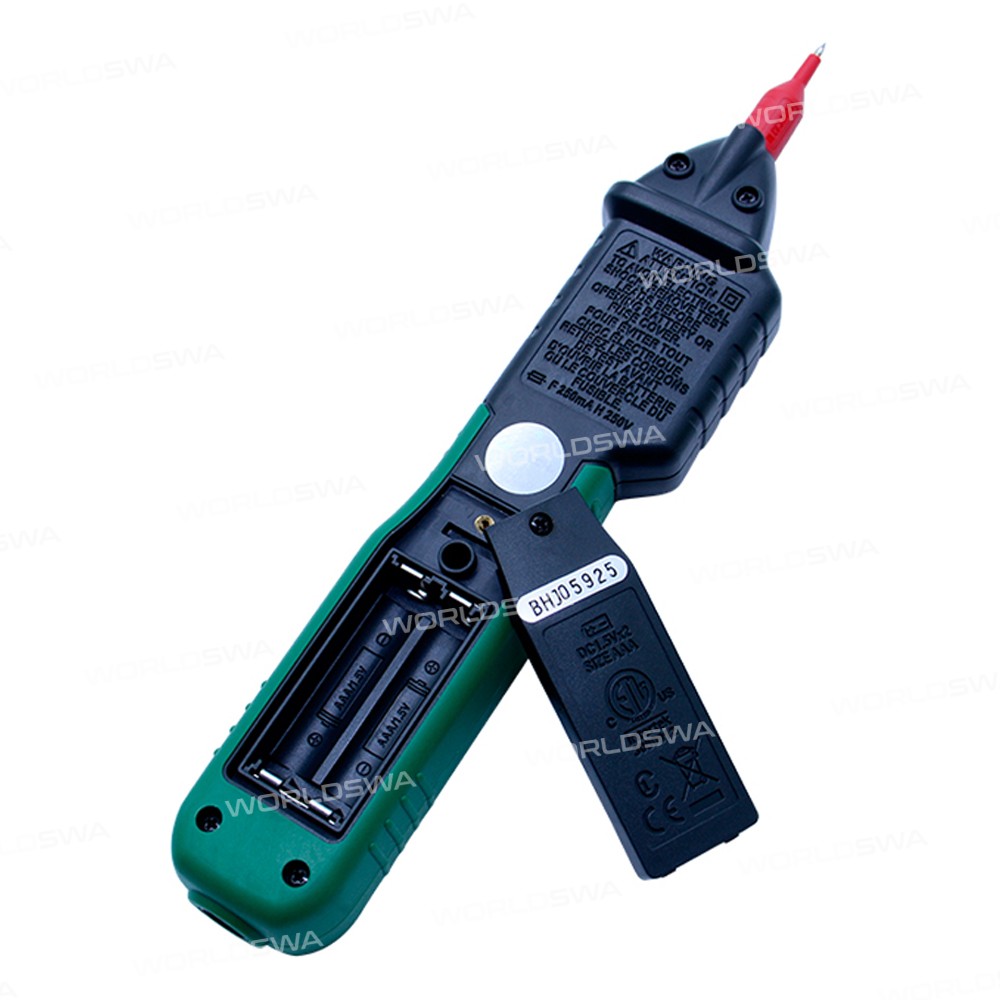

• Power supply: 2 x 1.5V AAA Batteries (not included)
• Product Size: 208*38*29mm
• Product Weight: 102g
• Safety Rating: CE ETL CAT. II600V RoHS

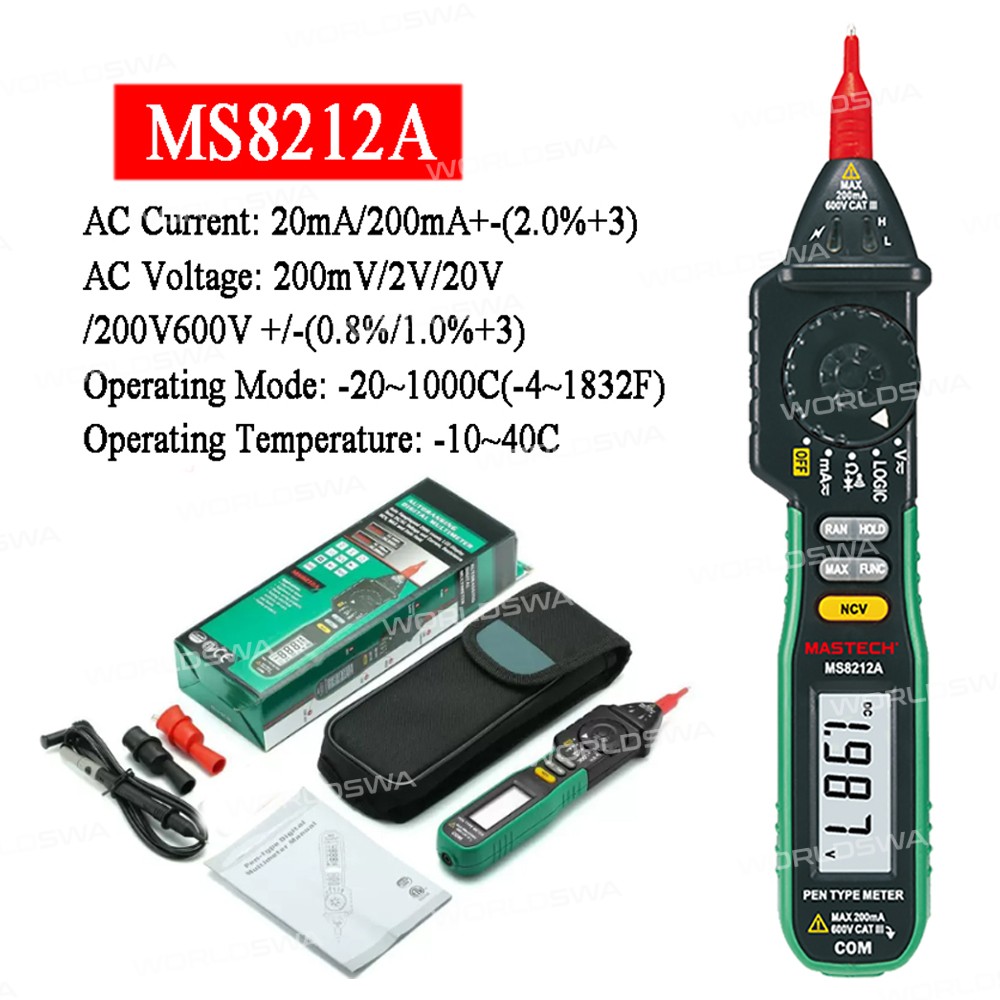

What's Included:

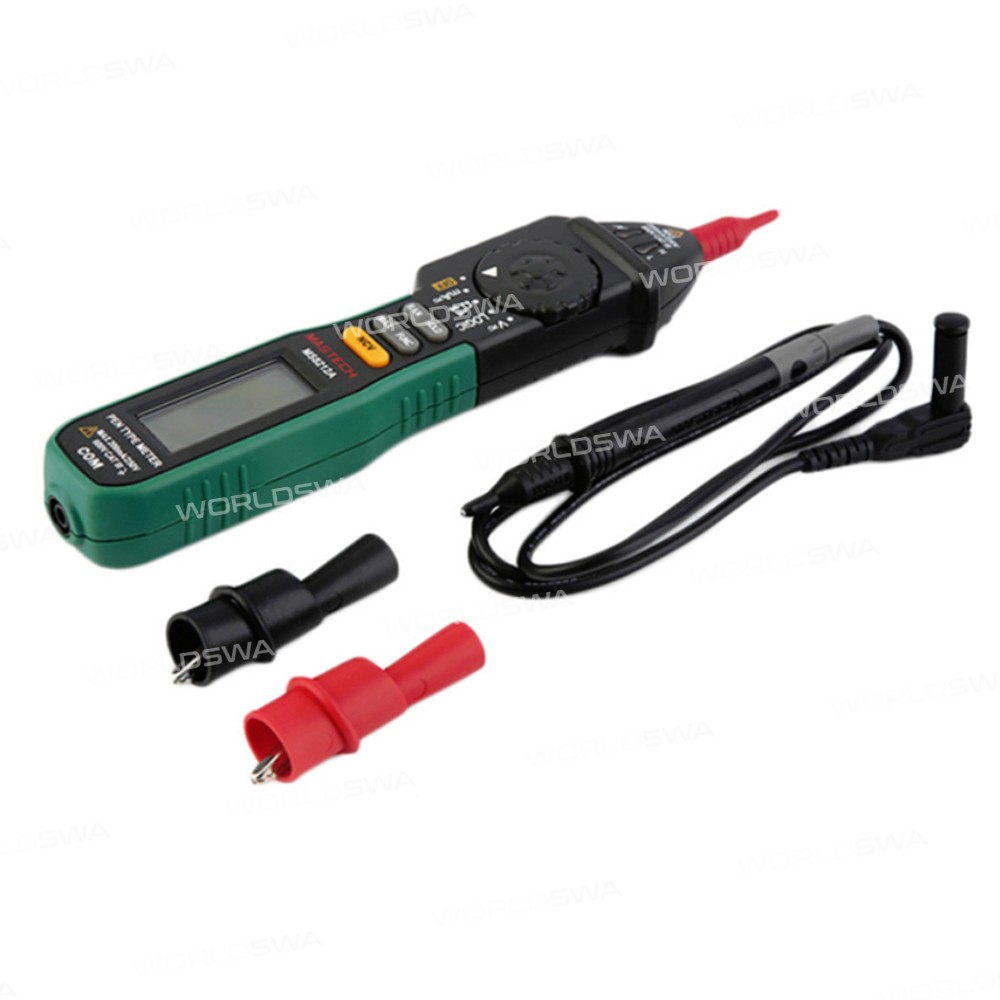

• 1 x Multimeter(without Battery)
