MASTECH MS8910 Smart SMD Tester: Auto Scan for Resistance, Capacitance, Diode & Multi-Function Testing

MASTECH MS8910 Smart SMD Tester Auto Scan Resistance Capacitance Diode Multi Tester

Features:

• **Auto Scanning**: Identifies resistor, capacitor, and diode automatically.
• Small size and lightweight, handheld and portable test tool.
• Used to measure SMD, such as Chip resistor, Chip capacitor, and Chip diode devices.
• **Continuity Testing**: When the resistance is less than 30Ω, it will sound.
• Manual operation: Press the button “FUNC” to select one certain measuring mode.
• Data hold function.
• Long press the “FUNC” key to turn on/ off this tester.
• Automatic power off after it is idle for about 10 minutes. Recoverable by pressing any key.
• Overload indication.
• Low battery indication.

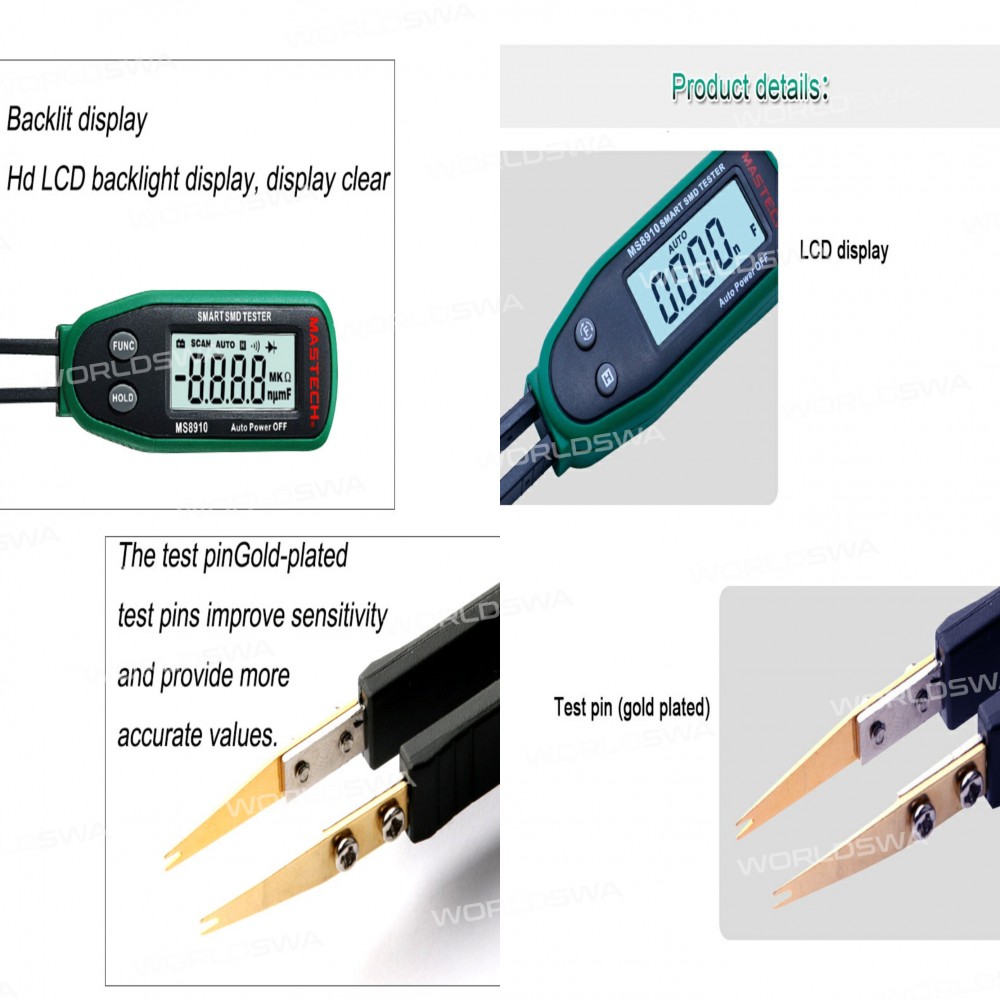

• Gold-plated test pins, which can induce its contact resistance and prevent it from rusting.

Specification:

• Display: 3000 count LCD display
• Power supplied by: 1 * 3V CR2032 battery
• Operating temperature: 0 to 40 Celsius degree
• Operating humidity: <80%RH
• Storage temperature: -10 to 50 Celsius degree
• Storage humidity: <70%RH
• **Resistance Measurement:**
• Auto scanning range: 300.0Ω to 3.000MΩ
• Manual measuring range: 300.0Ω to 30.00MΩ
• **Capacitance Measurement:**
• Auto scanning range: 3.000nF to 300.0μF
• Manual measuring range: 3.000nF to 30.00mF
• Item size: 17.5 * 3.1 * 1.7cm/ 6.8 * 1.2 * 0.6in
• Item weight: 46g/ 1.6oz
• Package size: 20.4 * 5.8 * 2.8cm/ 8 * 2.2 * 1.1in

Package includes:

• 1 x Digital multimeter MS8910 (battery not included)
• 1 x Test pin
