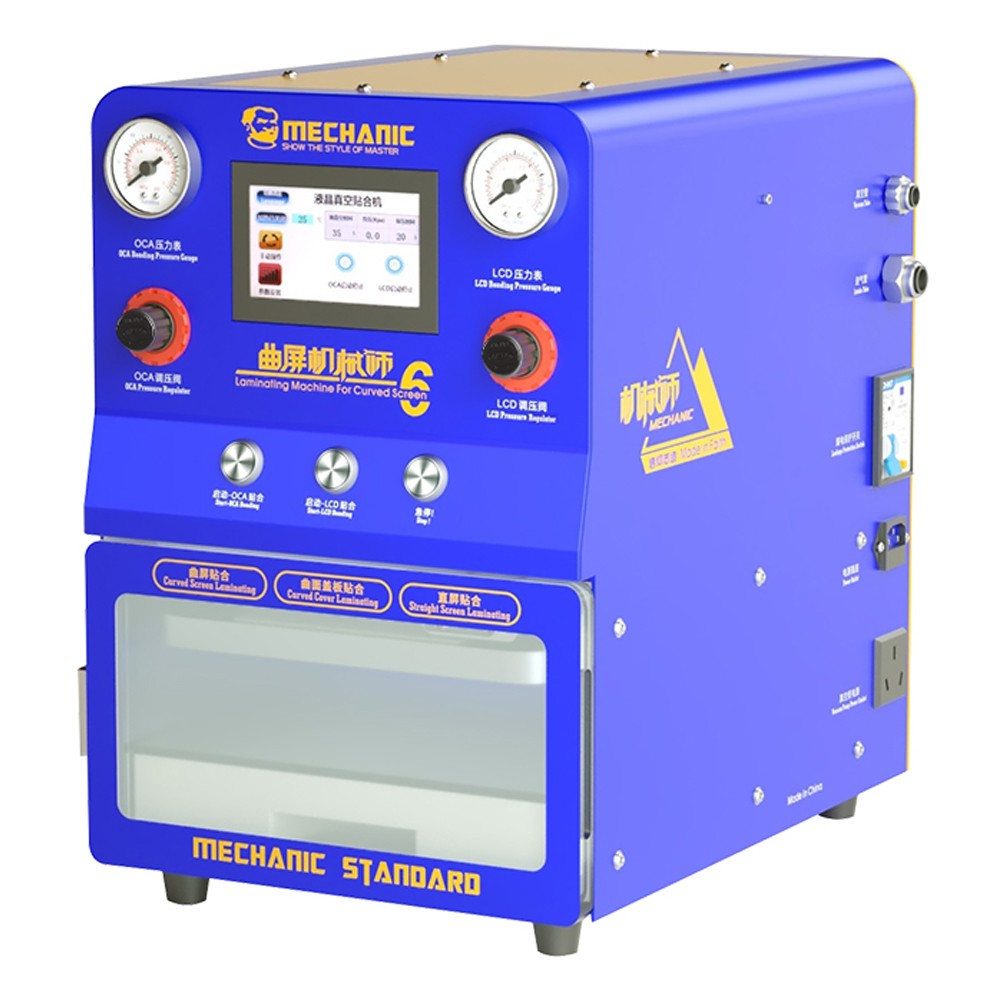

Mechanic 6 10.5-inch Curved Screen OCA Vacuum Lamination Defoaming Machine for Tablet / Phone Integration

Mechanic 6 10.5-inch Curved Screen OCA Vacuum Lamination Defoaming Integrated Machine for Tablet/Phones

Features:

• **Easy Operation**: One button for start, vacuum laminating, laminating stability, no need for rework
• **Wide Compatibility**: Compatible with iWatch screen, edge screen, flat screen, glasses, and PAD screen, under 10.5 inches
• **Customizable Parameters**: Set OCA pressure on the left, and set screen pressure on the right, different laminating parameters for OCA and screen
• **Independent Control**: One button to get started, convenient operation
• **Bubble-Free Lamination**: Sealed tight for lamination tank, good laminating, no bubble
• **High-Quality Components**:
  • 125 cylinders of AirTAC brand, corrosion-resistant and stable pressure performance
  • Switching power supply from Mean Well, good quality, reduces no-load voltage and low-loss power
  • Solenoid valve from AirTAC brand, good sealing and responsiveness, low friction resistance
  • Solid state electronics from Fqiek brand, touch controller without mechanical contact, spark-proof, work without noise interference

Specification:

• Name: Laminating Machine For Curved Screen
• Model: Mechanic 6
• Voltage: 110V/220V
• Power: 400W
• Size: 355*260*360mm
• Box gauge: 460*380*360mm
• Net weight: 27.5KG
• Gross weight: 32.5KG
• Laminating size: 10.5 inches and below
• Material: Aluminum alloy/Stainless steel
• Range of application: iWatch screen, edge screen, flat screen, glasses, and PAD screen

Steps:

• A tray is required to fit the straight screen and the cover plate
• When fitting the curved screen, please use the curved screen mold and take out the tray.
• When placing the curved screen mold, push it in place along the groove
• When using the rubber pad to stick the curved screen, put the tray into the bin and close the bin door

Tips:

• Directly face the bonding pressure of 1.0-1.5Mpa and the vacuum for about 25 seconds, and the lamination time is 5 seconds to 15 seconds
• The plate lamination pressure is 1.5-2.0Mpa, the vacuum is 25-30 seconds, and the lamination time is 15-20 seconds
• The bonding pressure of the curved surface (small curved surface)is 2.0-2.5Mpa, the vacuum is evacuated for 30-35 seconds, and the lamination time is 20-25 seconds
• The curved surface is bonded with a mold (large curved surface, four-sided curved)with a bonding pressure of 3.0-3.5mpa and vacuumed for 30-35 seconds, and the lamination time is 25-30 seconds
• The curved surface is pasted with rubber pads (large curved surface, four-sided curved), the bonding pressure is 2.5-3.0Mpa, the vacuum is 30-35 seconds, and the lamination time is 20-25 seconds
• Before using the device, wait for 5 minutes after powering on (heating) before using it
• Factory parameters: The lamination time is 20 seconds, the vacuum delay time is 30 seconds, and the temperature is 50 °C

Package includes:

• 1 x Host
• 2 x Trachea
• 1 x Tee Connector
• 1 x Power Cord
