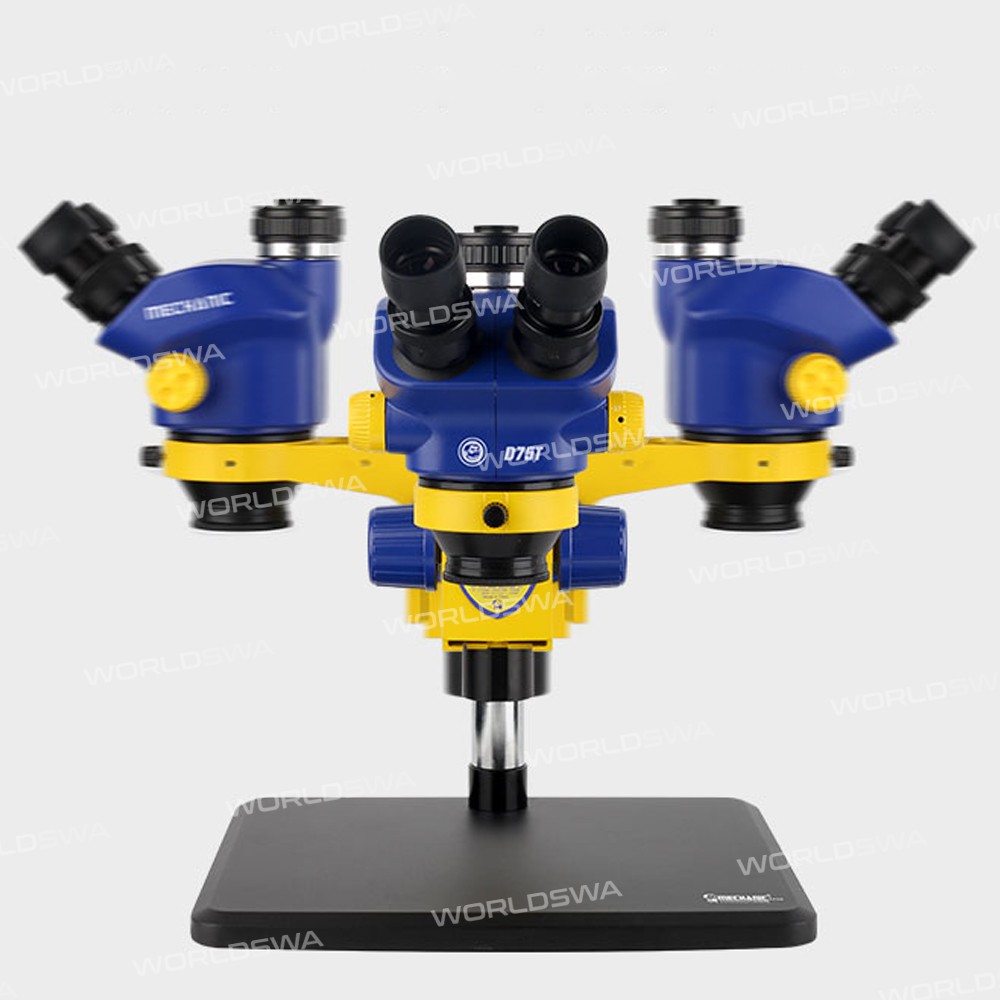

Mechanic D75T-B11 0.7-5.0X High Precision HD Trinocular Stereo Microscope for Phone Repair and Inspection

Mechanic D75T-B11 0.7-5.0X High Precision HD Trinocular Stereo Microscope for Phone Repair

Features:

• External display device/0.7-5.0X multiple clear eyepieces/Simple, fast and convenient operation/Newly upgraded LED fill light
• Continuous Zoom Optical System: 0.7-5.0X continuous zoom optical system, large magnification continuous zoom, sharp imaging without distortion, very high definition, can correctly focus samples with a large uneven surface, to obtain a three-dimensional image.
• High-Definition Eyepiece: 10x high-definition wide-angle eyepiece, made of all-metal material, FMC anti-reflection coating with high light transmittance, high refractive index lens diameter of 25.5mm
• Accurate Focusing: The focusing gear rack is made of metal material, which is durable and accurate with the magnification, making the image clearer
• High-Definition Optical Objective Lens: The high-definition optical objective lens, manufactured by precision craftsmanship, high-definition coated objective lens, pure copper material lens barrel, no glare, clear picture, not letting go of every small detail
• CTV2/5 Adapter: CTV2/5 adapter, clearer image than ordinary TV interface, wider field of view, no vignetting
• Larger Working Space: Larger working space, standard 100mm working distance, giving more operation possibilities
• Brightness Adjustment: 10-level brightness adjustment Ultra-thin aluminum alloy shell, anti-drop, durable, small size
• Adjustable Microscope Body: The microscope body can be adjusted 360°, freeing up the workbench without affecting other operations
• Versatile Applications: Suitable for electronic maintenance, cultural relic identification, medical research, biological observation, etc.

Specification:

• Magnification: Standard configuration: 7X-50X, optional eyepiece and auxiliary objective can be extended to 3.5X-270X, continuous zoom
• Eyepieces: Standard configuration: WF10X22, high eye point wide-angle eyepiece, convenient for observers wearing glasses
• Observation Head: 45° tilt, 360° rotation, interpupillary distance 54-76MM; bilateral diopter adjustment (±5) diopter
• Objective Lens: 0.7X--5X continuous zoom, the zoom ratio of the objective lens is 1:7.14, to ensure the parfocality of the image plane
• Auxiliary Objective Lens: 0.5X/0.7X/1X/1.5X/2X optional
• Focusing Bracket: Inner diameter 76mm, column aperture 32mm
• Working Distance: 100mm
• Base: B11 base
• Lighting: LED Ring Light
• Dimensions: 200*273*240mm
• Column Height: 240mm

Package includes:

• 1 x Trinocular microscope
• 1 x Microscope Base
• 1 x LED ring light
• 2 x WF10X/22 eyepiece
• 1 x CTV 2/5 Adapters
