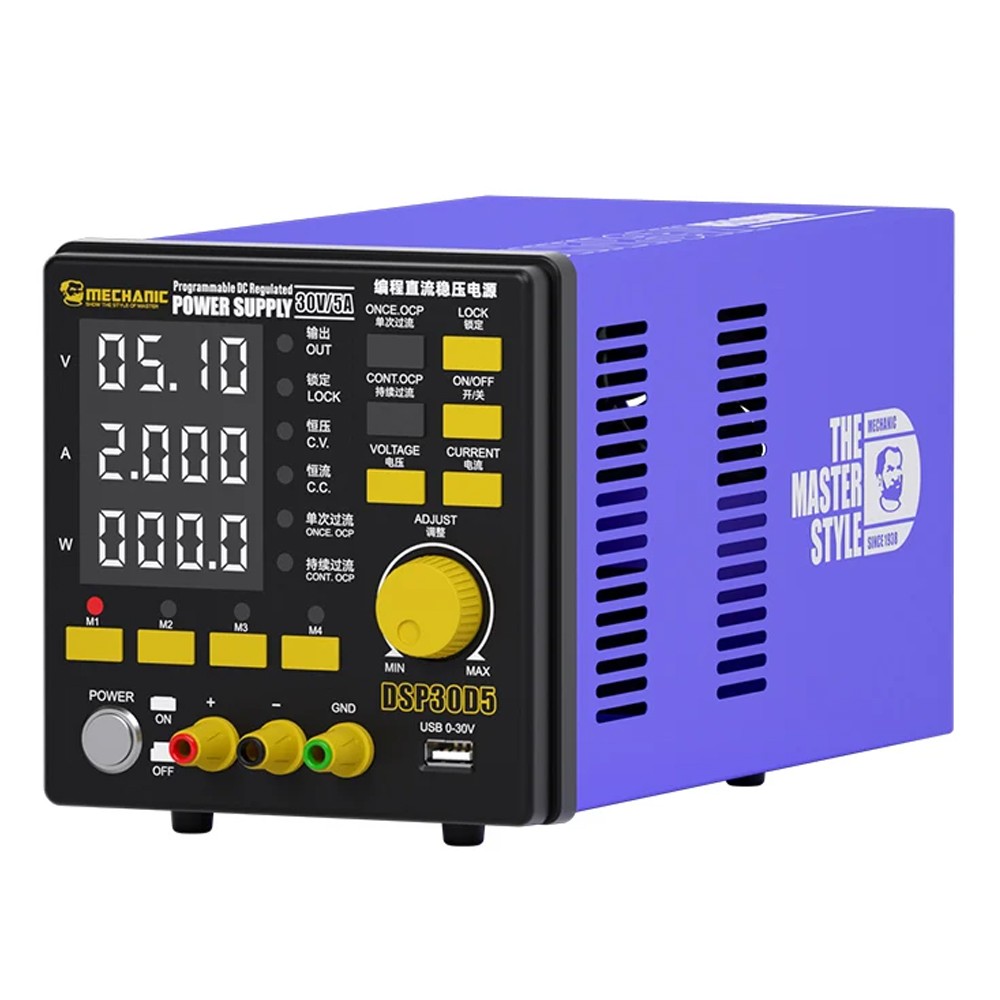

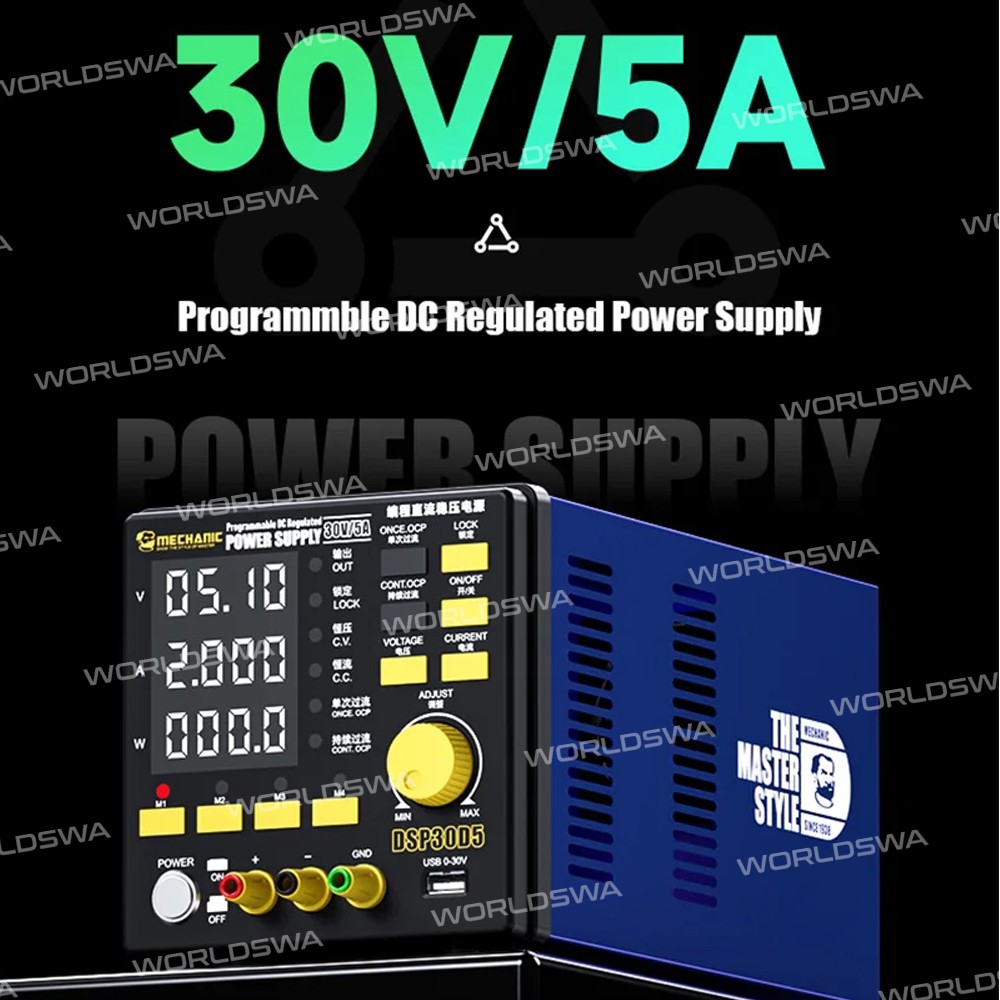

Mechanic DSP30D5: 30V / 5A 4-Digit Digital Display DC Regulated Power Supply

Mechanic DSP30D5 30V/5A 4-Digit Digital Display Programming DC Regulated Power Supply

Features:

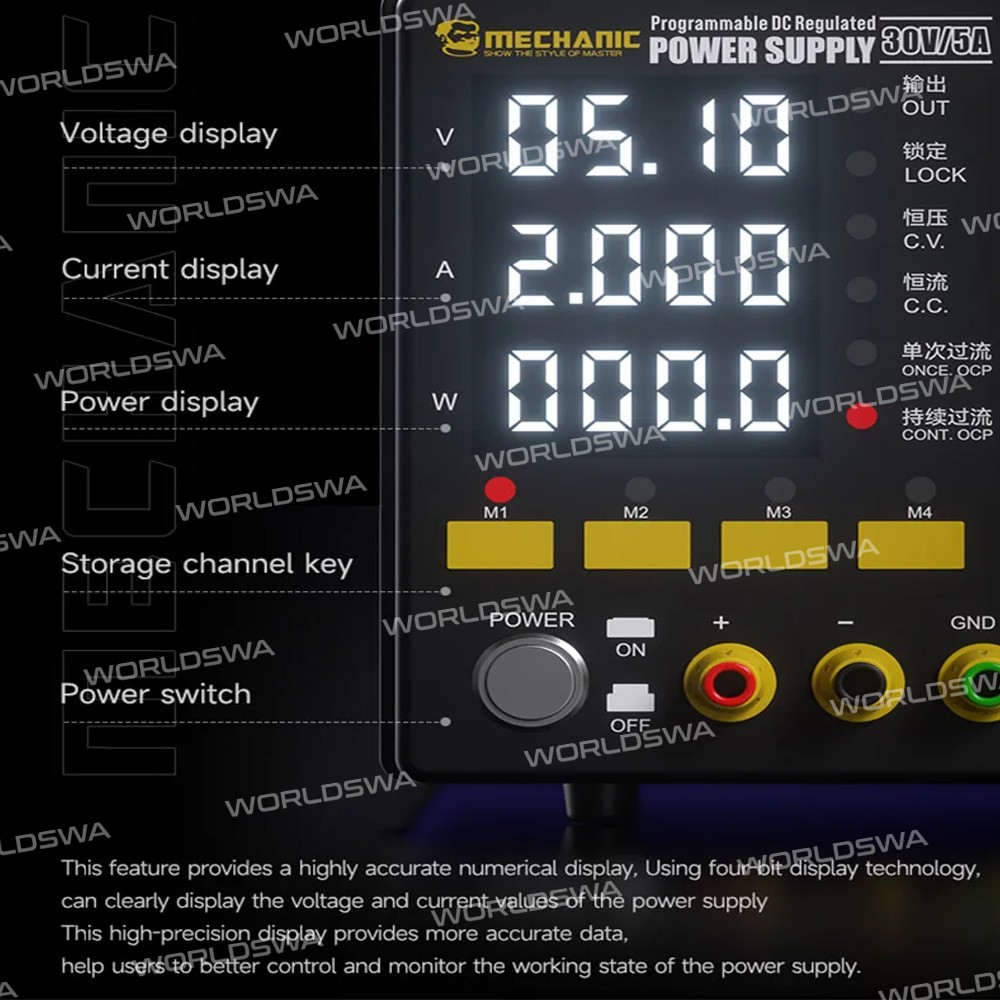

• This feature provides a highly accurate numerical display, using four-bit display technology, which can clearly display the voltage and current values of the power supply
• This high-precision display provides more accurate data, helps users to better control and monitor the working state of the power supply
• Fine-tuning linear power supply, the voltage can be fine-tuned to 0.1V, current can be fine-tuned to 0.01A

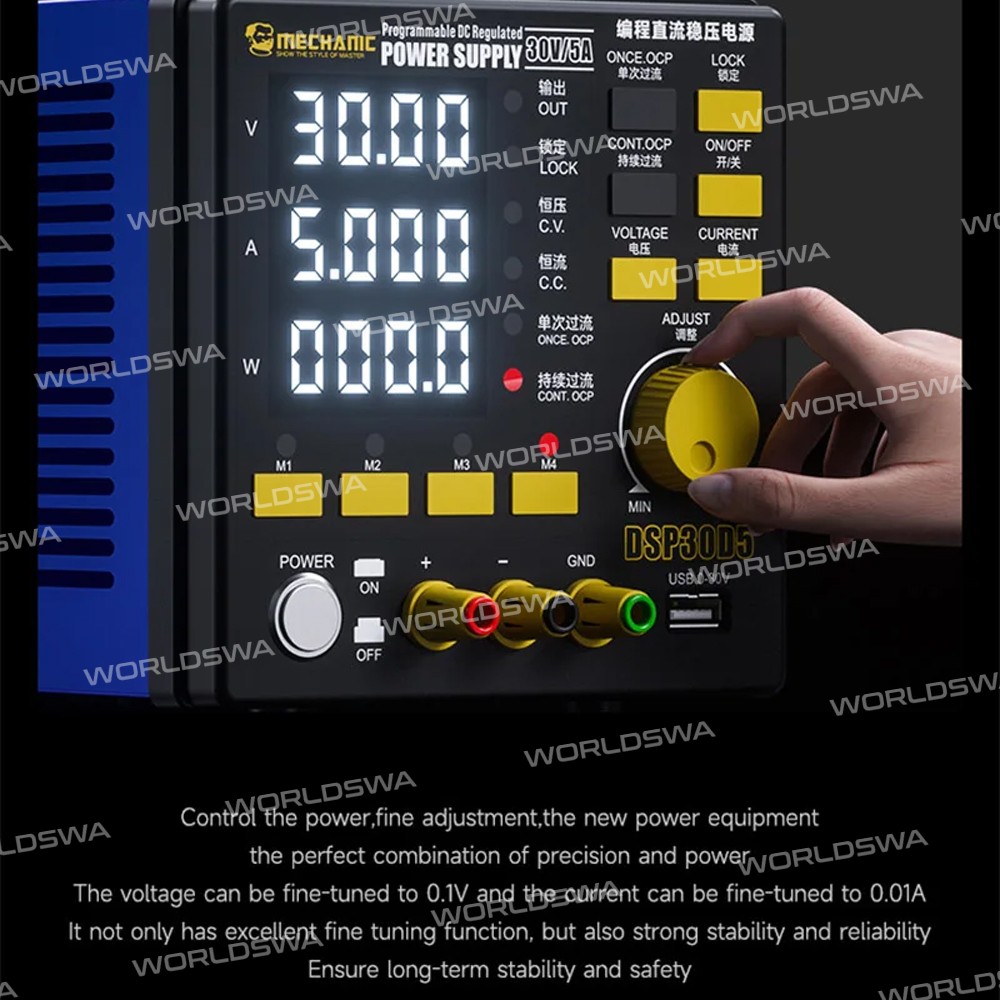

• Control the power, fine adjustment, the new power equipment the perfect combination of precision and power
• The voltage can be fine-tuned to 0.1V and the current can be fine-tuned to 0.01A
• It not only has excellent fine-tuning function but also strong stability and reliability

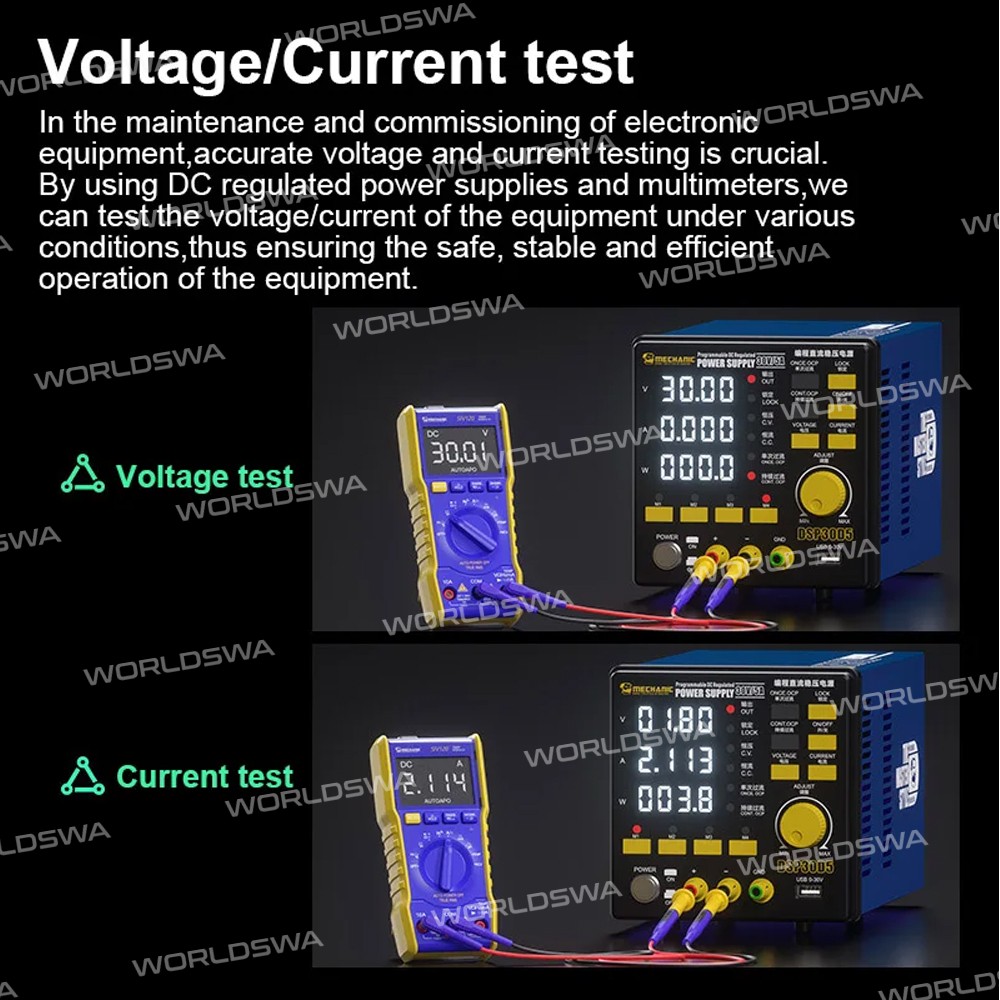

• In the maintenance and commissioning of electronic equipment, accurate voltage and current testing is crucial.
• Summary: This power supply features high-precision display, fine-tuning linear power supply, and strong stability and reliability.

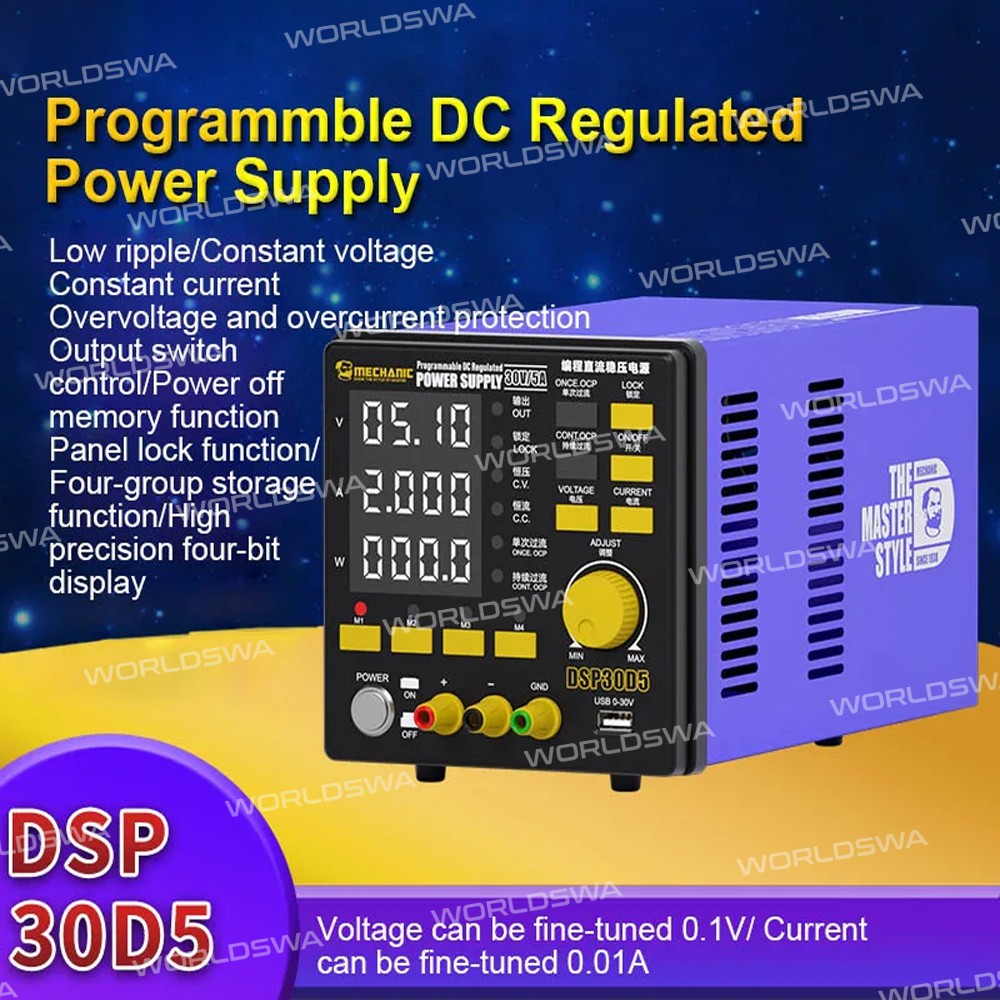

• Low ripple/Constant voltage/Constant Current/Overvoltage and overcurrent protection/Output switch control/Power off memory function

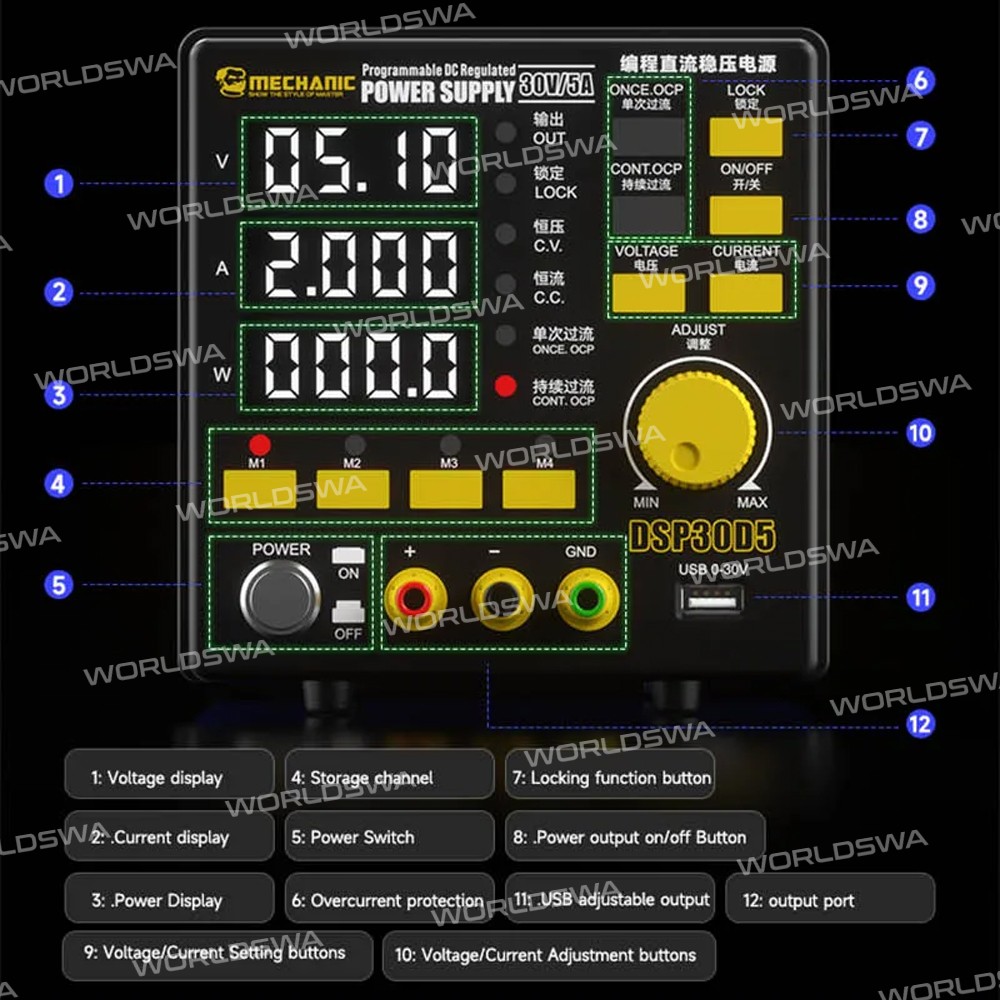

• Panel lock function/Four-group storage function/High precision four-bit display

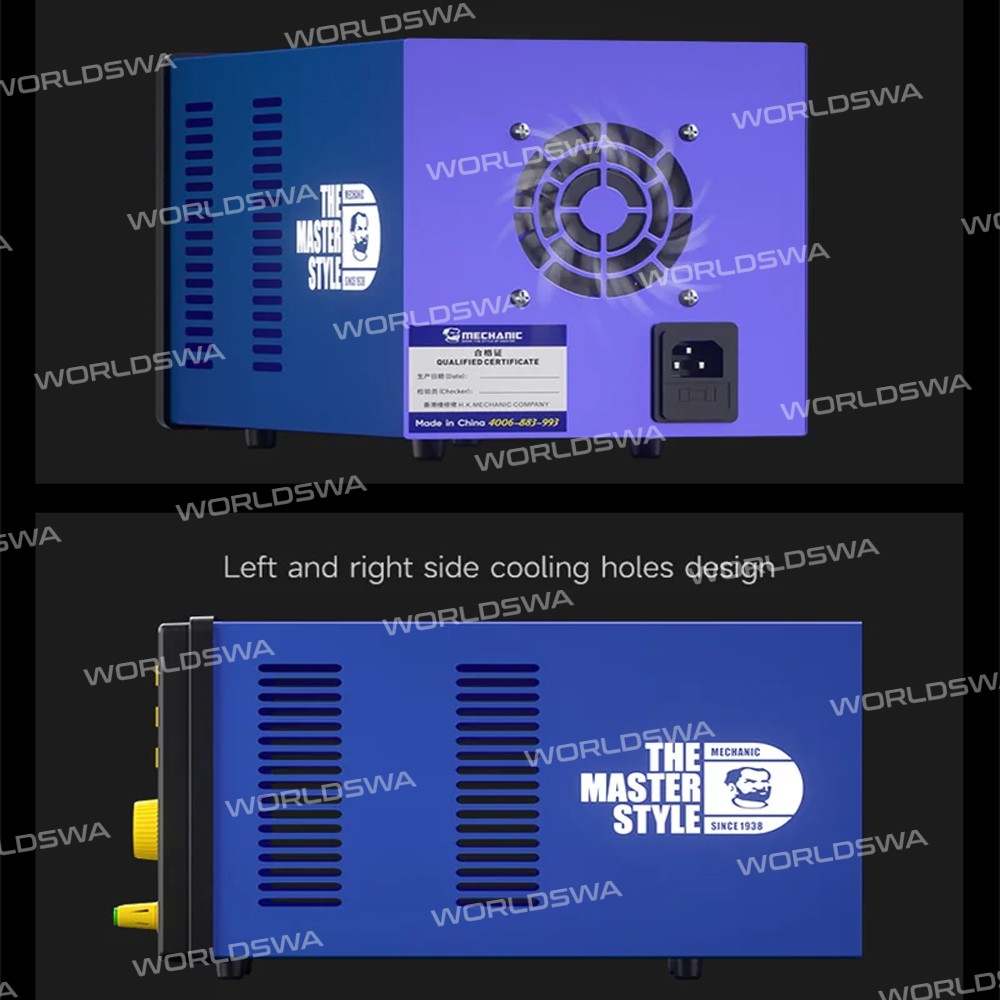

• Three-side heat dissipation, cooling fan on the back of the machine, cooling holes on both sides of the body

Specifications:

• Name: Programmable DC Regulated Power Supply
• Model: DSP30D5
• Power: 150W
• Voltage: AC 110V/220V
• Input Voltage: 0-30V Anytime adjustable
• Voltage stability: ≤0.01%+3mv
• Voltage load stability: 0.01%+3mv
• Ripple noise current: ≤0.1%Vrms
• Recovery time: 100uS
• Temperature coefficient: ≤300PPM/°C
• Constant current output current: 0-5A Anytime adjustable
• Current stability: ≤0.1%+3mA
• Current load stability: 0.1%+3mA
• Ripple noise voltage: ≤0.1%Vrms
• Storage conditions: <80°
• Operating conditions: -10℃-40℃
• Size: 270*150*160mm
• Net Weight: 3.55KG

Package includes:

• 1 x Power Supply
• 1 x Power Cable
• 1 x Alligator Clip
