MOS260 / MOS300 Mechanic 6X-45X HD Stereo Microscope, Binocular / Trinocular, 360° Rotate

Mechanic MOS260/MOS300 6X-45X Binocular/Trinocular 360° Rotate HD Stereo Microscope

Features:

• The high-definition optical objective lens, precision process manufacturing, high-definition coated objective lens

• Pure copper material lens barrel, no glare, clear picture, do not miss every small detail

• WF1OX/22 eyepiece, binocular diopter can be adjusted ±5DP, making binocular observation easier

• With the high field of view wide-angle eyepiece, standard WF10X/22MM, it is still convenient to wear glasses for observation

• 0.6-4.5X continuous zoom, optical system, large magnification continuous zoom, sharp imaging, and no distortion, very high definition, can correctly focus on samples with large uneven surfaces, so as to obtain a three-dimensional image.

• The focusing gear rack is made of metal material, which is durable and accurate with the magnification, making the image clearer

• CTV2/5 adapter, clearer image than ordinary TV interface, wider field of view, no vignetting

• True trinocular high-definition display, matched with 4K high-definition camera display, eye-clearing observation is synchronized with the screen display content, high-definition large screen without smear (only the package includes the high-definition camera, the bare metal does not include the high-definition camera)

• The mirror body can be adjusted freely, and the microscope body can be adjusted 360°, freeing up the workbench and not affecting other operations

**Summary:** High-quality optical objective lens, pure copper material lens barrel, and advanced zoom system provide high-definition imaging and convenience for observation.

Specification:

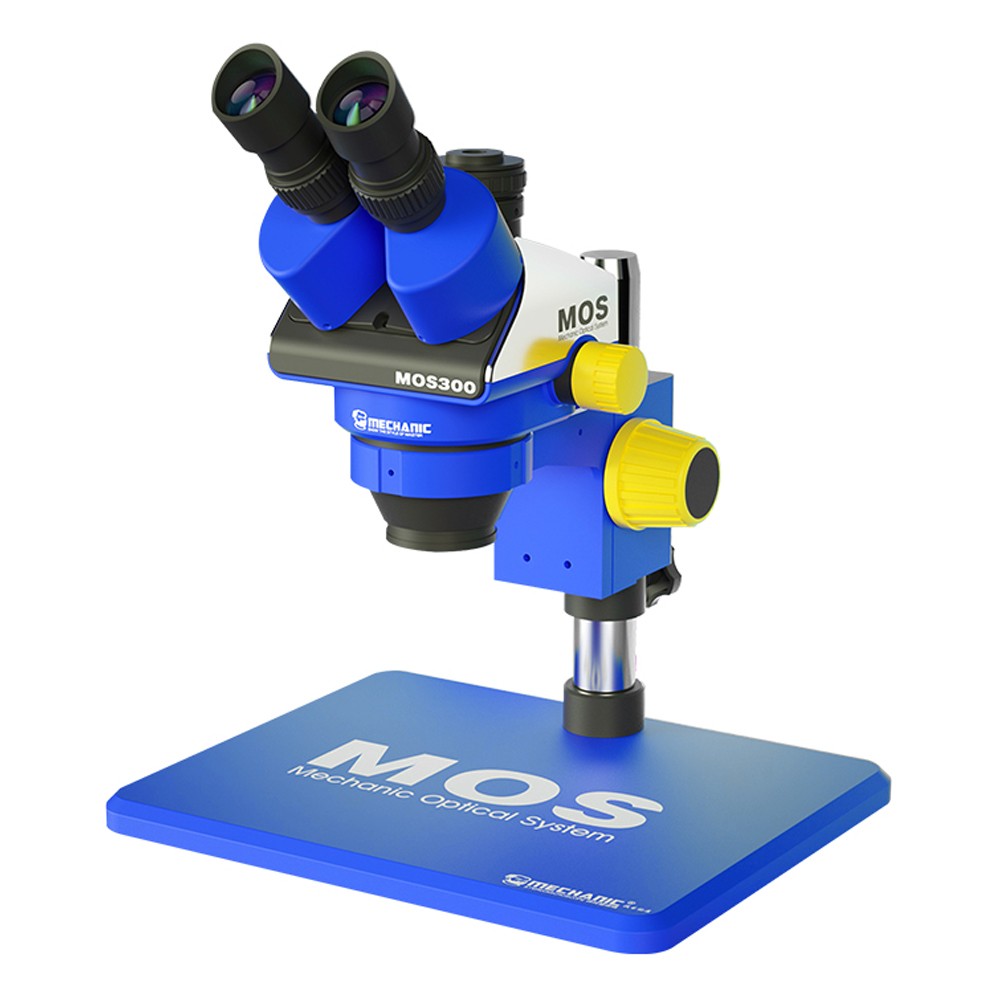

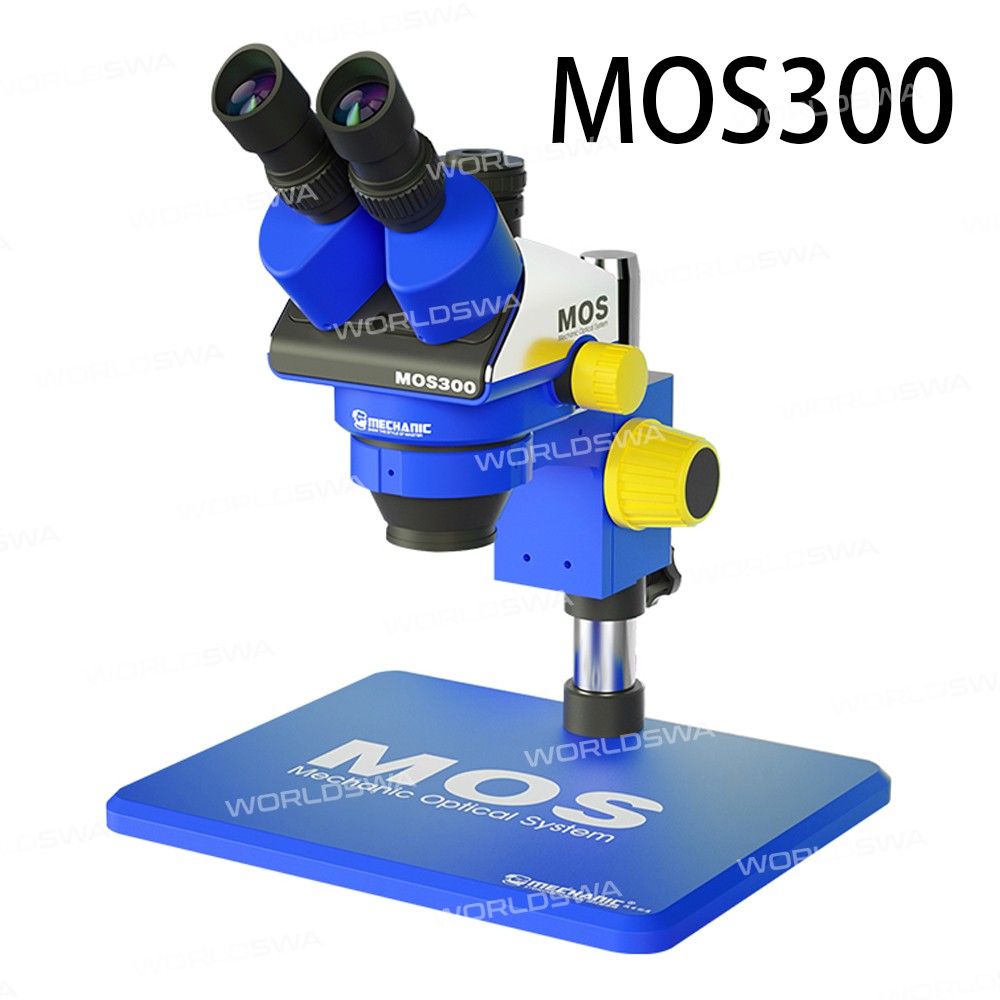

MOS300-B11:

• Observation head: 45decline, 360rotate, pupil distance 54---76mm; bilateral visual adjustment ±5

• Adjustable eyepiece: Standard: WF10X22, high angle wide-angle eyepiece provides convenience for observers wearing glasses

• Optional eyepiece: WF10x22mm, WF15x15mm, WF20x10mm, WF25x9mm, WF30x8mm

• Objective: 0.6X---4.5X Zoom Range,objective magnification ratio 1:10,

• Auxiliary Lens: 0.3X, 0.5X, 0.75X, 1X, 1.5X, 2X For option

• Magnification: Standard:6X--45X, optional and auxiliary lenses can be extended to 1.8X---90X ontinuous doubling

• Working Distance: 100mm

• Focus arm: 76mm Diameter, 32mm pole size

• Plate: Black/White plate

• Base: B11 column type large plate base, another base can be selected

• Outward Size: 200mm(W)*273mm(D)*280mm(H)

• illumination: Optional LED Illumination, see LED light source series diagram for details

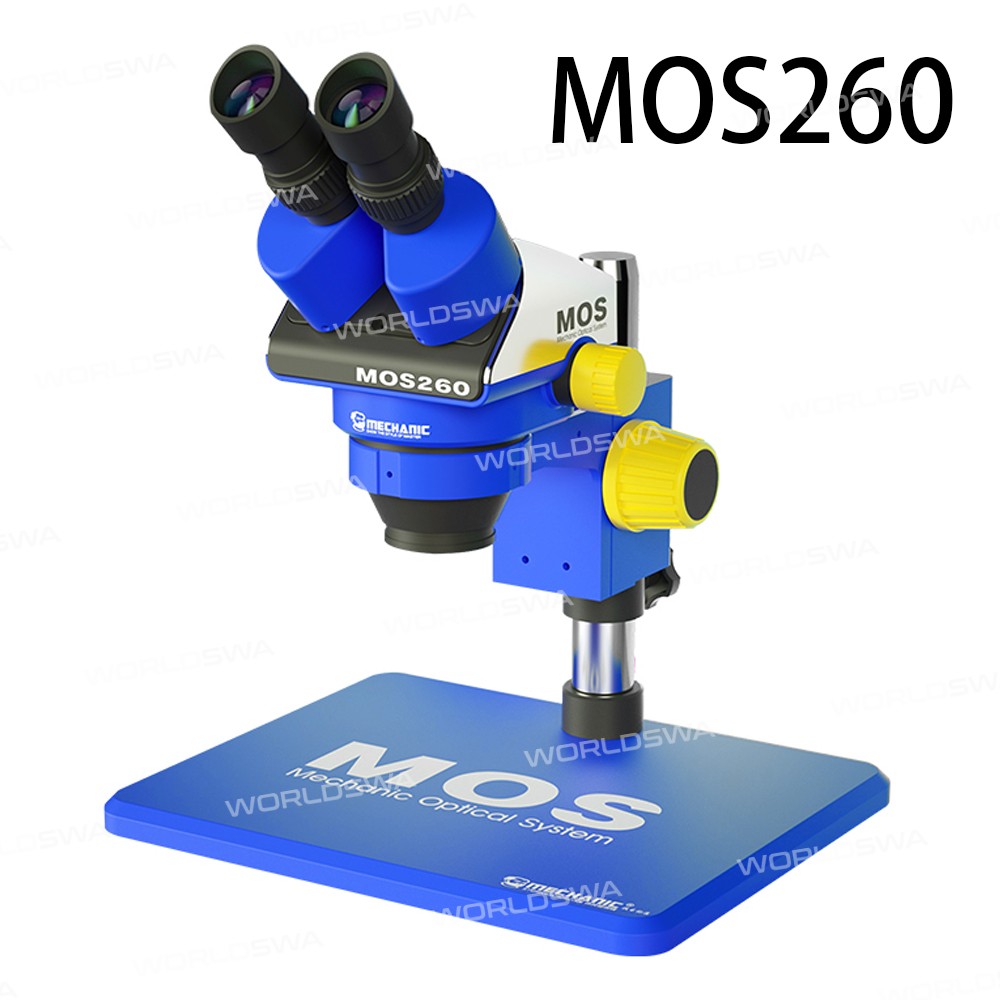

MOS260-B11:

• Observation head: 45 declines, 360rotate, pupil distance 54---76mm; bilateral visual adjustment ±5

• Adjustable eyepiece: Standard: WF10X22, high angle wide-angle eyepiece provides convenience for observers wearing glasses

• Optional eyepiece: WF10*22mm, WF15*15mm, WF20*10mm, WF25*9mm, WF30*8mm

• Objective: 0.6X---4.5X zoom range,objective magnification ratio 1:10, ensure image alignment

• Auxiliary Lens: 0.3X, 0.5X, 0.75X, 1X, 1.5X, 2X for option

• Standard: 6X---45X, optional and auxiliary lenses can be extended to 1.8X---90X magnification continuous doubling

• Working Distance: 100mm

• Focus arm: 76mm diameter, 32mm pole size

• Plate: Black/White plate

• Base: B11 column type large plate base

• Outward Size: 200mm(W)*273mm(D)*280mm(H)

• Illumination: Optional LED Illumination, see LED light source series diagram for details

Package includes:

• 1 x Binocular/Trinocular microscope

• 1 x Microscope Base

• 1 x All-in-one LED ring light

• 2 x WF10X/22 eyepiece

• 2 x Goggle

• 1 x Dust mirror

• 1 x Limit block

• 1 x CTV 2/5 Adapters(only MOS300)
