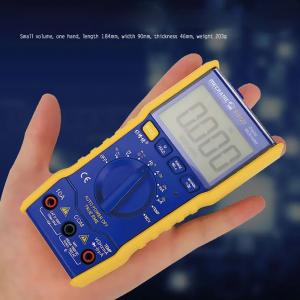

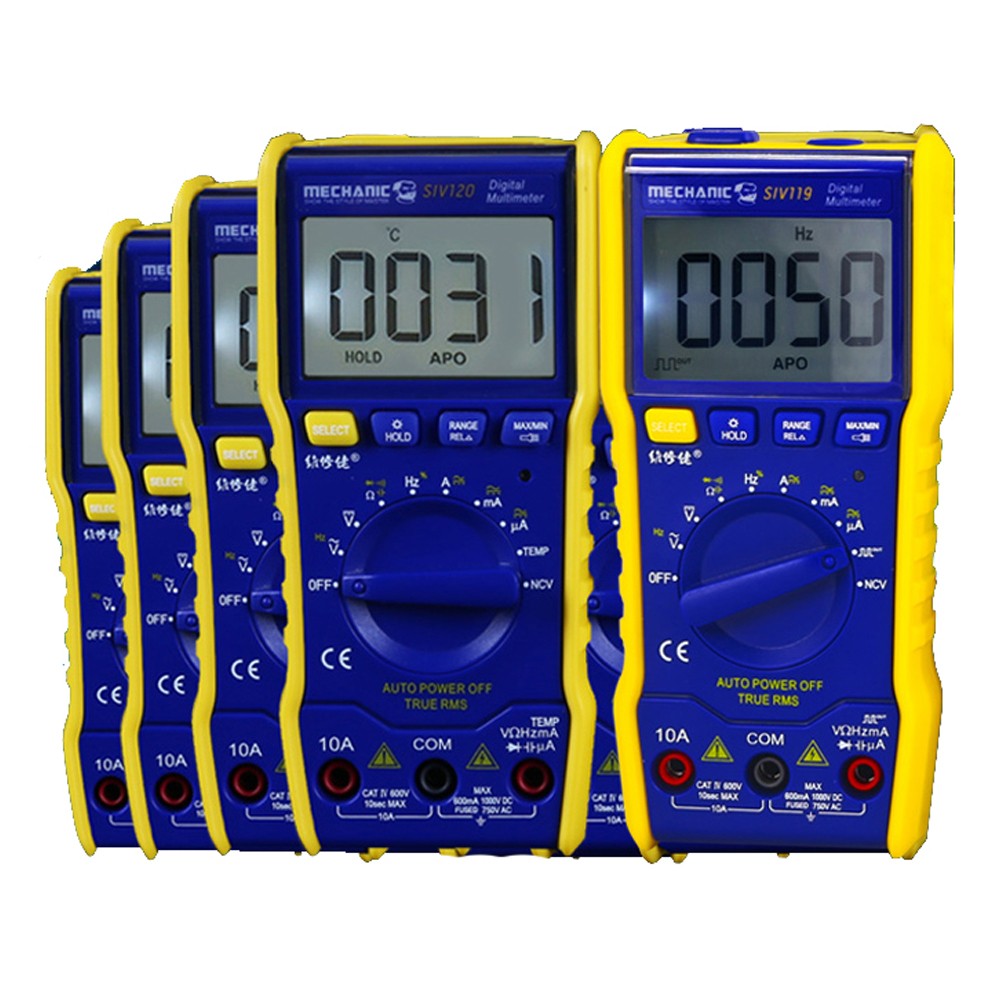

SIV119 / SIV120 Mechanic Pocket Multifunction Digital Multimeter with Automatic High-Precision Display

Mechanic SIV119 / SIV120 Pocket Multifunction Automatic Digital Display High-Precision Multimeter

Overview

This smart pocket digital universal meter is designed for precision and convenience, featuring a range of functions and high-precision measurements.

Specification:

• Brand: MECHANIC
• Product Type: Smart Pocket Digital Universal Meter
• Model: SIV119/SIV120

Measurement Functions:

• DC Voltage: 6V/60V/600V/1000V ±(0.5%+4)
• AC Voltage: 6V/60V/600V/750V ±(0.8%+3)
• DC Current: 60μA/6mA/60mA/10A ±(0.8%+8)
• AC Current: 600μA/6mA/60mA/10A ±(1.0%+8)
• Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/40MΩ ±(0.8%+5)
• Capacitance: 99.99nF/999.9nF/9.999uF/99.99uF/999.9uF ±(2.5%+60)
• Frequency: 10Hz~10MHz ±(5.0%+10)
• Duty Cycle: 0.1~99% ±(10%+5)
• Frequency Response: Yes, 40Hz-1kHz only suitable for sine wave and triangle wave

Additional Features:

• Effective Measurement: Yes
• NCV: Yes
• Automatic/Manual: Yes
• Diode: Yes
• Pass Test: Yes, 1V
• Relative Measurement: Yes
• Maximum/Minimum Value: Yes
• Data Retention: Yes
• LCD Backlight: Yes
• Automatic Shut-Down: Yes, about 15 minutes
• Input Resistance: Yes, >10MΩ
• Square Wave Output:** (Only SIV119) 50Hz-5KHz
• Temperature:** (Only SIV120)
