T810 Mechanic Non-Remove Mobile Phone Tail Plug Test Board for iPhone / Android

Mechanic T810 Non-Remove Mobile Phone Tail Plug Test Board for iPhone / Android

Features:

• T810 tail plug test small board, don't dismantle the phone, fast charge detection, with Lightning and Type-C interface
• Test function without disassembling the machine, as well as quickly locating the motherboard's DP DM CC test points
• Repairing cell phone not charging faults, detecting single-sided charging problems repairing quickly against the point map
• Lightning connector, suitable for repairing all Lightning port cell phones, non-charging fault detection function
• Type-C connector, suitable for repairing all Lightning port cell phones, non-charging fault detection function
• Summary: Fast and easy phone repair without disassembling, detects charging faults, and locates test points on the motherboard.

Usage Guide:

Apple Phones Detection (Lightning connector):

• Insert the corresponding pigtail plug into it
• Then set the multimeter to diode mode
• The red pen touches the GND of the corresponding plug
• The black pen can measure the corresponding test point of the corresponding tail plug

Android Phones Detection (Type-C connector):

• Insert the corresponding pigtail plug into it
• Then set the multimeter to diode mode
• The red pen touches the GND of the corresponding plug
• The black pen can measure the corresponding test point of the corresponding tail plug

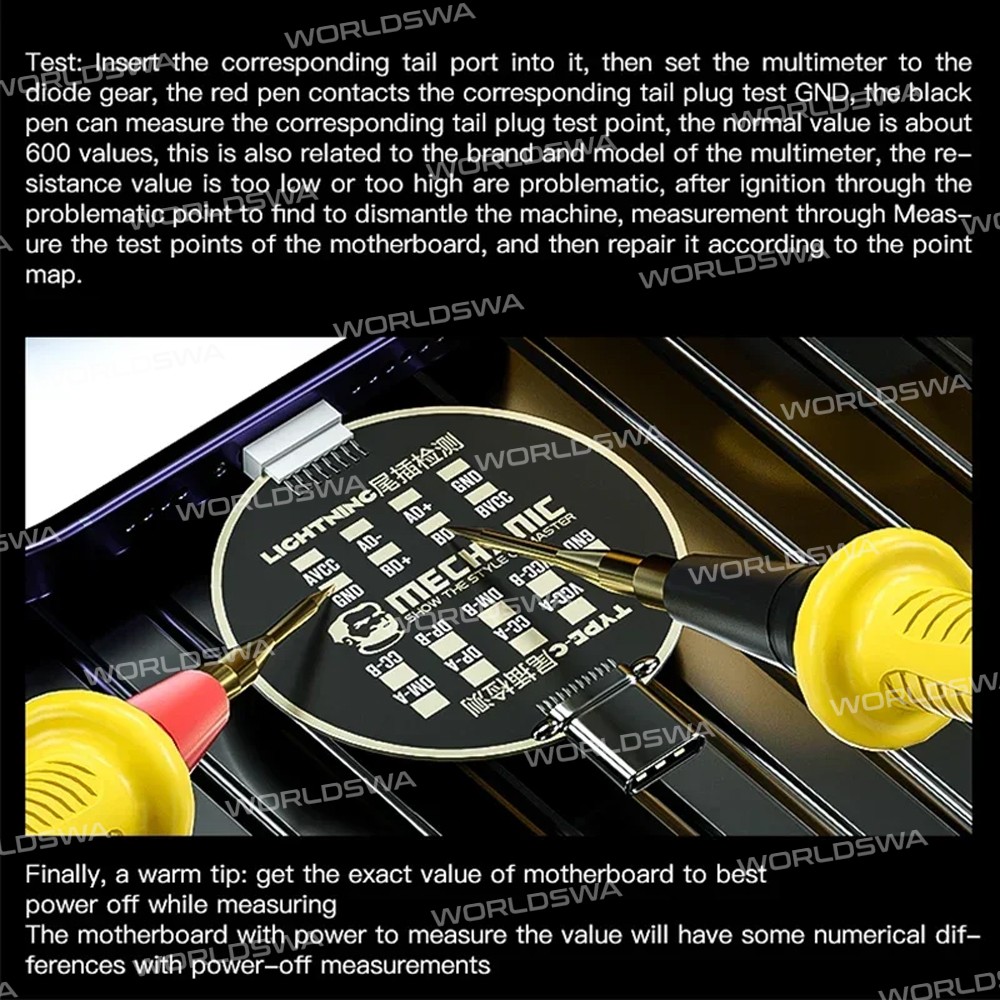

Test Procedure:

• Insert the corresponding tail port into it, then set the multimeter to the diode gear
• The red pen contacts the corresponding tail plug test GND
• The black pen can measure the corresponding tail plug test point
• The normal value is about 600 values, this is also related to the brand and model of the multimeter
• Resistance value too low or too high are problematic
• After ignition through the problematic point to find to dismantle the machine, measurement through measure the test points of the motherboard, and then repair it according to the point map

Package includes:

• 1 x Test Board

Notes:

• Get the exact value of the motherboard to best power off while measuring
• The motherboard with the power to measure the value will have some numerical differences with power-off measurements
