Mega-Idea PCB 3D Thermal Imaging Infrared Instrument for Rapid Diagnosis

Mega-Idea PCB 3D Thermal Imaging Infrared Rapid Diagnosis Instrument

Features:

• **Upgraded Version**: One-key quick check, accurate lens focusing, regional temperature curve recording, and Type-C direct connection to PC.
• 3D thermal field distribution analysis, high-temperature alarm tracking, reserved camera screw holes, and 52000-point full-frame temperature measurement.
• **One-Click Leakage Check**: Quickly locates faults on the motherboard, identifies abnormal temperature points in real-time, and performs detailed troubleshooting by adjusting the temperature range.
• **High-Temperature Alarm**: Tracks temperature changes in real-time, issuing an alarm sound and flashing red border on the main screen when the temperature exceeds the set threshold.
• **3D/2D Thermal Field Distribution**: Analyzes thermal distribution with an innovative 3D mode and detailed 2D area curve records.

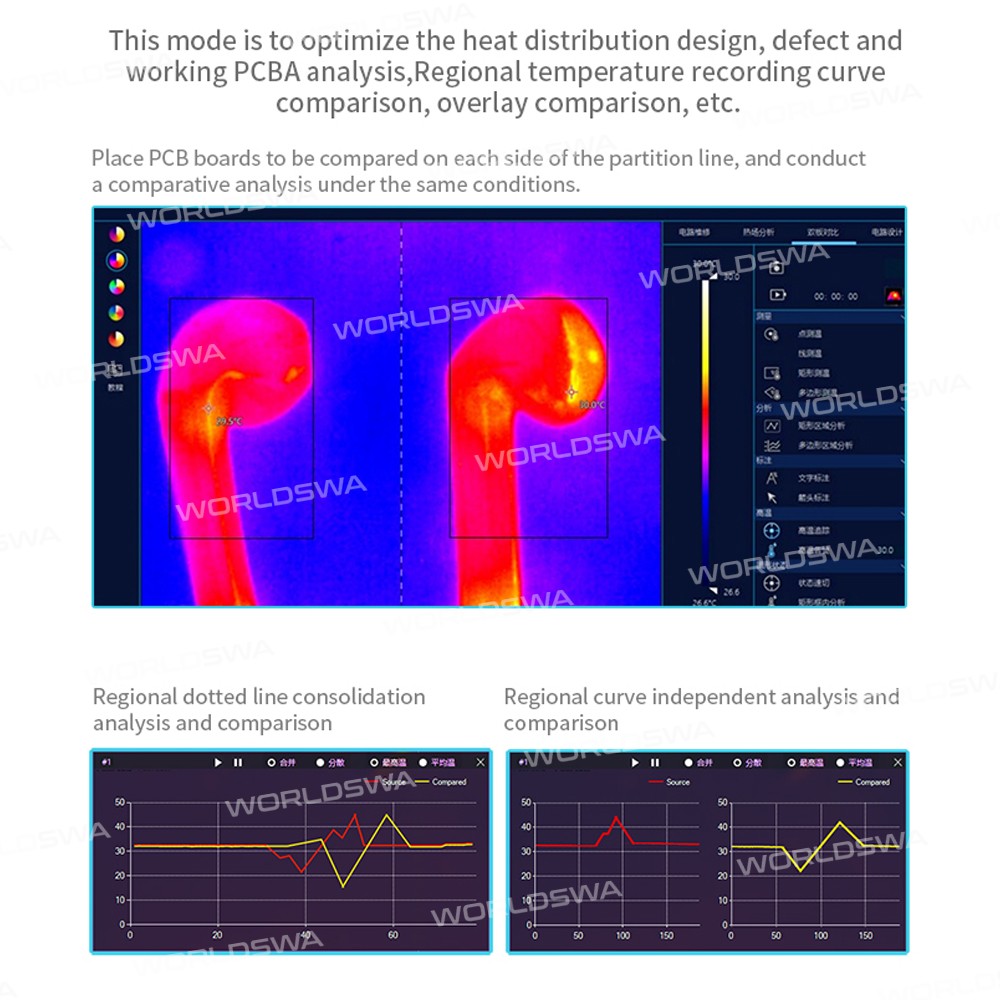

• Double-board comparison, regional temperature, curve comparison record, design optimization for heat distribution, fault differentiation comparison verification, regional temperature curve comparison record, and superposition comparison.
• **Temperature Width Adjustment**: Adjusts temperature width for precise positioning of weak leakage or short circuits.
• **Color Display Modes**: Switches between 5 different color boards according to different usage scenarios.
• Multiple software modes corresponding to different usage scenarios.
• **Adjustable Lens Focal Length**: Controls image clarity by adjusting the focal length of the visible light camera.

Specification:

• Brand: Mega-Idea
• Lens: 5200(260X200)
• Name: PCB infrared thermal imaging rapid diagnosis instrument
• Frame rate: 25HZ
• Packing: 3*7*5*46*36(mm)
• Temperature measurement range: -10℃~170℃
• Product: 240*163(mm)
• Connection method: USB to PC
• Power supply: USB 5V power supply

Package includes:

• 1 x Thermal Imaging Infrared Rapid Diagnosis Instrument
