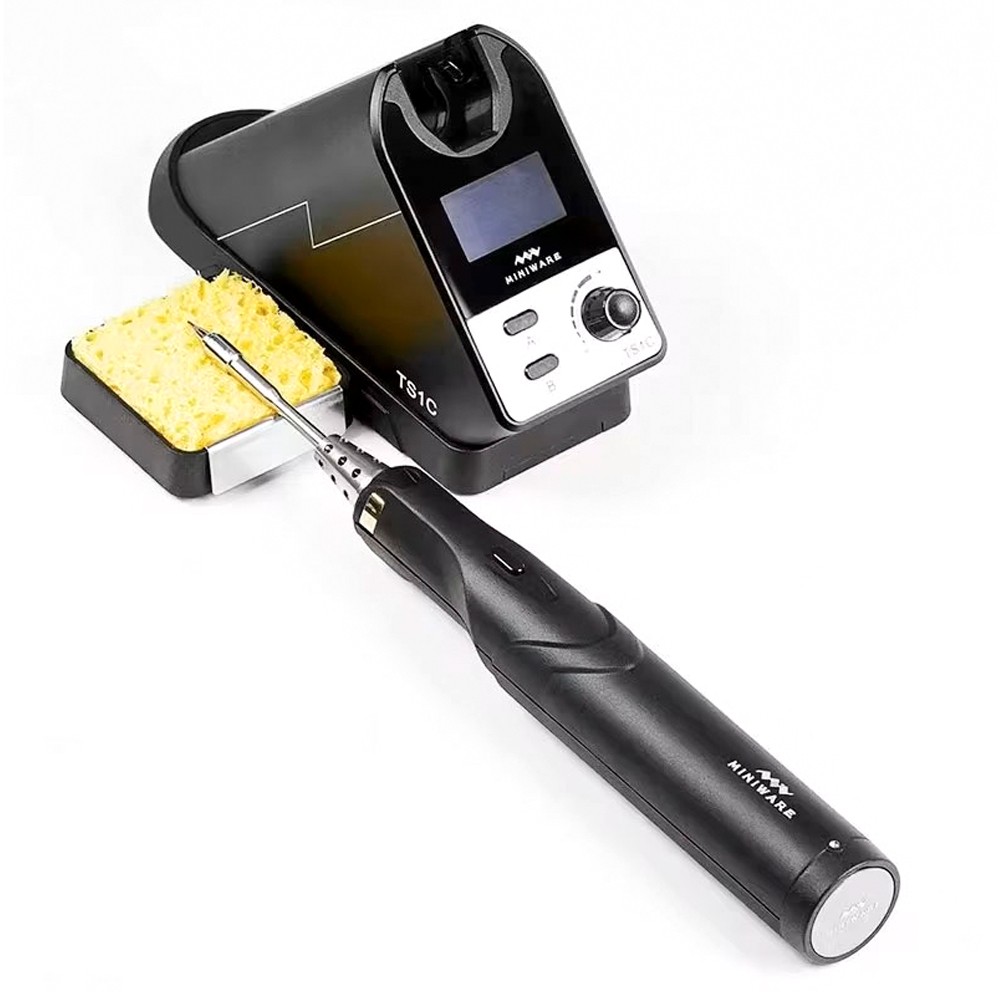

Miniware TS1C PD 45W Smart Digital Display Cordless Soldering Station for SMD PCB Repair

Miniware TS1C PD 45W Smart Digital Display Cordless Soldering Station for PCB SMD Repair

Features:

• 128*64 pixel OLED display screen, the temperature, and status are displayed separately. The charging status, working status, power, and BT connection status of the soldering iron handle can be seen at a glance
  **Easy Monitoring**

• The base has three expansion slots, which can be installed with different expansion accessories, and different directions for different accessories at your disposal
  **Customizable**

• Max PD20V 45W input power supply, experiences smooth charging, and the control base can recharge the handle while acting as a soldering iron stand
  **Fast Charging**

• The embedded e-Design firmware upgrade software, DFU (Device Firmware Upgrade), can be easily upgraded to optimize the user experience; The control base and the soldering iron handle can be upgraded separately
  **Upgradable**

• Split type soldering iron design, BT communication, remote control, and adjustment, soldering free from power cord bondage, unrestricted.
  **Wireless Freedom**

• The soldering iron handle has up to 36W welding power, and a single fully charged can continuously solder more than 180 soldering joints. It comes with a standard universal 3.5mm audio interface soldering bit of TS-B02
  **High Power**

• Capacitive energy storage, efficient charging, and discharging, only 7min the handle can be fully charged, the power continues to be stable and efficient. Or you can use the USB Type-C port on the soldering iron handle to supply the power
  **Efficient Power**

• Multi-functional design, supports standby pre-heating of the soldering iron handle, temperature adjustment, menu settings, and display information
  **Multi-Functional**

• Put the handle on the base, BT connection, it will automatically preheat to improve the working efficiency
  **Auto Preheat**

• Pull out the handle, and it automatic heating to working temperature, fast heating up.
  **Fast Heating**

• One button to heat up, press and hold the handle "BOOST" button, and instantly heat up to 400℃
  **Instant Heat**

• After the handle is put back to the base, automatically back down to preheat temperature, intelligent sleep state
  **Smart Sleep**

• It has capacitor under-voltage, over-temperature, and charging protections that are smarter and safer to use
  **Safety Protections**

Specification:

Soldering Iron Handle:

• Model: TS1C-P
• Interface: USB Type-C
• Capacitance: 750F
• Charging time: 7 minutes
• Maximum heating power: 36W
• Temperature range: 100~400℃(212°F~752°F)
• Temperature stability: ±3%
• Soldering tip: 3.5mm audio interface soldering tips (TS80/80P soldering tip series)
• Safety protection: Capacitor under voltage protection, capacitor charging protection, over temperature protection
• Size: φ23*133mm
• Weight: 62g (without soldering tip)

Control Base:

• Model: TS1C-S
• Screen: 128*64 pixel OLED
• Interface: USB Type-C
• Safety protection: Over current protection
• Maximum input voltage: PD2 20V
• Maximum input power: 45W
• Weight: 186g (Including a sponge slot)
• Size: Control Station: 44.5*122*73mm; Sponge Slot: 42*43*10mm
• Other: Three expansion slots for multiple expandable accessories

Package includes:

• 1 x Soldering Iron Handle
• 1 x Soldering Iron Tip
• 1 x Control Base
• 1 x Sponge
• 1 x USB Cable
