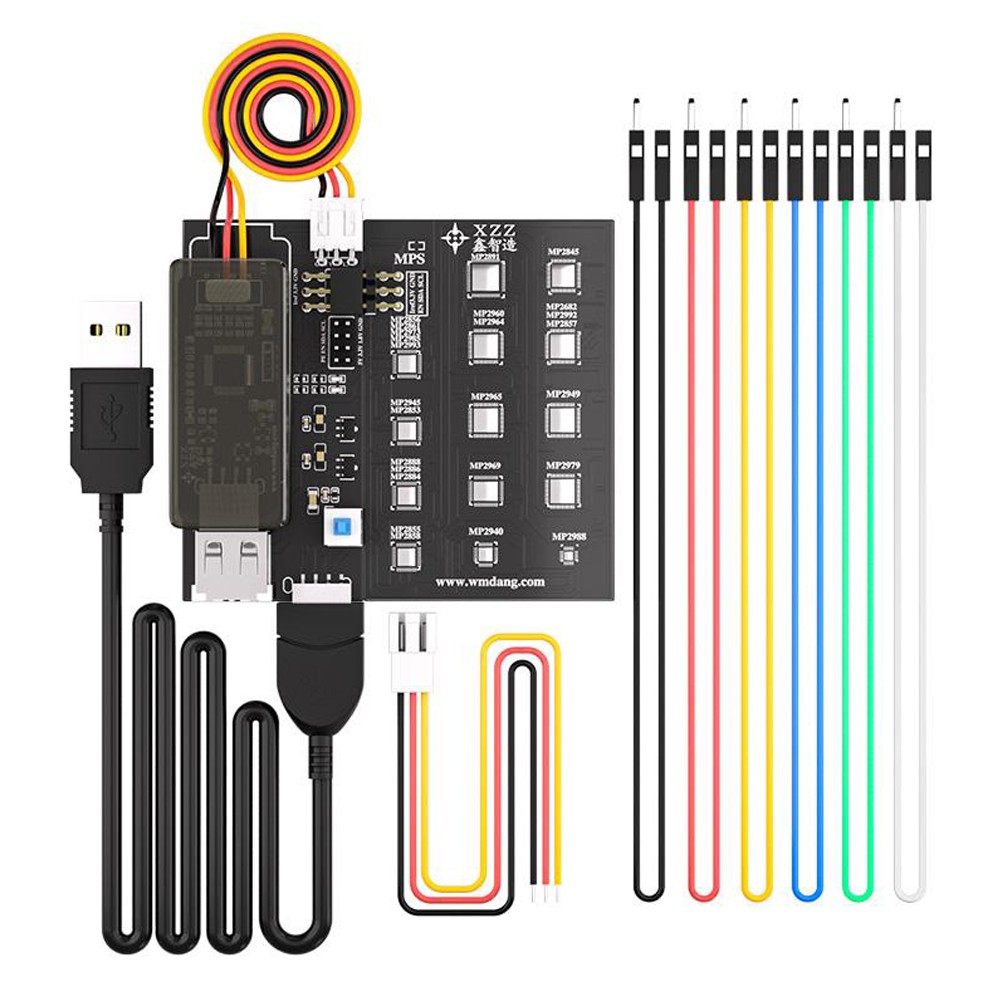

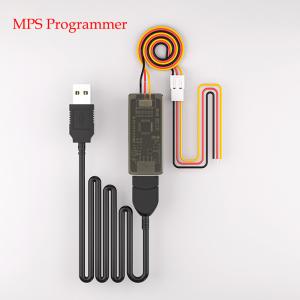

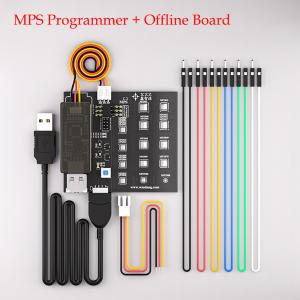

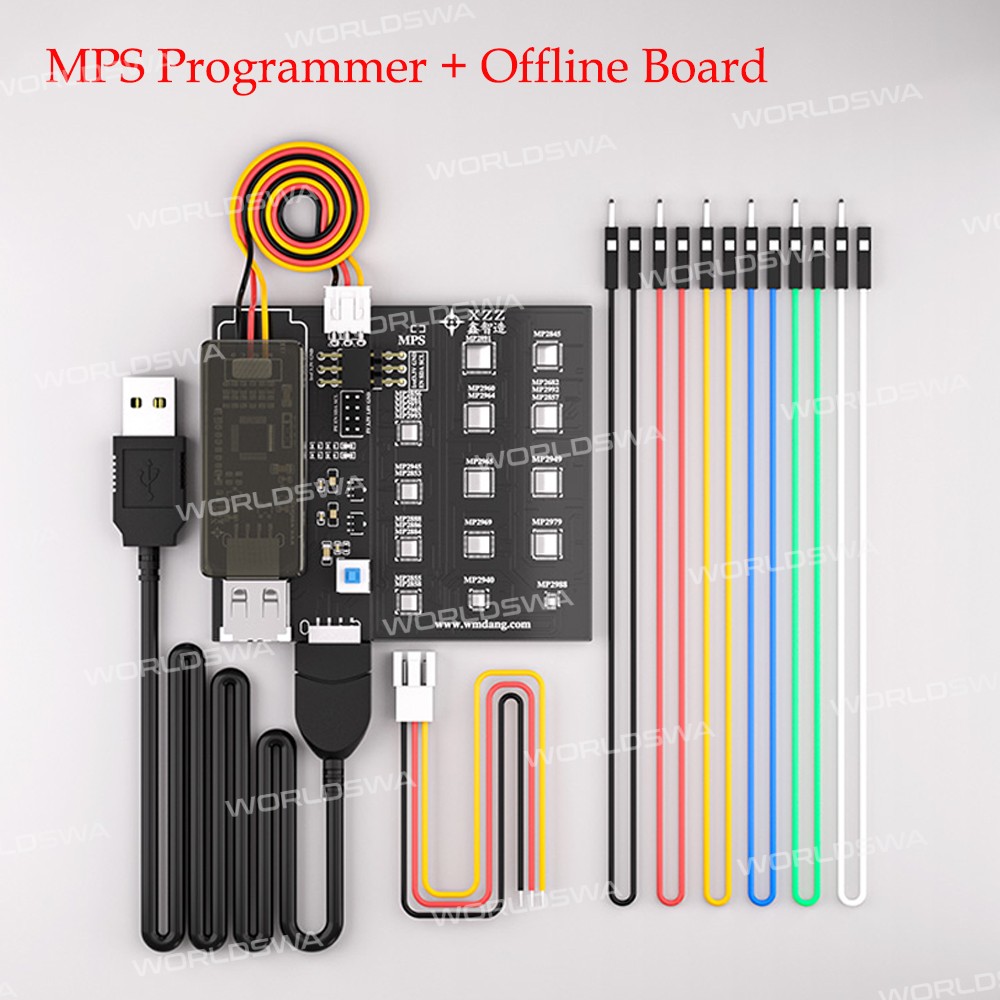

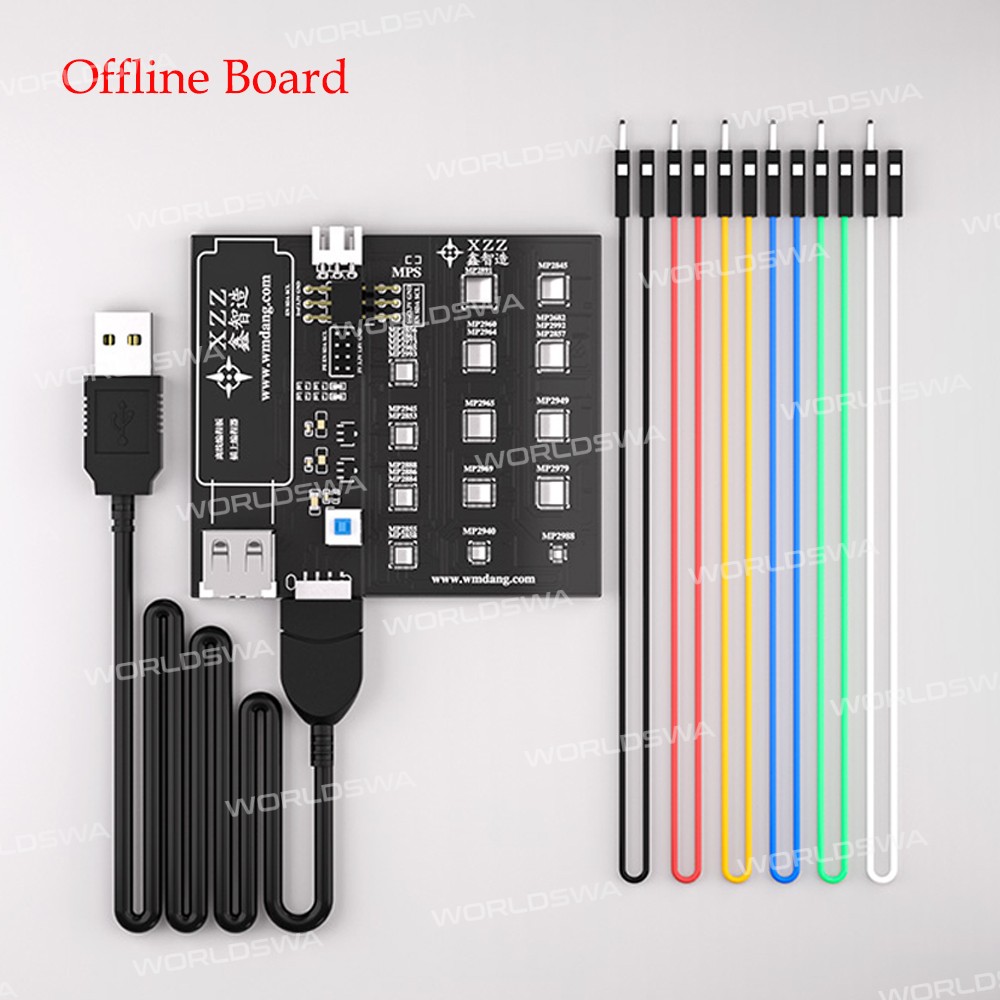

MPS Dual Mode Programmer for MP2949A / MP2884A / MP2886A / MP2959 / MP2979A Burning

MPS Dual Mode Programmer for MP2949A/MP2884A/MP2886A/MP2959/MP2979A Burning

Features:

• USB power supply/multi-model support/simple operation/offline & online dual mode selectable

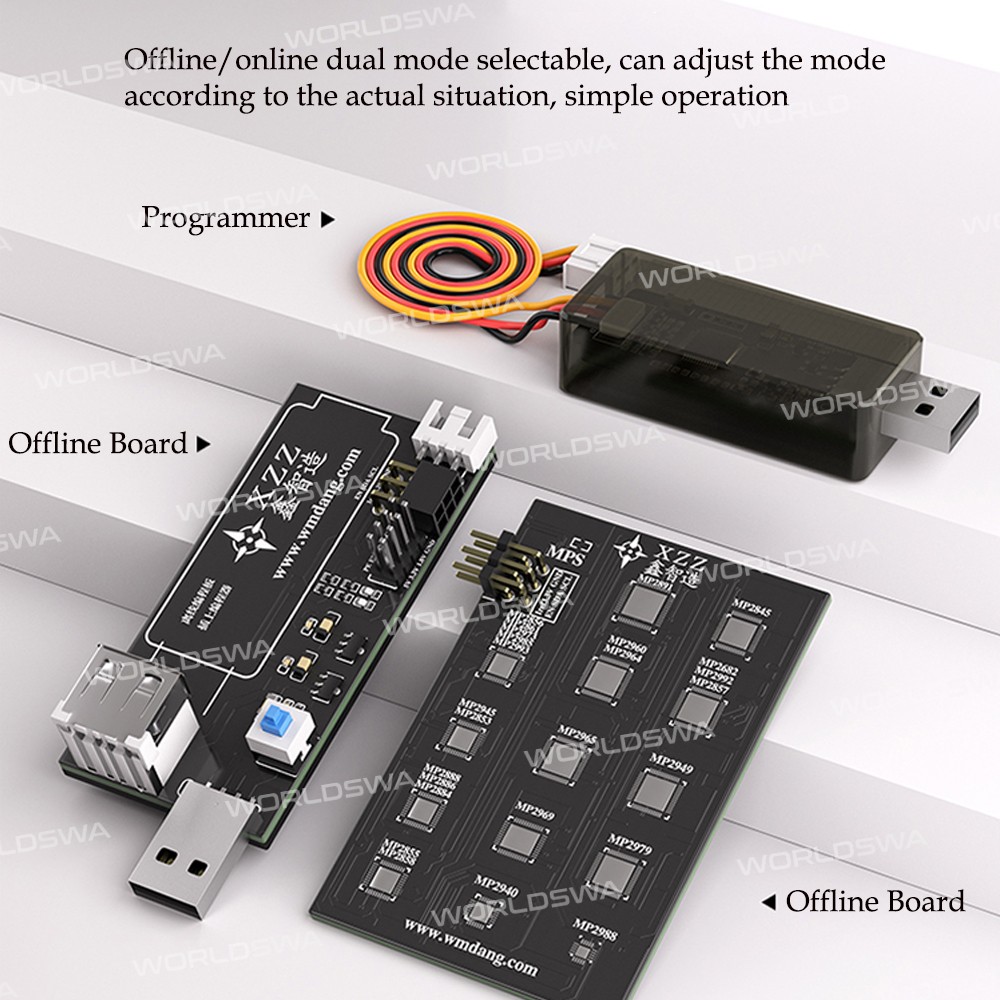

• Offline/online dual mode selectable can adjust the mode according to the actual situation, simple operation

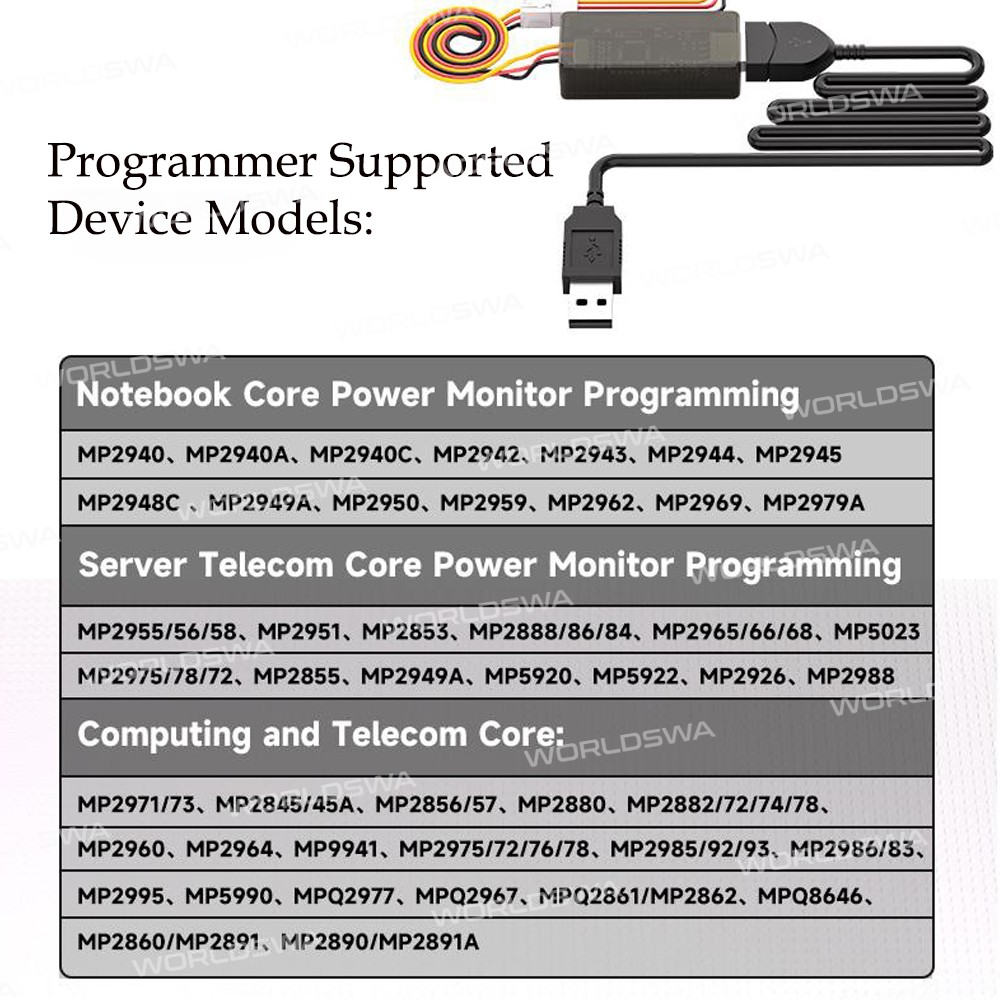

Device models supported by the programmer:

• Notebook Core Power Monitor Programming: MP2940, MP2940A, MP2940C, MP2942, MP2943, MP2944, MP2945, MP2948C, MP2949A, MP2950 MP2959, MP2962, MP2969, MP2979A

• Server Telecom Core Power Monitor Programming: MP2955/56/58, MP2951, MP2853, MP2888/86/84, MP2965/66/68, MP5023, MP2975/78/72, MP2855, MP2949A, MP5920, MP5922, MP2926, MP2988

• Computing and Telecom Core: MP2971/73, MP2845/45A, MP2856/57, MP2880, MP2882/72/74/78, MP2960, MP2964, MP9941, MP2975/72/76/78, MP2985/92/93, MP2986/83, MP2995, MP5990, MPQ2977, MPQ2967, MPQ2861/MP2862, MPQ8646, MP2860/MP2891, MP2890/MP2891A

MPS Import Export Program Tutorial:

• Open the MPS software, when it is not connected to the programmer, the following red [USB is not connected!

• When the programmer is connected, the [USB is not connected!] will disappear

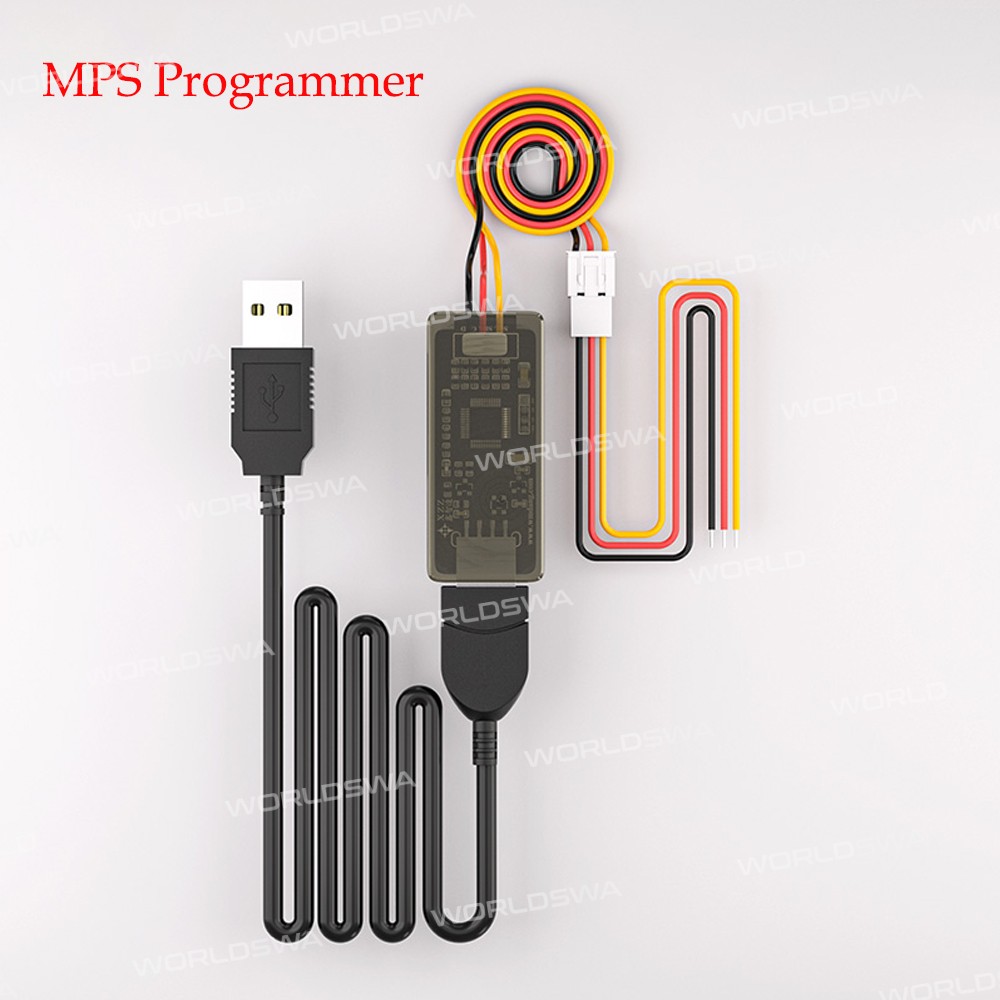

• The programmer is connected to the chip through 3-pin plugs: black line: GND, red line: SDA, yellow line: SCL

• If you do not know which specific point, please check the chip PDF. MP28888 as an example, pin 34 for SCL, pin 35 for SDA

• Power on the target board, and then point to the SCAN search chip(Note: the chip must be energized to be recognized!)

• Recognize the chip MP2888A, PMBUS address is 20H, Vendor lD is 25H.

• If there is more than one chip, it will be displayed in the left list, click the title of the chip to select it

• Click [Input], the window shows the basic parameters of the chip, the number of phases and so on.

• Click [Reglster], in this interface backup program and brush program

• Backup program: Click [Cur.Export] or [Sys. Export] In the Save As dialog box, enter the name of the file to be saved and save it. Note: In the case of multiple chips, [Cur. Epot] is to back up a single chip, [Sys. Export] is to back up all chips to one file. [Cur. Epot] is recommended

• Brush Program: (The [Sys. Config] is directly written to the chip, The [Sys. cmd] needs to be written manually by us to facilitate the change of parameters after writing)

• Method 1: Click [Sys. cmd], select the program file, open it, import the configuration, click [WRITE TO NVM], and write the program to the chip

• Method 2: Click [Sys. Config], select the program file, open it, and then the program will be automatically written to the chip, then the program will be automatically written to the chip.

Package includes:

• According to your choice
