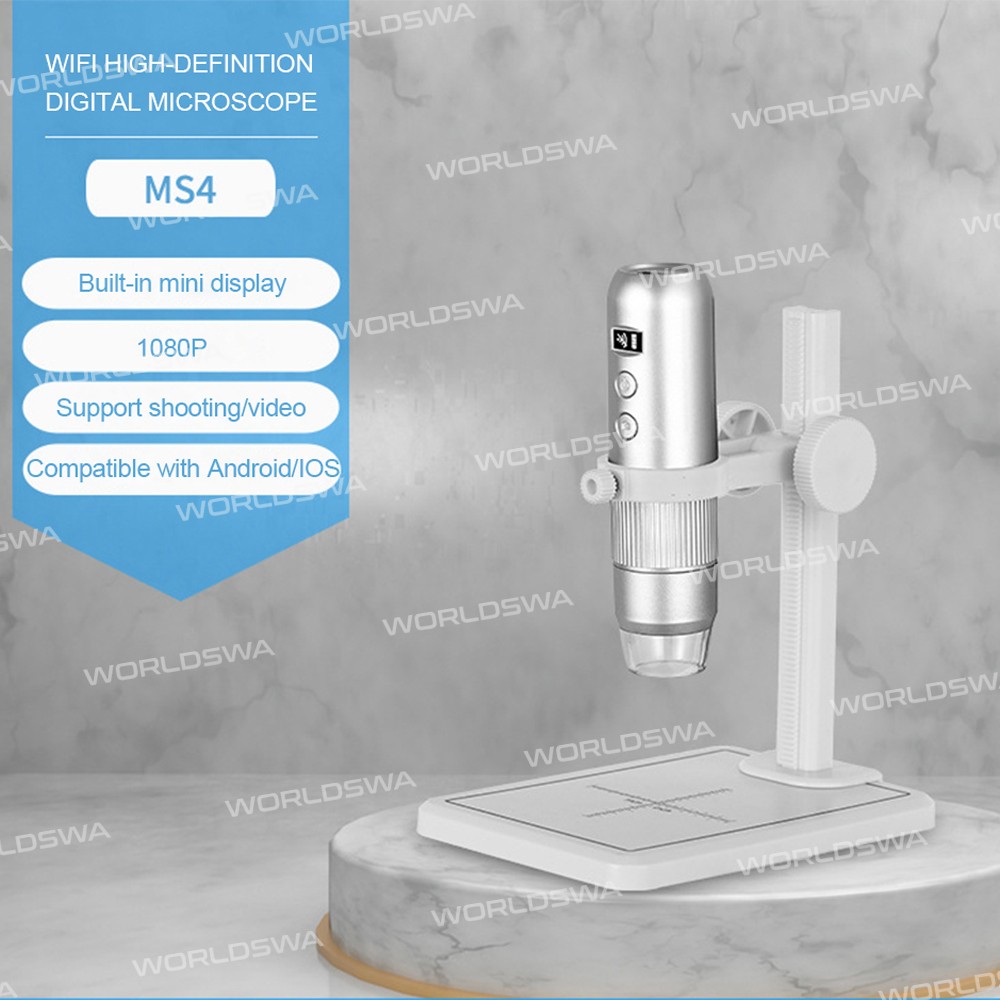

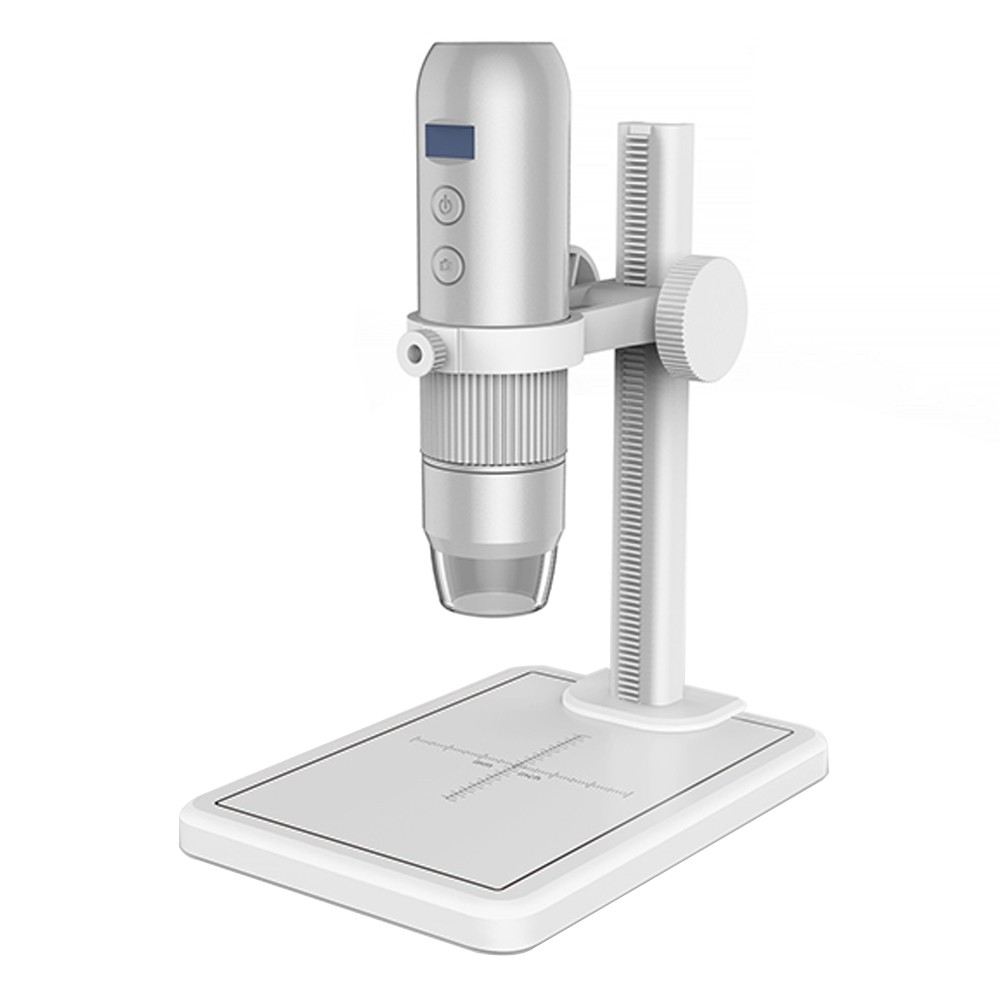

MS4 1000X Portable WiFi HD Electron Digital Microscope for Android / iOS / PC with LED Bracket

MS4 1000X Portable WiFi HD Electron Digital Microscope with LED Bracket for Android/iOS/PC

Product Overview

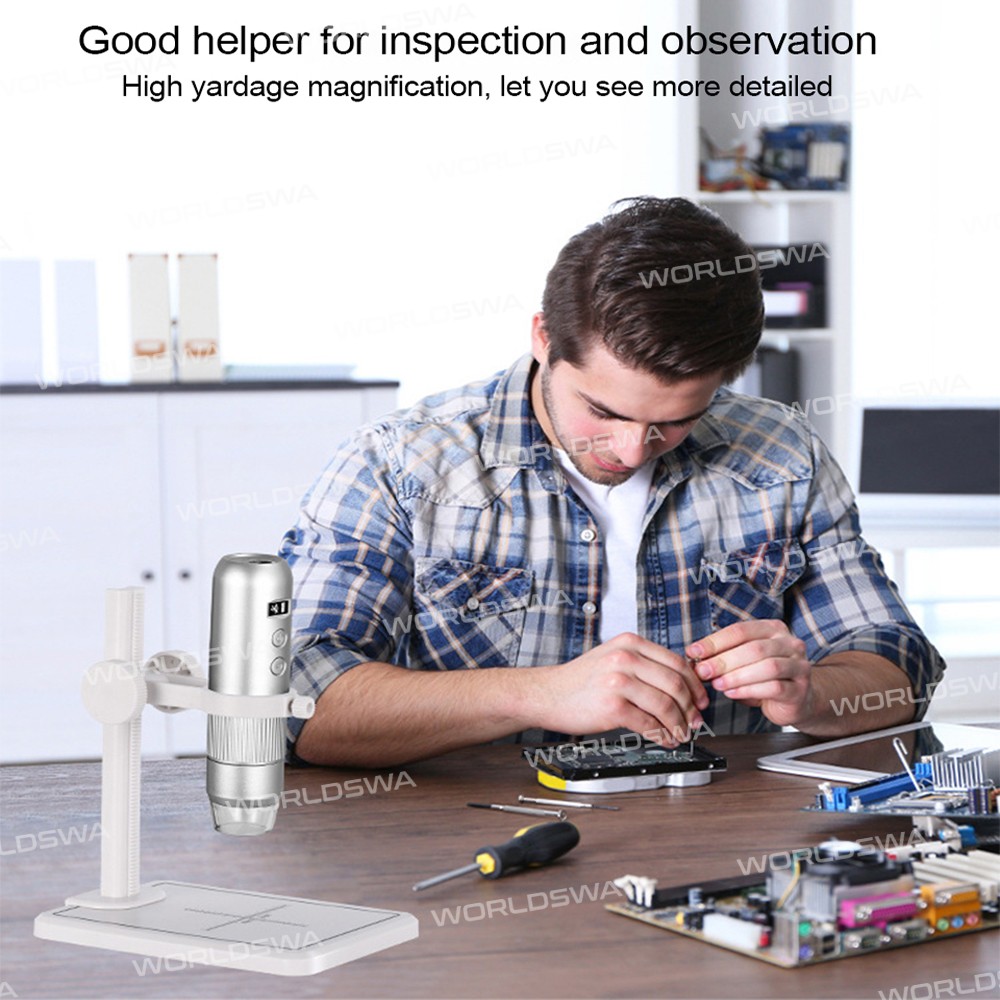

This portable digital microscope is designed for various applications such as electronic circuit board inspection, industrial inspection, textile inspection, watch and mobile phone repair, skin inspection, scalp inspection, printing inspection, and teaching and research tools. It's also suitable for magnification measurement of precision objects.

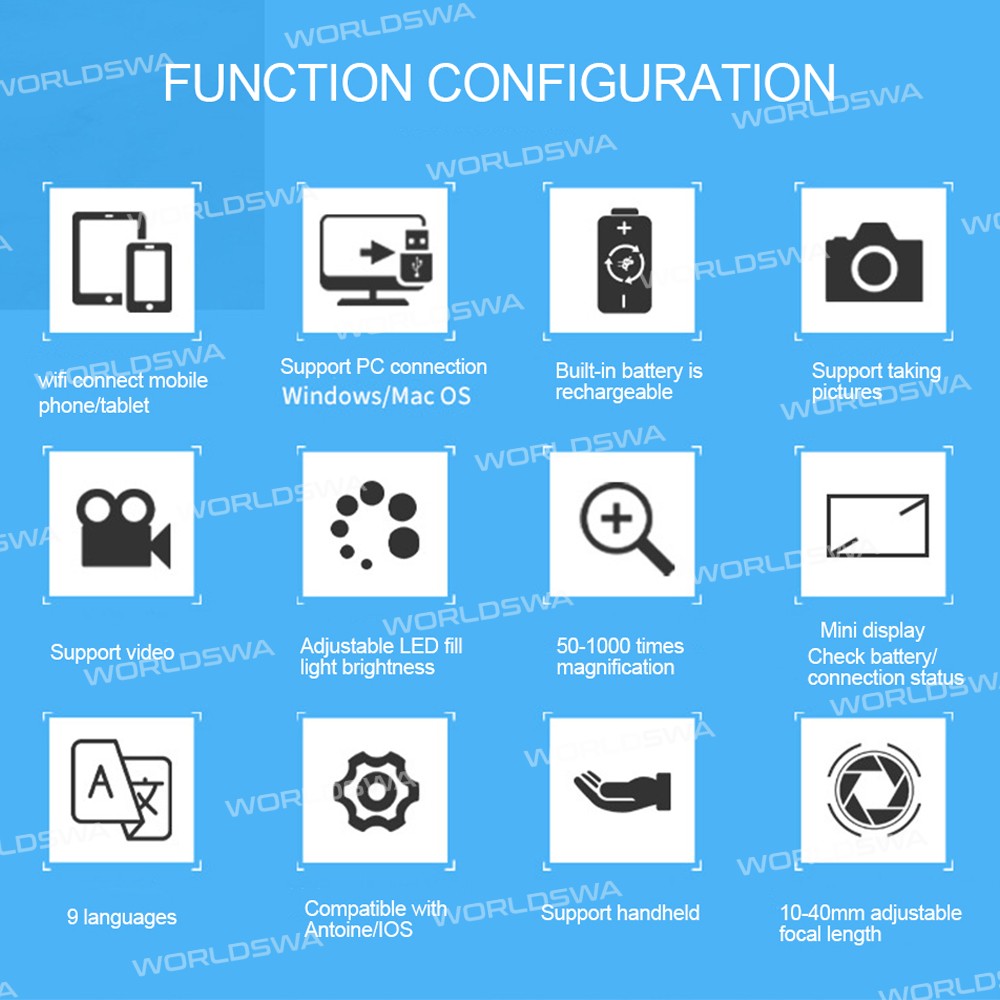

Key Features

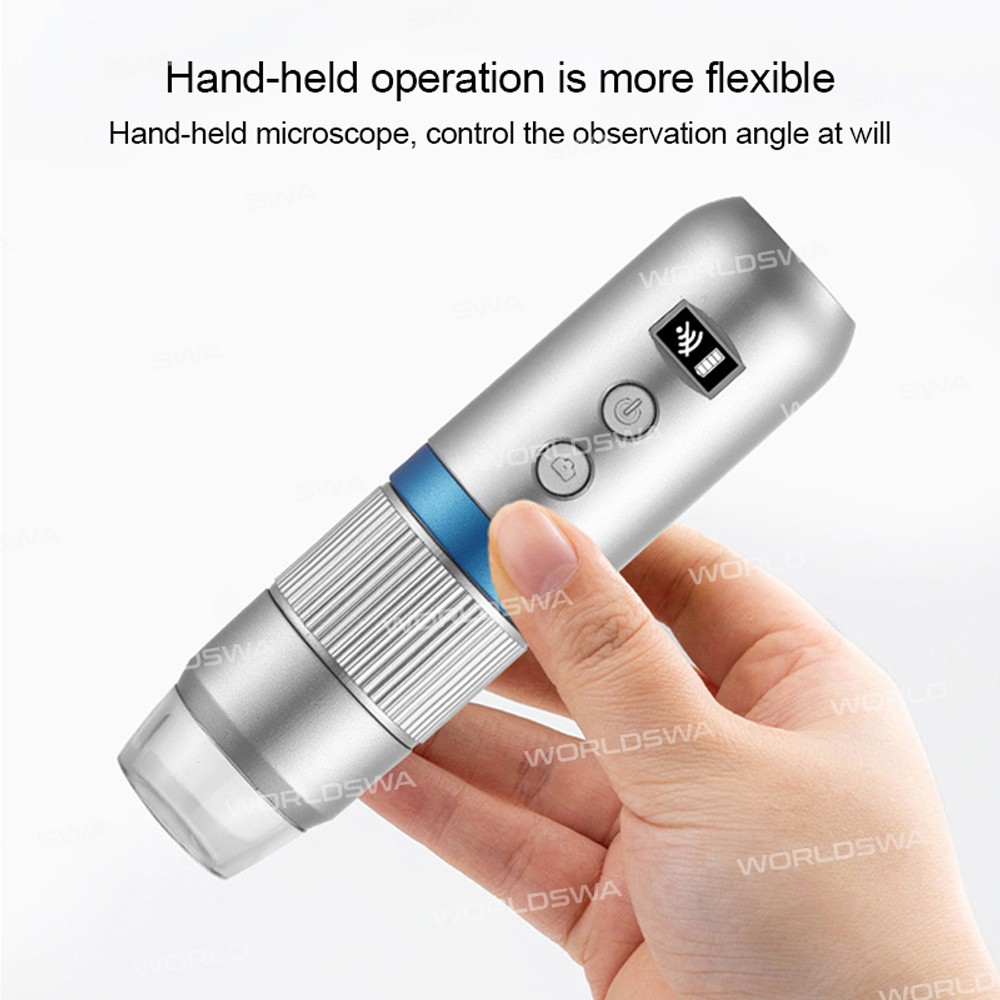

• Complete functions, clear imaging, exquisite workmanship, built-in battery, connectable to a computer, compact and portable, support up to 12 languages, etc.
• **Summary:** A portable and compact digital microscope with complete functions, clear imaging, and exquisite workmanship.

Specification

• Product name: MS4
• Lens optical size: 1/4''
• Signal-to-noise ratio: 37db
• Sensitivity: 4300mV/lux-sec
• Camera resolution: 640x480, 1280*720, 1920*1080
• Video resolution: 640x480, 1280*720, 1920*1080
• Video format: Mp4
• Focus mode: manual
• Picture format: JPG
• Magnification: 50X-1000X
• Light source: 8 LED lights (adjustable brightness)
• Focusing range: 10~40mm (you can watch the distant view)

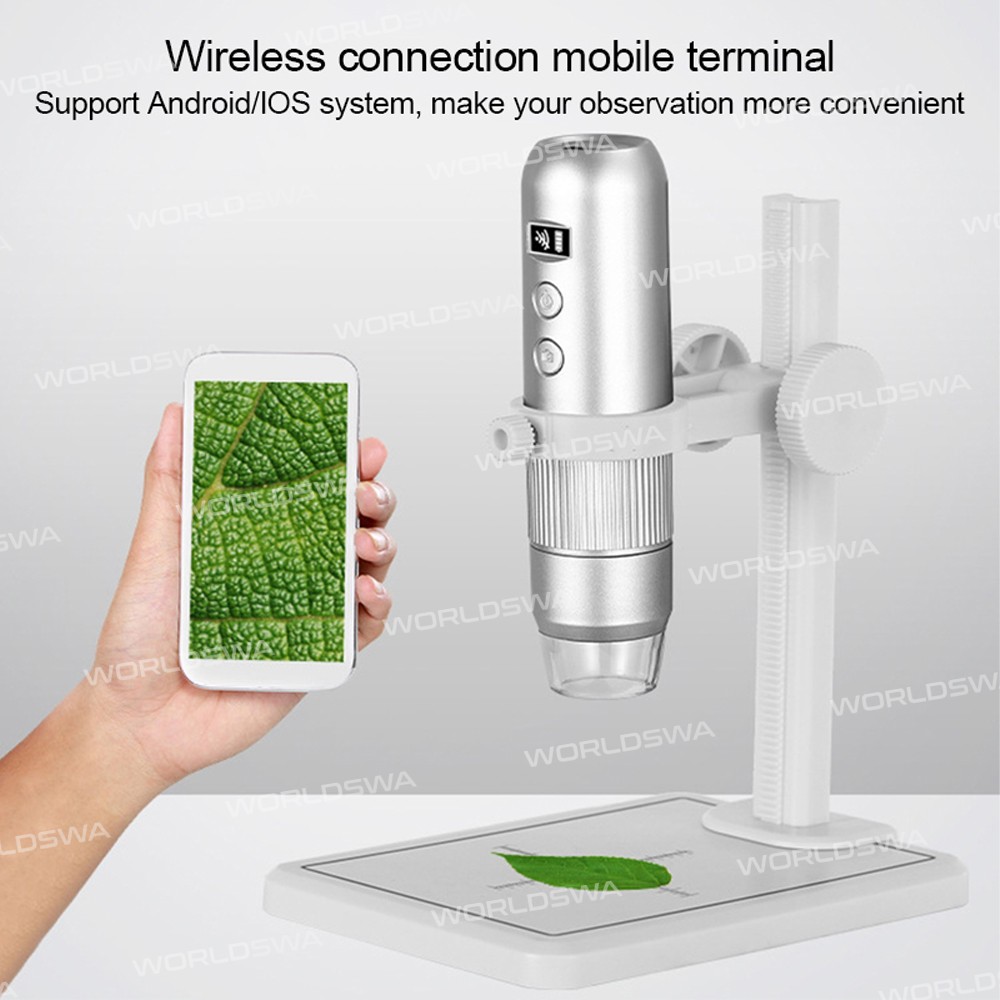

• WIFI distance: within 3 meters
• White balance: automatic
• Exposure: Automatic

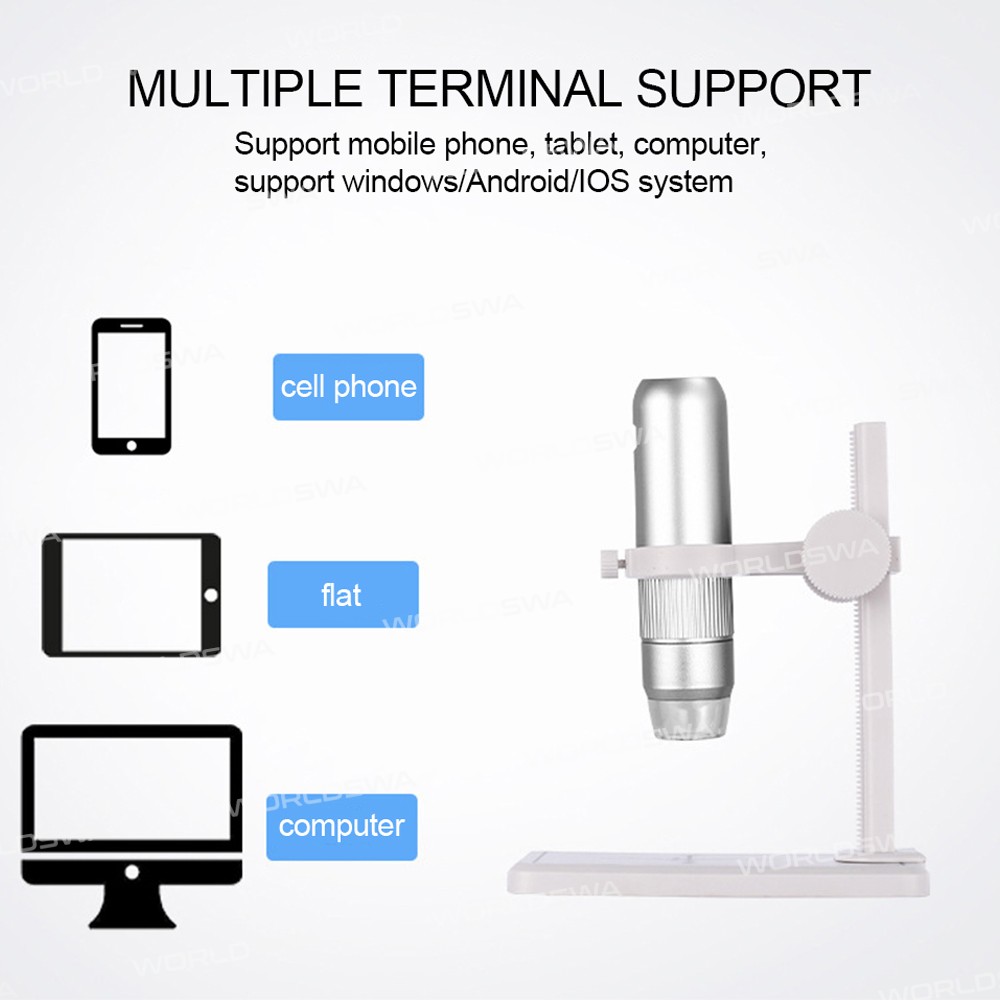

• PC operating system: Windows XP, win7, win8, win10, Mac OS x 10.5 or higher
• Lens structure: 2G+IR
• Aperture: F4.5
• Lens angle of view: 16°

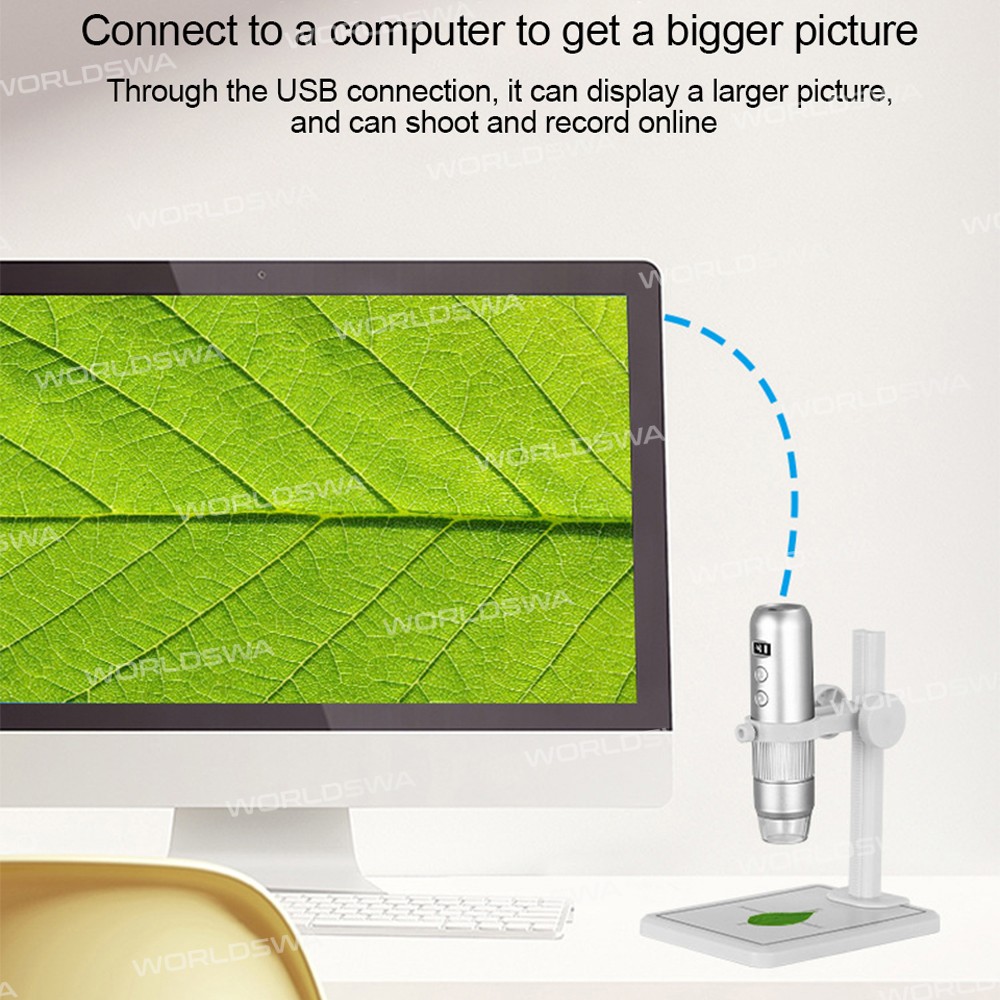

• Interface and signal transmission method: Micro/usb2.0
• Storage temperature/humidity: -20℃- +60℃ 10-80%RH
• Working temperature/humidity: 0℃-+50℃ 30%~85%Rh
• Working current: ~270 mA
• Power consumption: 1.35W
• APP working environment: Android5.0 and above systems, ios8.0 and above systems
• WIFI implementation standard: 2.4Ghz (8201.11b/g /n)

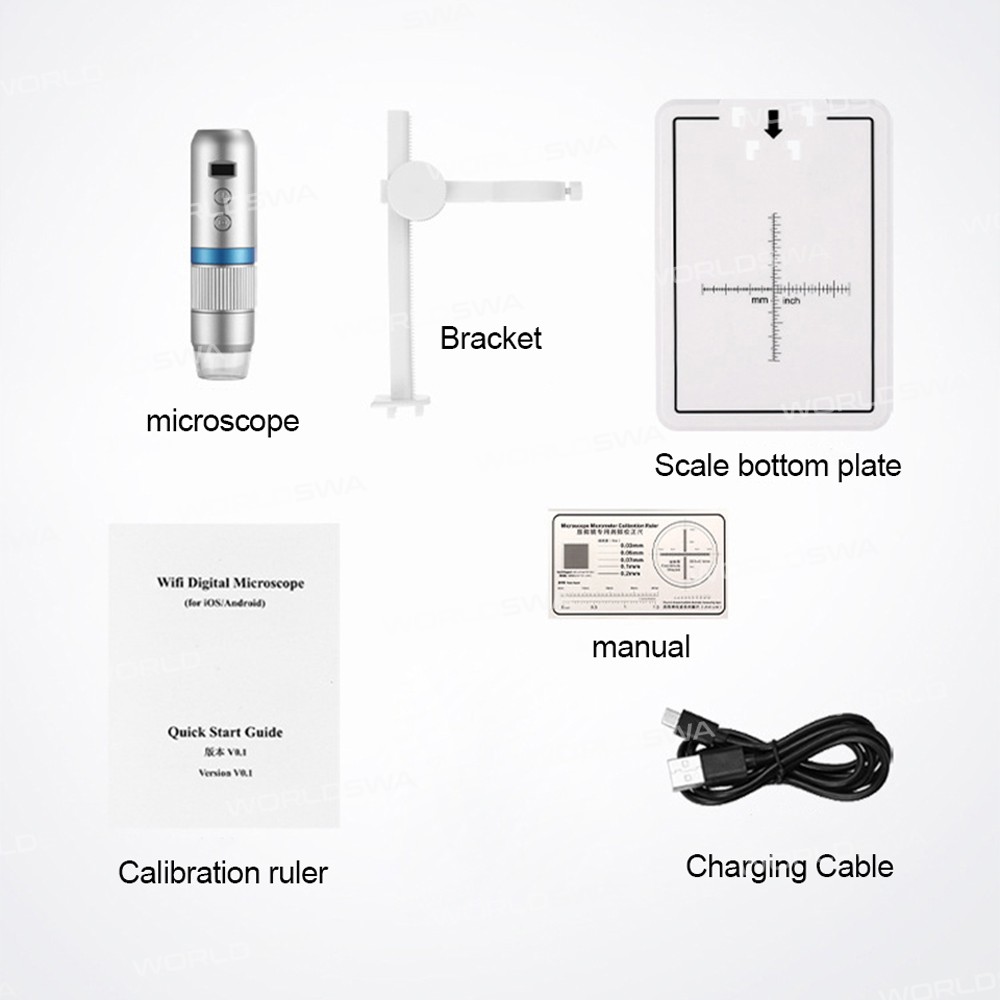

What's in the Box

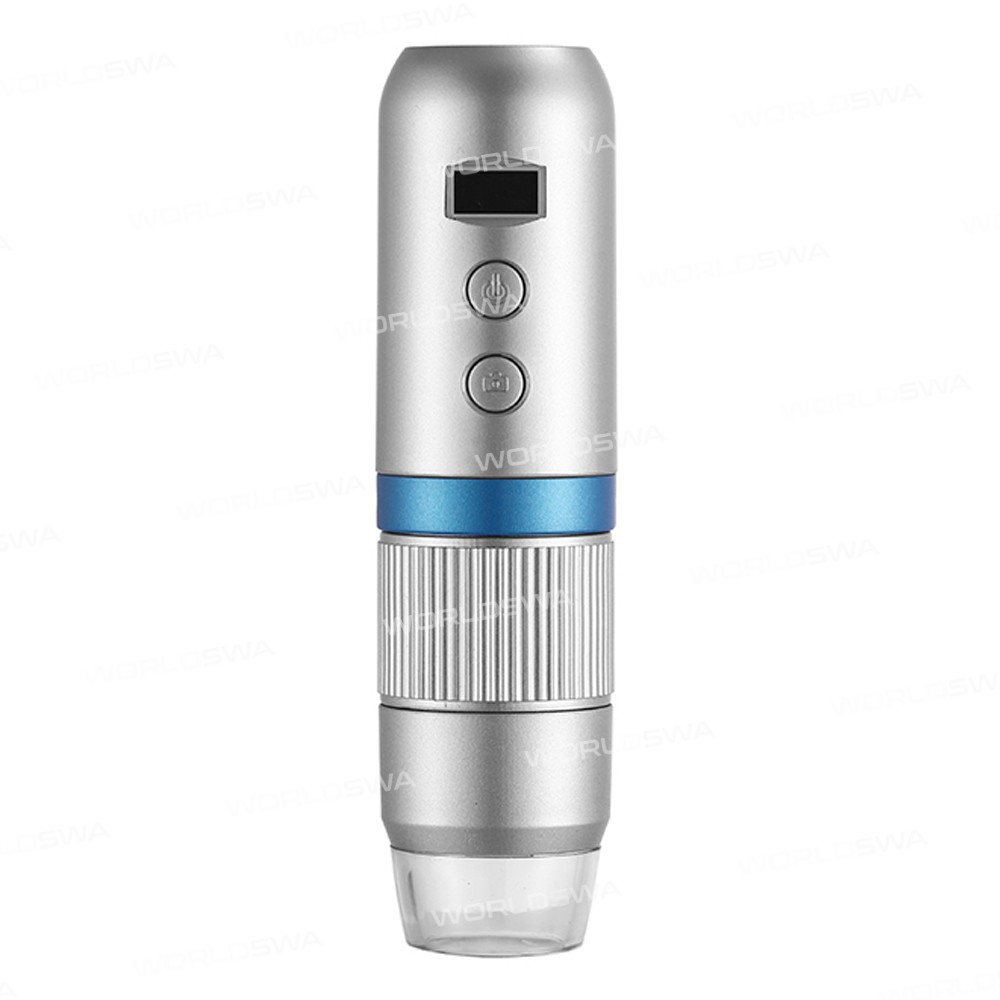

• 1 x Digital Microscope

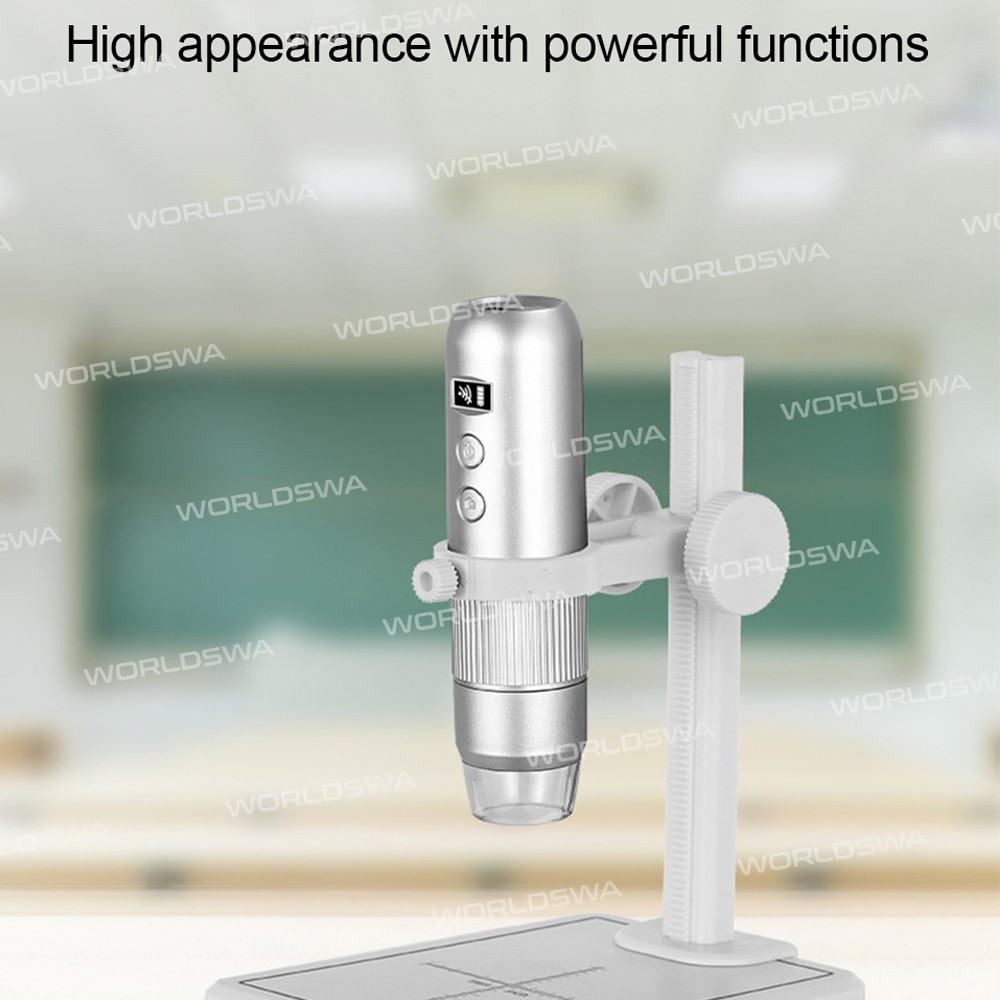

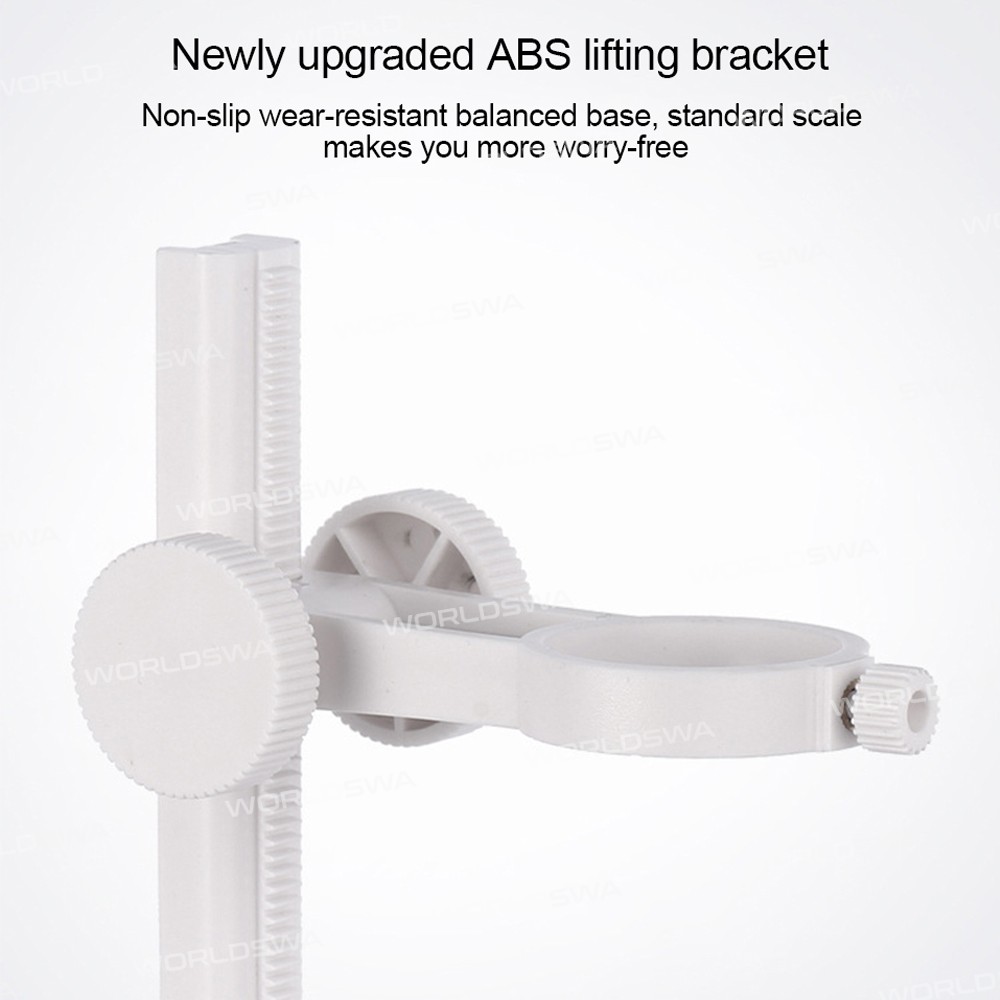

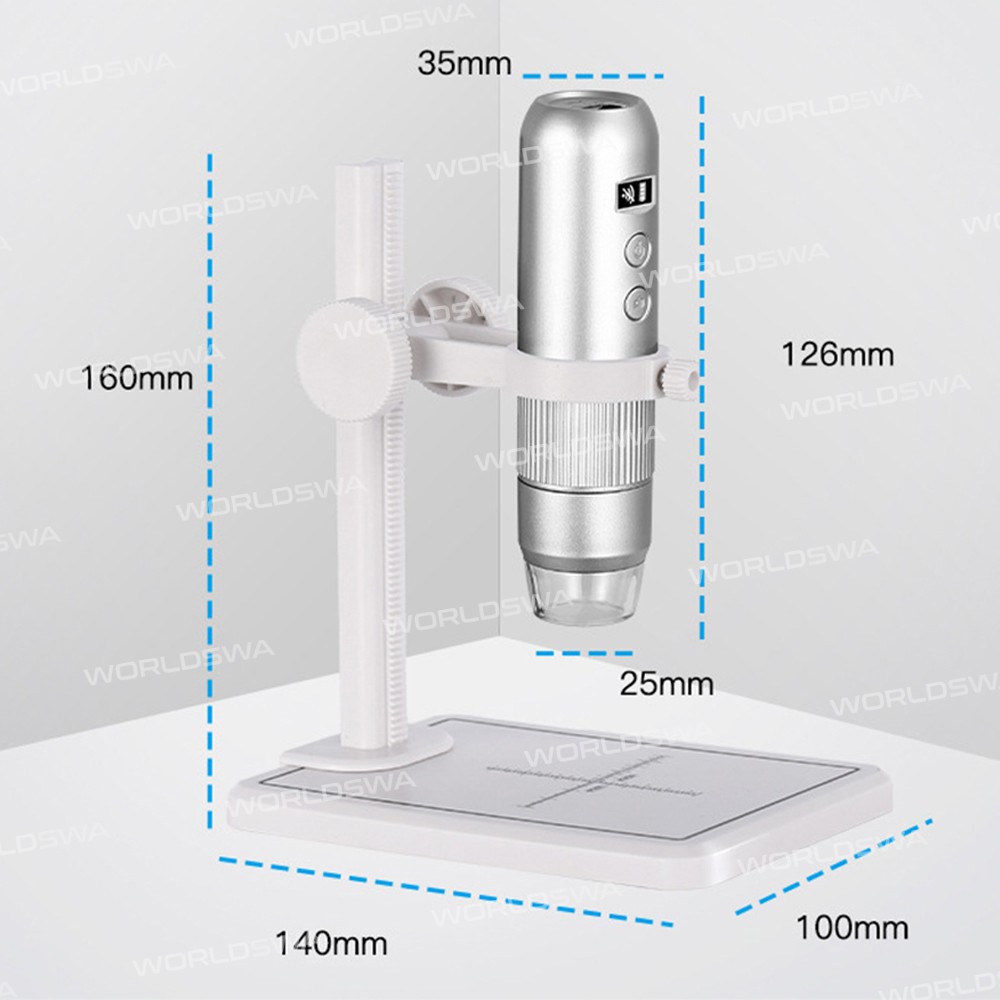

• 1 x Bracket
• 1 x Scale Bottom Plate
• 1 x Calibration Ruler
