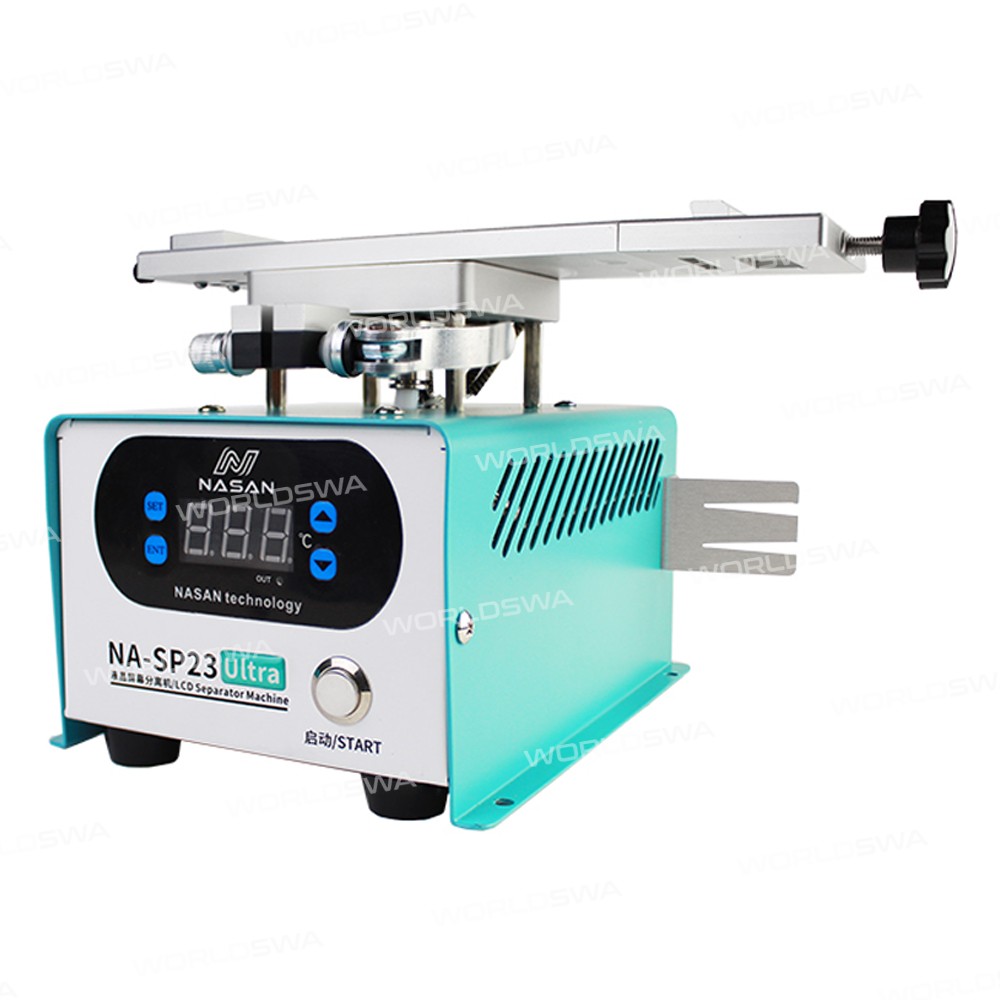

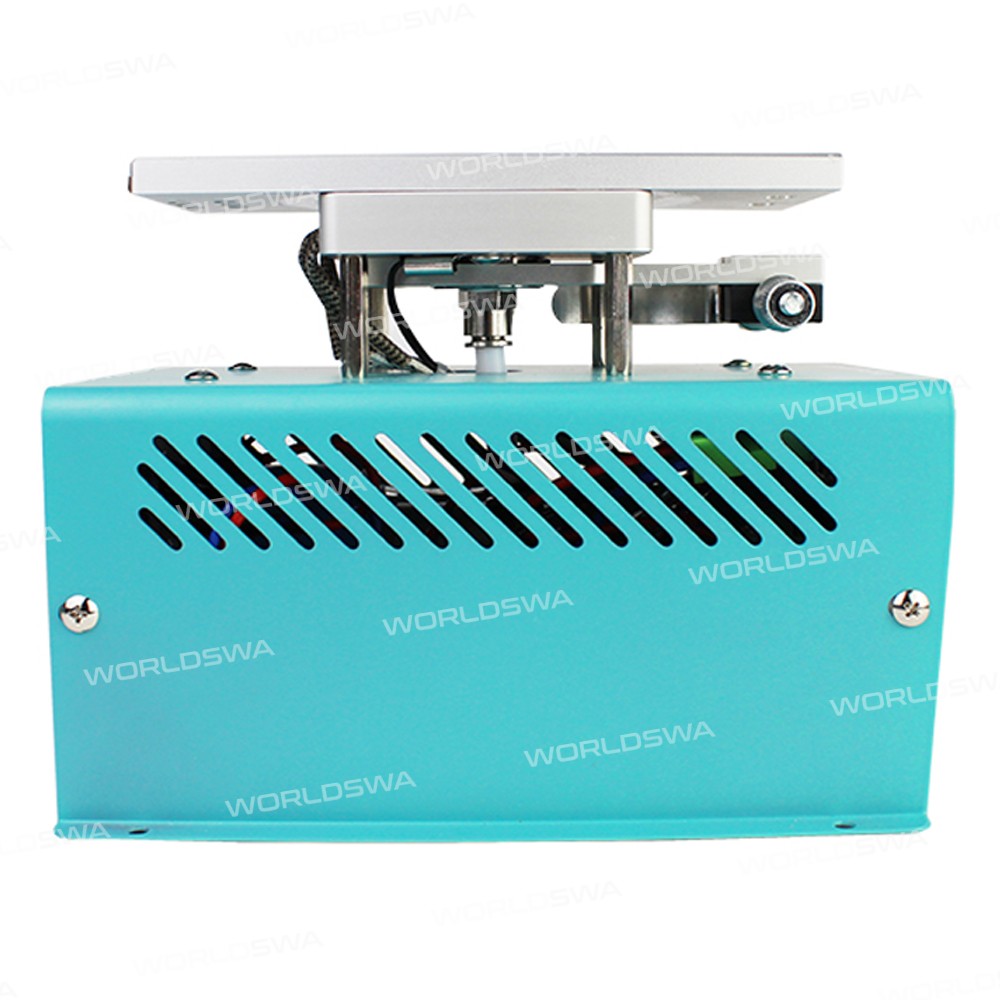

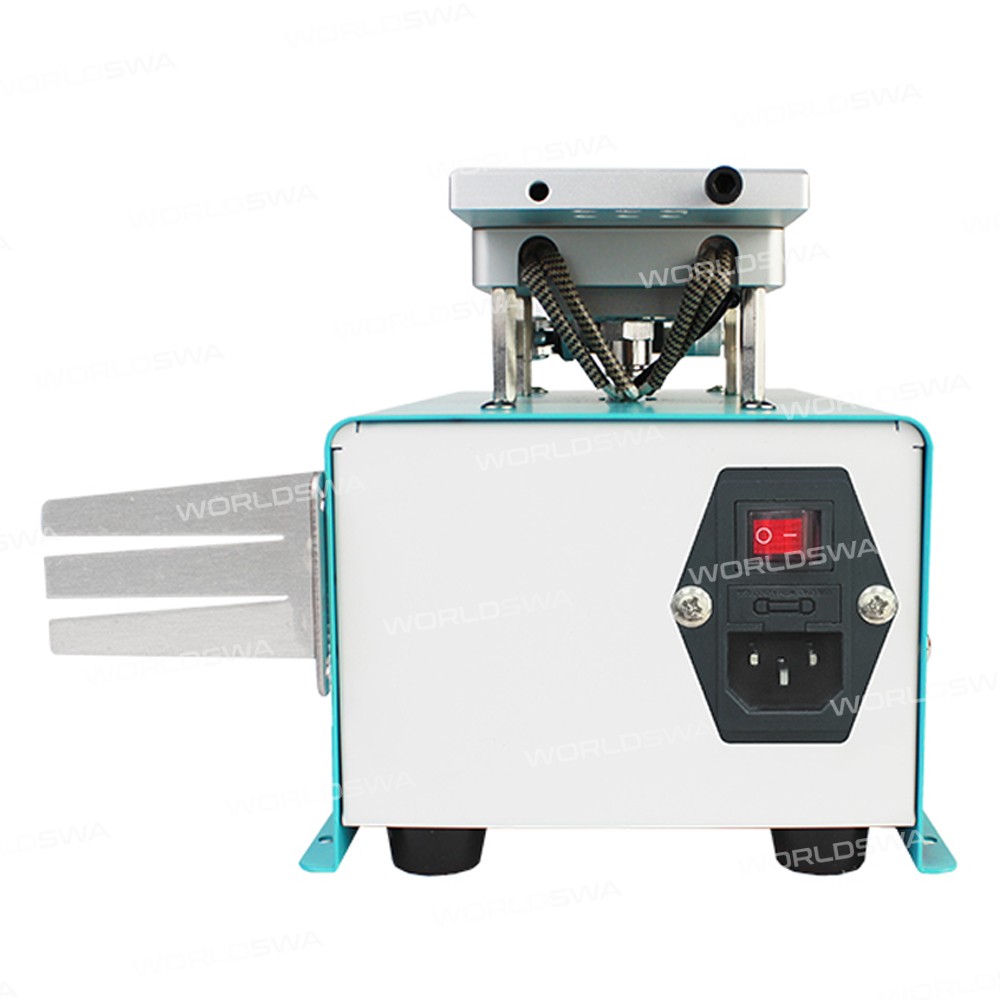

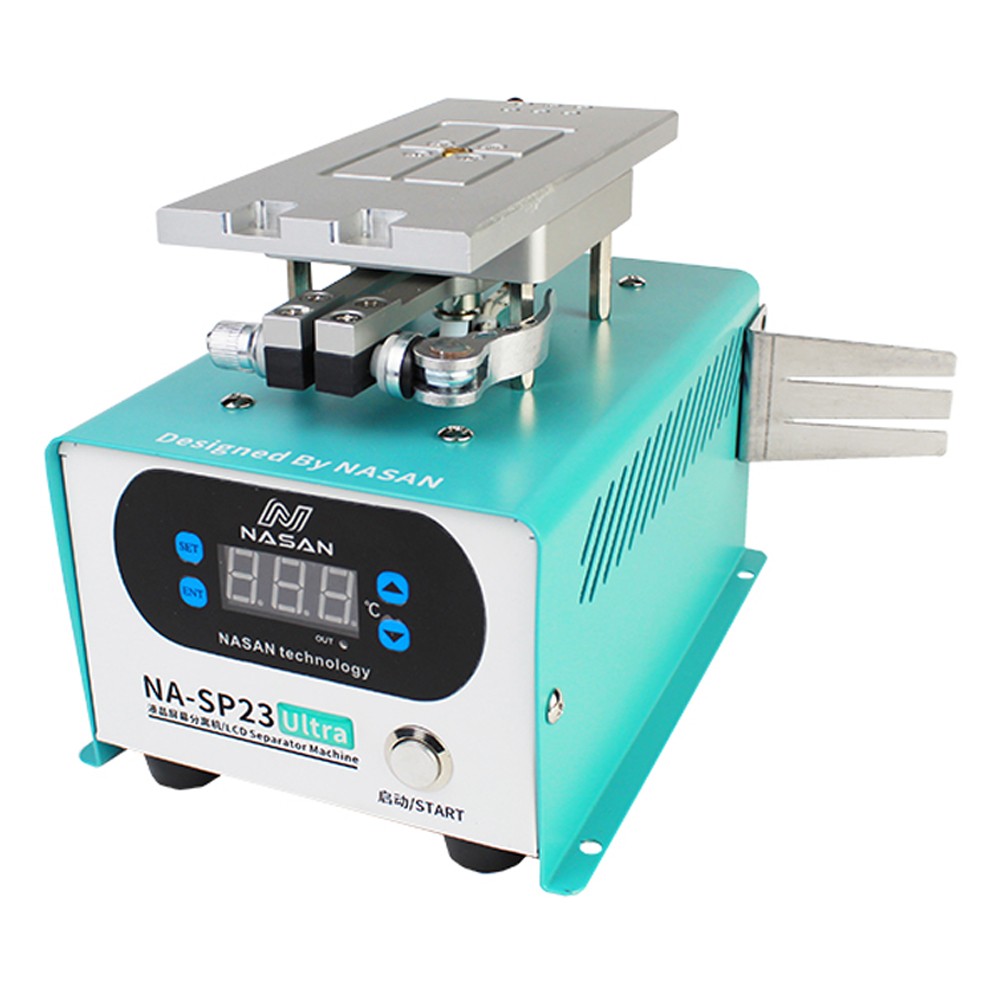

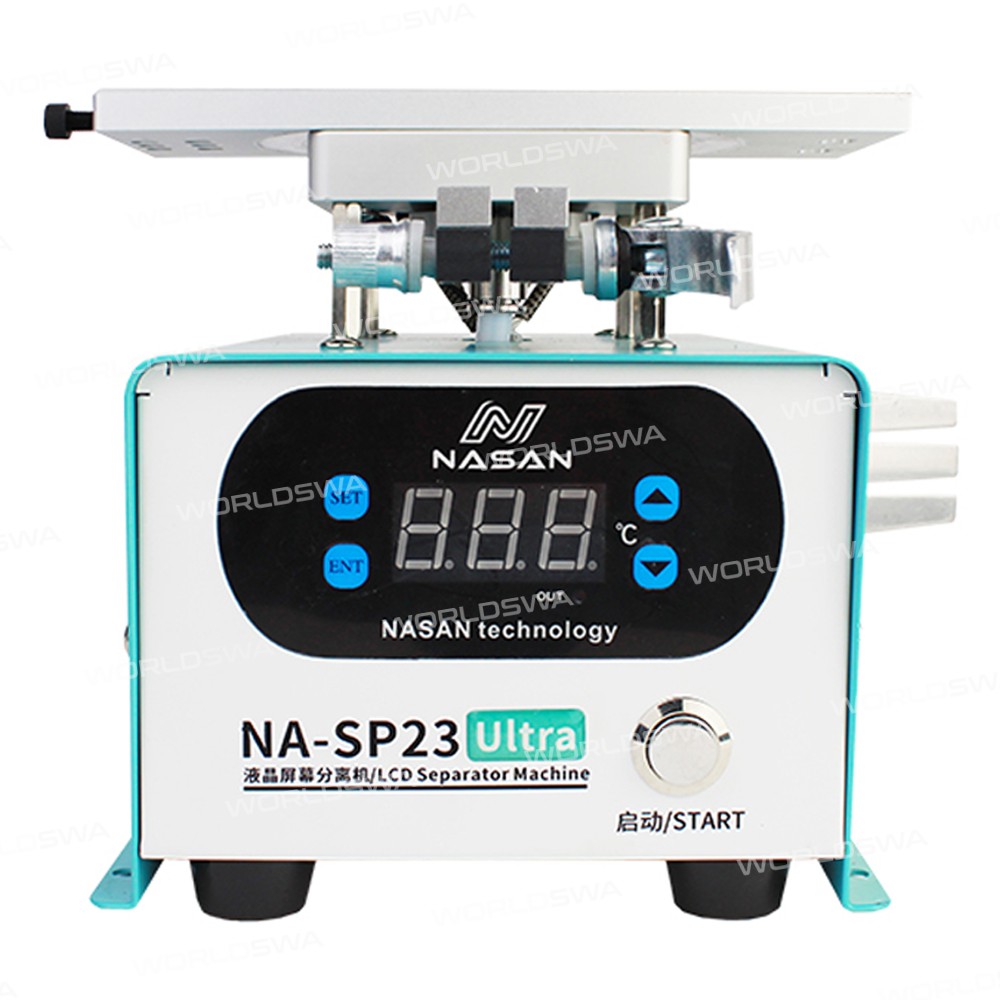

Nasan SP-23 Ultra: 7" Rotary Screen Heating Separator for Phone LCD / OCA Glue Removal

Nasan NA-SP23 7-inch Screen Heating Separator for Mobile Phone OCA Glue Remove/LCD Screen Separation

Product Overview

The Nasan NA-SP23 is a 7-inch screen heating separator designed for mobile phone OCA glue removal and LCD screen separation. With its ultra-rotary screen separator and 360° free rotating heating platform, this device offers efficient and convenient screen separation.

Key Features:

• **Effortless Screen Separation**: Strong suction and fast heating ensure efficient LCD screen separation under 7 inches.

• **360° Free Rotation**: Smooth 360° rotation with built-in precision bearings eliminates the need for frequent manual operations.

• **Precise Temperature Control**: Visual temperature control panel allows for digitally controlled precise temperature adjustment from 50°C to 130°C.

• **Convenient Operation**: One-key operation to open the air pump for vacuum, and special heating aluminum material for uniform heating.

• **Safety First**: Rear fuse double safety protection prevents overheating, and wear-resistant design ensures shock absorption and compression resistance.

Specification:

• Brand: Nasan

• Model: NA-SP23 Ultra

• Product Name: Rotary Screen Heating Separator

• Power Supply: AC 110V/220V

• Power: 500W

• Workarea: 7-inches

• Product size: 205*148*142mm

• Package size: 252*188*202mm

• Platform size: 180*80mm

• Heating Method: PTC Heating Sheet

• Temperature Control Range: 50°C~130°C

Package Includes:

• 1 x Host

• 1 x Insulation Pad

• 1 x Power Cord
