Raspberry Pi 4 Model B Official Original Main Control Development Board

Official Original Raspberry Pi 4 Model B Develop Main Control Board

Features:

• Raspberry Pi 4 model b is the latest product in the popular Raspberry Pi range of computers
• It offers ground-breaking increases in processor speed, multimedia performance, memory, and connectivity compared to the prior-generation Raspberry Pi 3 Model B+ while retaining backward compatibility and similar power consumption for the end user
• Raspberry Pi 4b provides desktop performance comparable to entry-level x86 PC systems
• This product's key features include a high-performance 64-bit quad-core processor, dual display support at resolutions up to 4k via a pair of micro-HDMI ports, hardware video decode at up to 4K P60, up to 8GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, gigabit Ethernet, USB 3.0, and PoE capability (via a separate PoE hat add-on)
• The dual-band wireless LAN and Bluetooth have modular compliance certification, allowing the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market
• Summary:** High-performance quad-core processor, dual 4K display support, advanced wireless connectivity, and improved performance.

Specification:

• Model: Raspberry Pi 4B
• Processor: Broadcom BCM2711, Quad-core Cortex-A72 (ARM v8) 64-bit SoC 1.5GHz
• Memory: 1GB, 2GB, 4GB, or 8GB LPDDR4
• The Internet: 2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac Wireless LAN
• Bluetooth: Bluetooth 5.0
• Ethernet: Gigabit Ethernet
• USB: 2×USB3.0 Ports; 2×USB2.0 Ports

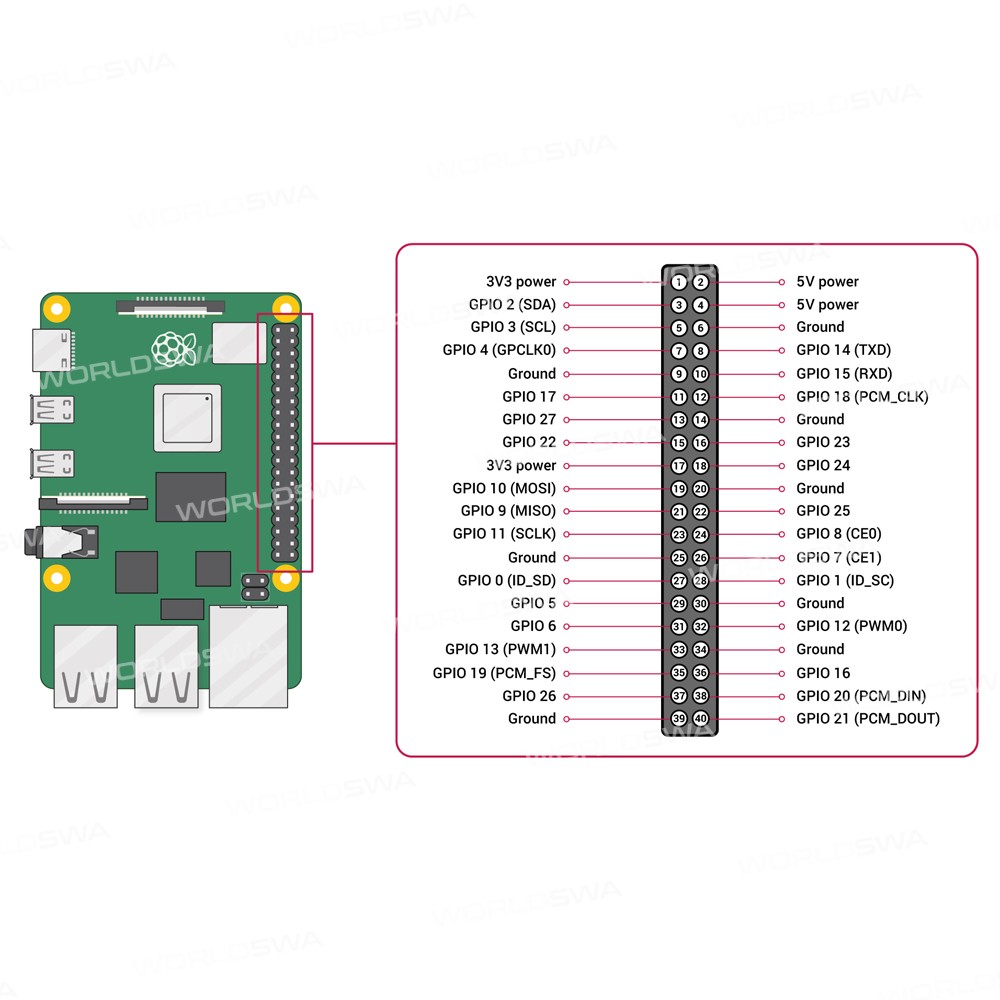

• GPIO: Standard 40-pin GPIO Header
• Video&Sound: 2×micro HDMI; 2-lane MIPI DSI Display; 2-lane MIPI CSI Camera; 4-pole Stereo Audio and Composite Video
• Multimedia: H.265(4Kp60 decode);H.264(1080p60 Decode, 1080p30 encode); OpenGL ES, 3.0 Graphics
• SD Card Support: Micro SD Card Slot For Loading Operating System and Data Storage
• Input Power: 5V DC via USB-C Connector; 5V DC Via GPIO Header; Power Over Ethernet (PoE)
• Environment: 0~50°C

Package includes:

• 1 x Raspberry Pi 4B Board
