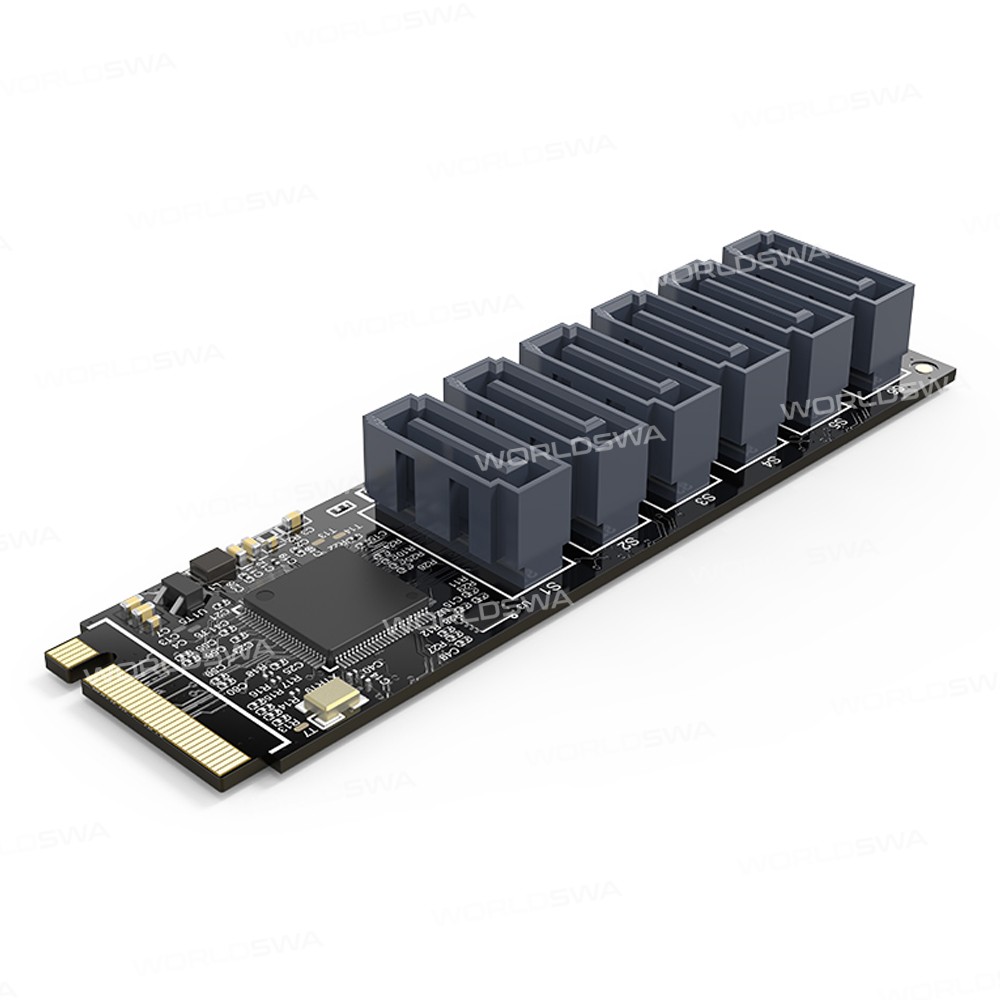

Orico PM2TS6: M.2 M Key to 6x SATA 3.0 Ports PCI-E Expansion Adapter Card

Orico PM2TS6 M.2 M Key to 6 Ports SATA 3.0 PCI-E Expansion Adapter Card

Features:

• 6 Port SATA 3.0 PCI-E Expansion Card, high-speed transmission and stable performance, in line with M.2 M Key standard
• Realize the PCI Express Gen 3x2 line bandwidth, with six SATA ports extending from the PC host to the M.2 Key M slot
• Single ports’ transmission speed reaches up to 6Gbps and total transmission bandwidth achieves 16Gbps
• **PCI-E3.0 Dual Port Superior Performance**, With PCIe Gen3, bringing stable and fast transmission speed
• Support PCI Express link layer energy-saving mode
• Support command-based and FIS-based port multiplier
• Support AHCI mode and IDE programming interface
• Support local command queue (NCQ)
• Support SATA plug-in detection function
• Support drive power control and interleaved rotation
• Support SATA Partial / Slumber power management status
• Complies with PCI Express Basic Specification Revision 3.1a, SATA Specification Revision 3.2
• Plug and play, no other software installation or setting required
• Indicator Light: Light on: Connected; Light off: Not Connected; Flashing Light: Reading or Writing mode

Specification:

• Name: 6 Port SATA 3.0 PCI-E Expansion Card
• Transmission protocol: PCIe Gen3 X2
• Input Interface: 6 Ports SATA 3.0
• Output Interface: M.2 PCIe NVMe
• Transmission rate: 6Gbps, Total Bandwidth 16Gbps
• Management functions: SATA plug-in detection, SATA Link power saving mode (partial and hibernation)
• Operating system: Linux, Win 7/8/10, Mac OS NAS
• Colour: black
• Material: ABS + metal
• Size: 80*22*10mm

Package includes:

• 1 x SATA Expansion Card
• 3 x Cable
