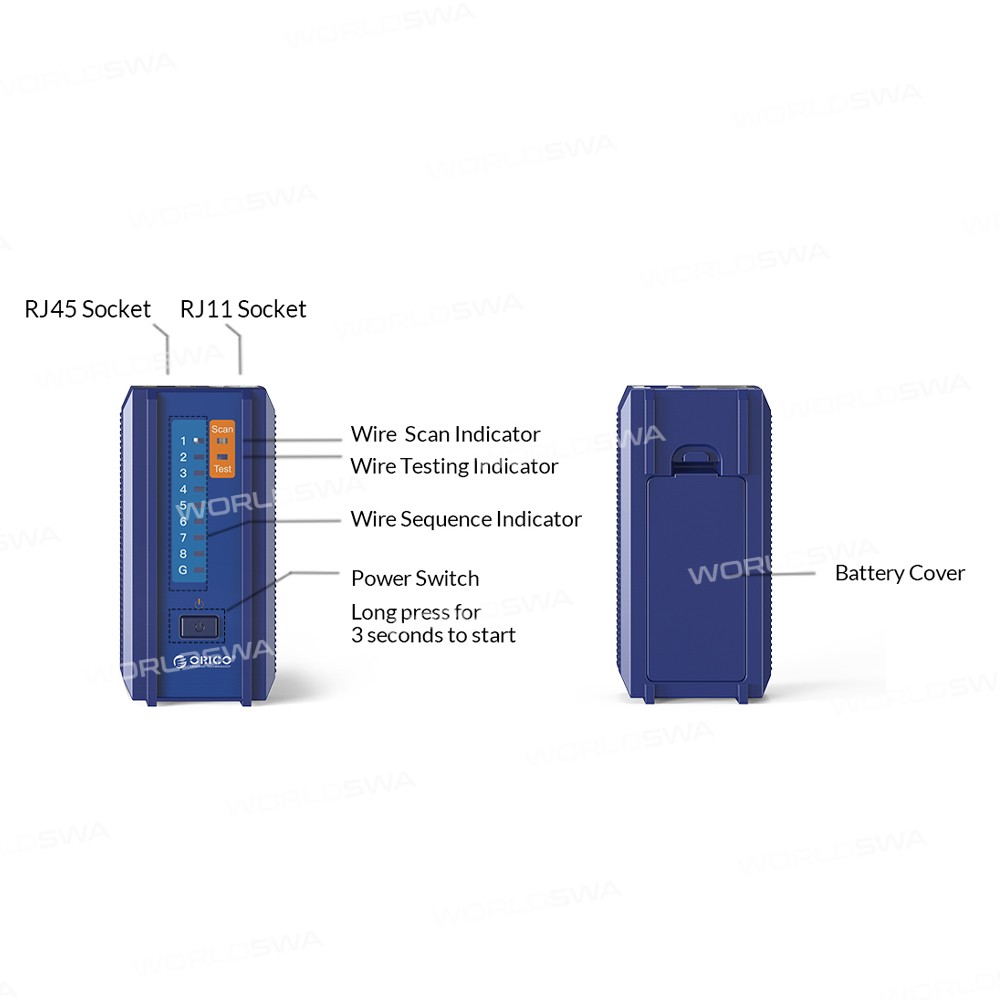

Orico TXJ004 / TXJ006 Multi-functional Tester for RJ45, RJ11, POE and Telephone Lines

Orico TXJ004/TXJ006 Multi-functional RJ45 RJ11 POE Line/Telephone Line Tester

Features:

• **Multi-functional Wire Tracer**: testable categories: 4P/8P Ethernet Cable、2P/4P/6P Telephone Cable
• Digital Signal Tracing/Noise-free/Super Anti-interference/Support POE Test/Auto-sleep Mode: 10 Minutes
• Digital Signal Searches More Precisely, supports RJ45 and RJ11(**Note: Please use clamp adapter cable for other wire tests**)
• POE Test Available: Maximum Voltage 60V, Nonstandard POE Test Available & Maximum Voltage 48V
• Tracker Distances: 300M, lock and identify the matched cable accurately and fast (**Note: There will be a deviation in the test, please subject to the actual situation**)

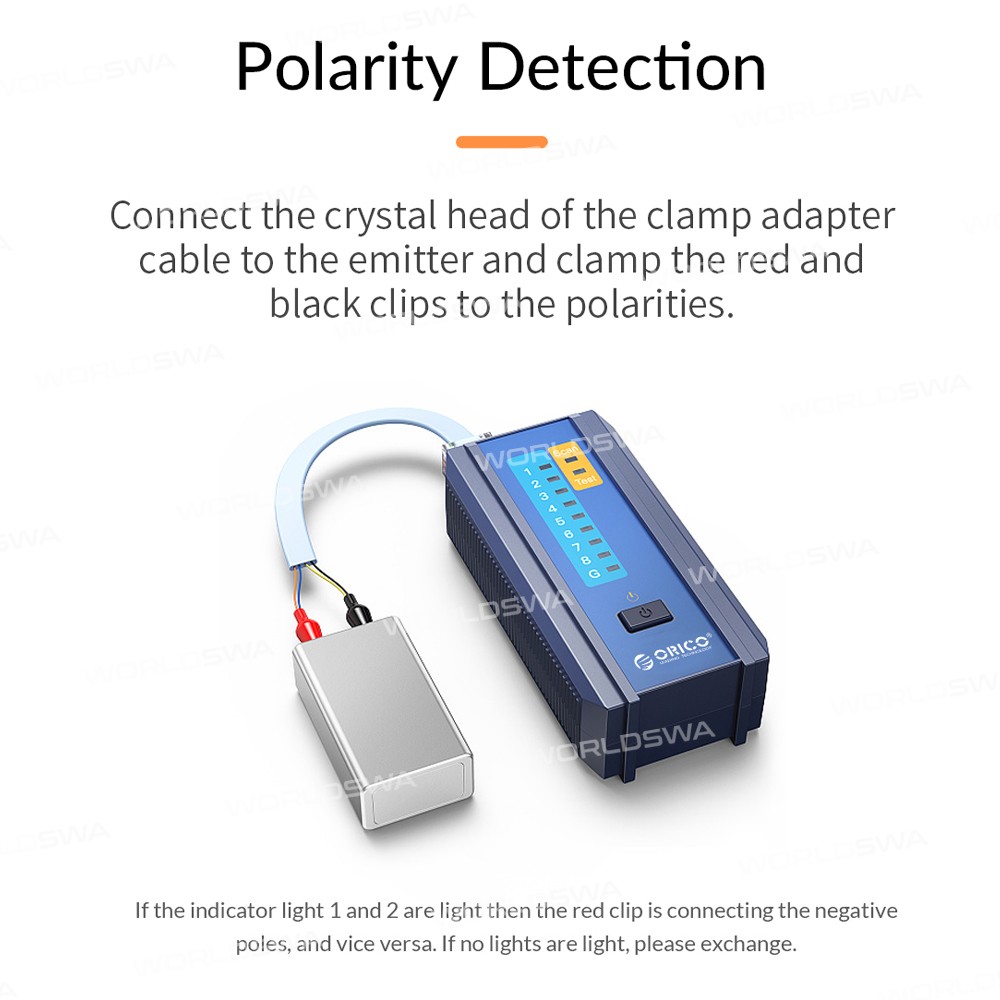

• Polarity Detection: Connect the crystal head of the clamp adapter cable to the emitter and clamp the red and black clips to the polarities (**Note: If the indicator light 1 and 2 are light then the red clip is connecting the negative poles, and vice versa. If no lights are light, please exchange.**)
• Auto Power-off Mode, the devices will shut off automatically after 10 minutes of no use to extend the battery life(**Please take the batteries out when not used.**)
• Isolate Noise And Fast location, with 3.5mm earphones, effectively reduce the outside noise and avoid interference
• The volume can be adjusted freely according to personal demand(**Note: You need to buy your headphones**)

Summary of Key Features:

• Multi-functional wire tracing and testing
• Digital signal tracing and noise-free
• POE test available with maximum voltage 60V
• Tracker distance up to 300M
• Auto power-off mode for battery life extension

Specification:

• Brand: ORICO
• Model: TXJ004/TXJ006
• Name: Multi-functional Wire Tracer
• Material: ABS
• Color: Blue
• Dimension: Emitter: 84*41*24mm; Receiver: 187*42*23mm
• Support Wire Tests: RJ 45,RJ 11,Metal Wire(Via Clips)
• Test Distance: >300M(only TXJ006)
• Scan Distance: >300M(only TXJ006)
• Maximum Voltage: 60V(Emitter)
• Battery: AAA(not included)
• Emitter Power: Maximum:0.15W
• Receiver Power: Maximum:0.22W

Package includes:

• 1 x Multi-functional Wire Tracer
• 1 x Network cable
• 1 x Clamp adapter cable
• 1 x Toolkit
