OSS T12-D Digital Soldering Station Temperature Controller

OSS T12-D Temperature Controller Digital Soldering Station

A high-performance soldering station with 72W power, temperature range of 150°C-450°C, automatic sleep, rapid temperature recovery, and adjustable sleep and standby time. Ideal for mobile phone maintenance, flying line, chip removal, and other applications.

Key Features:

• PID Temperature Control: Advanced PID algorithm ensures quick and accurate temperature control, suitable for various solder joint sizes.

• Temperature Enhancement: Temporarily increases temperature for large solder joints, then restores to normal for smoother soldering. (Summary: Easy handling of large solder joints)

• Manual Standby: Save energy and extend tip life by manually operating the soldering station into standby mode. (Summary: Energy-efficient and tip protection)

• Beep Reminder: Built-in buzzer emits different rhythm sounds for mode switching, allowing users to master the operation without watching the screen.

• Working AC Voltage: 100V - 240V, 5A, 72W

• Temperature Setting Range: 150 - 450 degrees Celsius

Operation Steps:

• Normal Use Mode: Adjust temperature value (150-450°C) directly using the left and right rotation editor.

• One-Button Reinforcement Mode: Press the encoder to enter temperature enhancement mode (rapid temperature rise 50°C) and automatically return to normal temperature after 1 minute.

• Function Setting Mode: Press the encoder for 1 second to enter parameter setting function, select options, and save settings.

Package Includes:

• 1 x T12-D Digital Controller Station

• 1 x T12 handle

• 1 x T12-BLS tip

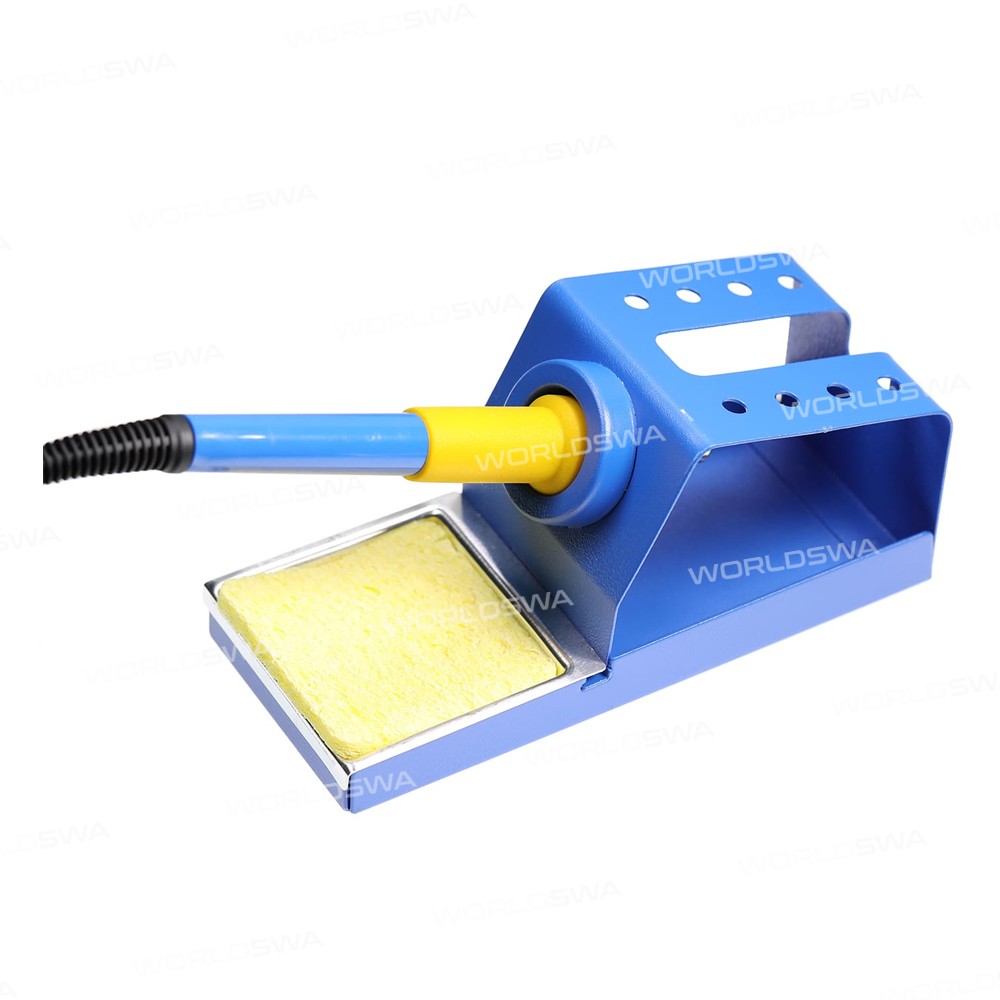

• 1 x Holder
