Owon HDS2102S 2-in-1 Handheld Multimeter & Oscilloscope, 100MHz, 20000 Counts

Owon HDS2102S 2-in-1 Handheld Multimeter Oscilloscope 100MHz Bandwidth 20000 Counts

Features:

• Oscilloscope + multimeter + waveform generator, multifunction in one
• 3.5-inch high-resolution, high-contrast color LCD, suitable for outdoor use
• 18650 lithium battery, comprehensive power consumption≤3W, can work continuously for about 6 hours
• USB Type-C interface, support power bank, support PC software connection
• Self-calibration function
• SCPI supported, facilitate secondary development
• Summary: All-in-one handheld device with advanced features for measurement and analysis.

Specification:

Oscilloscope:

• Model: HDS2102S
• Bandwidth: 100MHz
• Channels: 2-CH Oscilloscope+1-CH Generator
• Sample Rate: 500MSa/s
• Acquisition Model: Normal, Peak detect
• Record Length: 8K
• Display: 3.5 -inch LCD
• Waveform Refresh Rate: 10,000 wfrms/s
• Input Coupling: DC, AC, and Ground
• Input Impedance: 1 MΩ+2%, in parallel with 16pF+10pF
• Probe Attenuation Factors: 1X,10X,100X,1000X,10000X
• Max. input Voltage: 400V (DC+AC, PK PK, 1MΩ input impedance) (10:1 probe attenuation)
• Bandwidth Limit (typical): 20MHz / Full bandwidth
• Horizontal Scale: 2ns/div - 1000s/div, step by 1-2- 5
• Vertical Sensitivity: 10mV/div - 10V/div
• Vertical Resolution: 8 bits
• Trigger Type: Edge
• Trigger Modes: Auto, Normal, single
• Automatic Measurement: Frequency, Period, Amplitude, Max, Min, Mean, PK-PK
• Cursor Measurement: △V, △T, △T&△V between cursors
• Communication Interface: USB Type-C

Multimeter (Standard):

• Max Resolution: 20,000 counts
• Testing Mode: Voltage, Current, Resistance, Capacitance, Diode, and Continuity test
• Input Impedance: 10MΩ
• Max Input Voltage: AC 750V, DC 1000V
• Max Input Current: DC: 10A AC: 10A
• Diode: 0- 2V
• Sampling Rate: 125MSa/s
• Channel:1-CH
• Amplitude Range: 20mVpp-5Vpp
• Waveform Length: 8K
• Vertical Resolution: 14bits
• Output Impedance: 50Ω

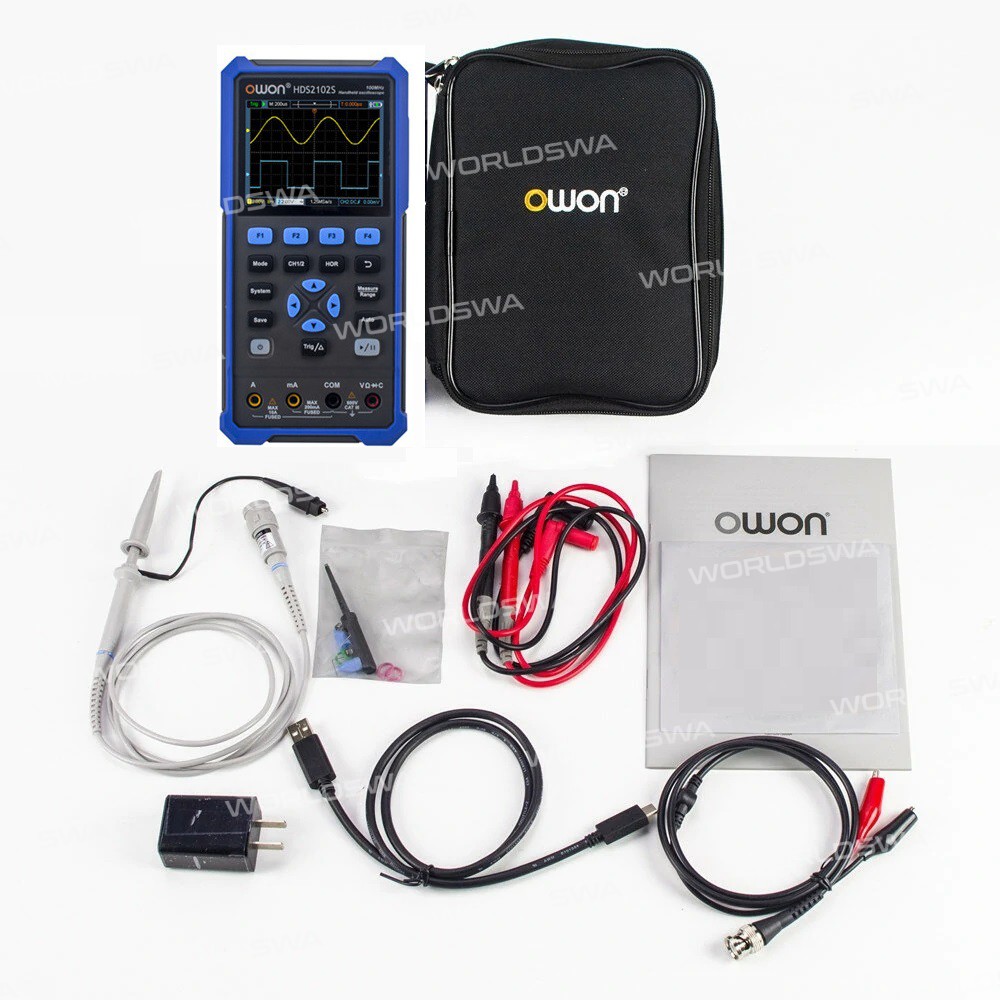

Package includes:

• 1 x Host(without battery)
• 1 x Bag
• 1 x Probe
• 1 x Power Plug
• 1 x Probe Adjust
• 1 x USB Cable
• 2 x Multimeter Leads
• 1 x BNC to Alligator Clip
