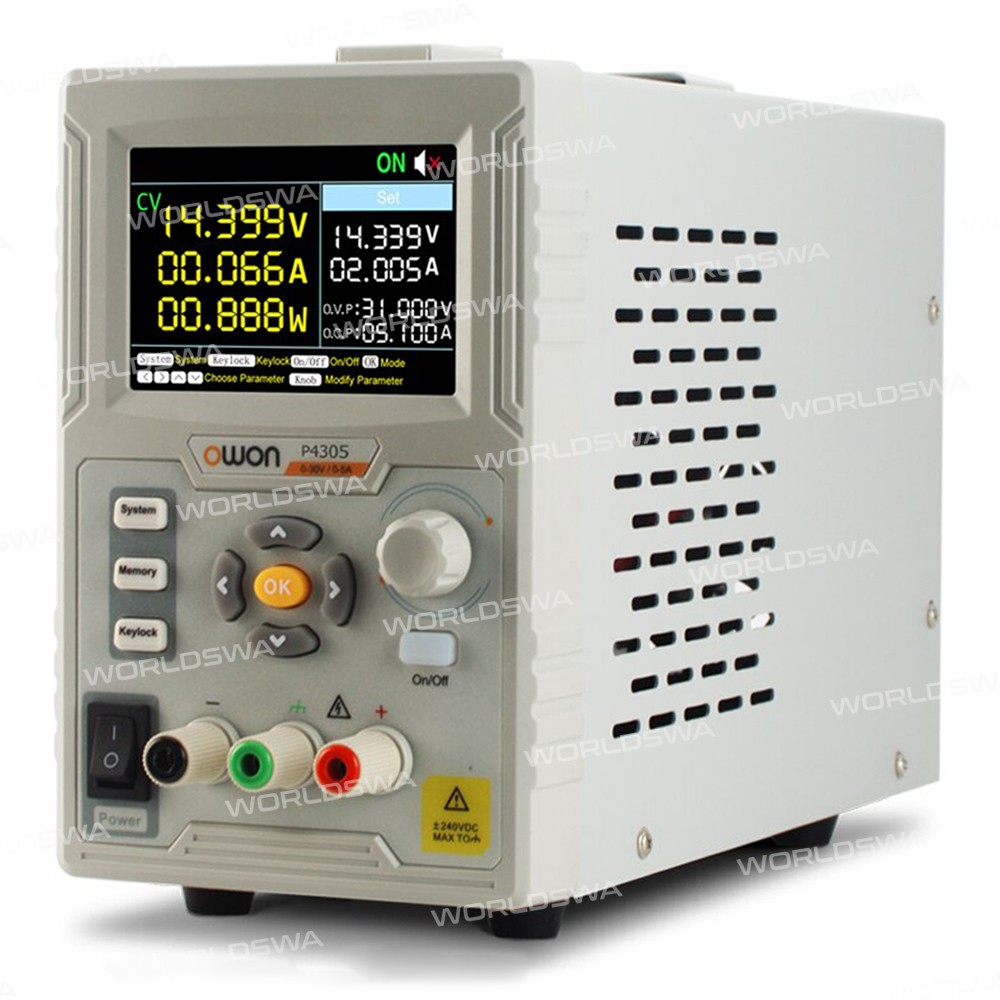

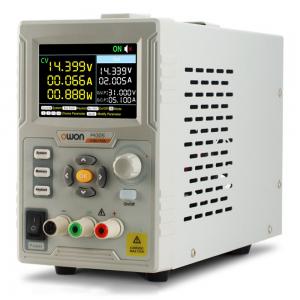

OWON P4305 / P4603 Portable LCD Display Single-Channel Linear Programmable Regulated DC Power Supply

OWON P4305/P4603 Portable LCD Display Single Channel Linear Programmable Regulated DC Power Supply

Product Overview

The OWON P4305/P4603 is a portable, single-channel linear programmable regulated DC power supply with a large 3.7-inch LCD display, offering high resolution and high accuracy measurement results. It's an ideal tool for various industries, including mobile phone or laptop PCB repair, motor testing, and battery charging.

Key Features:

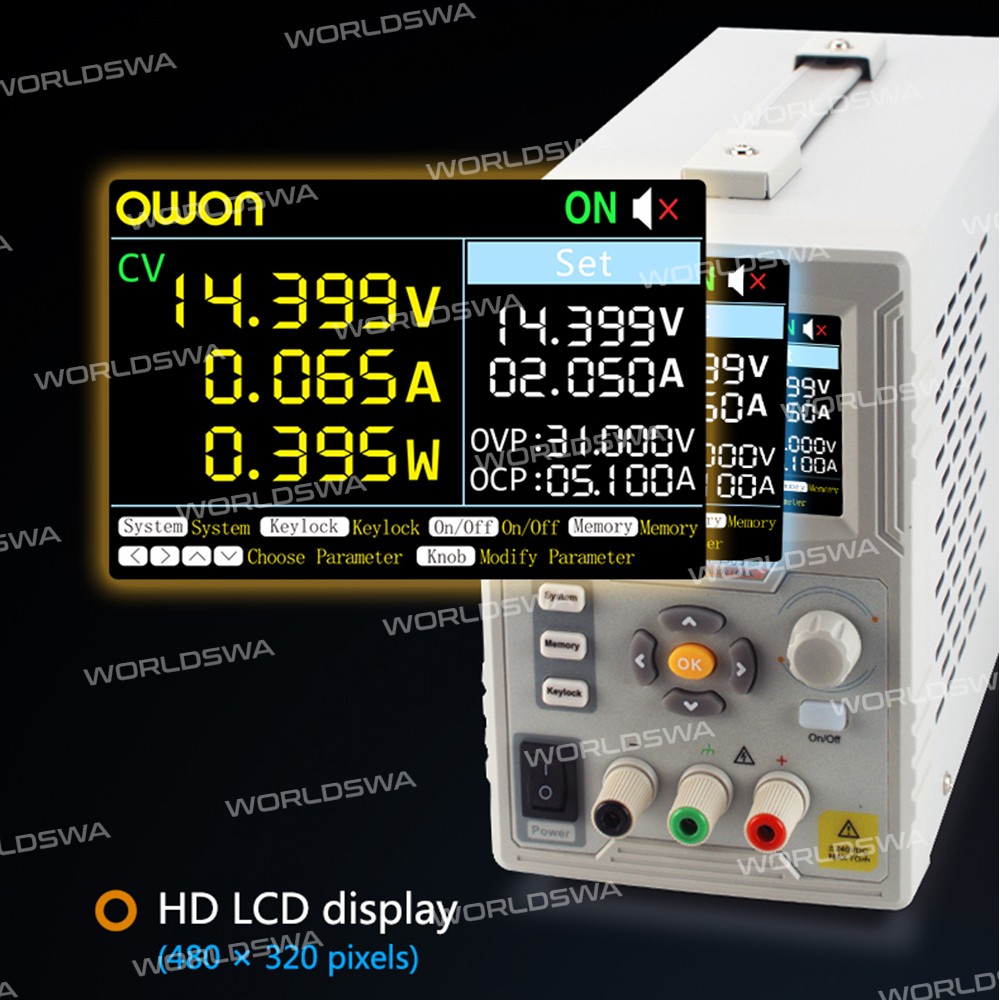

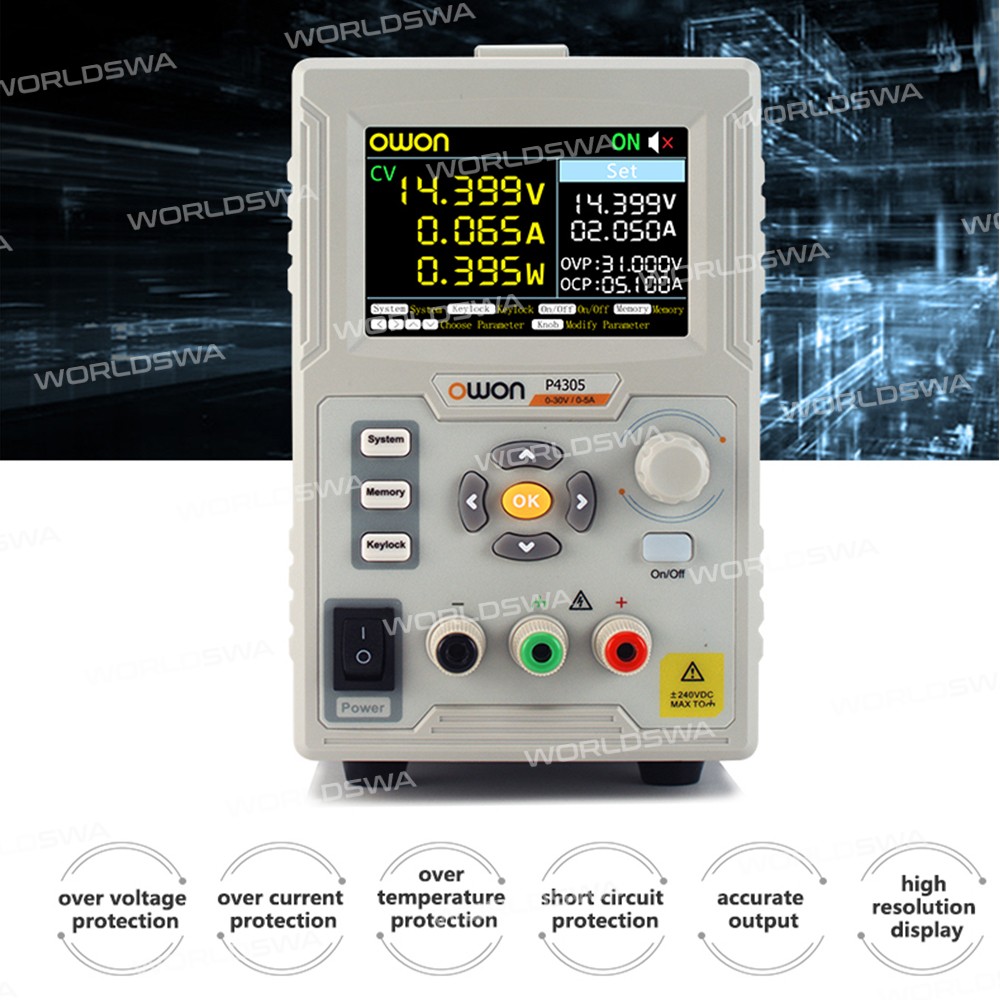

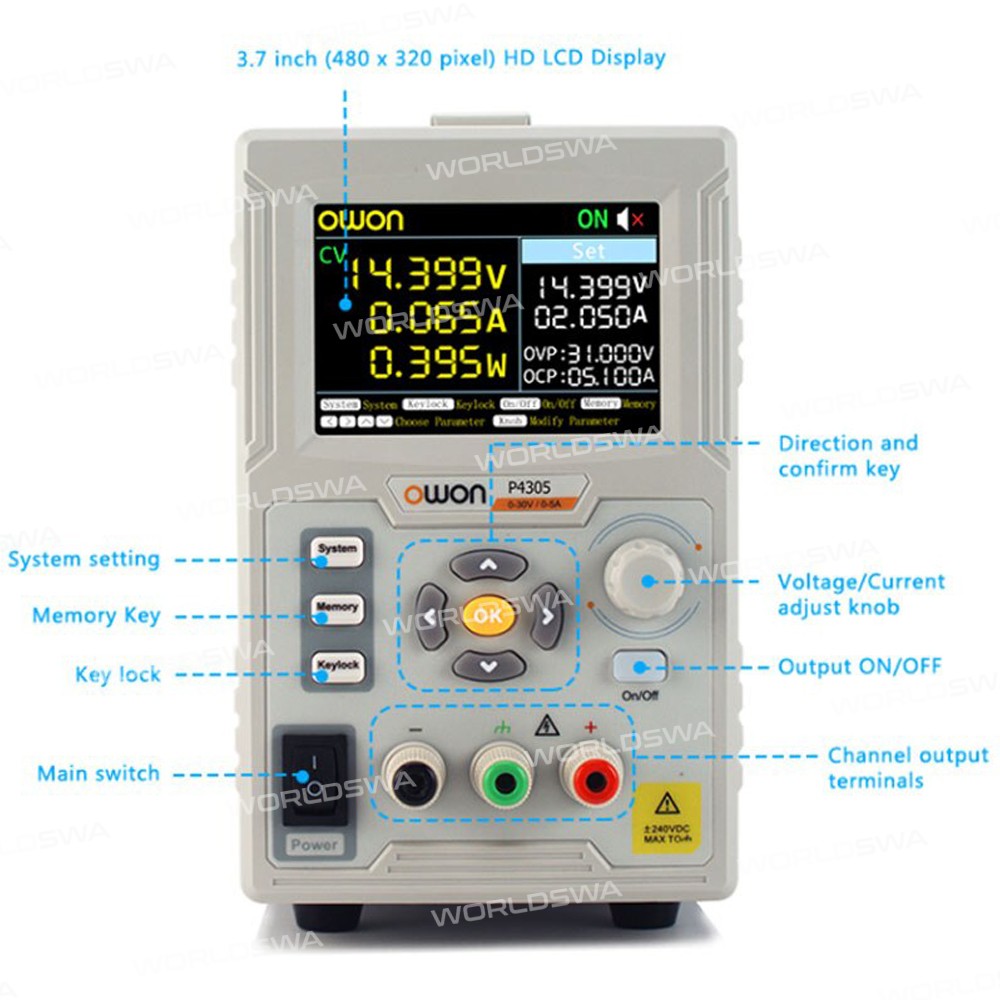

• Large LCD Display: 3.7-inch (480x320) TFT LCD for at-a-glance measurement results
• High Accuracy Measurement: 1mV/1mA high resolution, meets the measurement needs of various industries
• Low Ripple and Noise: Meets high-accuracy measurement requirements
• Efficient Storage: 5 sets of commonly used data can be stored for easy recall at any time
• Stable and Compact: CE compliant, supports SCPI protocol, compact, portable, and easy to use

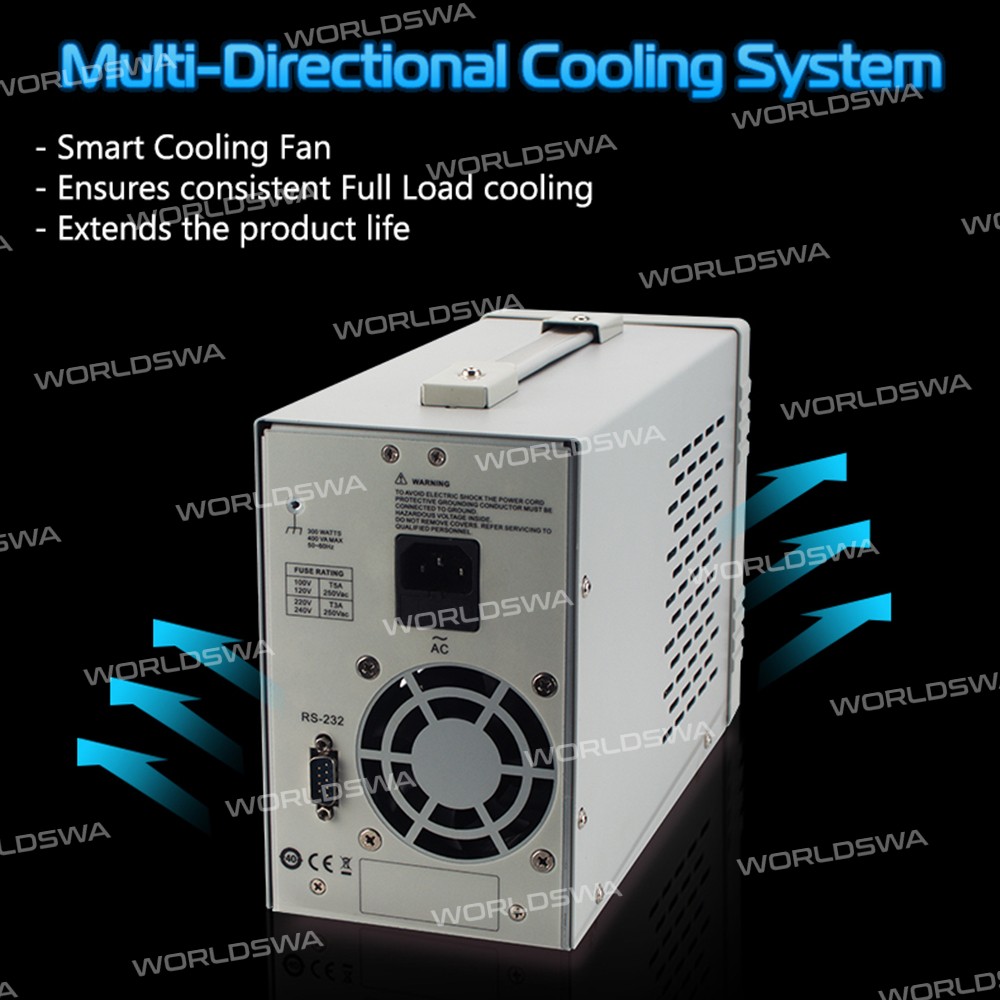

• Intelligent Fan: Multi-directional heat dissipation, ensures long-term stable operation at full load and extends the service life
• Full Digital DC Stabilized Power Supply: Large display, portable, durable, and stable output
• RS232 Digital Communication: Supports digital communication

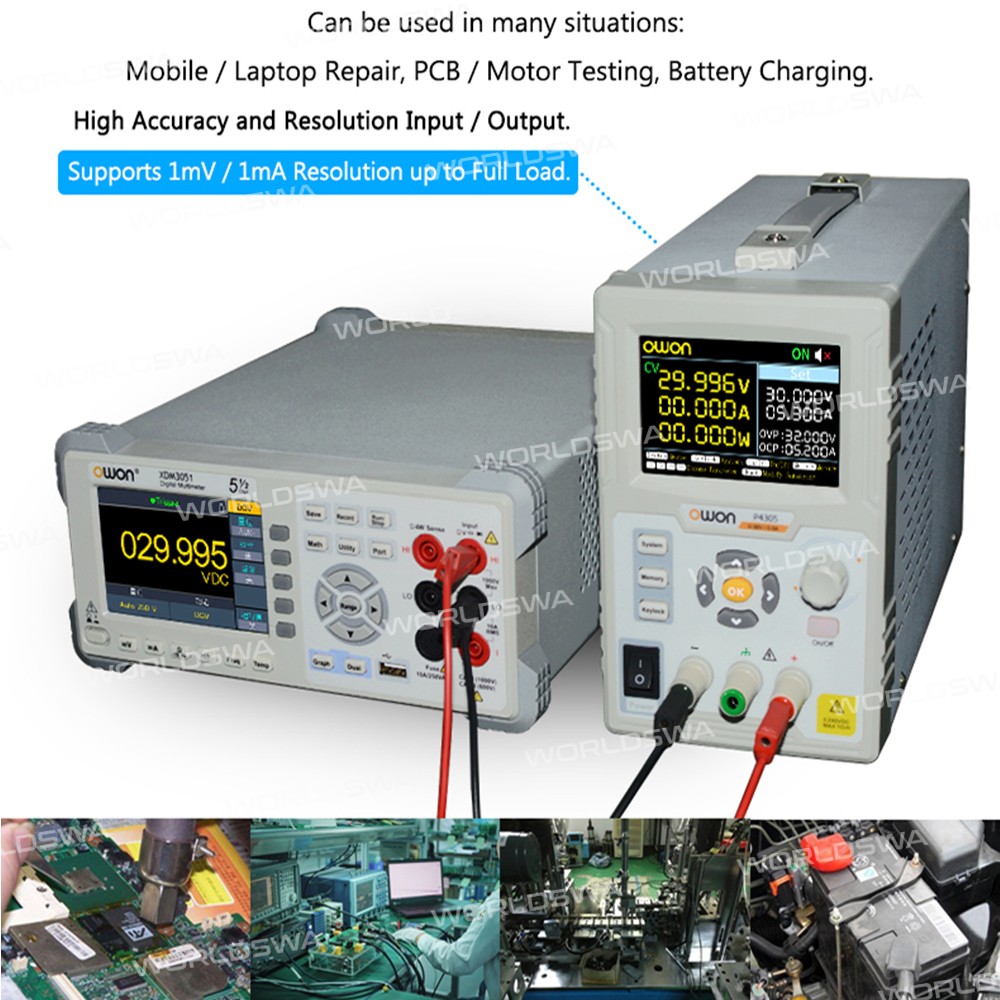

• Versatile Applications: Can be used in many situations such as mobile phones or laptops PCB repair, motor testing, battery charging

**Summary:** A portable, single-channel linear programmable regulated DC power supply with high accuracy measurement results, low ripple and noise, and efficient storage.

Specifications:

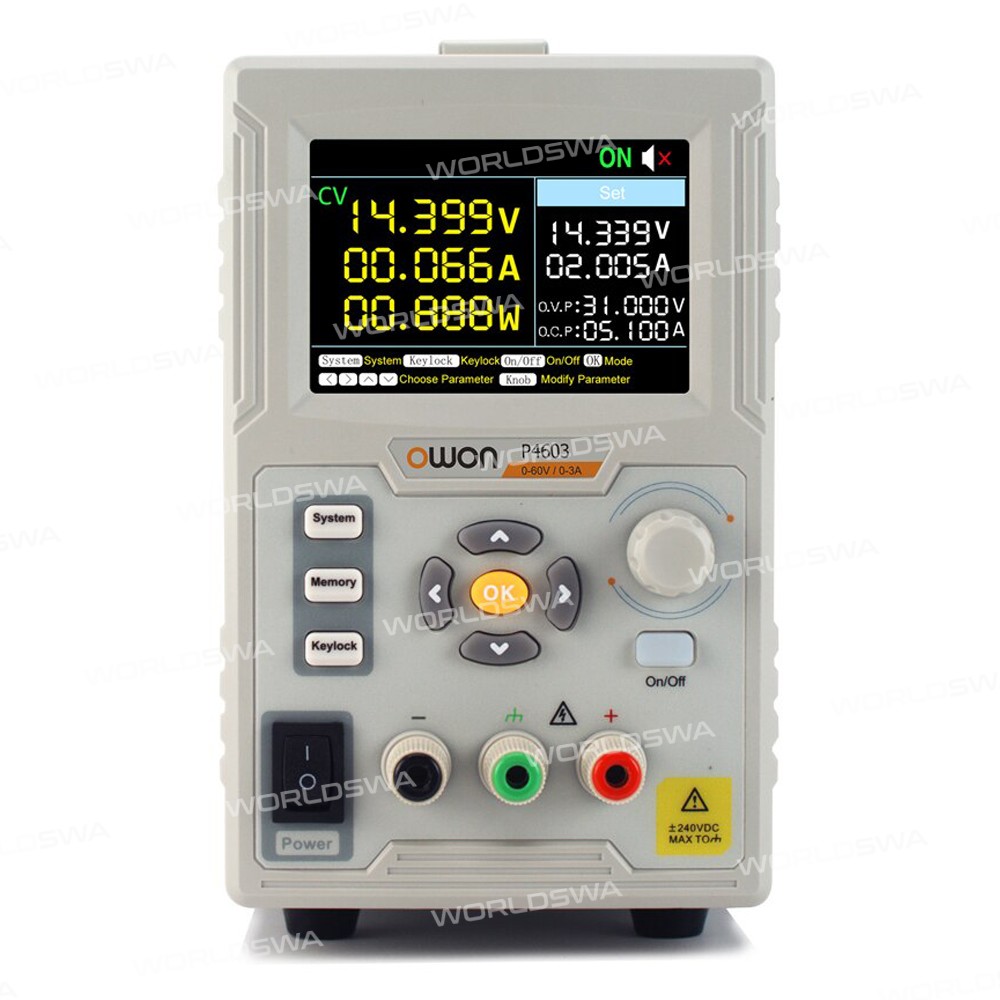

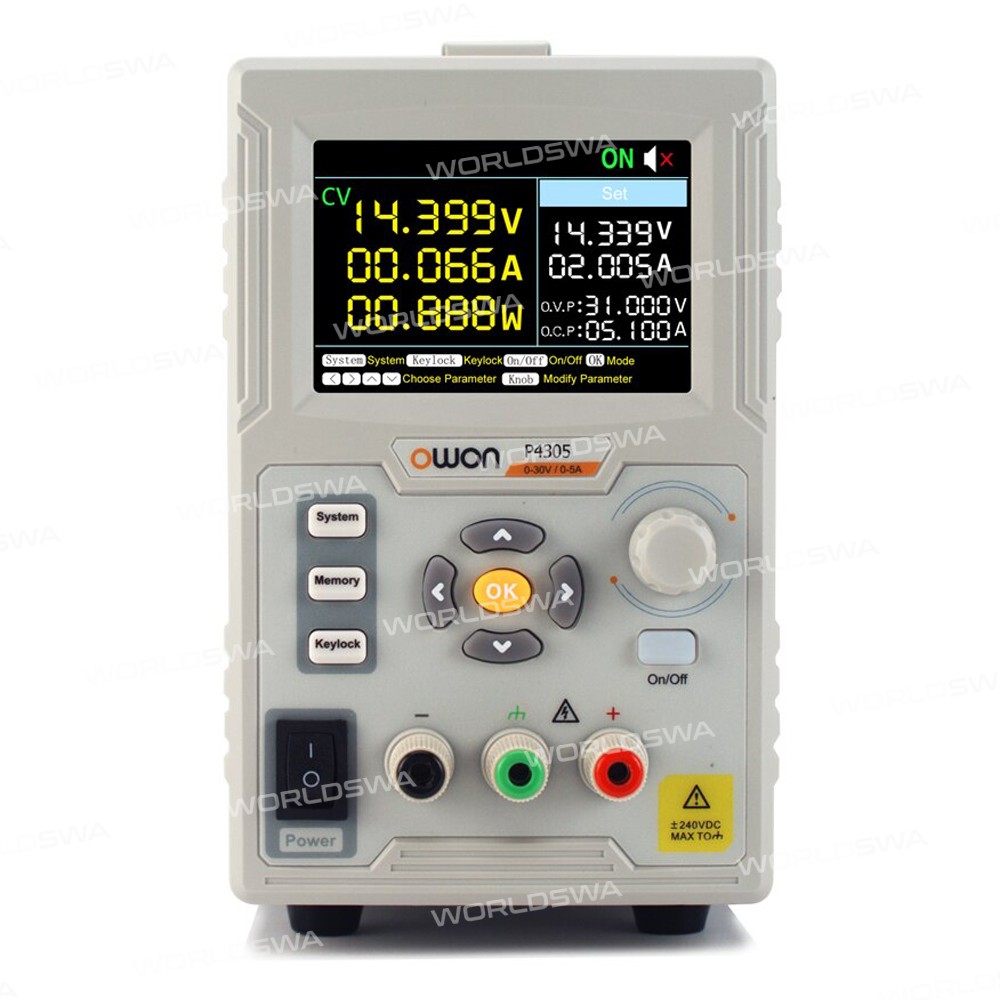

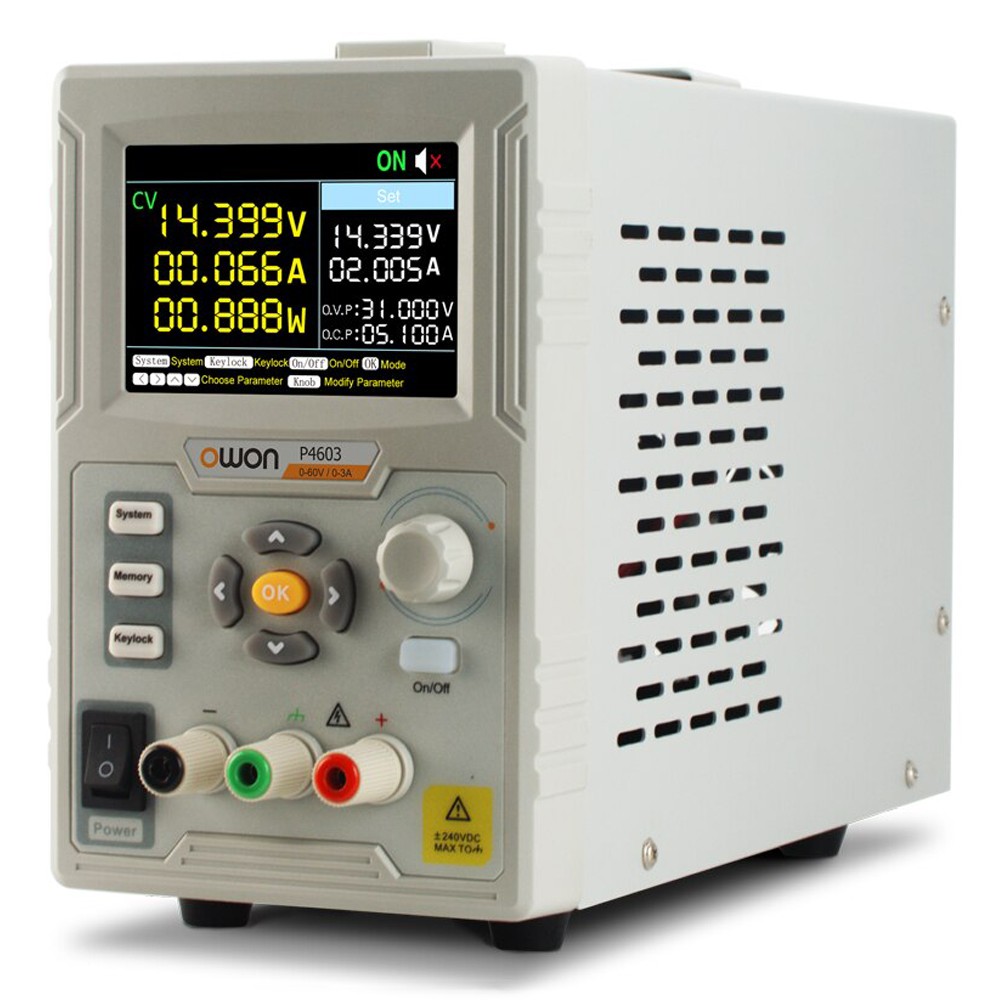

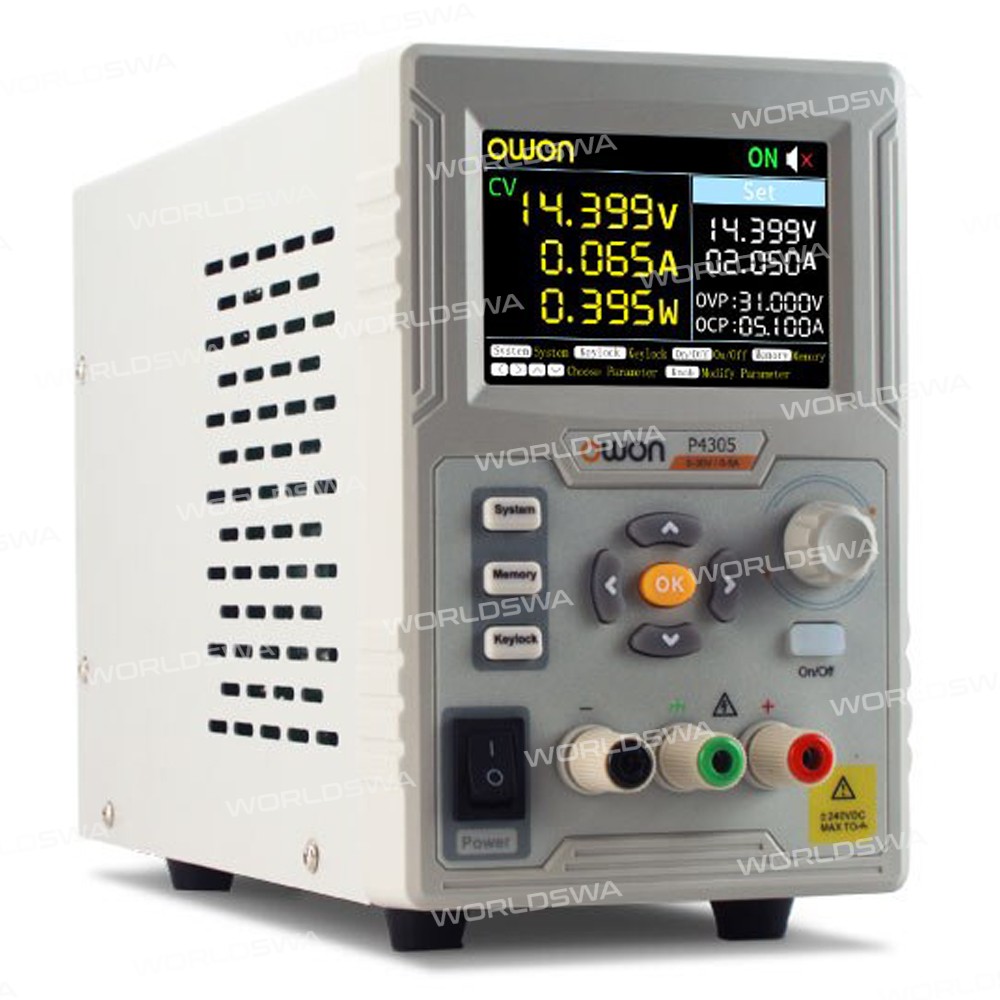

• Model: P4305/P4603
• Channel: Single Channel Output
• Total Output Power: 150W/180W
• Channel Output: 0-30V/0-5A; 0-60V/0-3A
• Display: 3.7-inch color LCD display

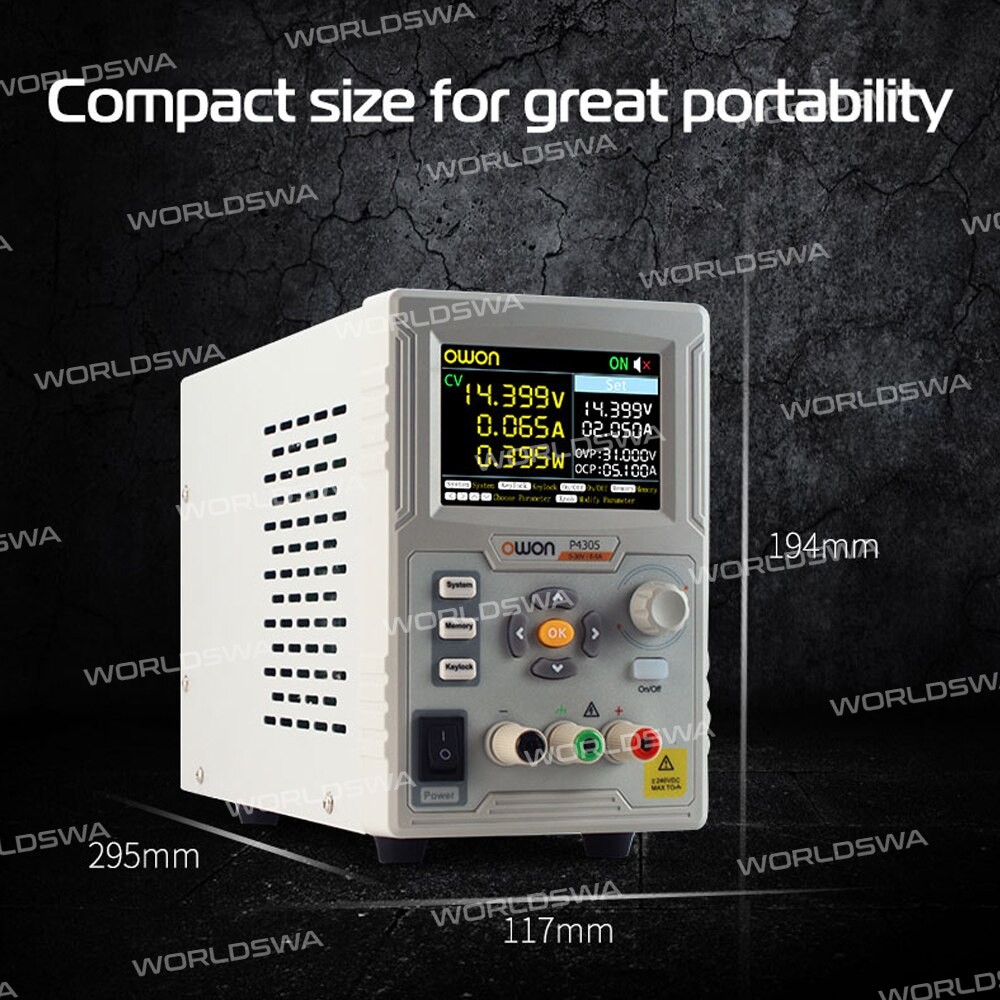

• Dimension: 117*194*295mm

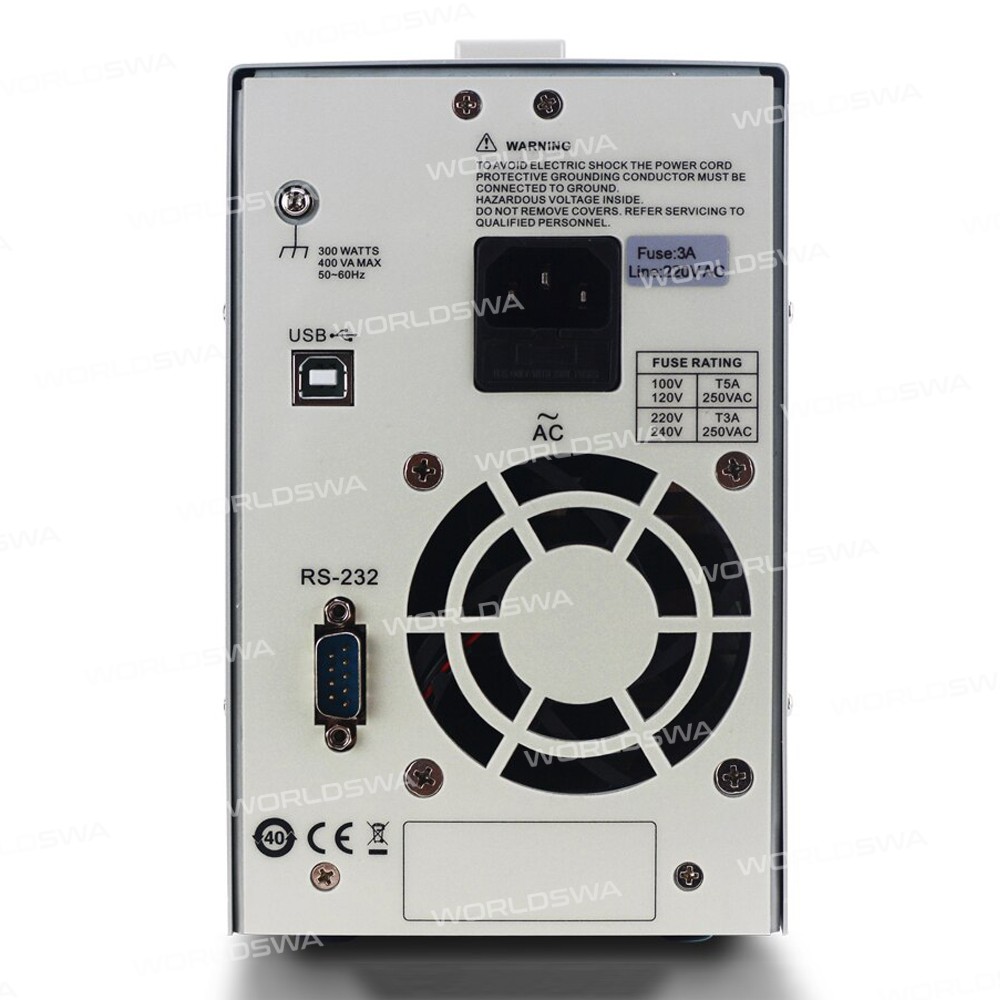

• Interface: RS232
• Rated Output Voltage(0℃-40℃): 0-30V/0-60V
• Rated Output Current(0℃-40℃): 5A/3A
• Load Regulation: Voltage: ≤0.01%+3mV; Current: ≤0.01%+3mA
• Power Regulation: Voltage: ≤0.01%+3mV; Current: ≤0.01%+3mA
• Setting Resolution: Voltage:1mV ; Current: 1mA
• Readback Resolution: Voltage: 1mV; Current: 1mA
• Setpoint accuracy(25℃±5℃): Voltage: ≤0.03%+10mV; Current: ≤0.1%+5mA
• Readback Resolution (25℃±5℃): Voltage: ≤0.03%+10mV; Current: ≤0.1%+5mA

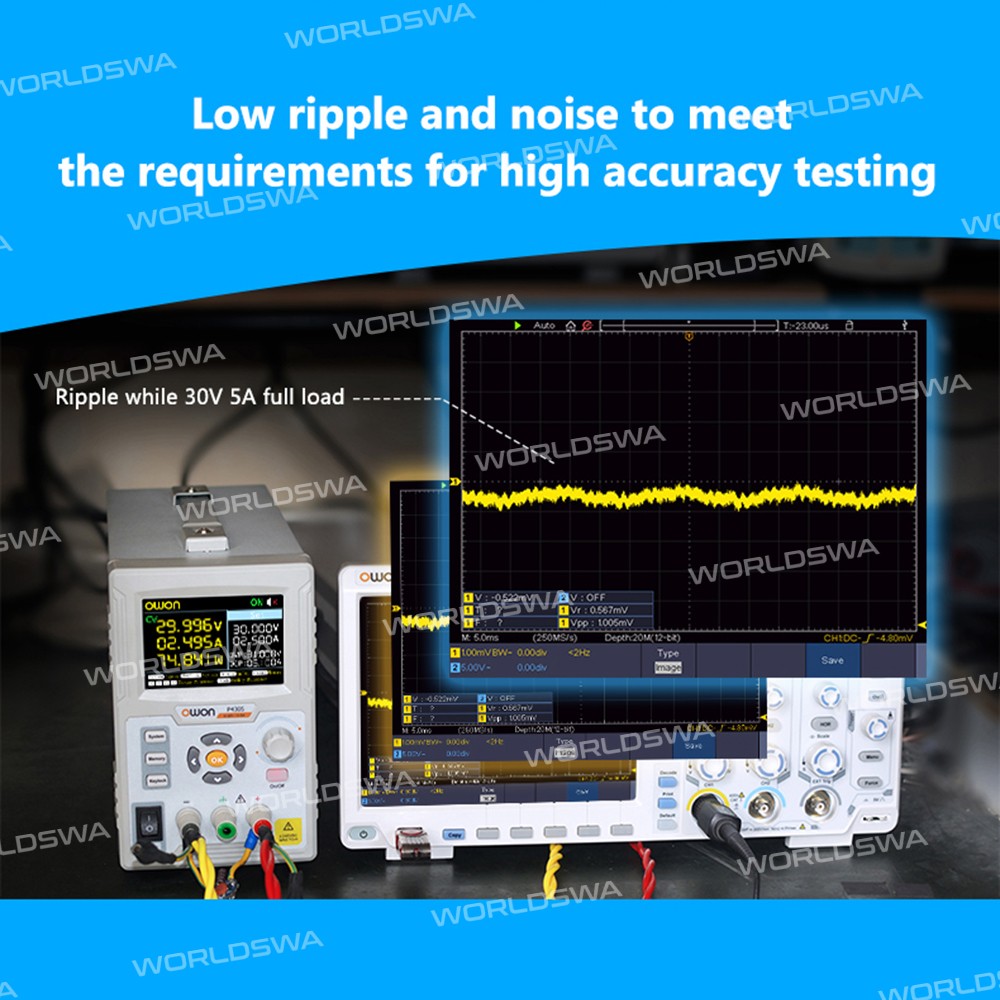

• Ripple/Noise (20Hz-20MHz): Voltage(Vp-p): ≤4mVp-p; Voltage(rms): ≤1mVrms Current: ≤4 Arms
• Output Temperature Coefficient (0℃-40℃): Voltage: ≤0.03%+10mV; Current: ≤0.1%+5mA
• Readback Temperature Coefficient: Voltage: ≤0.03%+10mV; Current: ≤0.1%+5mA
• Response Time: 100μs
• Storage: 5 groups of data
• Working Temperature: 0-40℃

Package Includes:

• 1 x Power Supply
• 1 x Power Cable
• 1 x Test Line

Notes: The instrument must be operated continuously for more than 30 minutes at the specified temperature to ensure the following parameters
