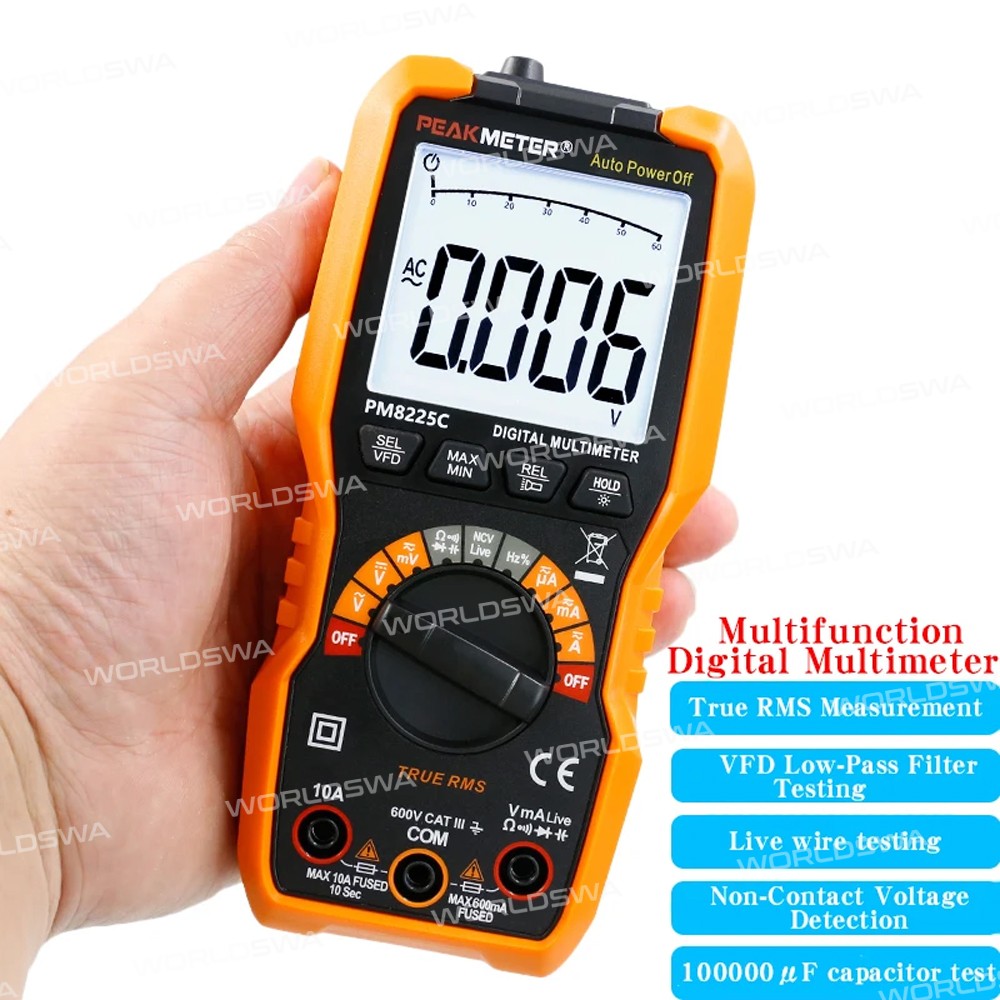

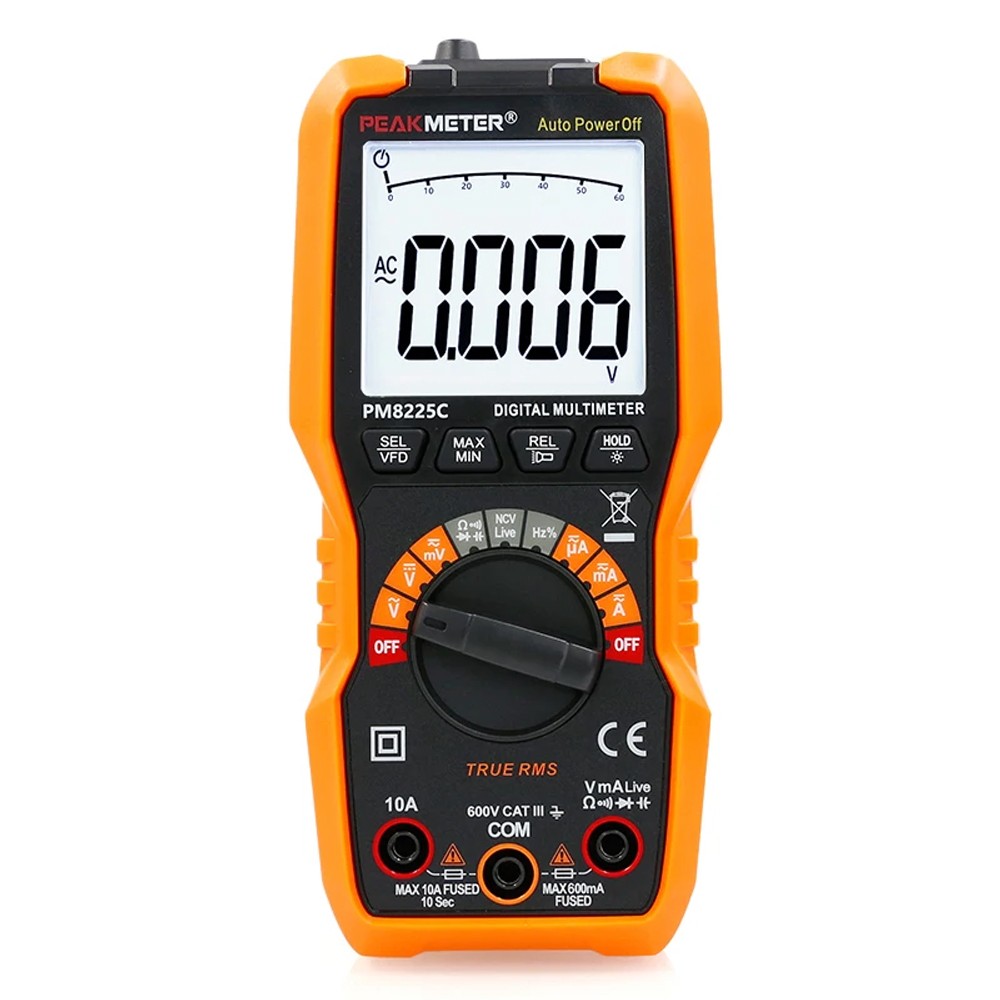

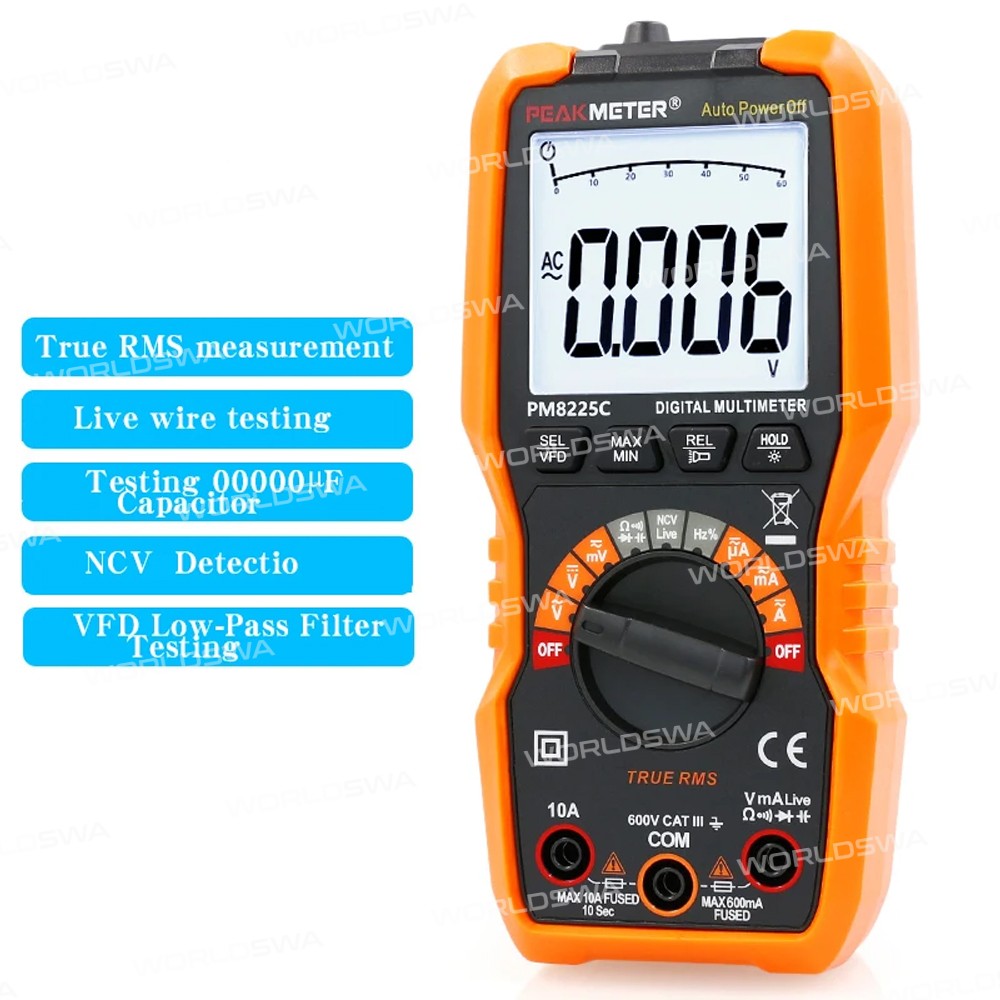

PEAKMETER PM8225C High-Precision Anti-Burning Digital Multimeter for Household Use

PEAKMETER PM8225C High-Precision Anti-Burning Digital Multimeter for Household Use

Features:

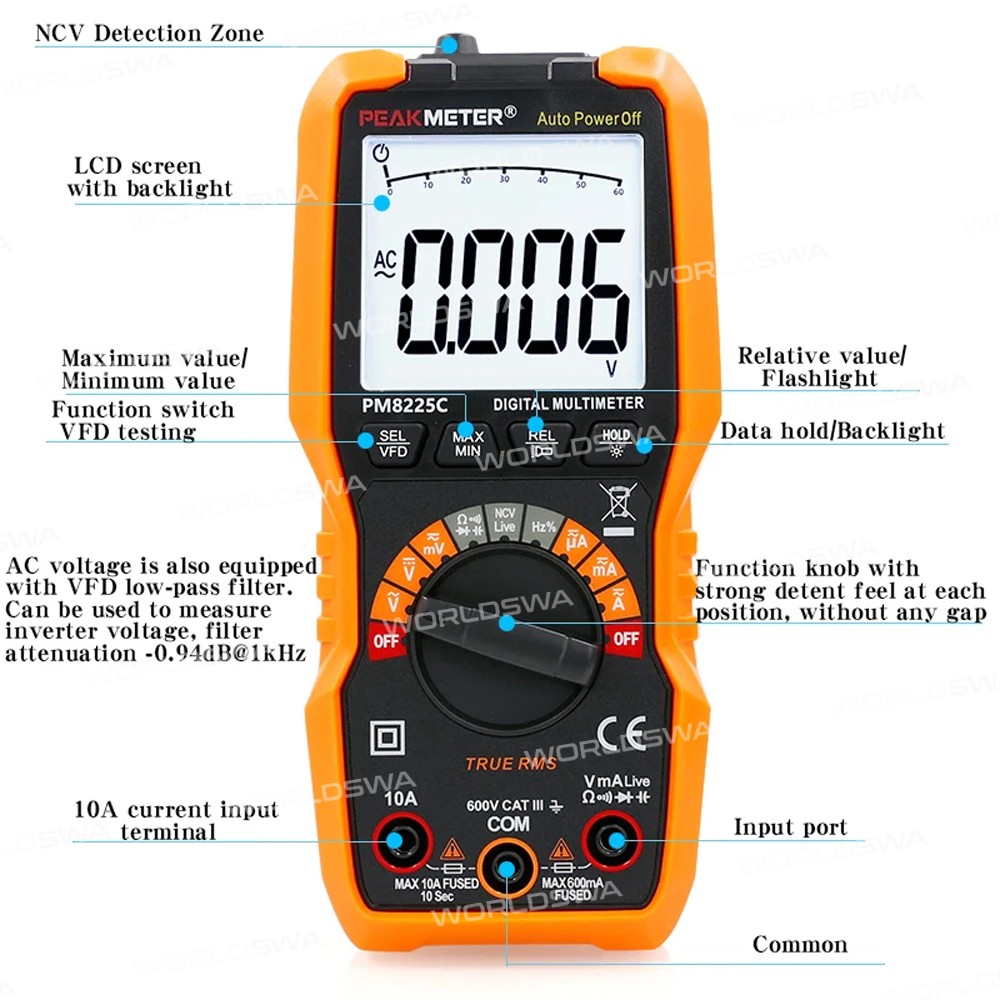

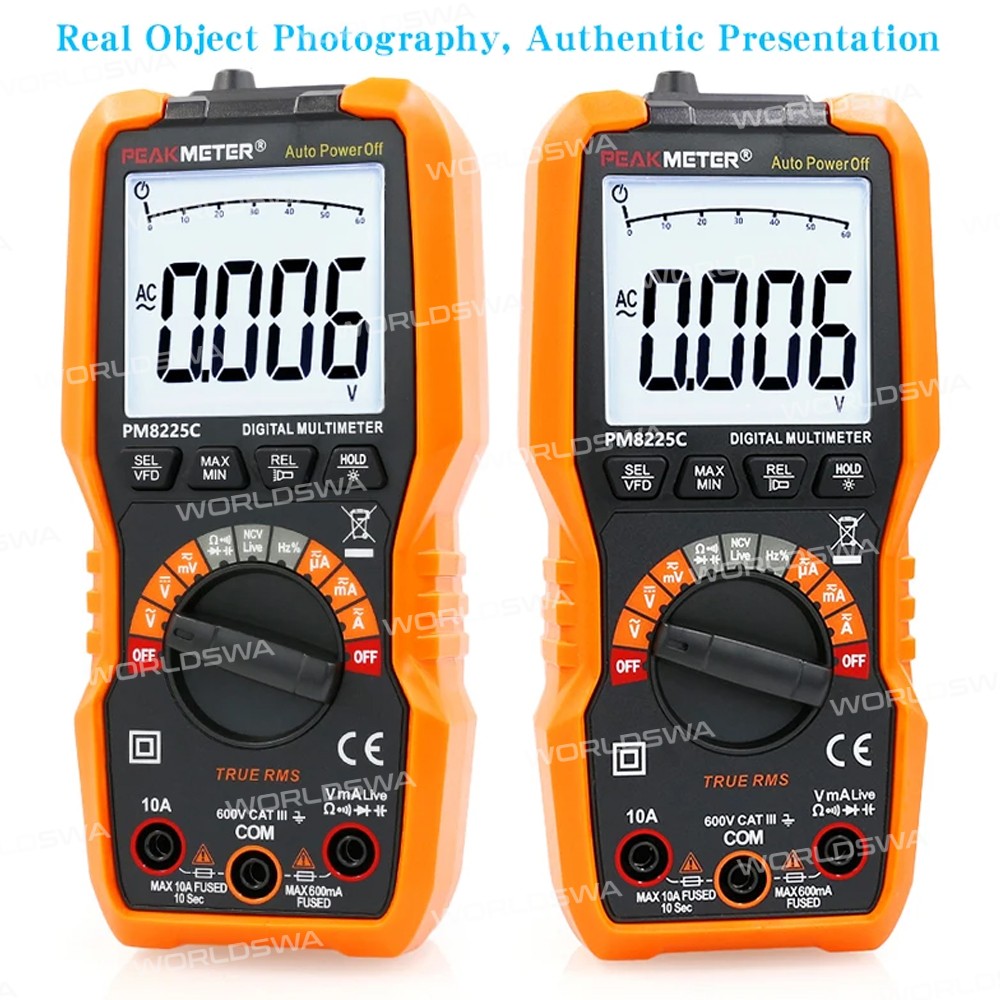

• This instrument retains the features of PM8225’s large LCD screen, dust-proof dial, and soft rubber protective shell, and has been further upgraded in functions, buttons, dials, etc

• 6000 counts display, high precision measurement

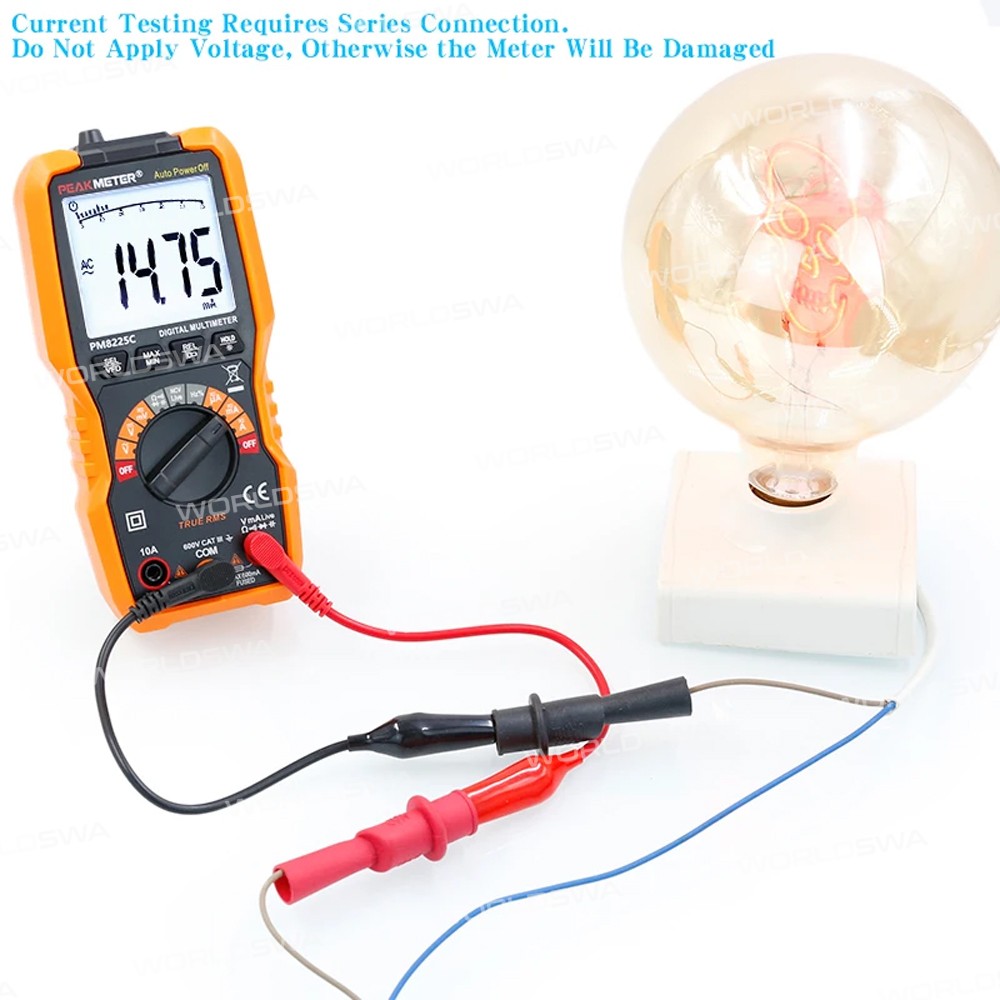

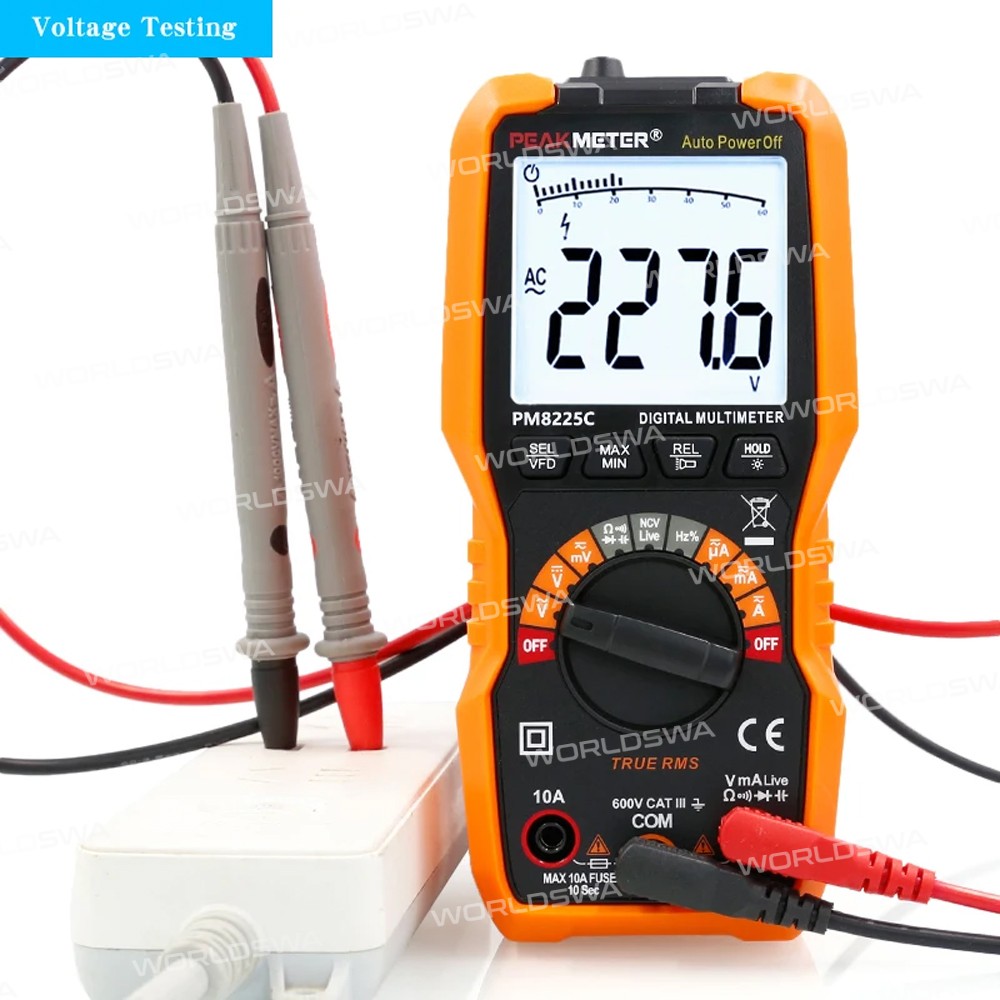

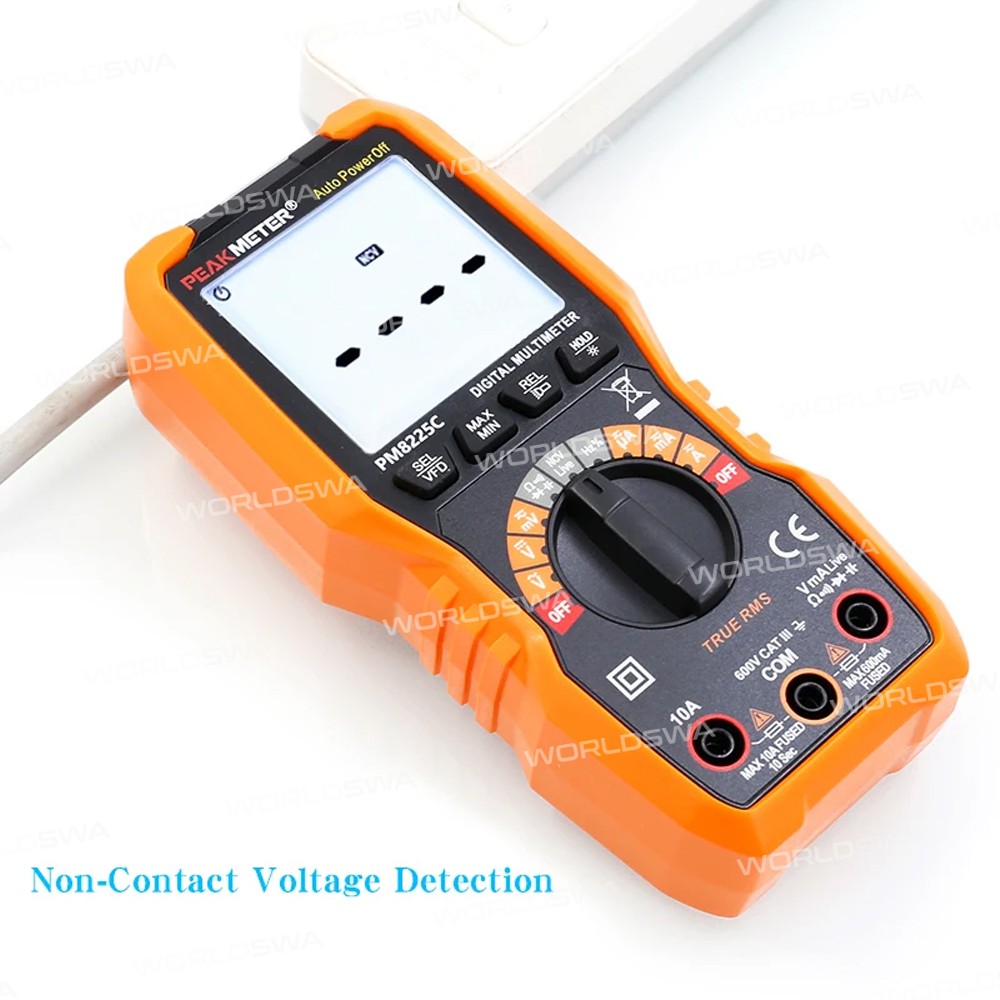

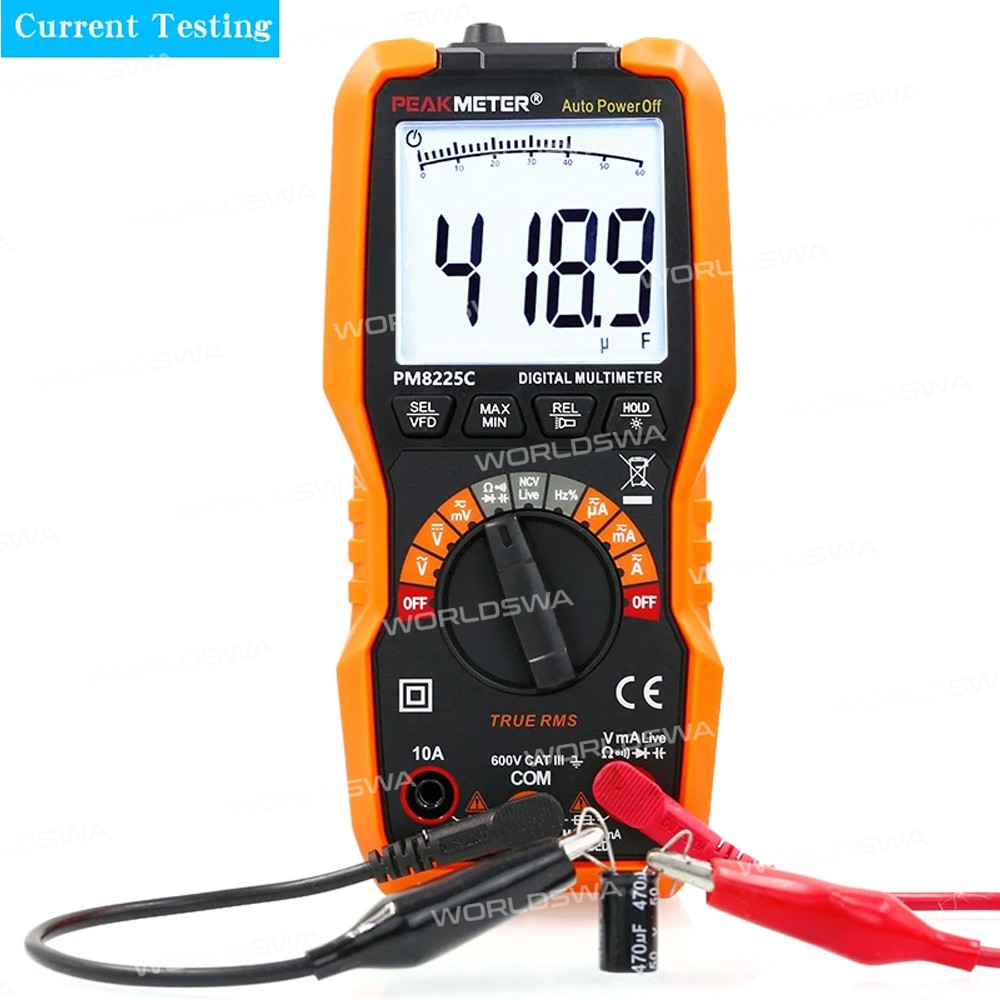

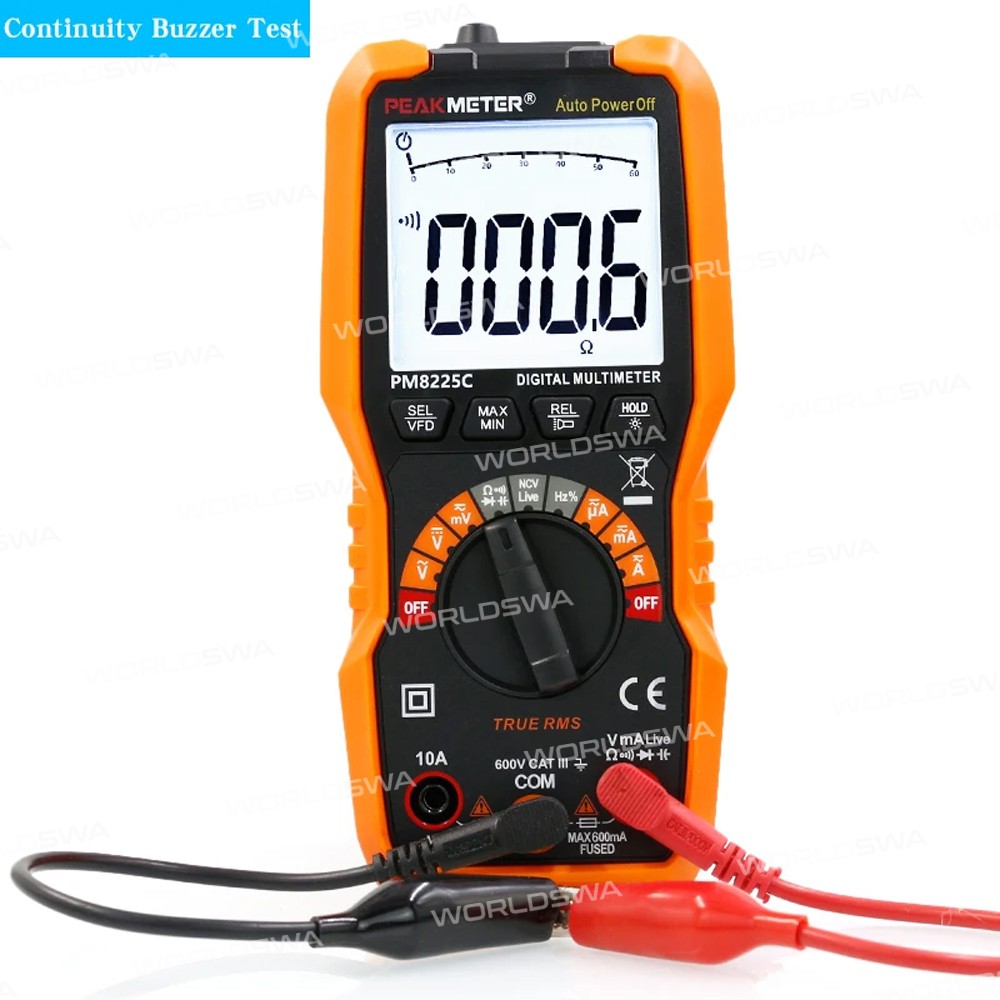

• In addition to AC and DC voltage, DC current, resistance measurement, and NCV, continuity detection, the function adds AC current, capacitance, frequency measurement, and live wire detection

• The function keys are clear and easy to operate, and the range is automatically selected to reduce the user’s operation

• The meter is designed with an anti-burning circuit, with two fuses of 600mA/600V and 10A/600V to protect the meter circuit

Specification:

	Range	Accuracy
DC Voltage	60mV/600mV/6V/60V/600V	±(0.5%+3）
DC Current	600uA/6mA/60mA/600mA	±(0.8%+3)
	6A/10A	±(1.2%+3)
AC Voltage	60mV/600mV/6V/60V/600V	±(0.8%+3)
AC Current	600uA/6mA/60mA/600mA	±(1.0%+3)
	6A/10A	±(1.5%+3)

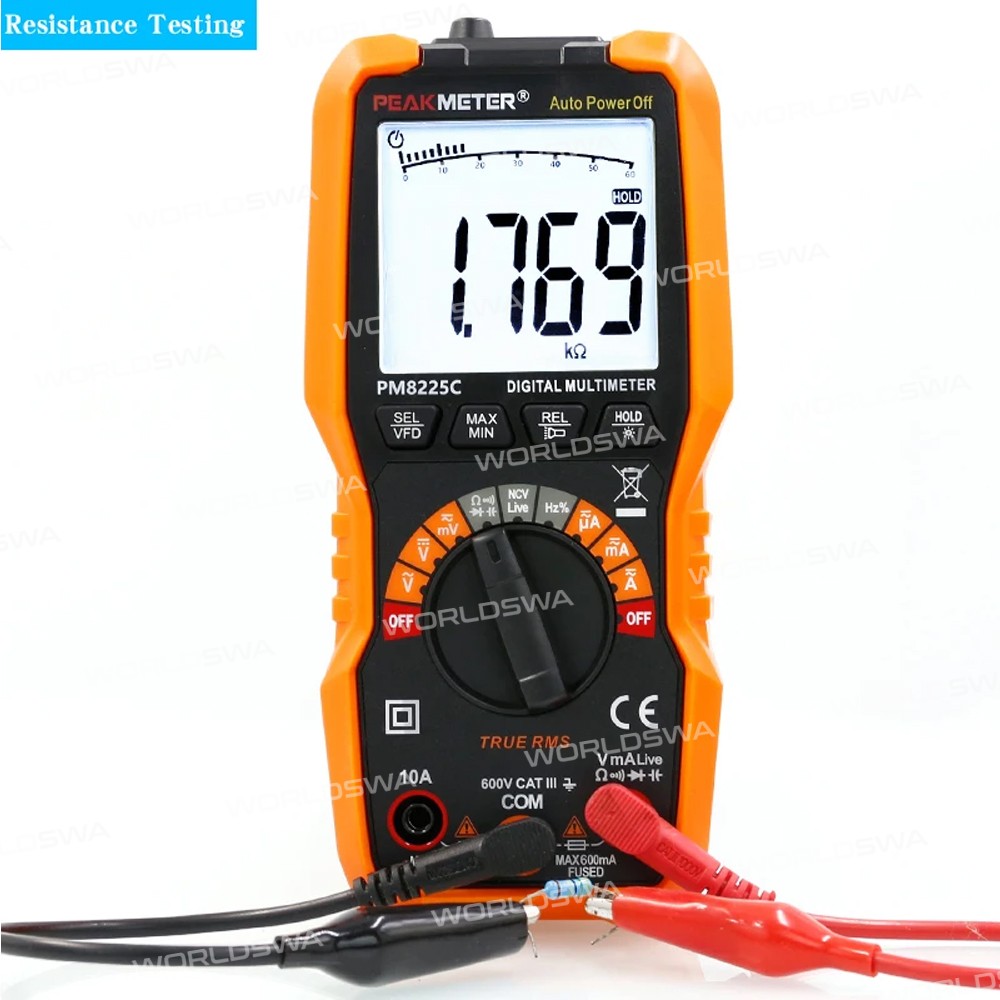

Resistance	600Ω/6kΩ/60kΩ/600kΩ/6MΩ	±(1.2%+5)
	60MΩ	±(2.0%+5)
Capacitance	10nF/100nF/1uF/10uF/100uF	±(3.0%+5)
	1mF/10mF	±(4.0%+5)
	100mF	±(5.0%+5)
Frequency	10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz	±(1.0%+5)
Duty	1%~99%	±(3.0%+5)
Feature
Display	6000 counts
Continuity	Yes
NCV	Yes

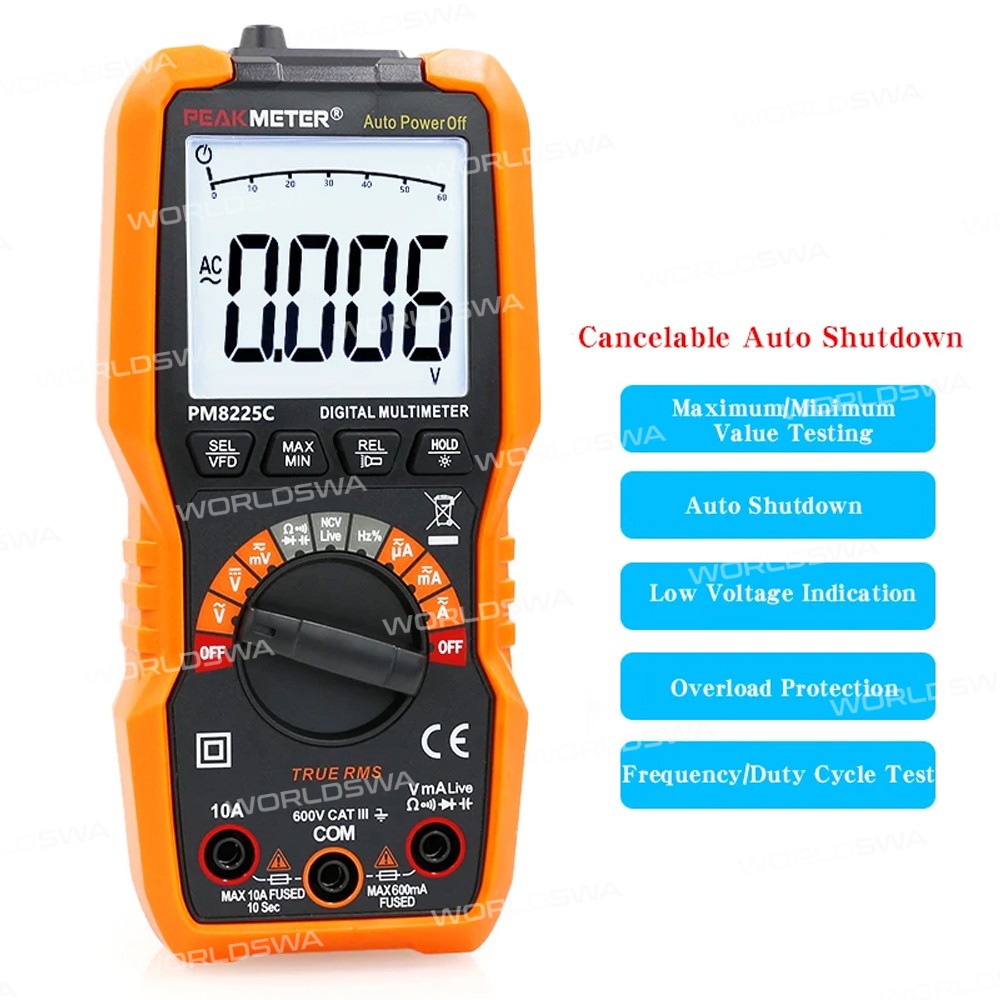

AutoPowerOff	Yes
BackLight	Yes
WorkLight	Yes
Low Battery Indication	Yes
Data Hold	Yes

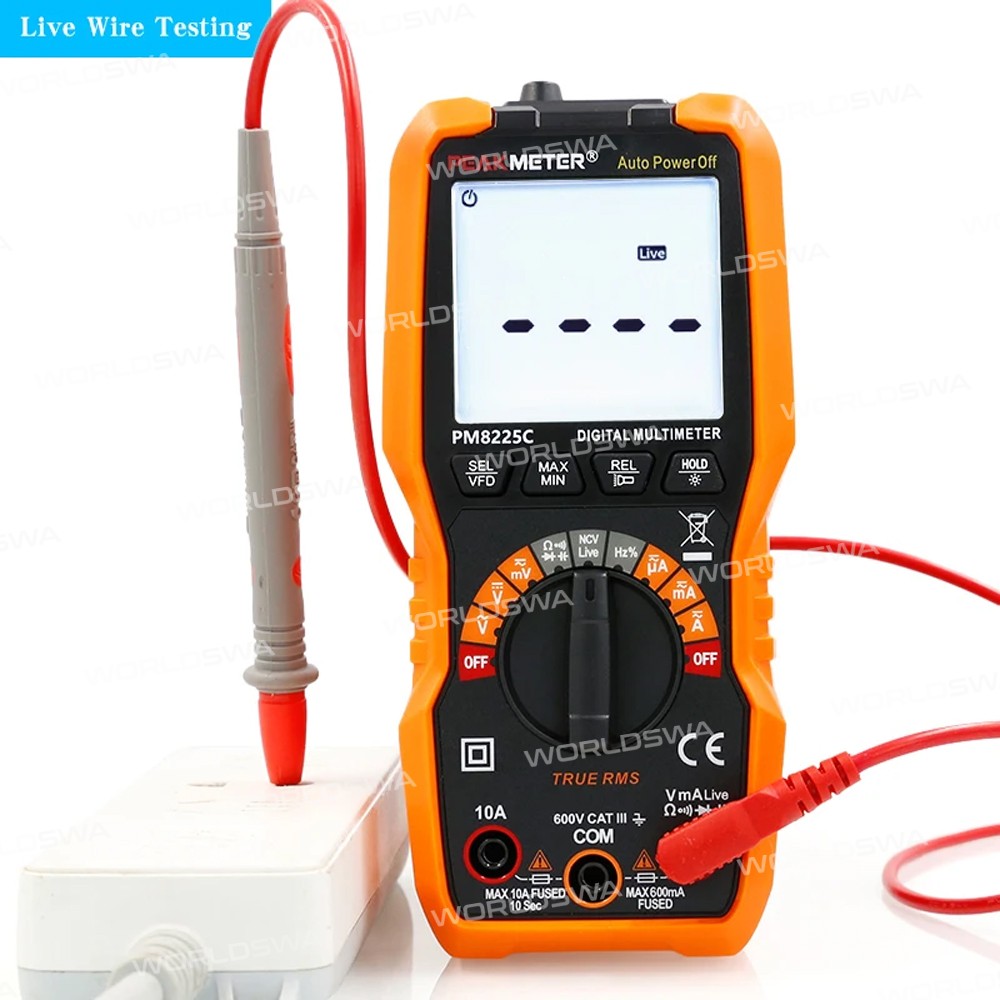

Live LineTest	Yes
General
Power Supply	2*1.5V AAA Batteries (Not includes)
Weight	About 268g

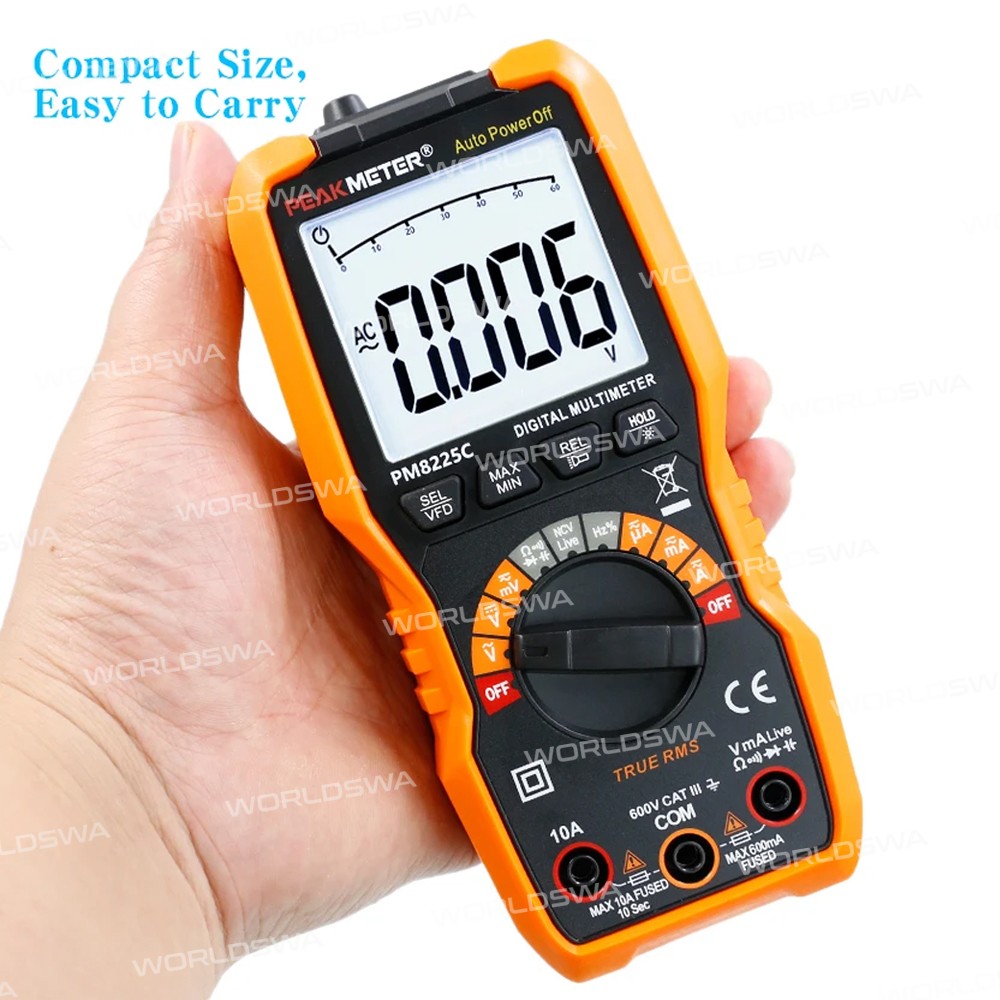

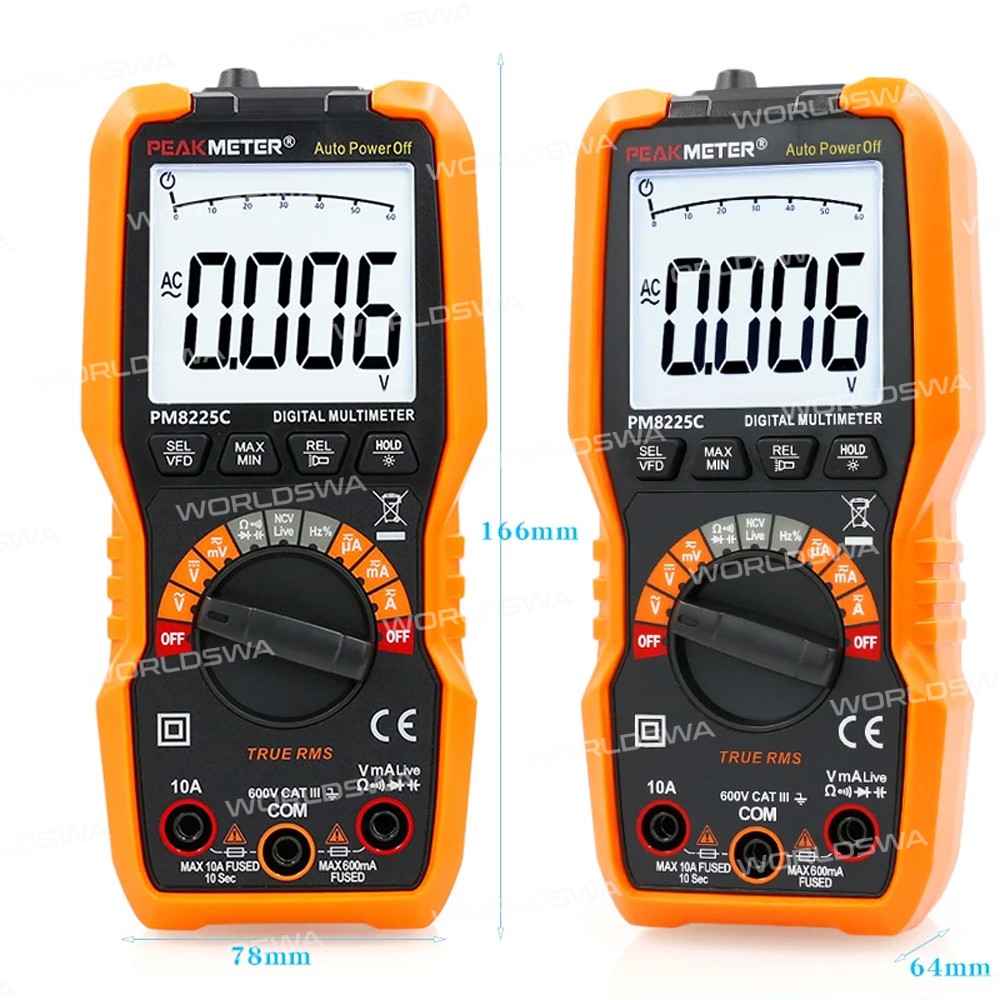

Size	166mm*78mm*48mm
Safety Rating	EN61010-1. EN61010-2-033. EN61326, CAT.II 600V

Package includes:

• 1 x Multimeter (without Battery)

• 1 x Test Leads
