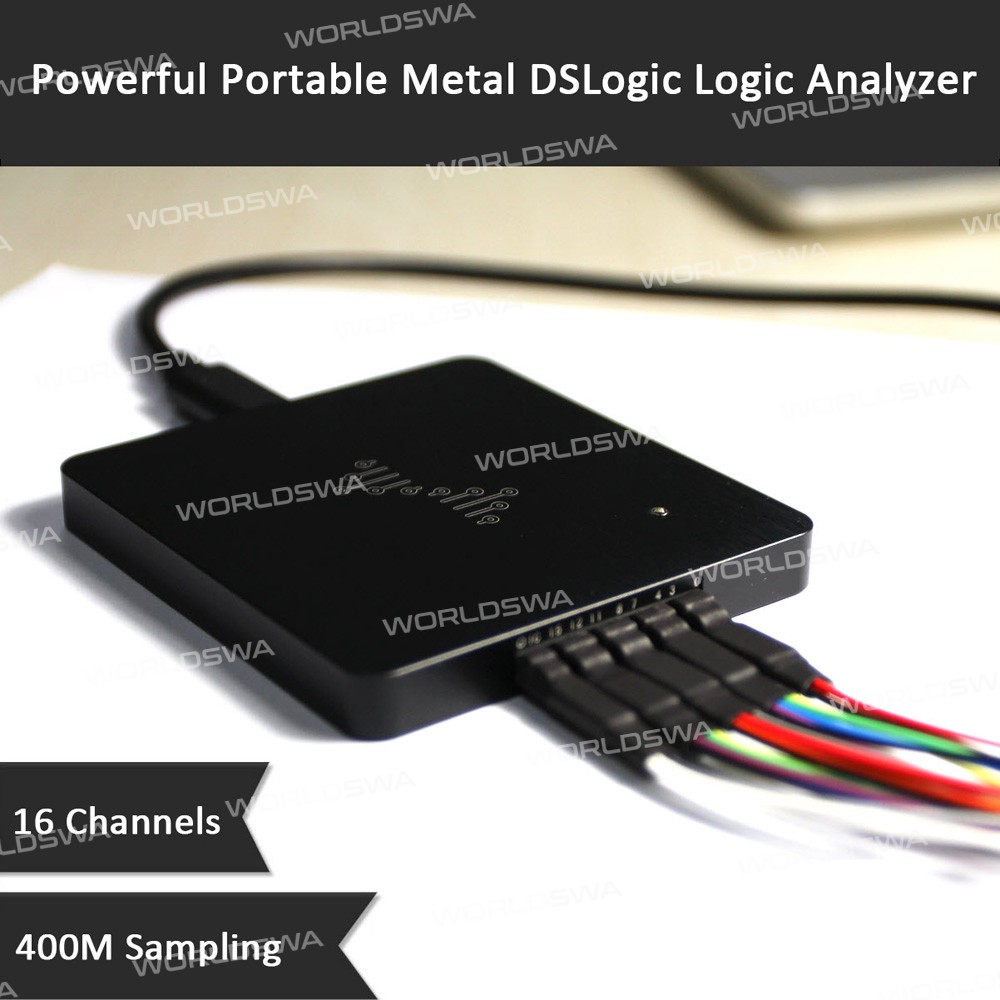

DS Logic Logic Analyzer - 16 Channels, Portable, Powerful Metal, USB-based Debugging Tool

Portable Powerful Metal DS Logic Logic Analyzer 16 Channels Sampling USB-based Debugging Logic Analyzer

Features:

• **High-Speed Sampling**: Up to 400 MHz real-time sampling, 50 MHz sampling status, and a sampling depth of 16 M * 16 channels.
• DSLogic is a USB-based logic analyzer.
• The realization of high-voltage electrostatic TVS and ESD protect, also supports continuous voltage input protect and USB interface flow protection.
• Two modes: stream mode through USB real-time transmission, using PC memory to store data, and buffer mode with hardware memory to achieve a high sampling rate.
• Support adjustable threshold, compatible with various voltage standards, and can turn off the interference area automatically.
• A metal surface, 360-degree noise shielding can meet the complex surrounding test needs. Quick heat elimination, stable electric heating working.
• It has a 1.6 Gbps sampling bandwidth.
• Covering almost all common serial board-level and field level bus protocol, with clear and intuitive data and convenient to see.
• Small size, easy to carry, use USB power, easy on-site commissioning.

Specifications:

• Material: Plastics
• Type: Basic version, Upgrade version (optional)
• Model Number: DSLogic Logic Analyzer
• Model: Stream + Buffer
• Maximum sampling rate:
  • 4 channels @ 400 MHz
  • 8 channels @ 200 MHz
  • 16 channels @ 100 MHz
• Continuous Adjustable Threshold Voltage Range: 0.5 V to + 5 V
• The Input Voltage Range: - 30 V to + 30 V
• Input Impedance: 250 kohm

Basic Version:

• The onboard storage depth: Total 64M
• Hardware Memory: 64M
• The Largest State Sampling Clock: 30 M

Upgrade Version:

• The onboard storage depth: Total 256 M
• Hardware Memory: 256Mbits
• The Largest State Sampling Clock: 50 M

Package includes:

Basic Version:

• 1 x Basic Main Machine
• 1 x Type-C Data Cable
• 4 x DuPont Line
• 16 x Clip

Upgrade Version:

• 1 x Plus Main Machine
• 1 x Type-C Data Cable
• 5 x Shield Line
• 16 x Clip
