Pro'sKit MT-2207 Mechanical Multimeter, Internal Magnetic, Anti-Burning & Anti-False Test Pointer Type

Pro'sKit MT-2207 Internal Magnetic Anti-Burning Anti-False Test Pointer Type Mechanical Multimeter

Functions:

• High-sensitivity shock-resistant internal magnetic meter head
• AC/DC voltage 2500V measurement
• DC current 10A measurement

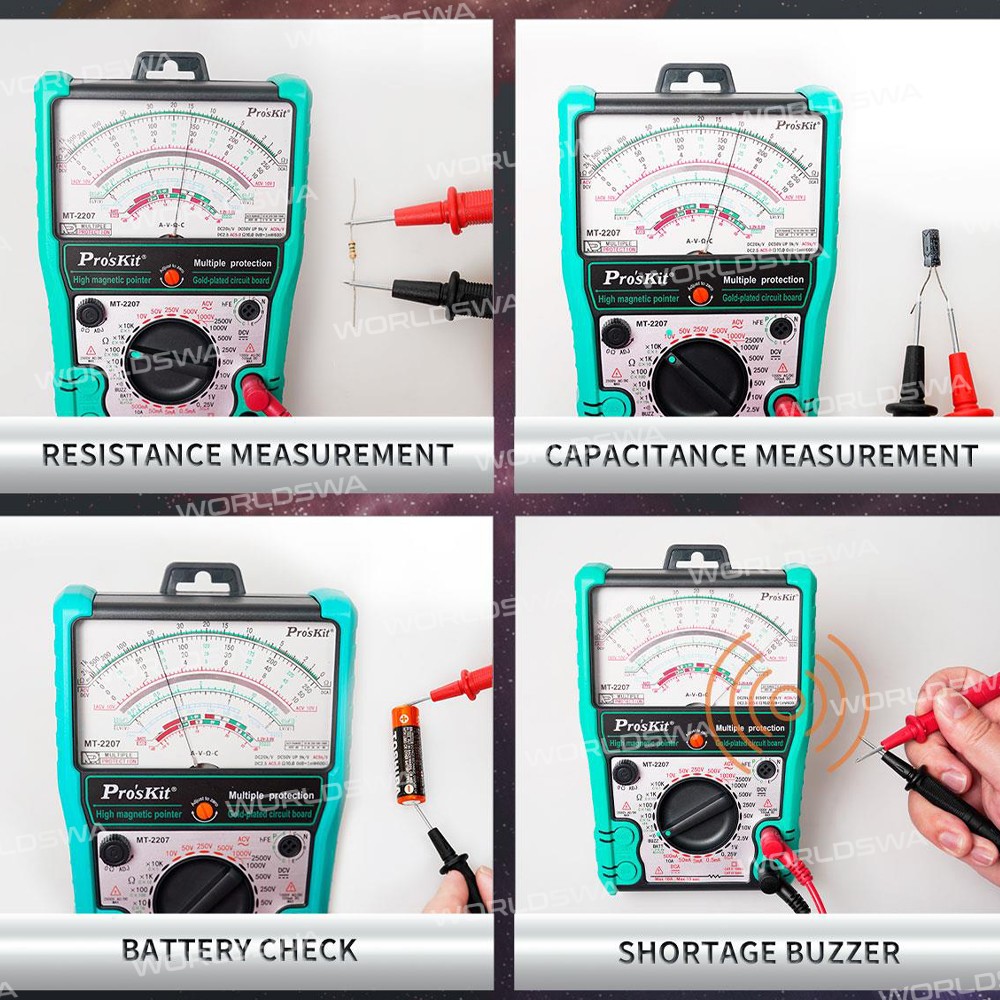

• Resistance/Capacitance Measurement
• Battery/diode on/off test
• Transistor/LED test
• False alarm/fuse protection
• HFE test
• Short Circuit Beeping
• Pointer Zeroing

Summary of Features:

• High-sensitivity shock-resistant internal magnetic meter head

• Advanced measurement capabilities including AC/DC voltage, DC current, resistance, and capacitance

• Various test functions for battery, diode, transistor, and LED

• False alarm and fuse protection for safe operation

• Short circuit beeping and pointer zeroing for convenient use

Specifications:

• Model: MT-2207
• DCV: 0.25V/1V/2.5V/10V/50V/250V/500V±3%FSD; 1000V(2500V) ±4%FSD
• ACV: 10V/50V/250V/500V ±4%FSD; 1000V(2500V) ±5%FSD
• DCA: 50uA/0.5mA/50mA/500mA ±3%FSD; 10A ±4%FSD
• Resistance: X1(0.2~2KΩ)/X10(2~20KΩ)/X100(20~200KΩ)/X1K(200~2MΩ)/X10K(2K~20MΩ) ±4.0% ARC of scale length
• Capacitance Cx1/Cx10/Cx100/Cx1K/Cx10K Approx .Value
• Continuity with beeper: <50Ω
• HFE test: Yes
• Diode LED test: Yes
• Battery check: 1.2V~3.6V
• Infrared signal detection: No
• Decibel(dB): Yes
• FUSE: F0.5A 250V; F10A 250V, Φ5x20mm
• Power source: 1.5V AAA Battery*2 (Not included)
• Weight: 400g
• Dimensions: 179*118*50mm

Package Includes:

• 1 x Multimeter (Without Battery)
• 1 x Test Leads
