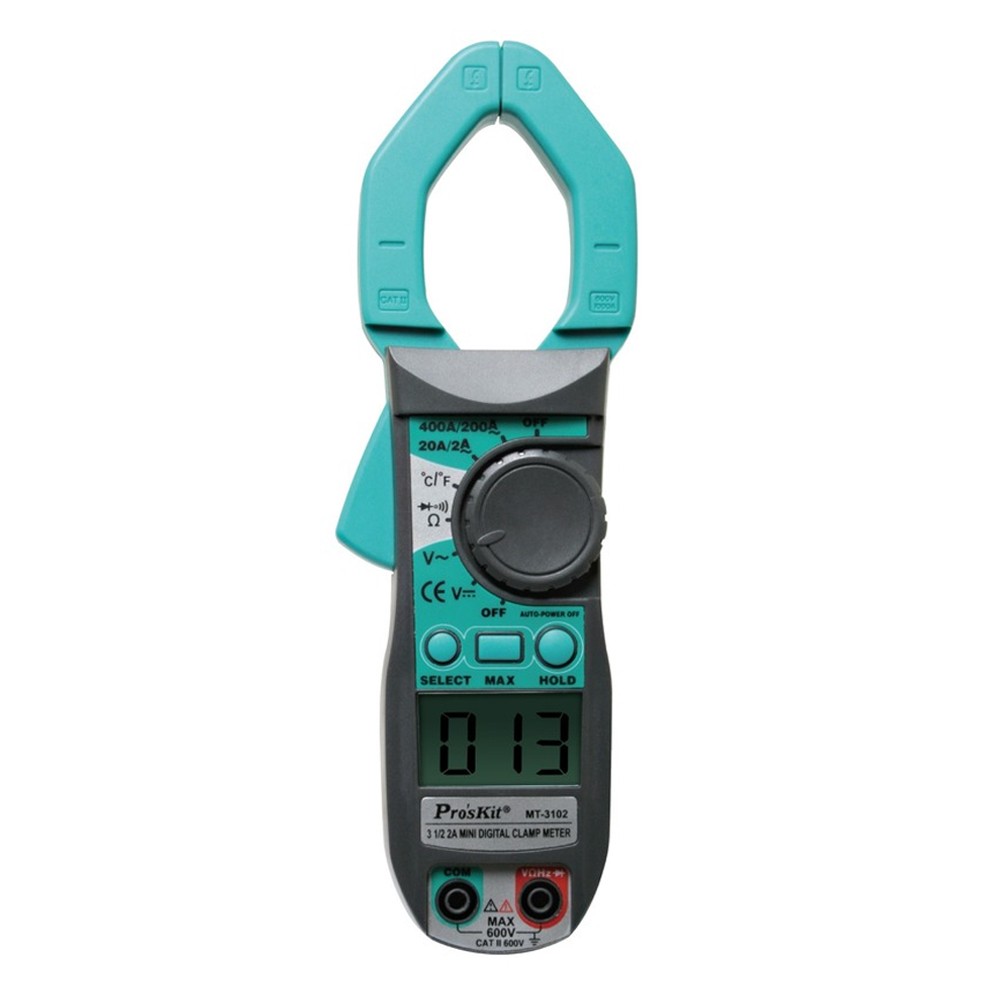

Pro'sKit MT-3102 Digital Clamp Meter: AC / DC Voltage, Current, Temperature Test

Pro'sKit MT-3102 AC/DC Voltage Current Digital Display Clamp Meter with Temperature Test

Features:

• **Summary: 3-in-1 clamp meter with advanced features for accurate measurements**
• 3/4 digit AC/DC capacitance digital display clamp meter, anti-mismeasurement, safety against burning, overload protection, AC/DC measurement, automatic shutdown
• Small body design, can be operated with one hand, comfortable to grasp, does not occupy space when using
• Easy to use, more labor-saving operation, so that the measurement of dense rows of lines becomes easy
• With automatic shift, automatic shutdown, power-saving sleep mode, data retention, maximum value record, short-circuit beep, battery low voltage indication, and other functions
• Can measure: DC voltage, AC voltage, DC current, AC current, resistance, capacitance, frequency, secondary body, accuracy: 1.0%
• Maximum jaw opening: Φ30mm

Specification:

• DC voltage: 400m/4V ±(1.0%+3d), 40/400V ±(1.0%+1d), 600V ±(1.0%+5d)
• AC voltage: 4/40/400V ±(1.2%+5d), 600V ±(1.5%+5d)
• DC current: 40A ±(2.5%+5d), 400A ±(2.5%+3d)
• AC current: 40A ±(3.0%+8d), 400A ±(3.0%+5d)
• Resistance: 400Ω ±(1.2%+5d), 4k/40k/400kΩ ±(1.0%+5d), 4MΩ ±(1.2%+5d), 40MΩ ±(1.5%+5d)
• Frequency: 10/100/1k/10k/100k/1MHz ±(0.1%+5d), 10MHz (reference value)
• Capacitance: 40n/400n/4μ/40μF ±(5.0%+10d), 100μF ±(6.0%+10d)
• Short-circuit beep: Yes
• Diode test: Yes
• Battery: AAA(1.5V) x 3 (not included)

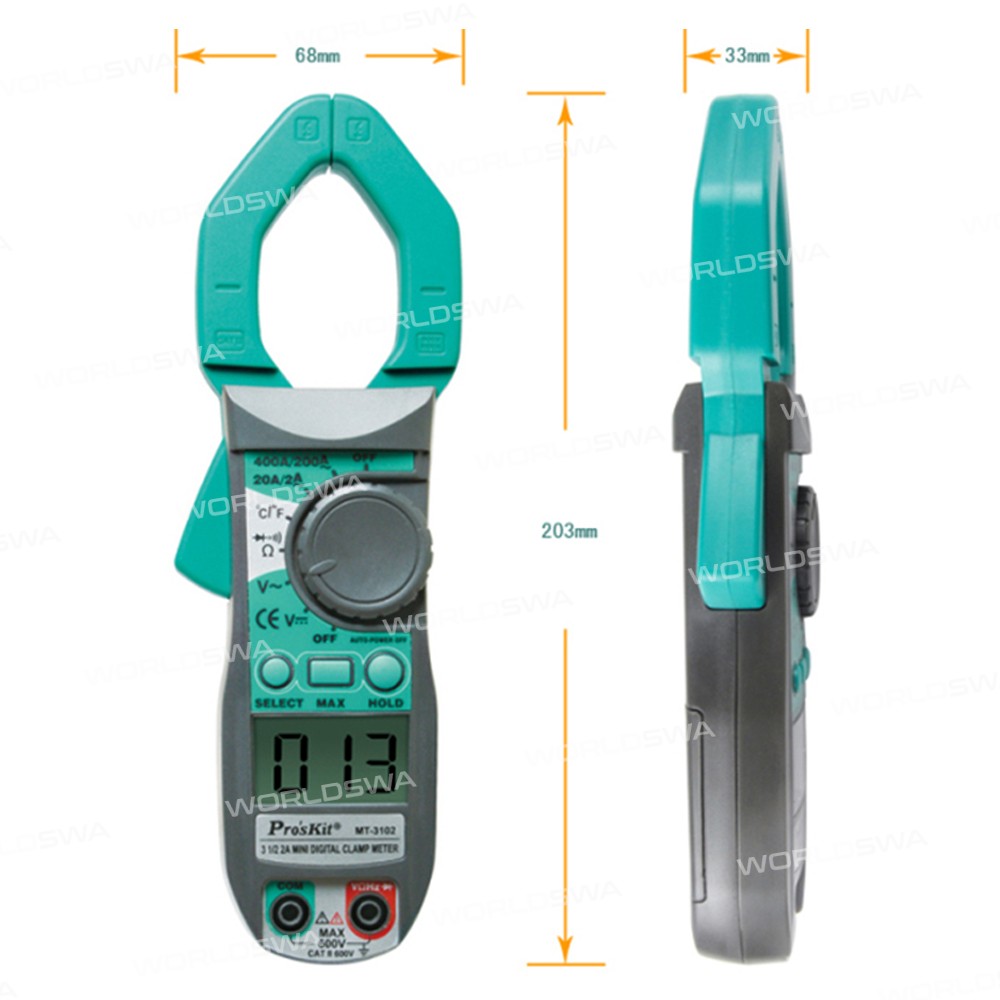

• Dimension: 203*68*33 mm

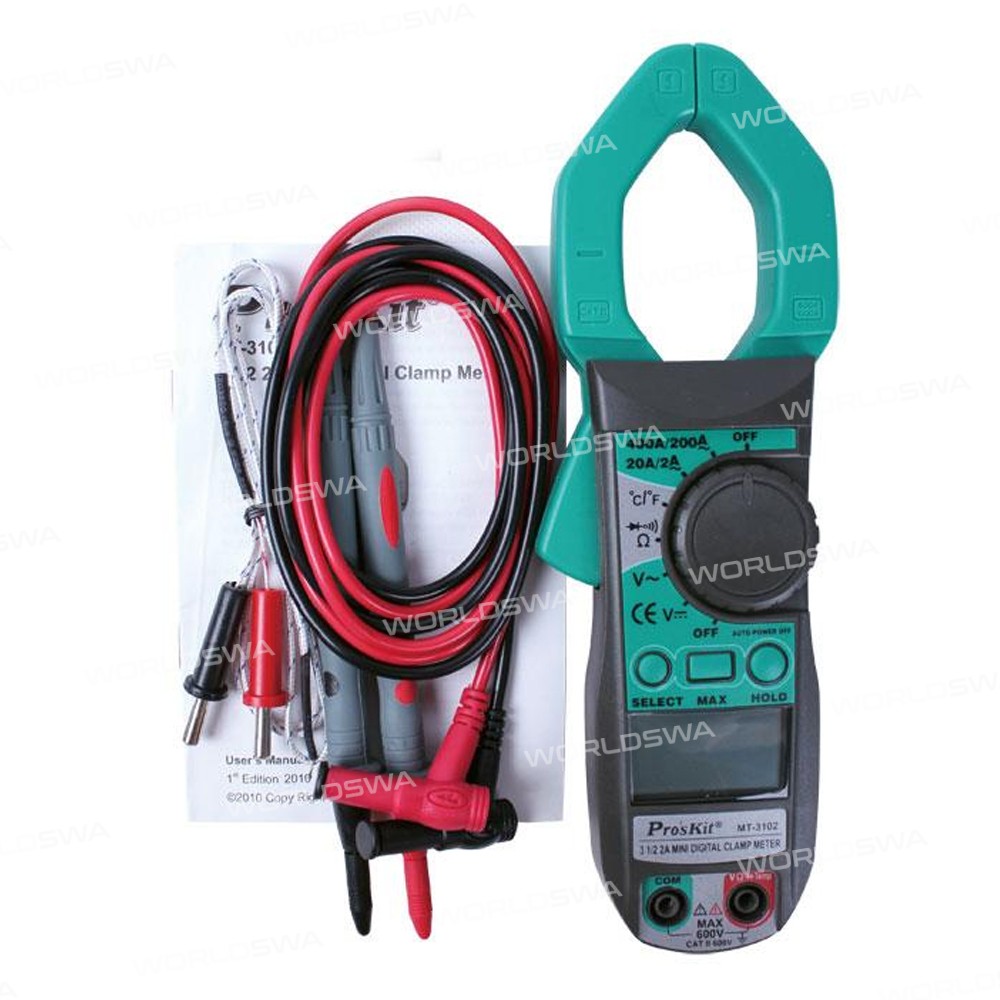

Package includes:

• 1 x Clamp Meter(without Battery)
• 1 x Test Cable
