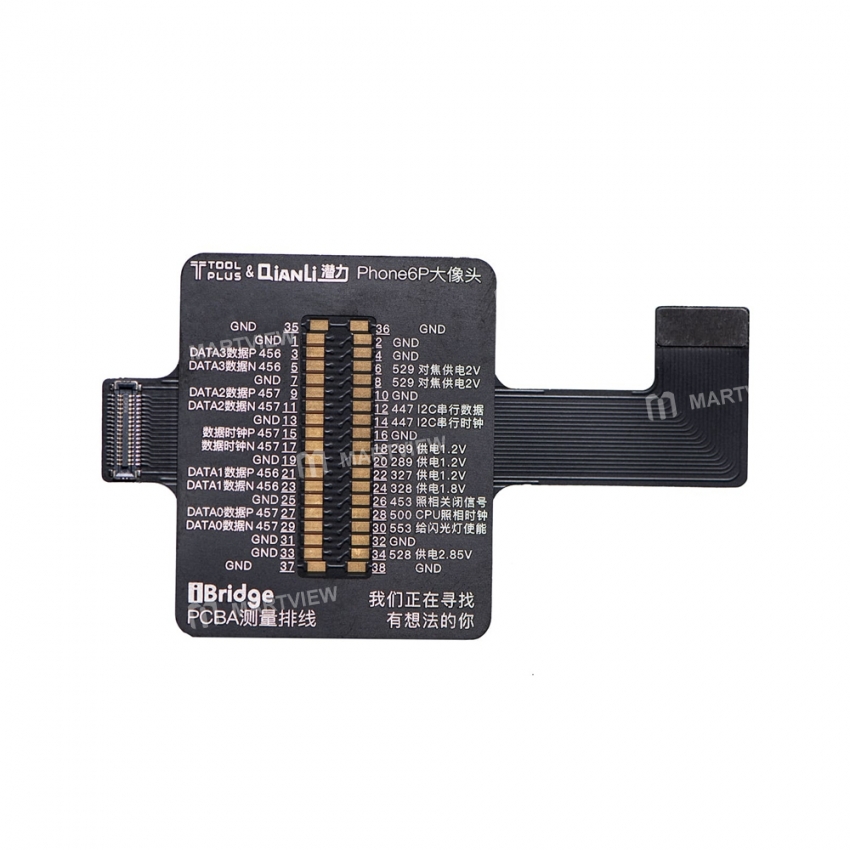

QianLi iBridge PCBA FPC Testing Cable for iPhone 6 / 6P / 6S / 6SP / 7 / 7P / 8 / 8P / X: Front / Rear Camera, Dock Connector, Display & Touch Fault Checking

QianLi iBridge PCBA FPC Testing Cable for iPhone 6/6Plus/6S/6S Plus/7/7 Plus/8/8Plus/X

Front Camera Rear Camera Dock Connector Display Touch Motherboard Fault Checking

Overview

This iBridge FPC testing cable is designed for iPhone 6/6Plus/6S/6S Plus/7/7 Plus/8/8Plus/X, allowing you to test and diagnose faults on your phone's motherboard. The cable provides four types of test cables for rear camera, front facing camera, dock connector, and touch screen.

Key Features

• Accurate Testing: Each model has four type test cables for precise fault checking.
• Compact Design: The phone board layout is precise and compact, with most PIN pins having no epitaxial line of testing.
• Easy to Use: Connect the FPC measure cable to the phone motherboard and use external components or motherboard components to test the circuit.

Use Tips

• Connect the FPC measure cable to the phone motherboard and corresponding components.
• Mark the test points on the FPC with laser printing or ink jet and note the parameters and pins.
• Use a multimeter to measure the resistance parameter of the test point on the FPC connector and compare with a normal device to find the abnormal test point.

What's Included

Package includes:

1 x iBridge flex cable set
